Model # BES450WB2 Official Roper electric range

Here are the diagrams and repair parts for Official Roper BES450WB2 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

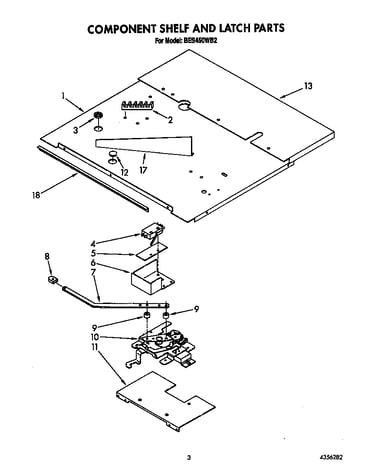

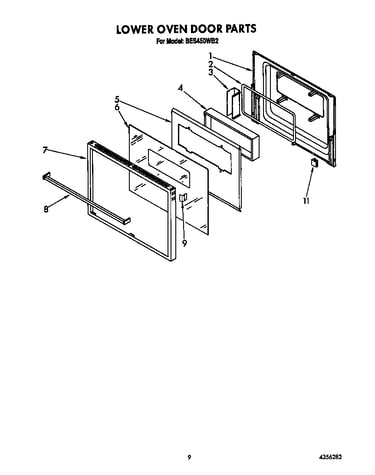

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Screw 4159450
#32A

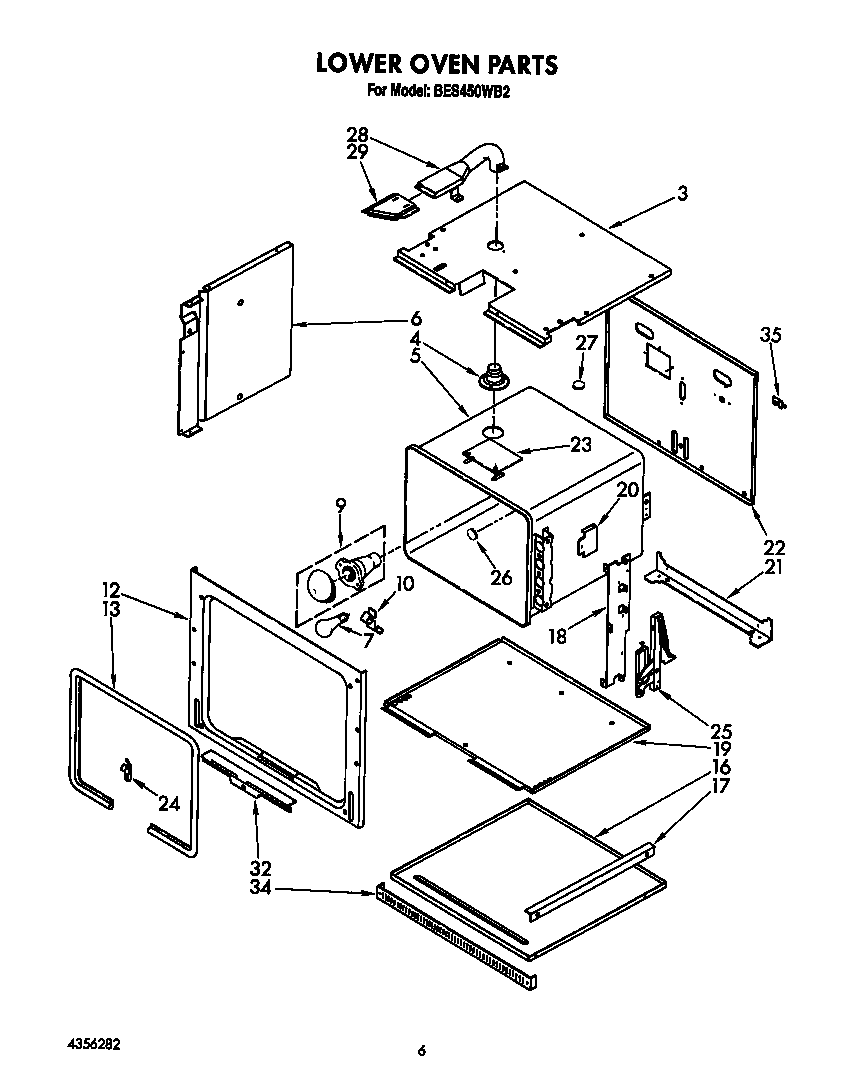

Lower oven diagram

Screw

Part #4159450

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 4159450. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Range Broil Element 660579
#2

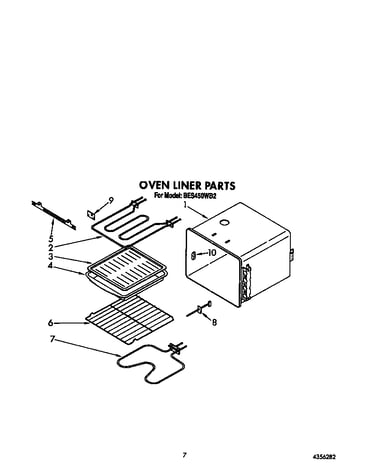

Oven liner diagram

Range broil element

Part #660579

Replaced by #WP660579

?
Manufacturer substitution
This part replaces 660579. Substitute parts can look different from the original.
$67.38 |
8% OFF Phone Price : $73.38
In Stock
Range Screw 3177991
Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Light Socket 3150505
Light socket

Part #3150505

Replaced by #W11594027

?
Manufacturer substitution
This part replaces 3150505. Substitute parts can look different from the original.
$56.53 |
10% OFF Phone Price : $62.53
In Stock
Range Bake Element 661416
#7

Oven liner diagram

Range bake element

Part #661416

Replaced by #WP661416

?
Manufacturer substitution
This part replaces 661416. Substitute parts can look different from the original.
$71.58 |
8% OFF Phone Price : $77.58
In Stock
Vent, Tube (upper Female) 3179922
#35

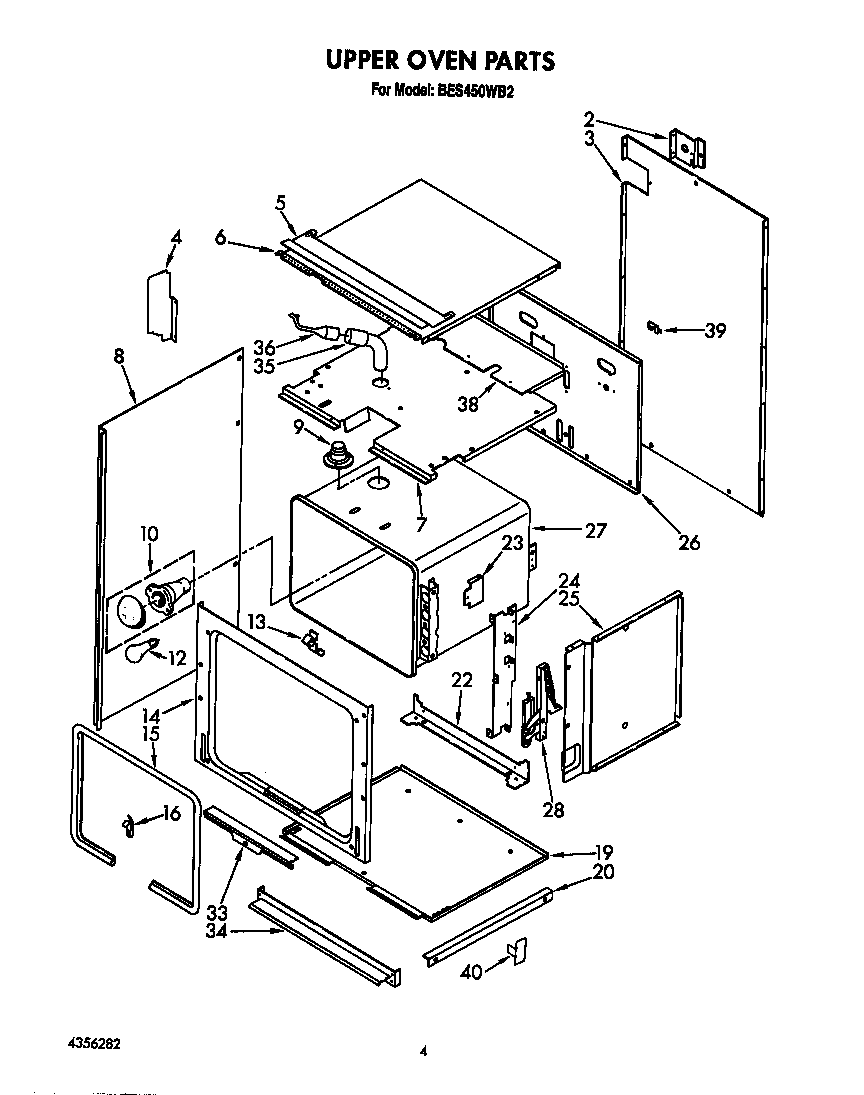

Upper oven diagram

Vent, tube (upper female)

Part #3179922

The manufacturer no longer makes this part, and there's no substitute part

Door Seal 3179814
Door seal

Part #3179814

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Glass Mounting (2) 4163855
#6

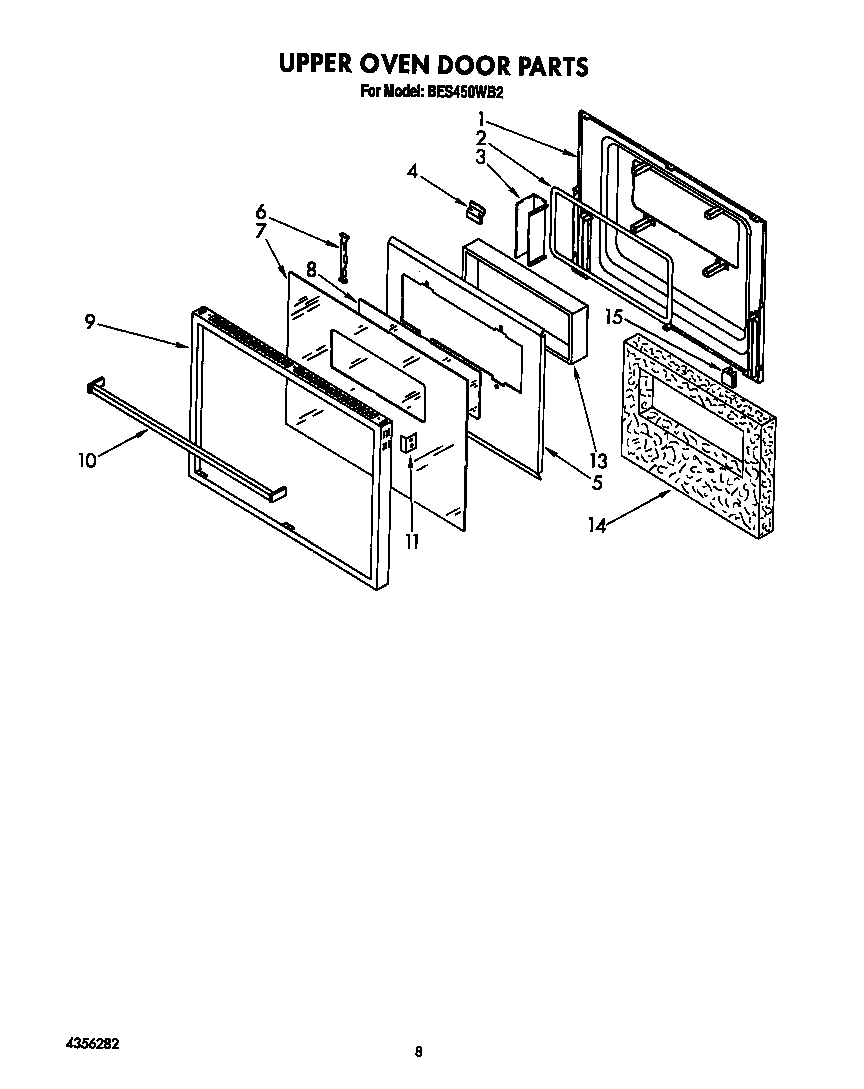

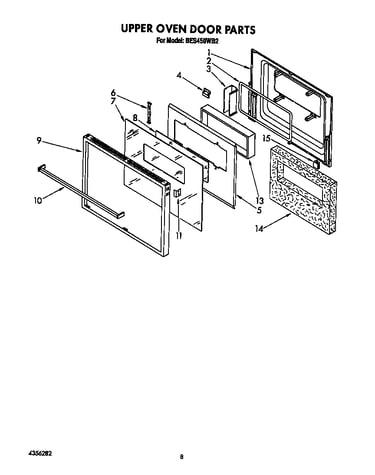

Upper oven door diagram

Bracket, glass mounting (2)

Part #4163855

The manufacturer no longer makes this part, and there's no substitute part

Lens, Clock 3180746
#4

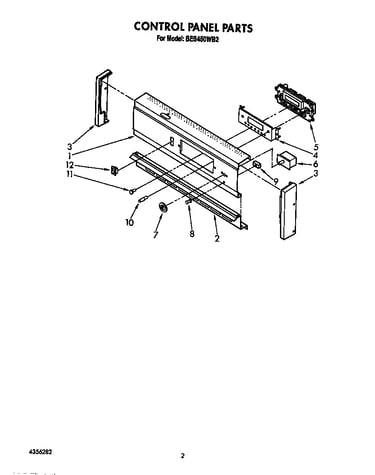

Control diagram

Lens, clock

Part #3180746

The manufacturer no longer makes this part, and there's no substitute part

Ground Clip 357572
#7A

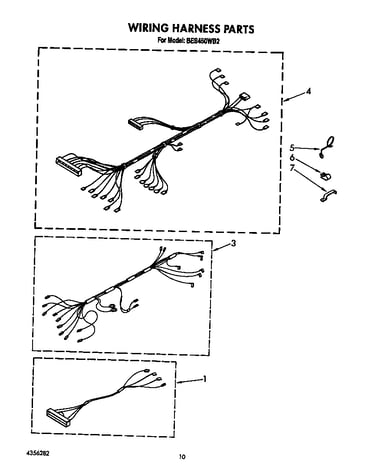

Wiring harness diagram

Ground clip

Part #357572

The manufacturer no longer makes this part, and there's no substitute part
