Fisher & Paykel
Dishwasher

Model # DS605FDSSFPUS88475-A Official Fisher & Paykel dishwasher

Here are the diagrams and repair parts for Official Fisher & Paykel DS605FDSSFPUS88475-A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

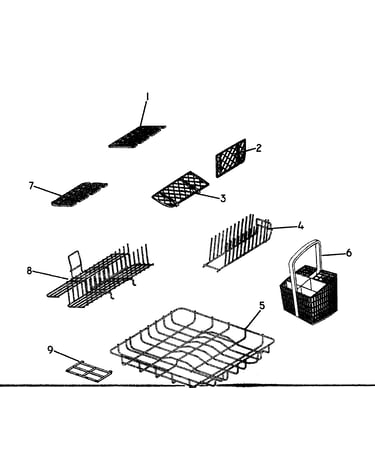

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
Motor Rotor 528136P
#5

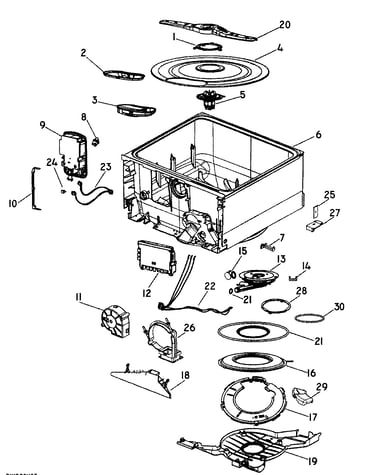

Tubs/components diagram

Motor rotor

Part #528136P

Replaced by #524285P

?
Manufacturer substitution
This part replaces 528136P. Substitute parts can look different from the original.
$178.20 |
6% OFF Phone Price : $190.20
In Stock
Fisher & Paykel Dishwasher Pump Motor 522088
#13

Tubs/components diagram

Fisher & paykel dishwasher pump motor

Part #522088

$204.86 |
6% OFF Phone Price : $216.86
In Stock
Fisher & Paykel Dishwasher Drain Hose Extension Kit 525798
#4A

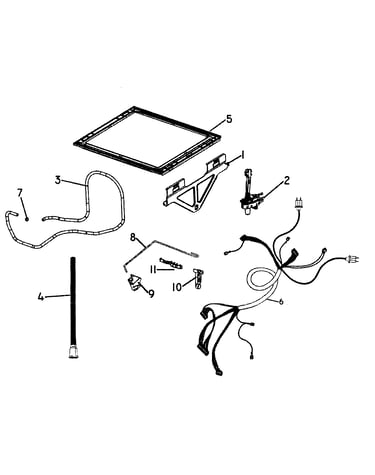

Lid/link assy diagram

Fisher & paykel dishwasher drain hose extension kit

Part #525798

$99.37 |
11% OFF Phone Price : $111.37
In Stock
Fisher & Paykel Dishwasher Drain Hose Clamp, 2-pack 525482P
#9

Installation components diagram

Fisher & paykel dishwasher drain hose clamp, 2-pack

Part #525482P

$18.69 |
10% OFF Phone Price : $20.69
In Stock
Dishwasher Drain Hose 522086
#4

Lid/link assy diagram

Dishwasher drain hose

Part #522086

Replaced by #510852

?
Manufacturer substitution
This part replaces 522086. Substitute parts can look different from the original.
$84.88
In Stock
Power Control Board Assembly 528762P
#11

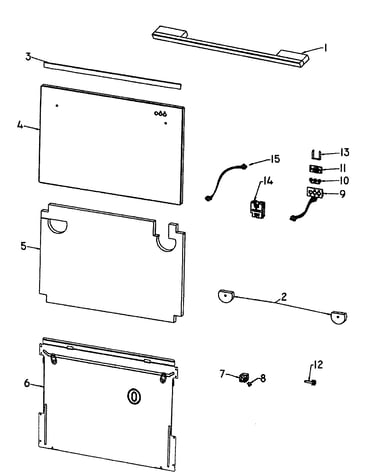

Front panels/controls diagram

Power control board assembly

Part #528762P

The manufacturer no longer makes this part, and there's no substitute part

Fisher & Paykel Dishwasher Water Inlet Valve 529827
#12

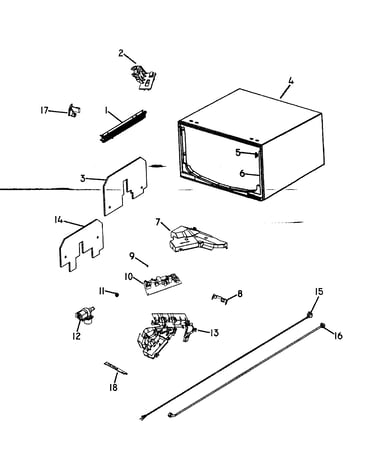

Cabinet parts diagram

Fisher & paykel dishwasher water inlet valve

Part #529827

$30.05 |
17% OFF Phone Price : $36.05
In Stock
Fisher & Paykel Dishwasher Lid Actuator 522085
#2

Lid/link assy diagram

Fisher & paykel dishwasher lid actuator

Part #522085

$115.43 |
9% OFF Phone Price : $127.43
In Stock
Fisher & Paykel Dishwasher Lid Link Support Clip 528162
#10

Lid/link assy diagram

Fisher & paykel dishwasher lid link support clip

Part #528162

$12.09 |
14% OFF Phone Price : $14.09
In Stock
Fisher & Paykel Dishwasher Drain Hose Connector And Clamp Assembly (replaces 525780) 527394
#4B

Lid/link assy diagram

Fisher & paykel dishwasher drain hose connector and clamp assembly (replaces 525780)

Part #527394

$47.10 |
11% OFF Phone Price : $53.10
In Stock
