Model # 942351112 Official Kenmore portable kerosene heater

Here are the diagrams and repair parts for Official Kenmore 942351112 portable kerosene heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |

Base 103-22
#15

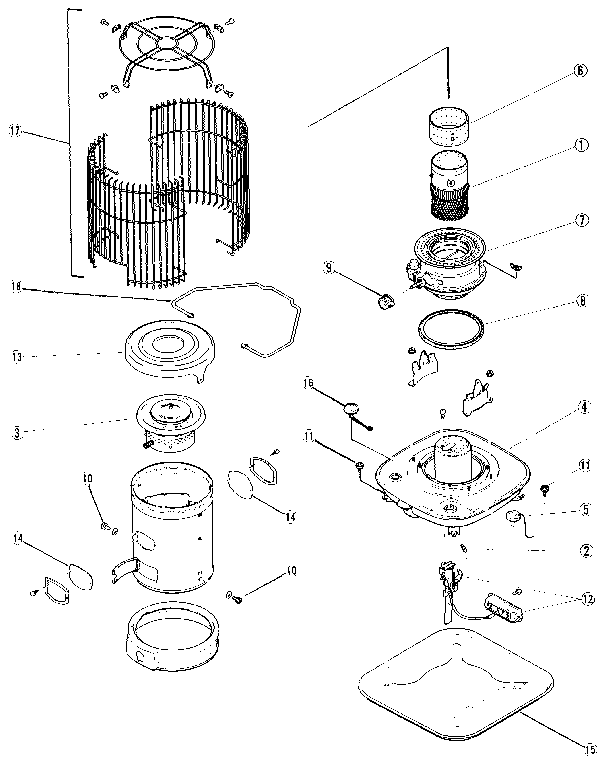

Unit parts diagram

Base

Part #103-22

The manufacturer no longer makes this part, and there's no substitute part

Burner 103-05
#3

Unit parts diagram

Burner

Part #103-05

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Screw 194-14
#10

Unit parts diagram

Cabinet screw

Part #194-14

The manufacturer no longer makes this part, and there's no substitute part

Space Heater Inspection Window 194-21
#14

Unit parts diagram

Space heater inspection window

Part #194-21

The manufacturer no longer makes this part, and there's no substitute part

Gril Guard 103-25
#17

Unit parts diagram

Gril guard

Part #103-25

The manufacturer no longer makes this part, and there's no substitute part

Igniter 199-02
#2

Unit parts diagram

Igniter

Part #199-02

The manufacturer no longer makes this part, and there's no substitute part

Base Screw 192-15
#11

Unit parts diagram

Base screw

Part #192-15

The manufacturer no longer makes this part, and there's no substitute part

Wick Knob 194-12
#9

Unit parts diagram

Wick knob

Part #194-12

The manufacturer no longer makes this part, and there's no substitute part

Tank Cap 192-07
#5

Unit parts diagram

Tank cap

Part #192-07

The manufacturer no longer makes this part, and there's no substitute part

Fuel Tank 103-06A
#4

Unit parts diagram

Fuel tank

Part #103-06A

The manufacturer no longer makes this part, and there's no substitute part
