Model # PB-202 Official Craftsman blower
Here are the diagrams and repair parts for Official Craftsman PB-202 blower, as well as links to manuals and error code tables, if available.
By Schematic

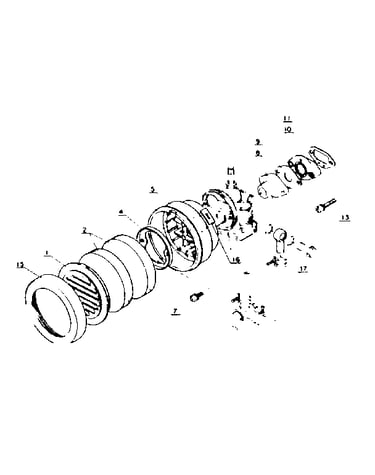

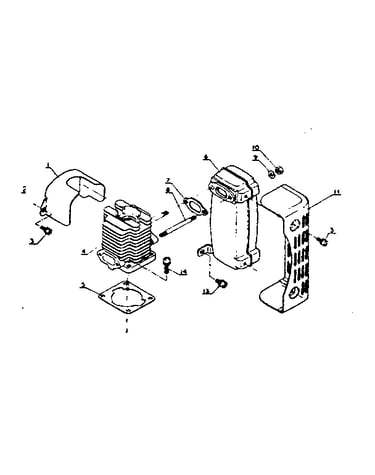

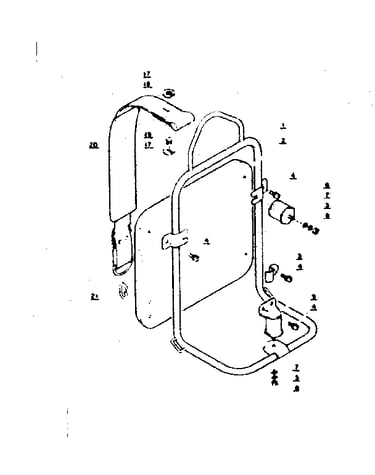

SELECT DIAGRAM
Browse Parts for
PB-202 Leaf Blowers
#4

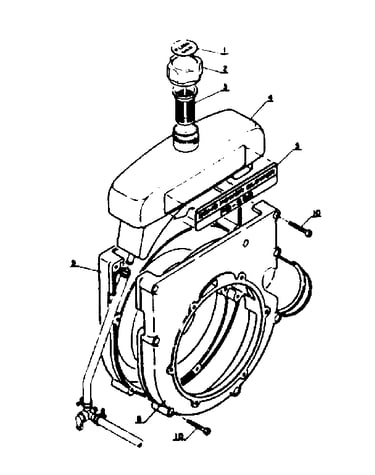

Fuel tank and fancase diagram
Fuel tank
Part #131010-00660
The manufacturer no longer makes this part, and there's no substitute part
#17

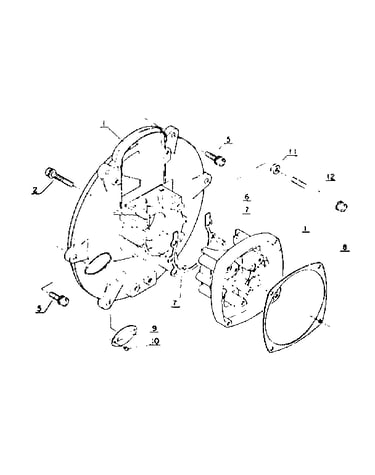

Crankshaft, piston diagram
Spacer
Part #100-132-1021-0
The manufacturer no longer makes this part, and there's no substitute part
#18

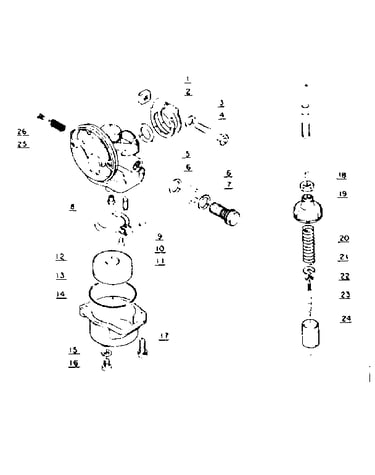

Carburetor diagram
Nut
Part #120-111-0473-0
The manufacturer no longer makes this part, and there's no substitute part
#2

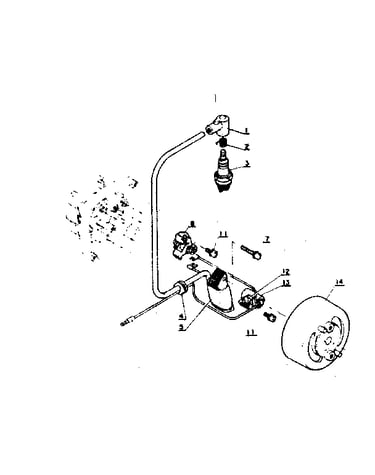

Magneto diagram
Coil spring, spark plug cap
Part #159-011-0051-0
The manufacturer no longer makes this part, and there's no substitute part
#28
Carburetor diagram
Body ass'y, carburetor - not available
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part
#1
Magneto diagram
Spark plug cap
Part #159-012-0162-0
The manufacturer no longer makes this part, and there's no substitute part
#11

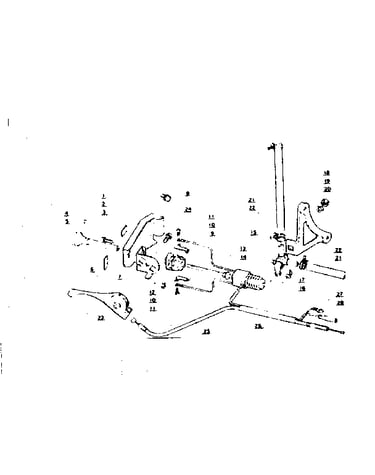

Switch and throttle diagram
Screw 3x6
Part #900-220-0300-6
The manufacturer no longer makes this part, and there's no substitute part
#20
Crankshaft, piston diagram
Washer 10
Part #900-600-0001-0
The manufacturer no longer makes this part, and there's no substitute part
Washer 5
Part #900-600-0000-5
The manufacturer no longer makes this part, and there's no substitute part
#7
Blowing pipe and tool diagram
Clamp
Part #210-407-0111-0
The manufacturer no longer makes this part, and there's no substitute part
Symptoms for gas leaf blowers
Choose a symptom to see related leaf blower repairs.
Main causes: cracked fuel lines, leaky carburetor seals, damaged fuel tank cap, cracked fuel tank…
Main causes: damaged fan blade, engine needs a tune up, dirty carburetor…
Main causes: stale fuel, dirty air filter, bad spark plug, cracked fuel lines, clogged carburetor…
Main causes: mixing too much 2-cycle oil with the gas, dirty air filter, clogged carburetor, engine needs tune up…
Main causes: bad gas, clogged air filter, cracked fuel lines, clogged fuel filter, dirty carburetor, bad spark plug, wor…
Repair guides for gas leaf blowers
These step-by-step repair guides will help you safely fix what’s broken on your leaf blower.
How to replace a leaf blower carburetor
The carburetor could be the problem If the leaf blower engine won't start even though there's fuel in the tank. Follow t…
Repair difficulty
Time required
 15 minutes or less
How to replace leaf blower fuel lines
Leaf blower fuel lines deteriorate with time and eventually can split or crack. You can remove and replace them yourself…
Repair difficulty
Time required
 60 minutes or less
How to rebuild a leaf blower carburetor
If the leaf blower engine won't start even though there's fuel in the tank, the carburetor could be the problem. Follow …
Repair difficulty
Time required
 60 minutes or less
Articles and videos for gas leaf blowers
Use the advice and tips in these articles to get the most out of your leaf blower.
Learn about the top 10 must-have electric lawn & garden tools for 2023…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Follow this advice for caring for your leaf blower.…
