Model # JGBS04PV3WH Official GE gas range

Here are the diagrams and repair parts for Official GE JGBS04PV3WH gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Range Screw WB1K42
Range screw

Part #WB1K42

Replaced by #WB1K5062

?
Manufacturer substitution
This part replaces WB1K42. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Screw (replaces Wb01k10018, Wb01x5364) WB1X5364
#108

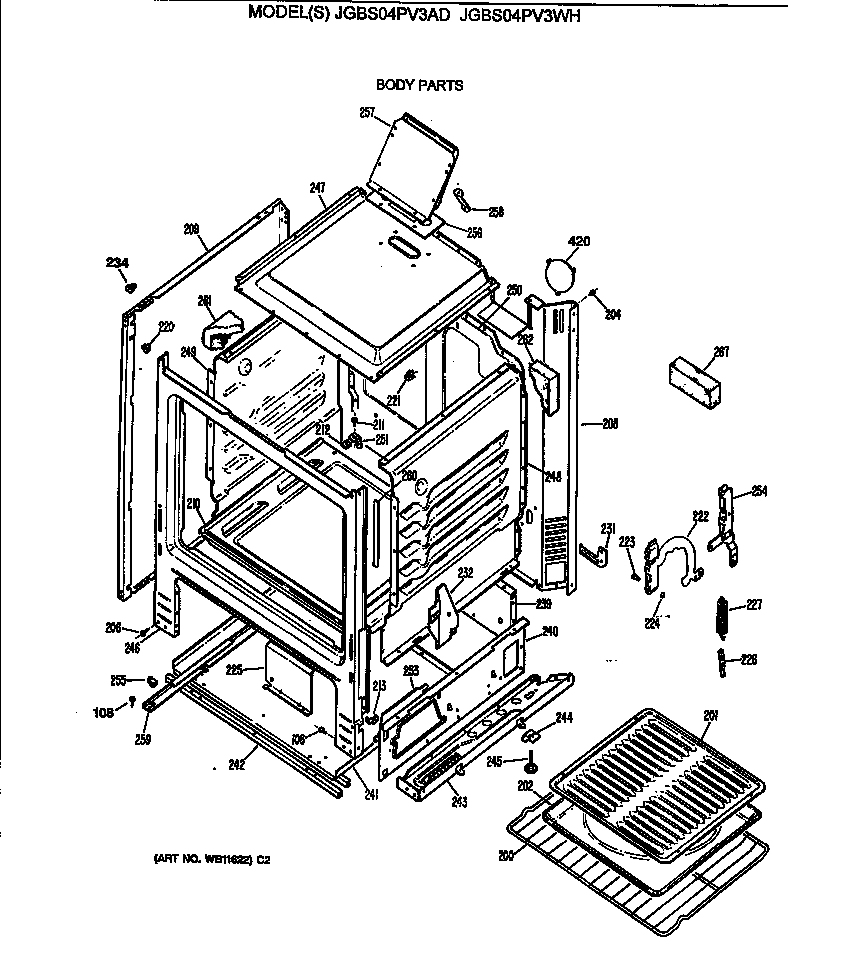

Body parts diagram

Range screw (replaces wb01k10018, wb01x5364)

Part #WB1X5364

$7.90 |
11% OFF Phone Price : $8.90
In Stock
Range Screw WB1K83
#21

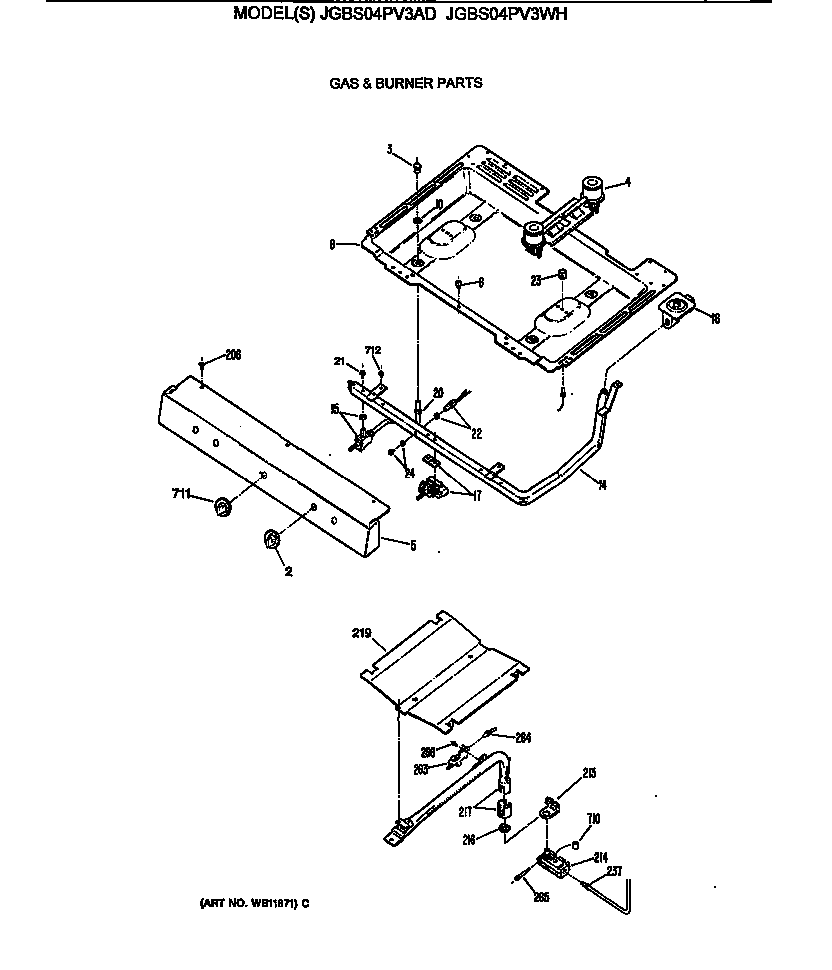

Gas & burner parts diagram

Range screw

Part #WB1K83

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Grommet Handle WB1K10
#333

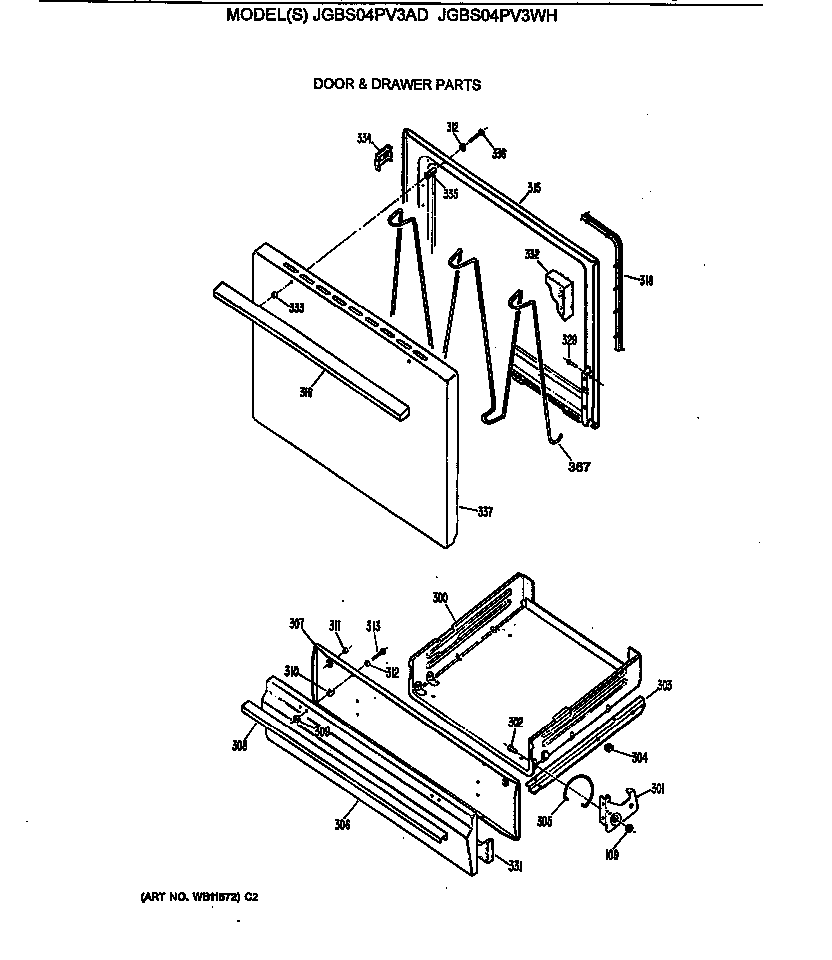

Door & drawer parts diagram

Grommet handle

Part #WB1K10

This item is not returnable
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Range Oven Door Hinge Screw WB1K53
#254A

Body parts diagram

Range oven door hinge screw

Part #WB1K53

$7.69 |
12% OFF Phone Price : $8.69
In Stock
Range Oven Burner Safety Valve Bracket WB2K65
#215

Gas & burner parts diagram

Range oven burner safety valve bracket

Part #WB2K65

$6.51 |
13% OFF Phone Price : $7.51
In Stock
Range Oven Door Hinge Support Bracket, Right WB10K13
#254B

Body parts diagram

Range oven door hinge support bracket, right

Part #WB10K13

This item is not returnable
$23.59 |
20% OFF Phone Price : $29.59
In Stock
Capillary Clip WB2K10
#221

Body parts diagram

Capillary clip

Part #WB2K10

Replaced by #WB02K10073

?
Manufacturer substitution
This part replaces WB2K10. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Screw And Washer WB1K45
#120

Cooktop diagram

Range screw and washer

Part #WB1K45

This item is not returnable
$8.11
In Stock
Range Main Top Hinge, Right WB10K18
#122A

Cooktop diagram

Range main top hinge, right

Part #WB10K18

$8.11
In Stock
