LG
Side-By-Side Refrigerator

Model # LRSC26980TT Official LG side-by-side refrigerator

Here are the diagrams and repair parts for Official LG LRSC26980TT side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 216 parts  |
Refrigerator Drier Assembly 5851JA2006G
#317A

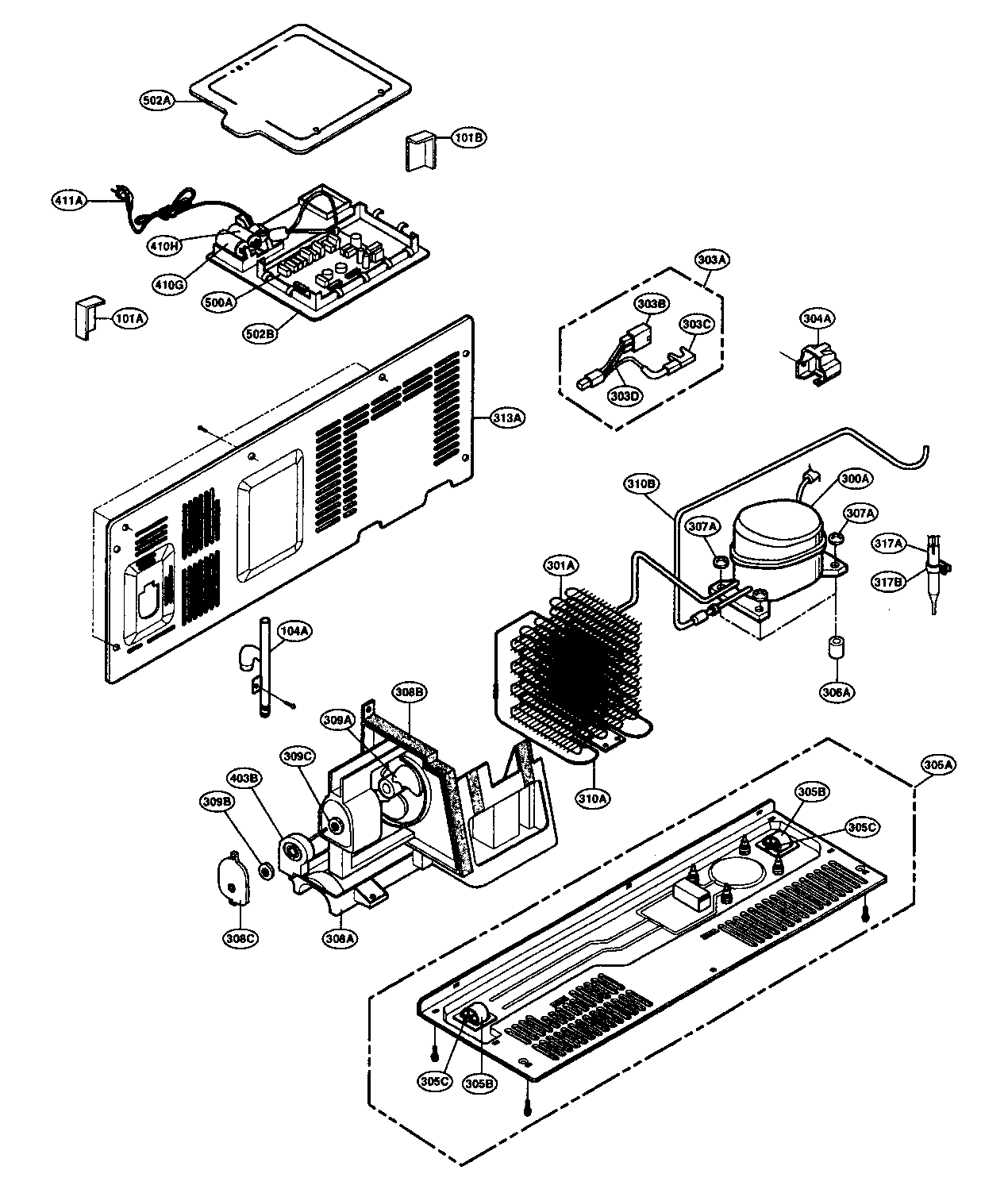

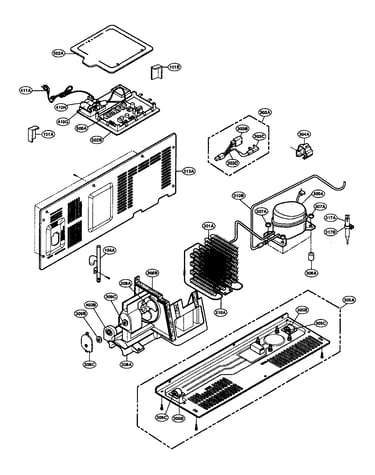

Machine parts diagram

Refrigerator drier assembly

Part #5851JA2006G

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2006G. Substitute parts can look different from the original.
BEST SELLER
$65.17 |
8% OFF Phone Price : $71.17
In Stock
Refrigerator Water Filter 5231JA2006A
#624A

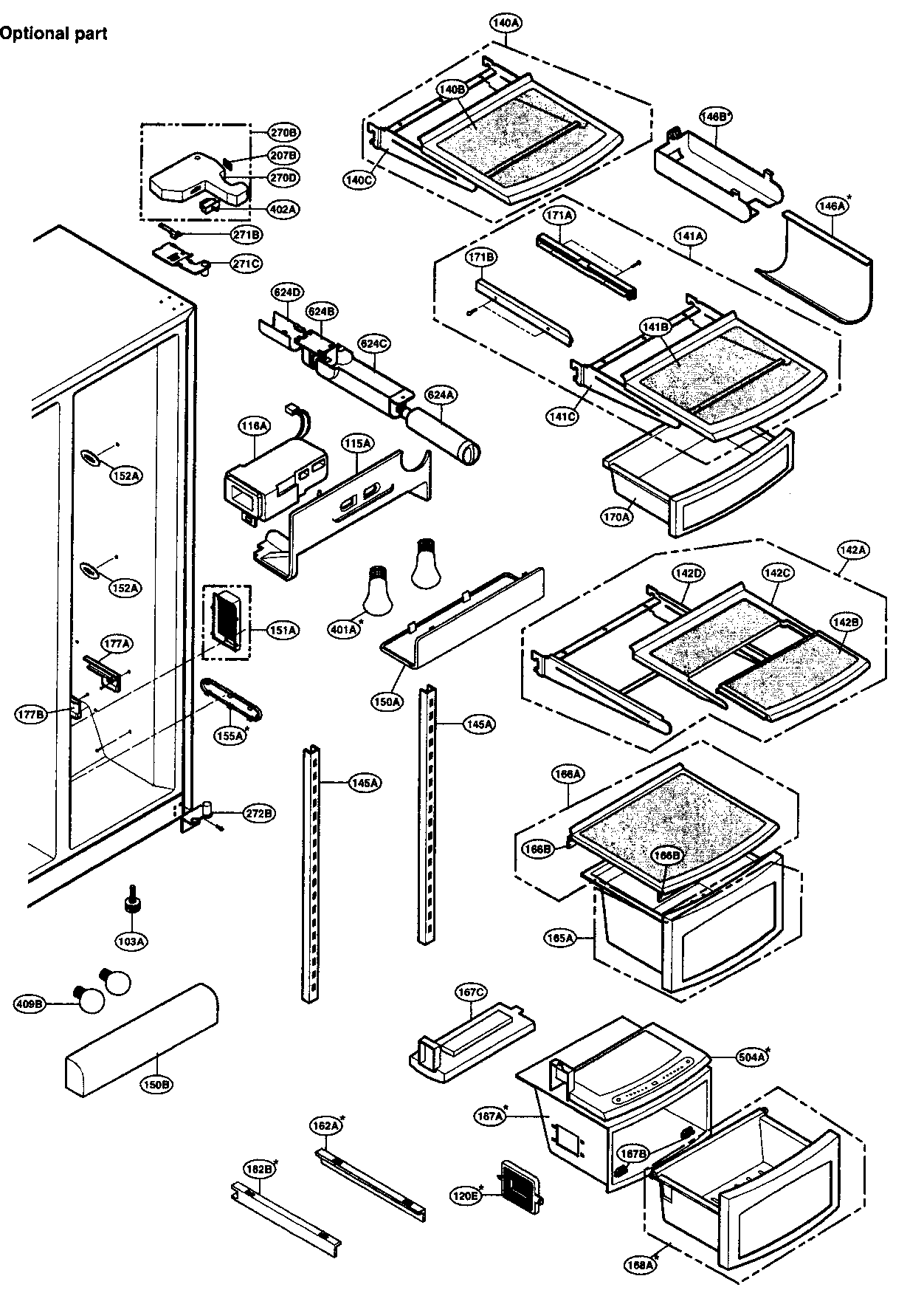

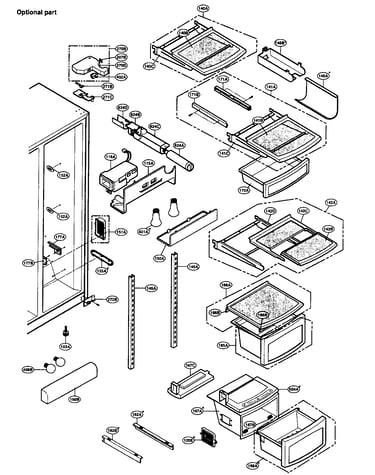

Refrigerator parts diagram

Refrigerator water filter

Part #5231JA2006A

Replaced by #5231JA2006F

?
Manufacturer substitution
This part replaces 5231JA2006A. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$55.95
In Stock
Switch,mic 6600JB3001B
#402C

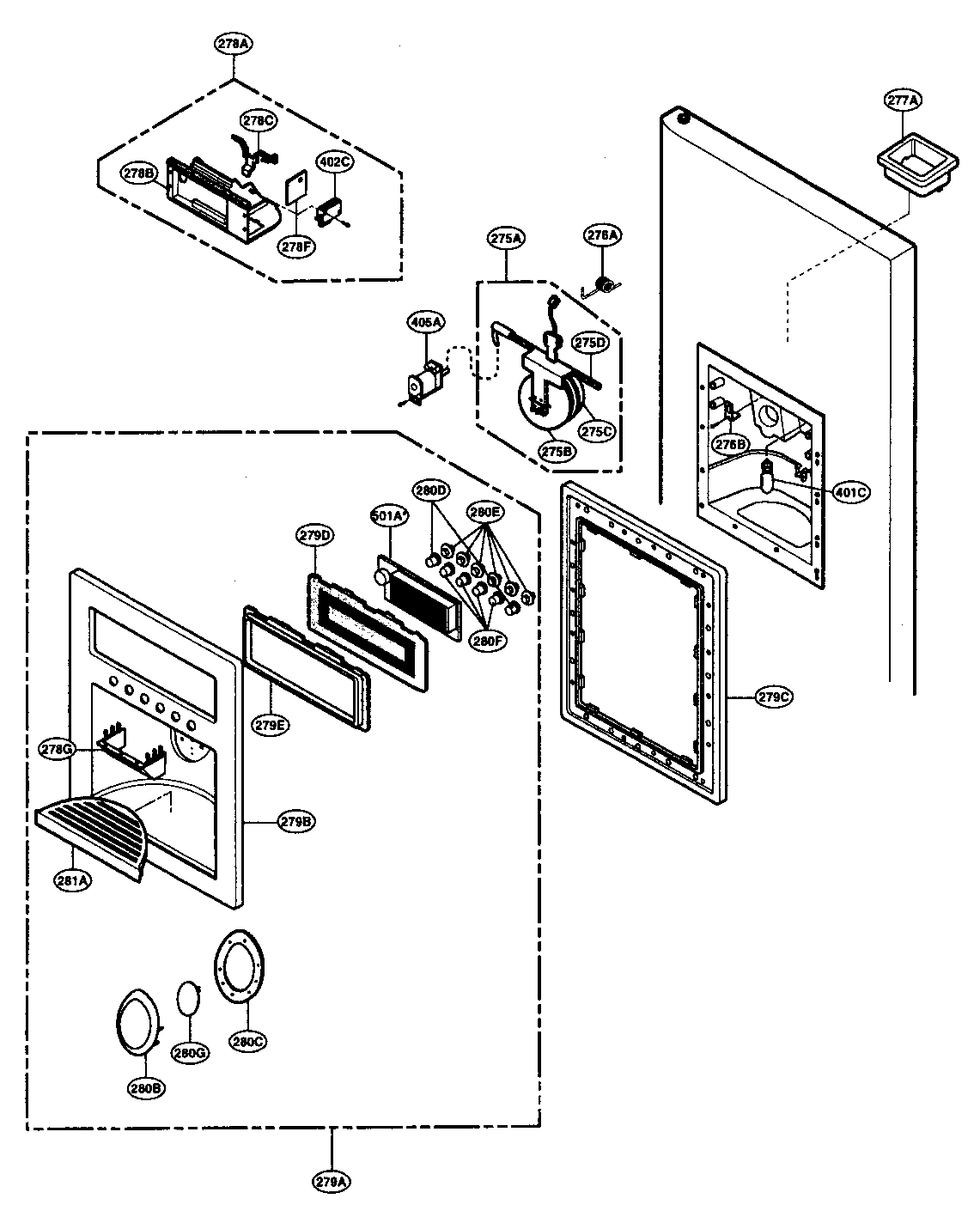

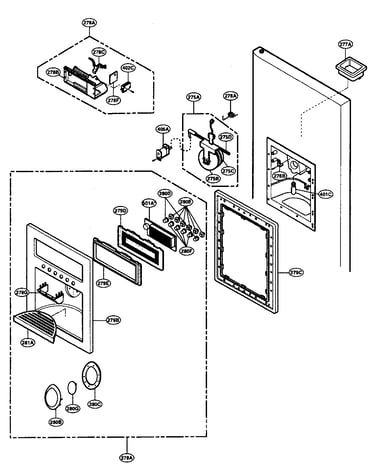

Dispenser parts diagram

Switch,mic

Part #6600JB3001B

Replaced by #6600JB3001C

?
Manufacturer substitution
This part replaces 6600JB3001B. Substitute parts can look different from the original.
BEST SELLER
$34.88 |
15% OFF Phone Price : $40.88
In Stock
Kenmore Refrigerator Water Tubing, 91-3/4-inch (replaces 5210ja3005g, 5210ja3005q, 5210ja3005s) 5210JA3005E
#616G

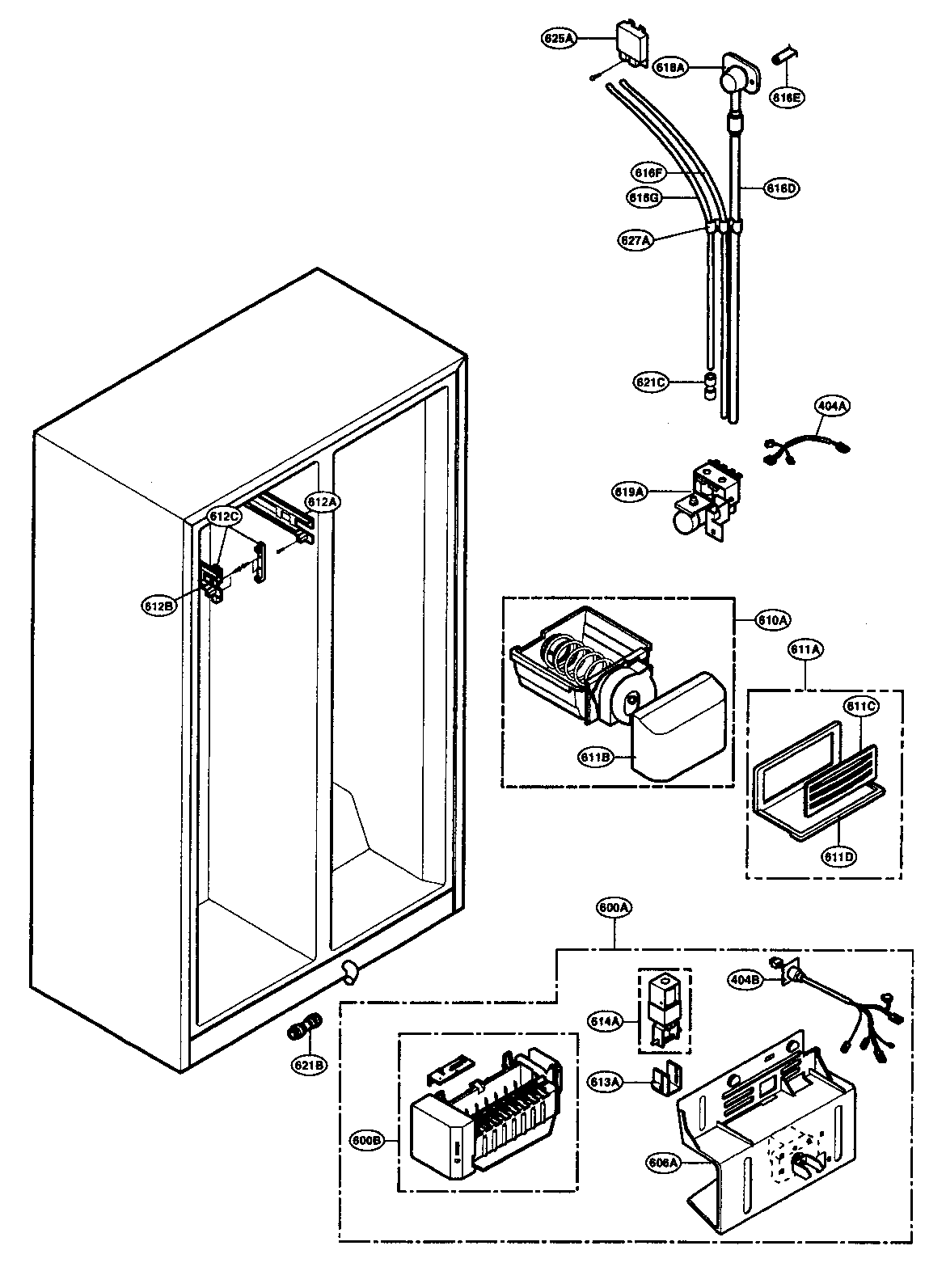

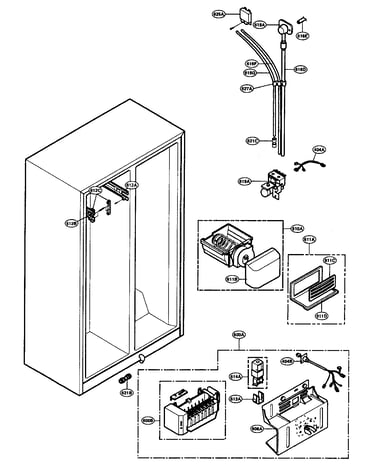

Ice/water parts diagram

Kenmore refrigerator water tubing, 91-3/4-inch (replaces 5210ja3005g, 5210ja3005q, 5210ja3005s)

Part #5210JA3005E

BEST SELLER
$16.75 |
11% OFF Phone Price : $18.75
In Stock
Refrigerator Door Hinge 4621JA3002H
#233A

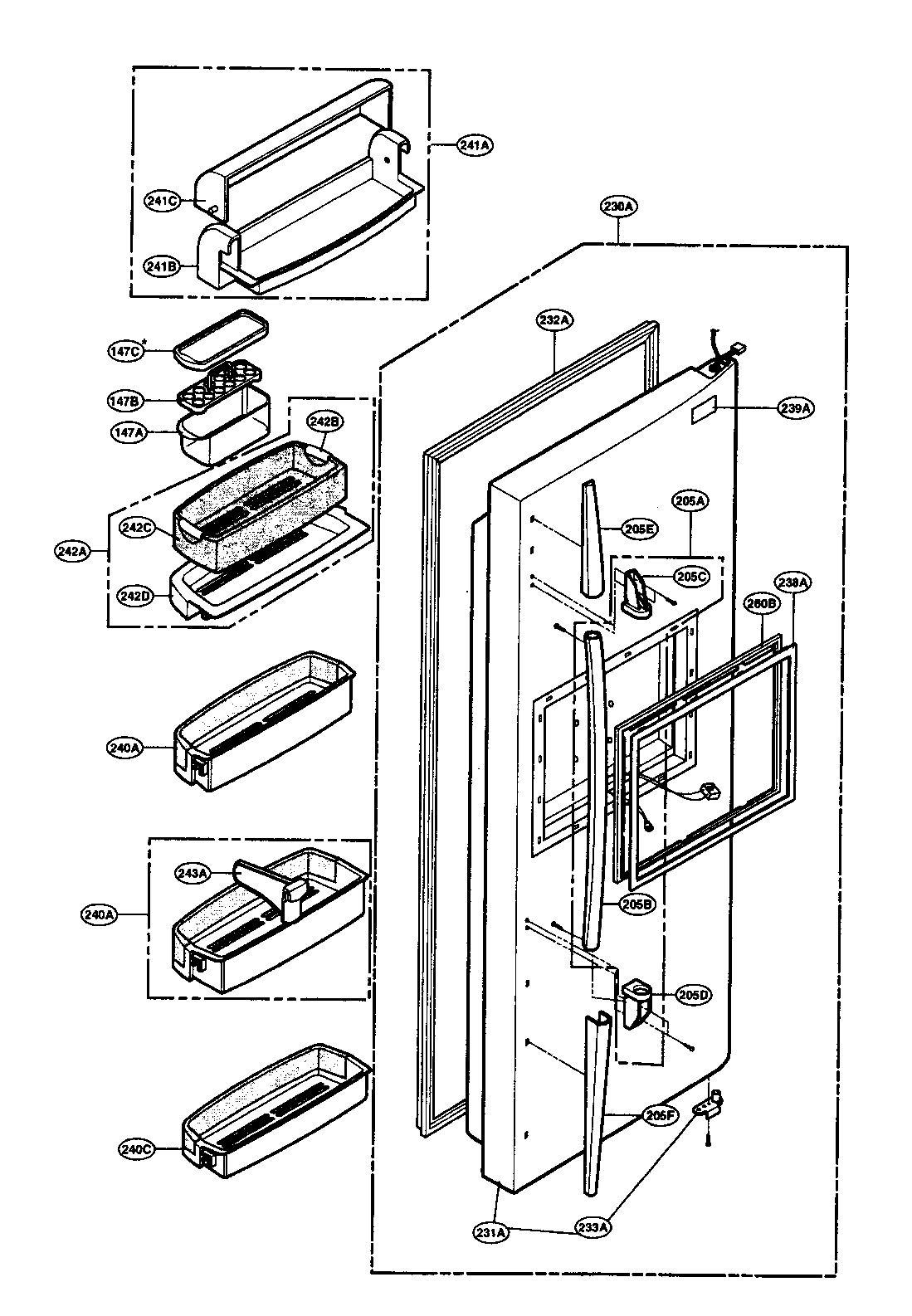

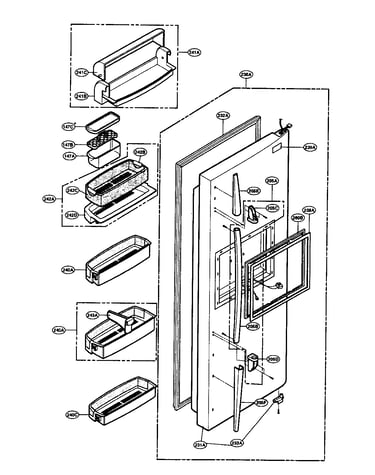

Refrigerator door parts diagram

Refrigerator door hinge

Part #4621JA3002H

Replaced by #AJC34211602

?
Manufacturer substitution
This part replaces 4621JA3002H. Substitute parts can look different from the original.
BEST SELLER
$16.64 |
11% OFF Phone Price : $18.64
In Stock
Refrigerator Motor Support Damper 5040JA2009B
#136C

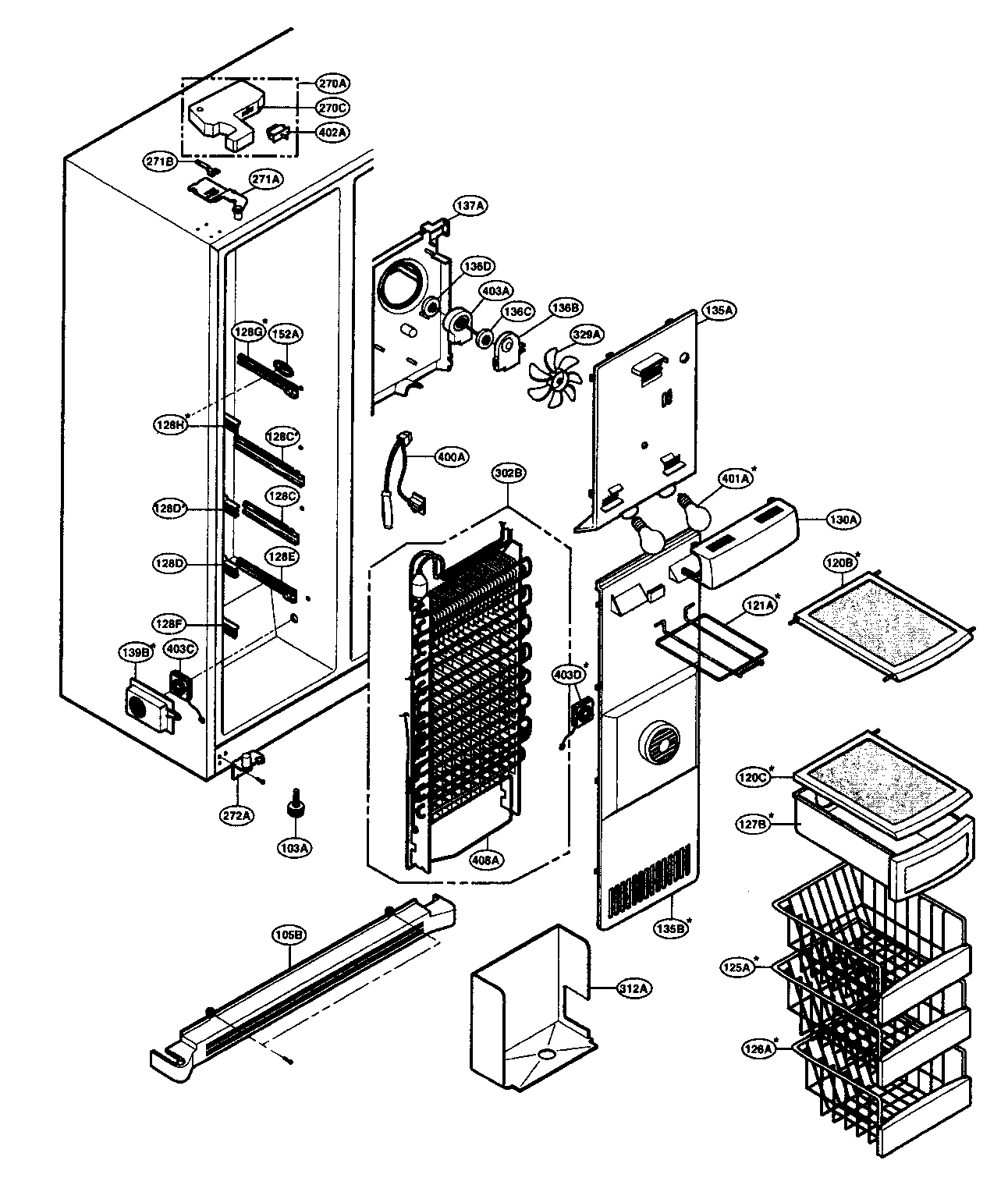

Freezer parts diagram

Refrigerator motor support damper

Part #5040JA2009B

BEST SELLER
This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
Refrigerator Door Hinge 4775JA2085A
#272A

Freezer parts diagram

Refrigerator door hinge

Part #4775JA2085A

Replaced by #4775JA2113A

?
Manufacturer substitution
This part replaces 4775JA2085A. Substitute parts can look different from the original.
BEST SELLER
$33.05 |
15% OFF Phone Price : $39.05
In Stock
Refrigerator Hinge Assembly 4775JA2085B
#272B

Freezer parts diagram

Refrigerator hinge assembly

Part #4775JA2085B

Replaced by #4775JA2113A

?
Manufacturer substitution
This part replaces 4775JA2085B. Substitute parts can look different from the original.
BEST SELLER
$33.05 |
15% OFF Phone Price : $39.05
In Stock
Refrigerator Dispenser Ice Chute Door (replaces 5007ja3006k, 5007jq3001r) 5007JA3006R
#275A

Dispenser parts diagram

Refrigerator dispenser ice chute door (replaces 5007ja3006k, 5007jq3001r)

Part #5007JA3006R

BEST SELLER
$35.70 |
14% OFF Phone Price : $41.70
In Stock
Refrigerator Dispenser Lever Bracket 4930JA3043A
#276B

Dispenser parts diagram

Refrigerator dispenser lever bracket

Part #4930JA3043A

This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
