Model # FCM25DTBWH Official GE freezer - d series
Here are the diagrams and repair parts for Official GE FCM25DTBWH freezer - d series, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts forFCM25DTBWH Freestanding Freezers
- #114

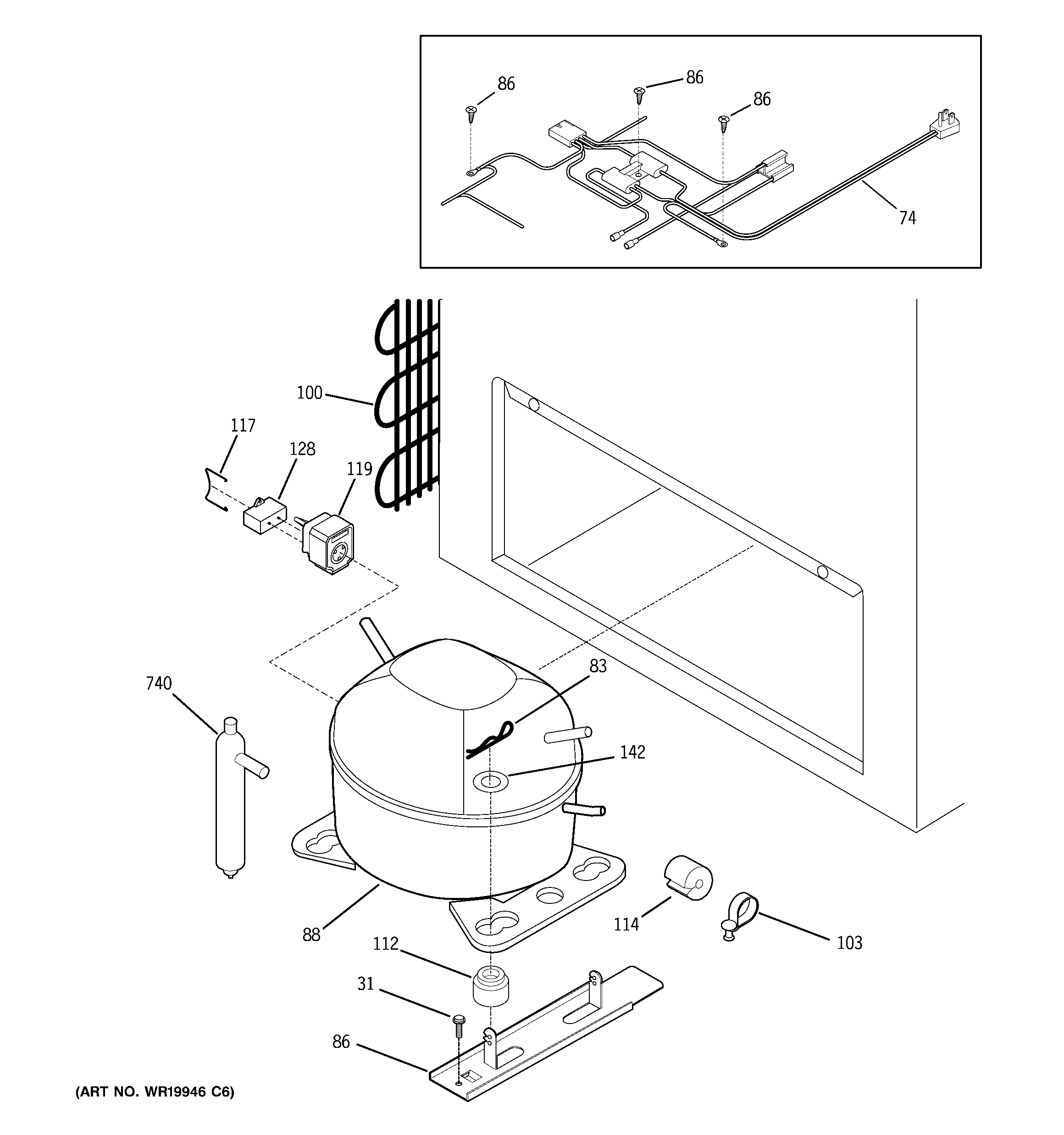

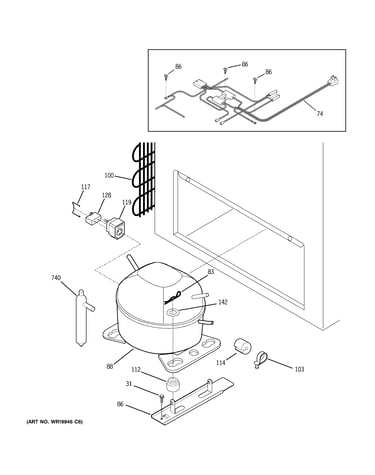

Unit parts diagram
Compressor spacerPart #WR01X10664
$11.06In Stock - #40

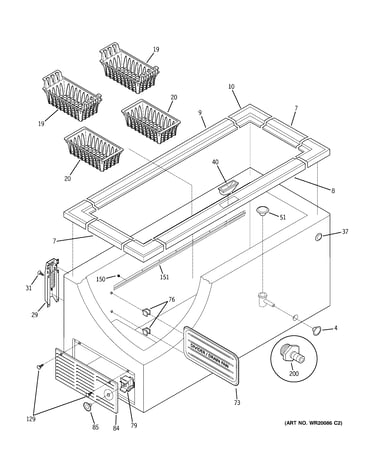

Cabinet diagram
Catch-lock wPart #WR02X12337
$25.80In Stock - #28

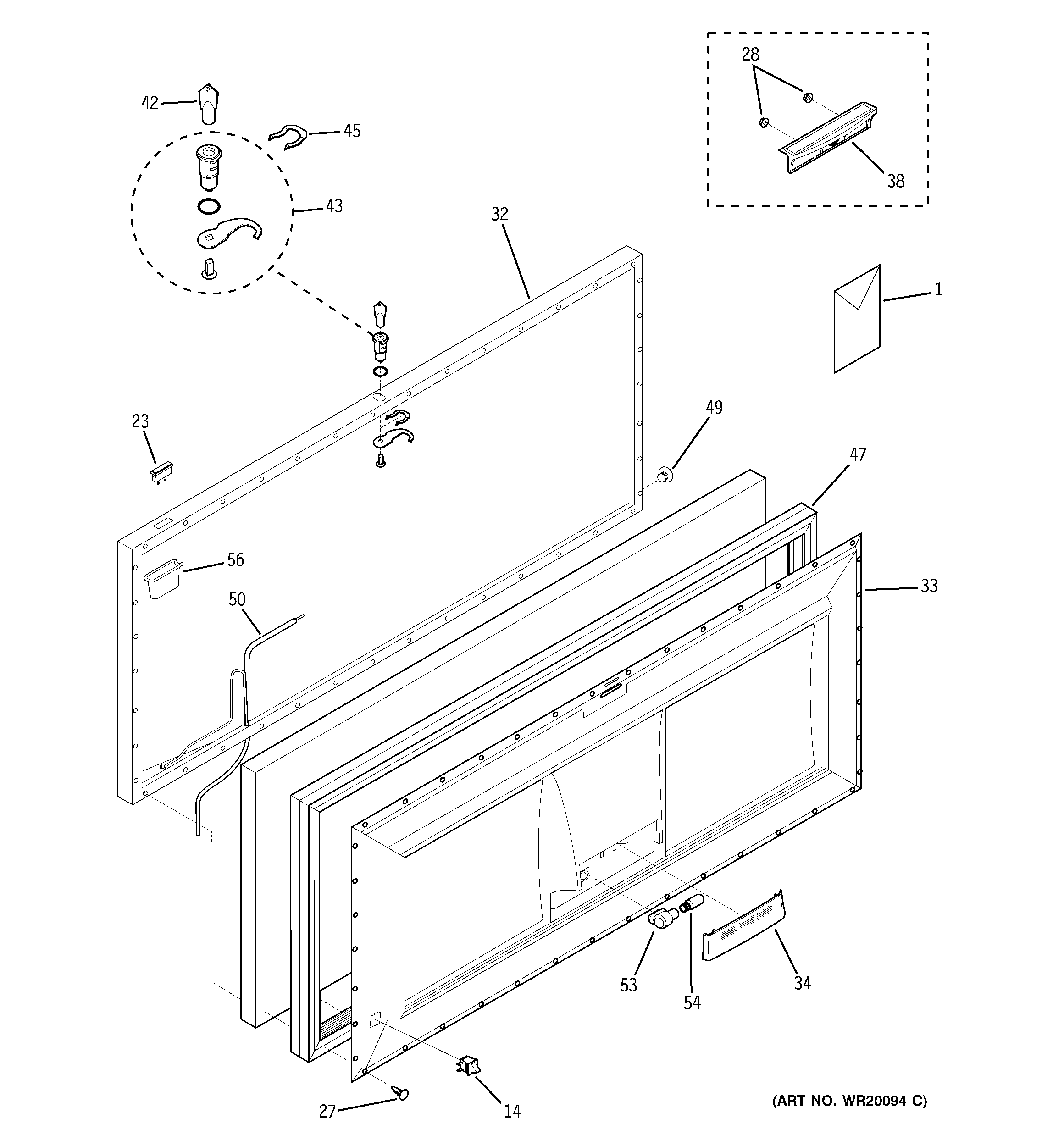

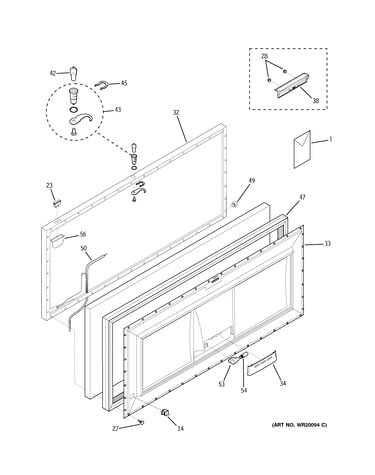

Freezer door diagram
Fastener, .3Part #WR01X10492
$15.86In Stock - #49
Freezer door diagram
Plugbutton1/Part #WR02X11935
$9.51In Stock - #50
Freezer door diagram
Wire harnessPart #WR23X10457
$141.18In Stock - #84
Cabinet diagram
Access panelPart #WR17X3069
$138.20In Stock - #4
Cabinet diagram
Freezer cabinet hole plugPart #WR02X12063
$34.22In Stock - #14
Freezer door diagram
Freezer door switchPart #WR23X10303
$66.36 |8% OFF Phone Price : $72.36In Stock - #85
Cabinet diagram
Temperature complete knobPart #WR02X10860
$43.05 |12% OFF Phone Price : $49.05In Stock - #150
Cabinet diagram
Support trackPart #WR02X12326
$9.51In Stock
