Model # FLGB8200FS5 Official Frigidaire stacked laundry center

Here are the diagrams and repair parts for Official Frigidaire FLGB8200FS5 stacked laundry center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

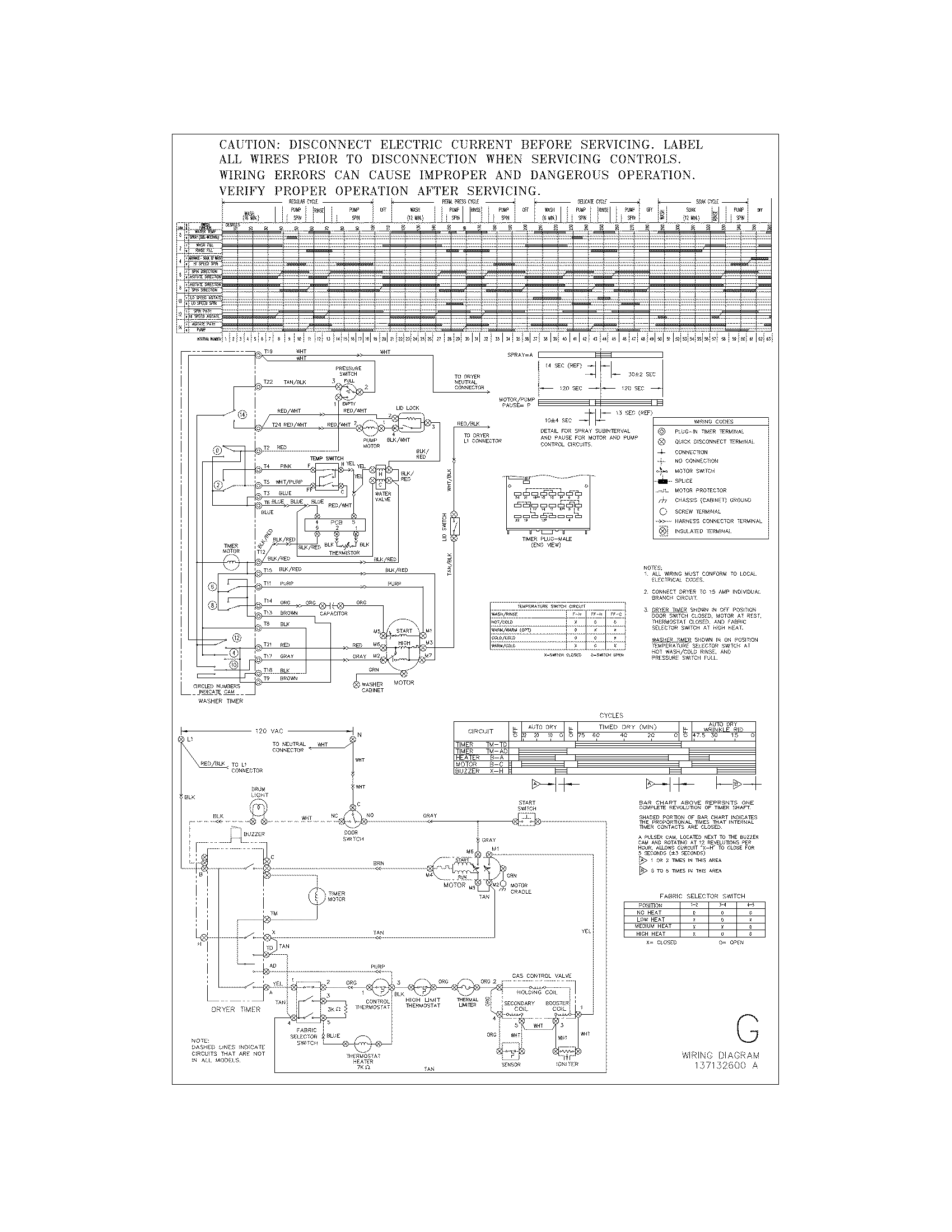

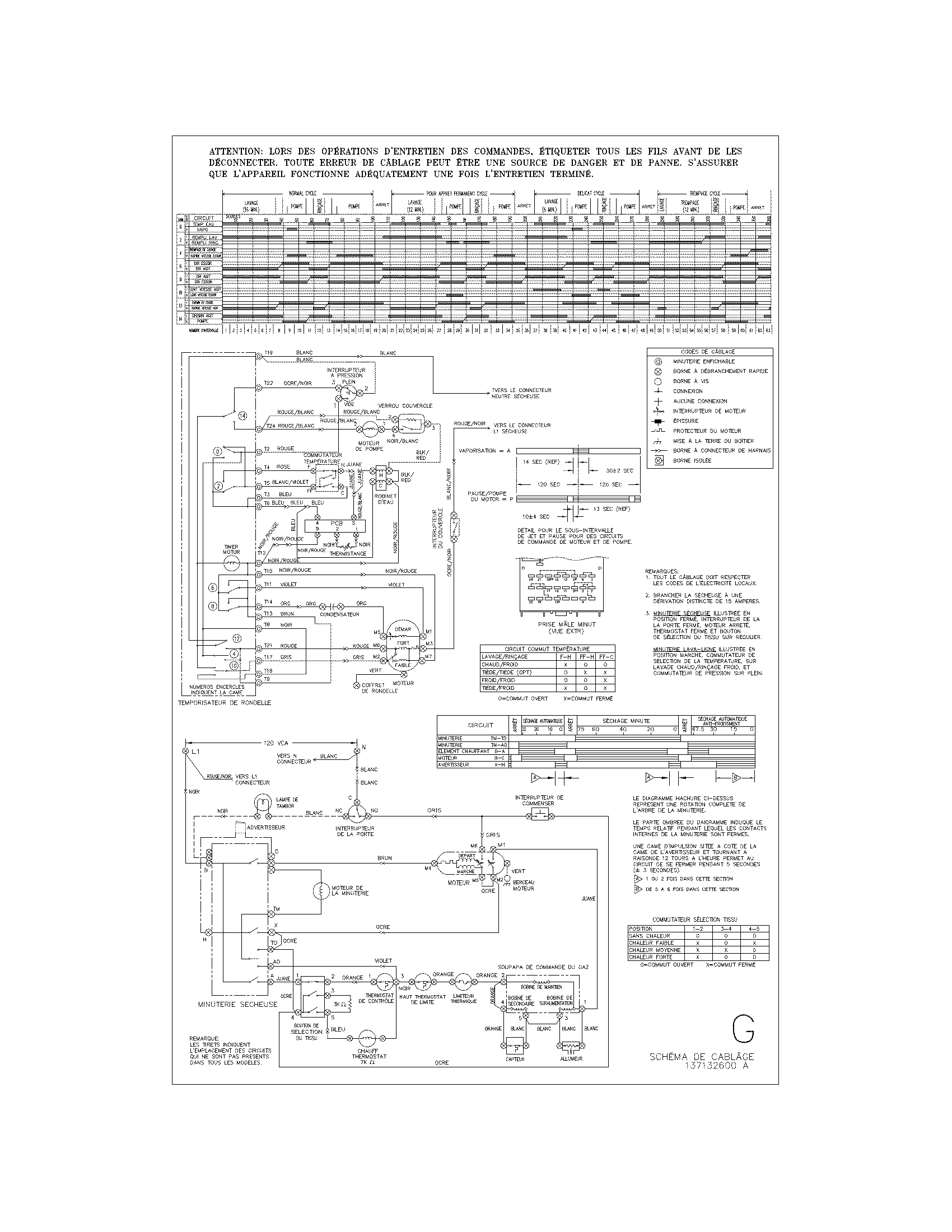

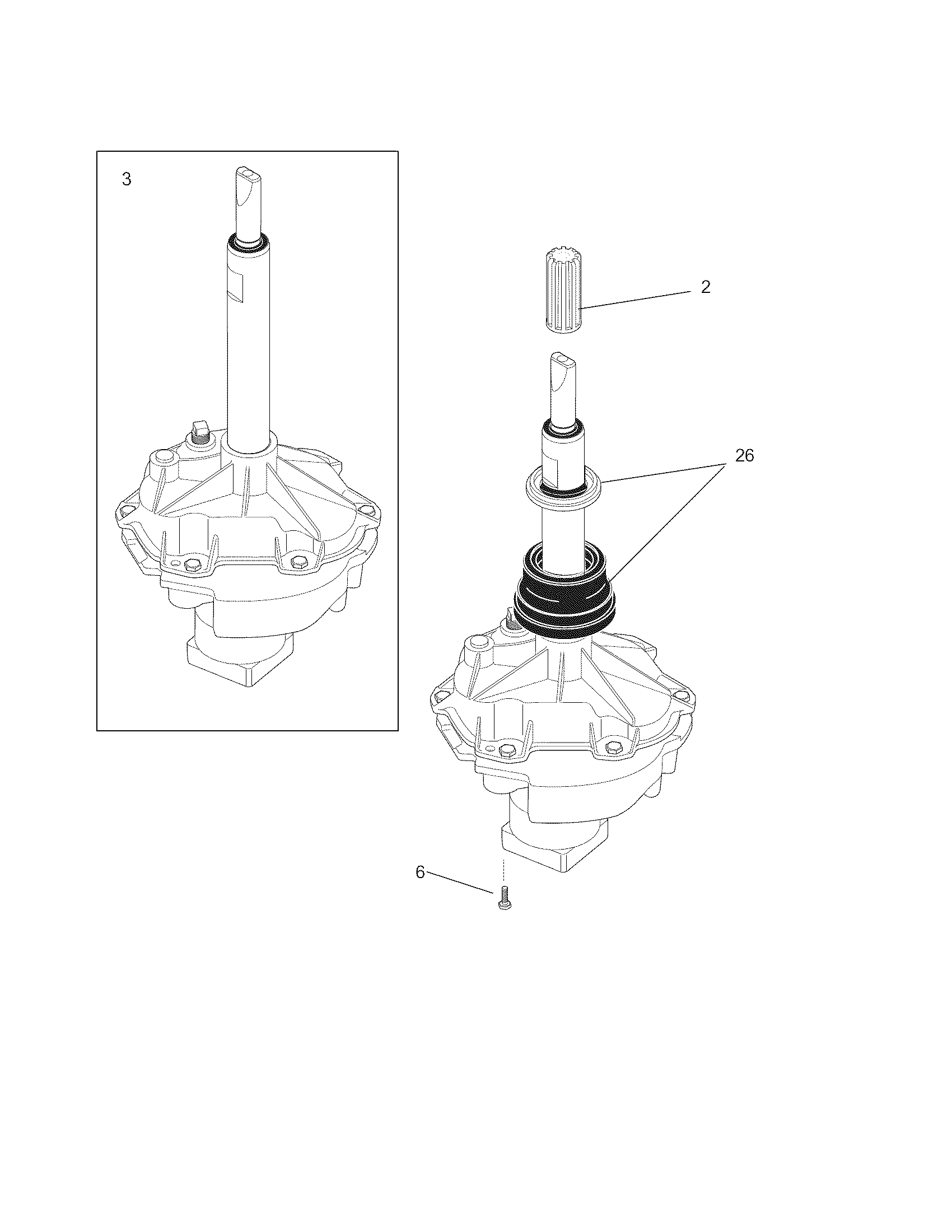

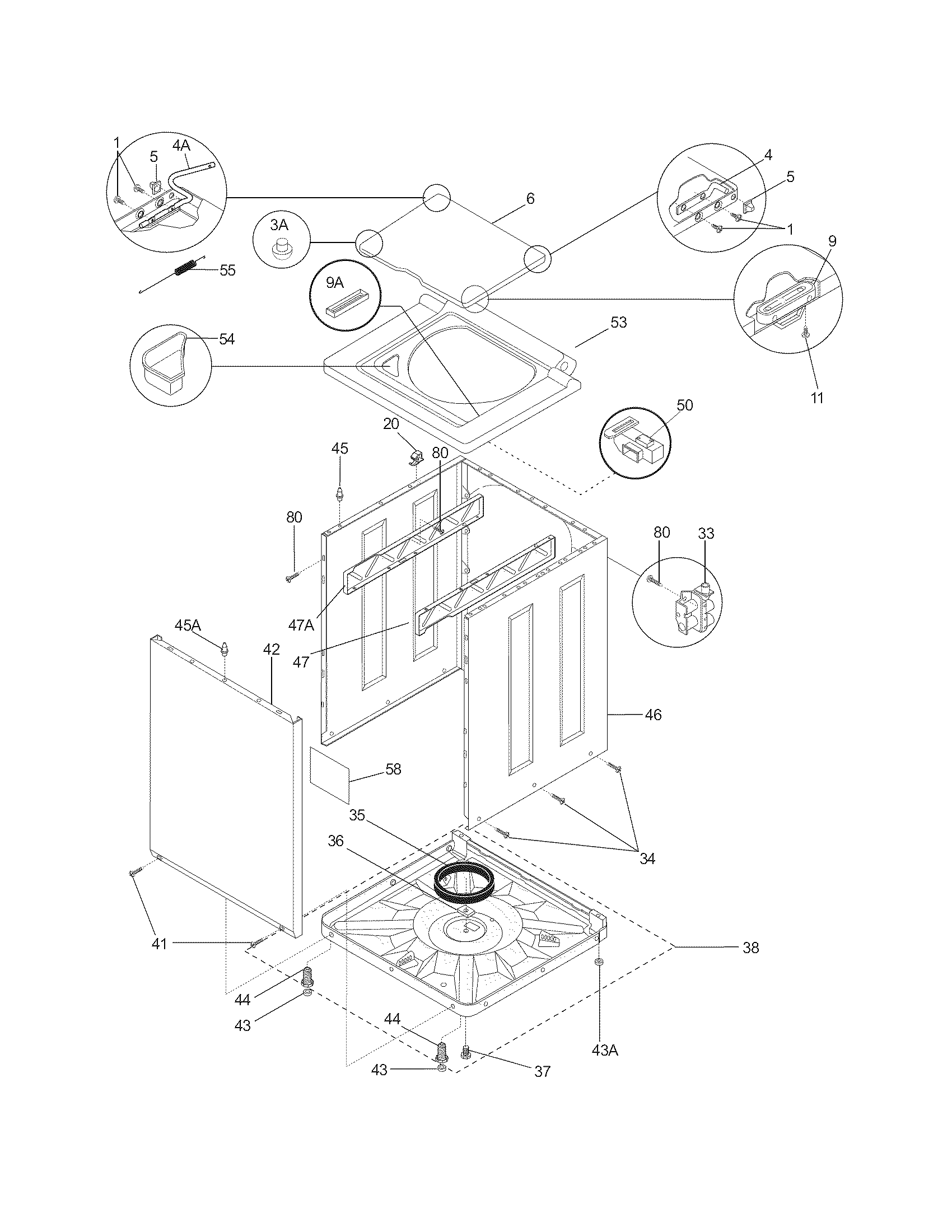

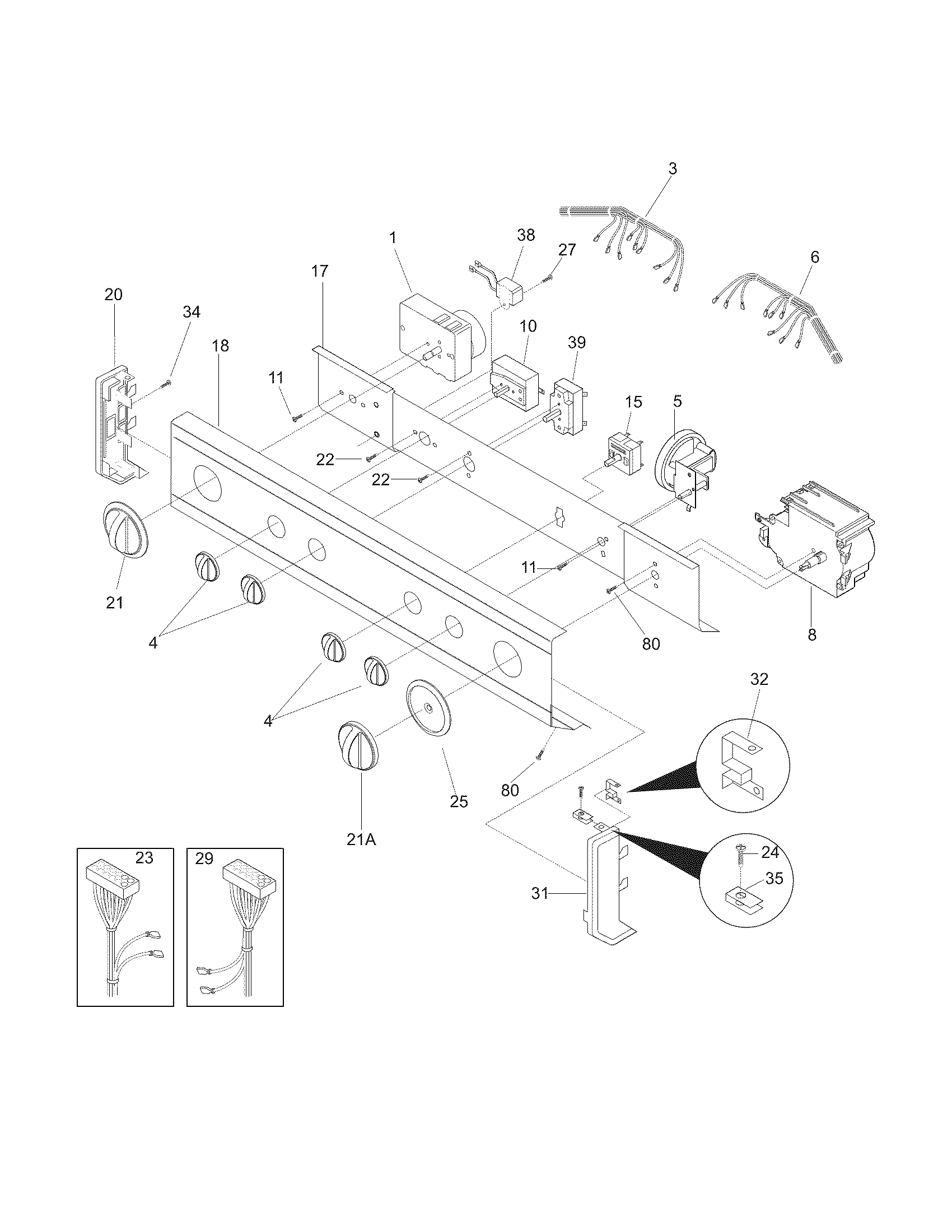

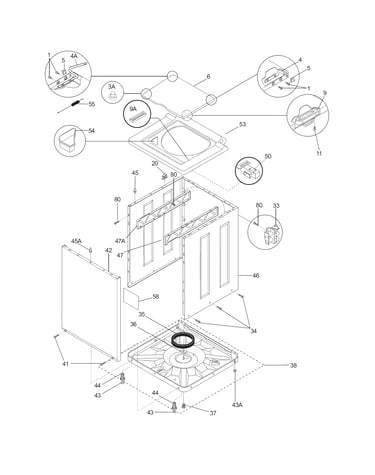

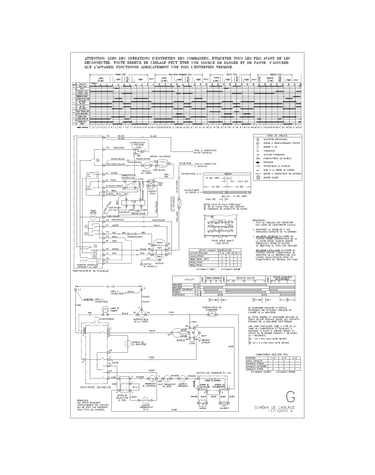

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 203 parts  |
Dryer Drum Bearing (replaces 5303281008, Q000143951, Wq143951) 131825900
#12

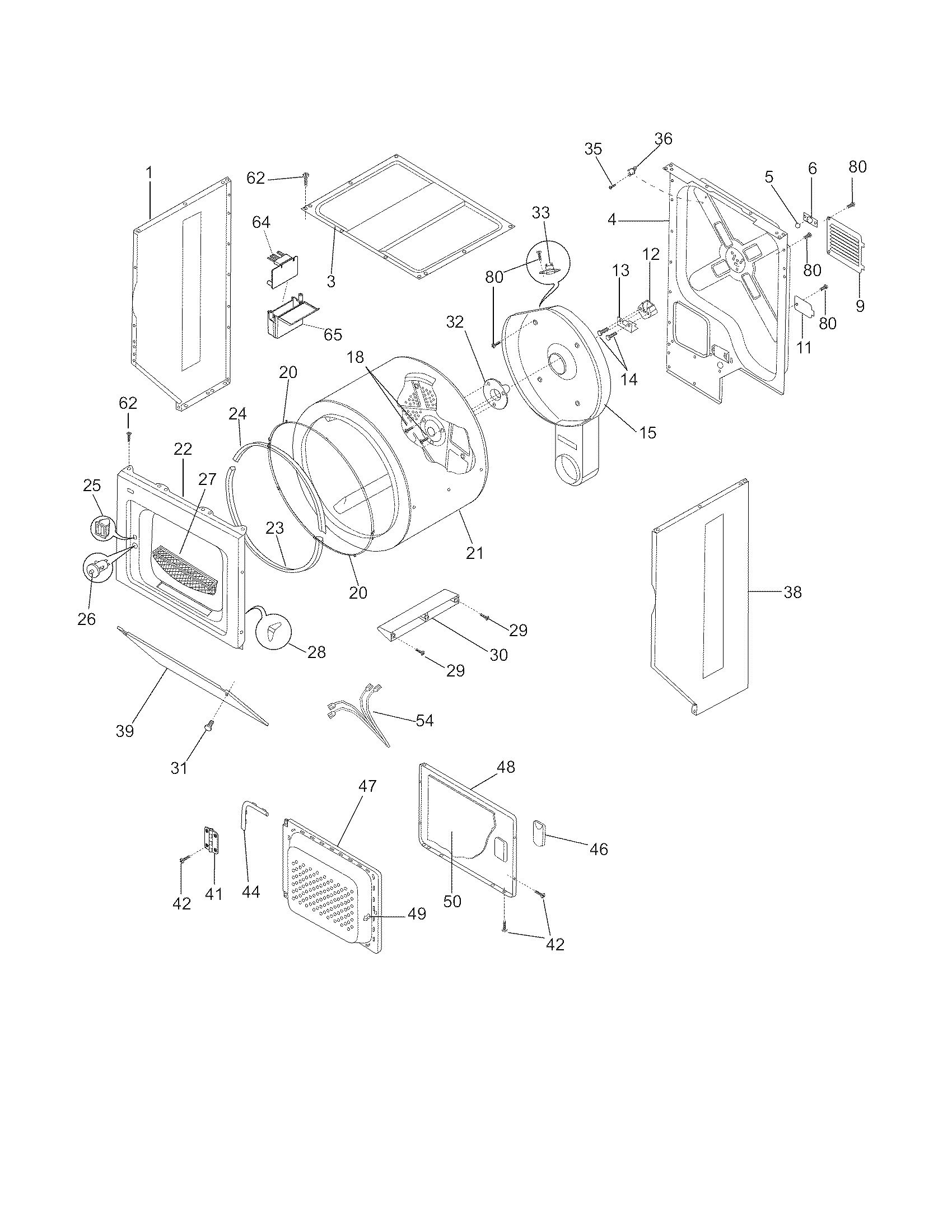

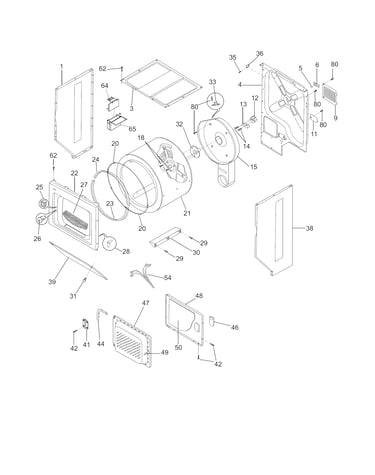

Upper cabinet/drum heater diagram

Dryer drum bearing (replaces 5303281008, q000143951, wq143951)

Part #131825900

BEST SELLER
$7.31 |
12% OFF Phone Price : $8.31
In Stock
Dryer Idler Assembly 131863100
#23

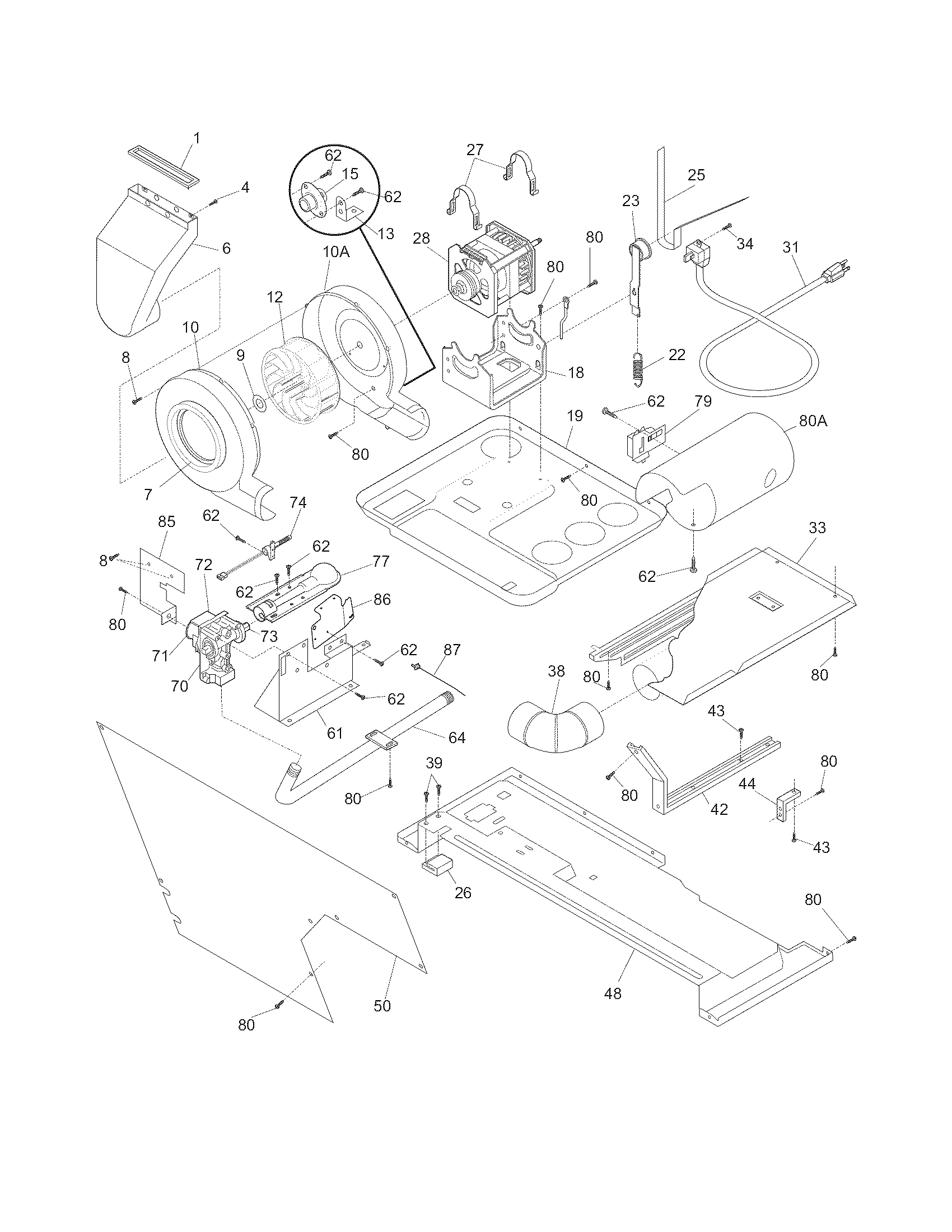

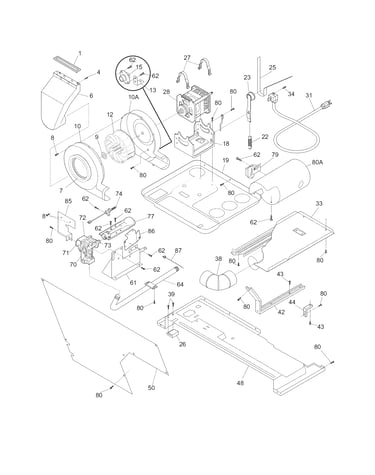

Motor/blower/belt diagram

Dryer idler assembly

Part #131863100

Replaced by #5304507499

?
Manufacturer substitution
This part replaces 131863100. Substitute parts can look different from the original.
BEST SELLER
$30.58 |
16% OFF Phone Price : $36.58
In Stock
Pump 137151800
#43

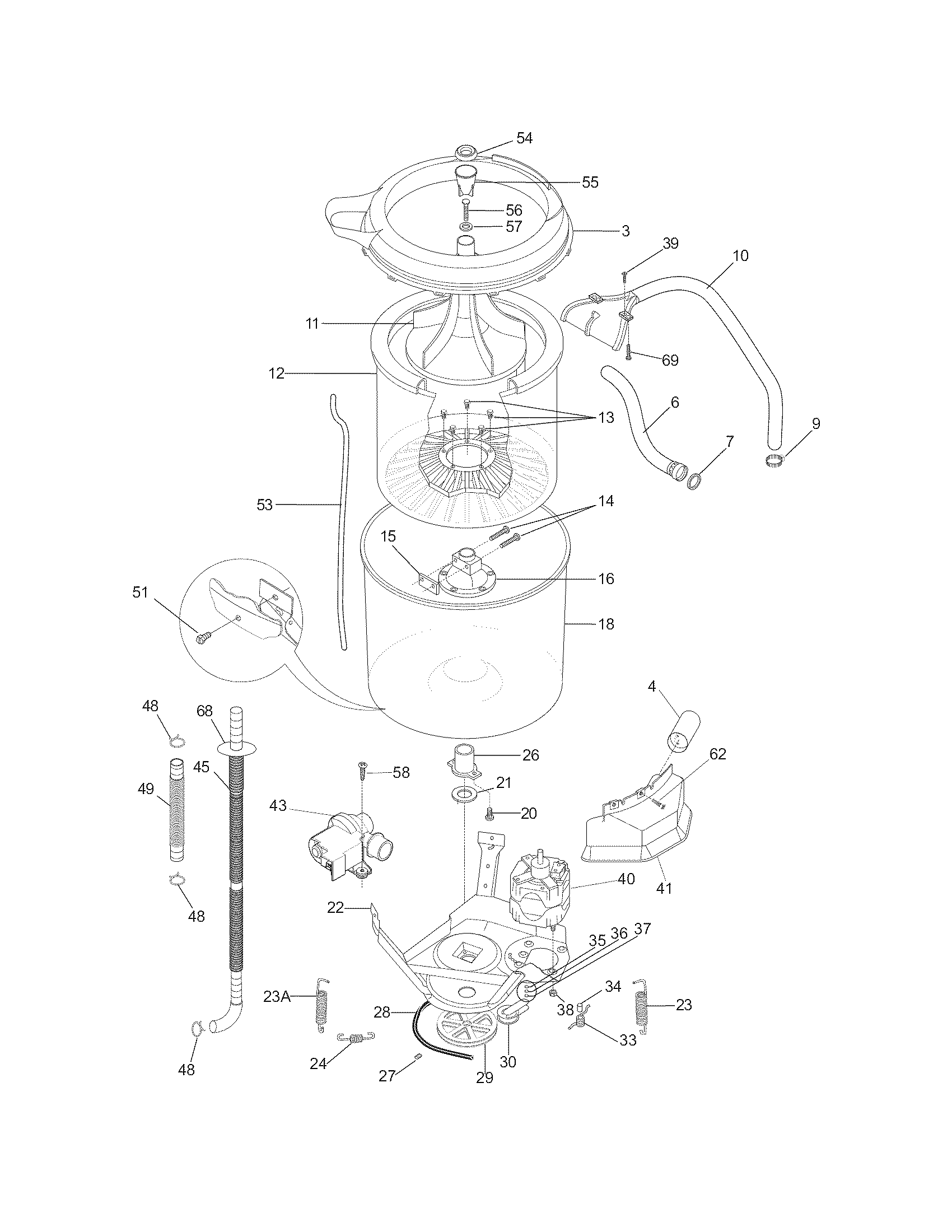

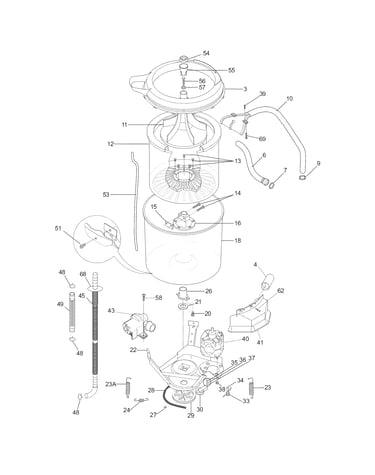

Motor/tub diagram

Pump

Part #137151800

The manufacturer no longer makes this part, and there's no substitute part

Shaft 137088620
#32

Upper cabinet/drum heater diagram

Shaft

Part #137088620

Replaced by #131777700

?
Manufacturer substitution
This part replaces 137088620. Substitute parts can look different from the original.
BEST SELLER
$58.75 |
9% OFF Phone Price : $64.75
In Stock
Electrolux Washer Drive Belt (replaces 134161100) 134511600
#28

Motor/tub diagram

Electrolux washer drive belt (replaces 134161100)

Part #134511600

BEST SELLER
$20.17 |
23% OFF Phone Price : $26.17
In Stock
Dryer Lint Filter 131359600
#27

Upper cabinet/drum heater diagram

Dryer lint filter

Part #131359600

Replaced by #5304516871

?
Manufacturer substitution
This part replaces 131359600. Substitute parts can look different from the original.
BEST SELLER
$39.98 |
13% OFF Phone Price : $45.98
In Stock
Dryer Door Catch (replaces 134548000, 5307521419, F141735000, F141735-000, F62661-4, K1300884, K1301594, K1308079, K1309301, Q000504551, Q000504553, Wq504551, Wq504553) 131658800
#25

Upper cabinet/drum heater diagram

Dryer door catch (replaces 134548000, 5307521419, f141735000, f141735-000, f62661-4, k1300884, k1301594, k1308079, k1309301, q000504551, q000504553, wq504551, wq504553)

Part #131658800

BEST SELLER
$47.61 |
11% OFF Phone Price : $53.61
In Stock
Electrolux Dryer Blower Wheel (replaces 5303212513) 131476300
#12

Motor/blower/belt diagram

Electrolux dryer blower wheel (replaces 5303212513)

Part #131476300

BEST SELLER
$46.20 |
11% OFF Phone Price : $52.20
In Stock
Laundry Center Dryer Drive Motor 134196600
#28

Motor/blower/belt diagram

Laundry center dryer drive motor

Part #134196600

Replaced by #134196602

?
Manufacturer substitution
This part replaces 134196600. Substitute parts can look different from the original.
BEST SELLER
$184.28 |
6% OFF Phone Price : $196.28
In Stock
Dryer Thermal Limiter (replaces 146062-000, 5303209192) 134120900
#36

Upper cabinet/drum heater diagram

Dryer thermal limiter (replaces 146062-000, 5303209192)

Part #134120900

BEST SELLER
$26.79 |
18% OFF Phone Price : $32.79
In Stock
