Kenmore
Washer

Model # 1105804303 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 1105804303 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 262 parts  |
Washer Spanner Nut 21366
#16

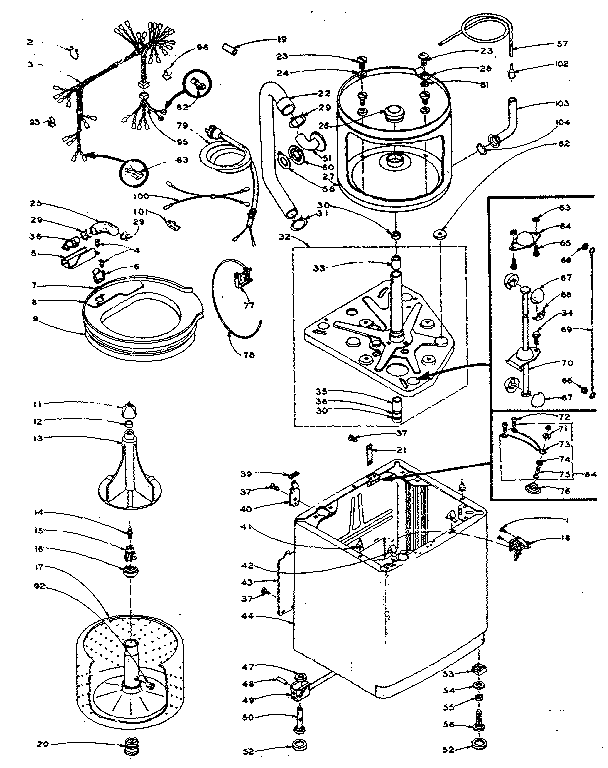

Machine sub-assembly diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Gasket 21050
#26

Machine sub-assembly diagram

Gasket

Part #21050

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 21050. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Hose 18623
#57

Machine sub-assembly diagram

Hose

Part #18623

Replaced by #WP353244

?
Manufacturer substitution
This part replaces 18623. Substitute parts can look different from the original.
BEST SELLER
$43.73 |
12% OFF Phone Price : $49.73
In Stock
Screw 18724
#21

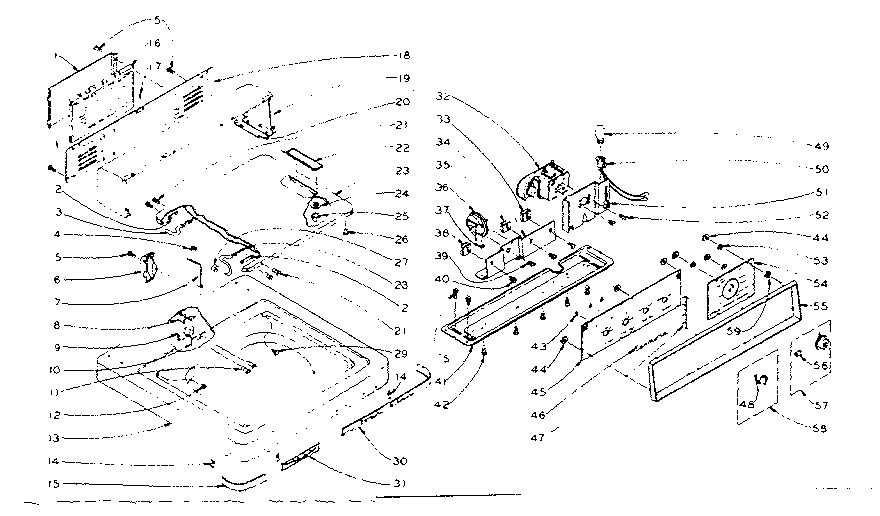

Machine top assembly diagram

Screw

Part #18724

Replaced by #WPW10119828

?
Manufacturer substitution
This part replaces 18724. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Clip 90296
#36

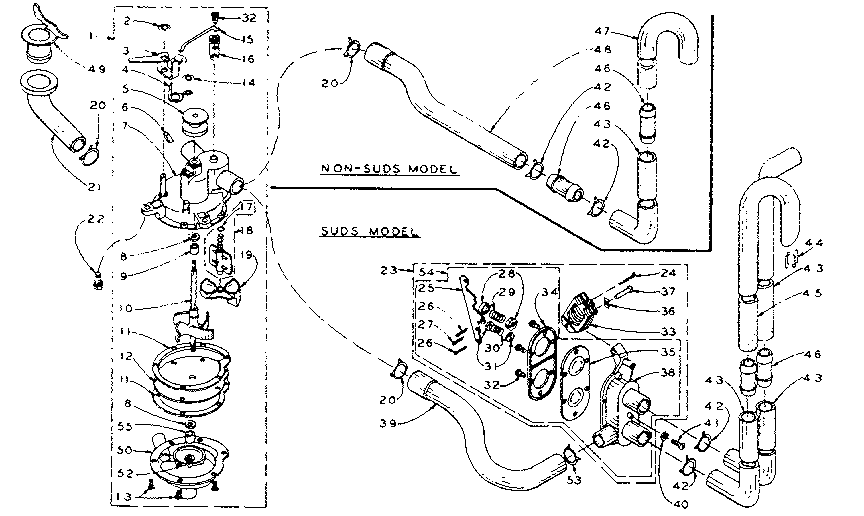

Water system diagram

Clip

Part #90296

Replaced by #WP90296

?
Manufacturer substitution
This part replaces 90296. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Washer Lid Hinge Bearing 21258
#12

Machine top assembly diagram

Washer lid hinge bearing

Part #21258

Replaced by #WP21258

?
Manufacturer substitution
This part replaces 21258. Substitute parts can look different from the original.
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Screen 10725
#21

Dole valve diagram

Screen

Part #10725

Replaced by #WP96160

?
Manufacturer substitution
This part replaces 10725. Substitute parts can look different from the original.
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Screen 99223
#21

Detroit controls valve diagram

Screen

Part #99223

Replaced by #WP96160

?
Manufacturer substitution
This part replaces 99223. Substitute parts can look different from the original.
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Washer Lid Hinge Bracket 21097
#2

Machine top assembly diagram

Washer lid hinge bracket

Part #21097

Replaced by #WP21097

?
Manufacturer substitution
This part replaces 21097. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Washing Machine Washer 16123
Washing machine washer

Part #16123

Replaced by #WP16123

?
Manufacturer substitution
This part replaces 16123. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

View all

Why won't my washing machine drain?

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Read more

Why won't my washing machine agitate or spin?

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Read more

Why won't my washing machine start?

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Read more

Why your washing machine won't finish its cycle

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Read more

Why is my washing machine noisy or shaking?

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…

Read more

Why won't my washing machine fill?

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Read more

Why doesn't my washing machine work at all?

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Read more

Why does my washing machine overfill?

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Read more

Why is the water in my washing machine the wrong temperature?

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Read more
