Maytag
Microwave/Hood Combo

Model # MMV1153AAW Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag MMV1153AAW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

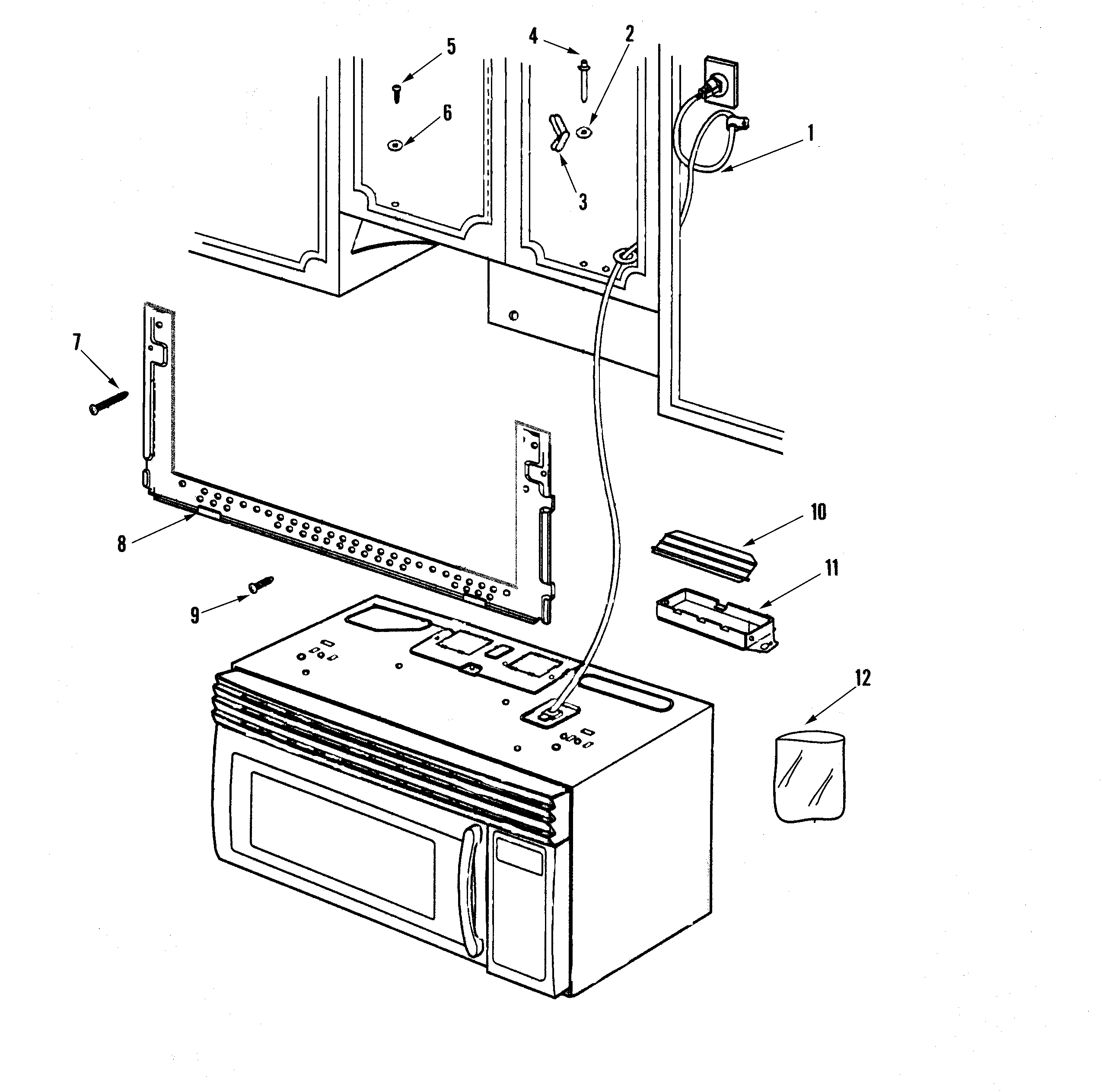

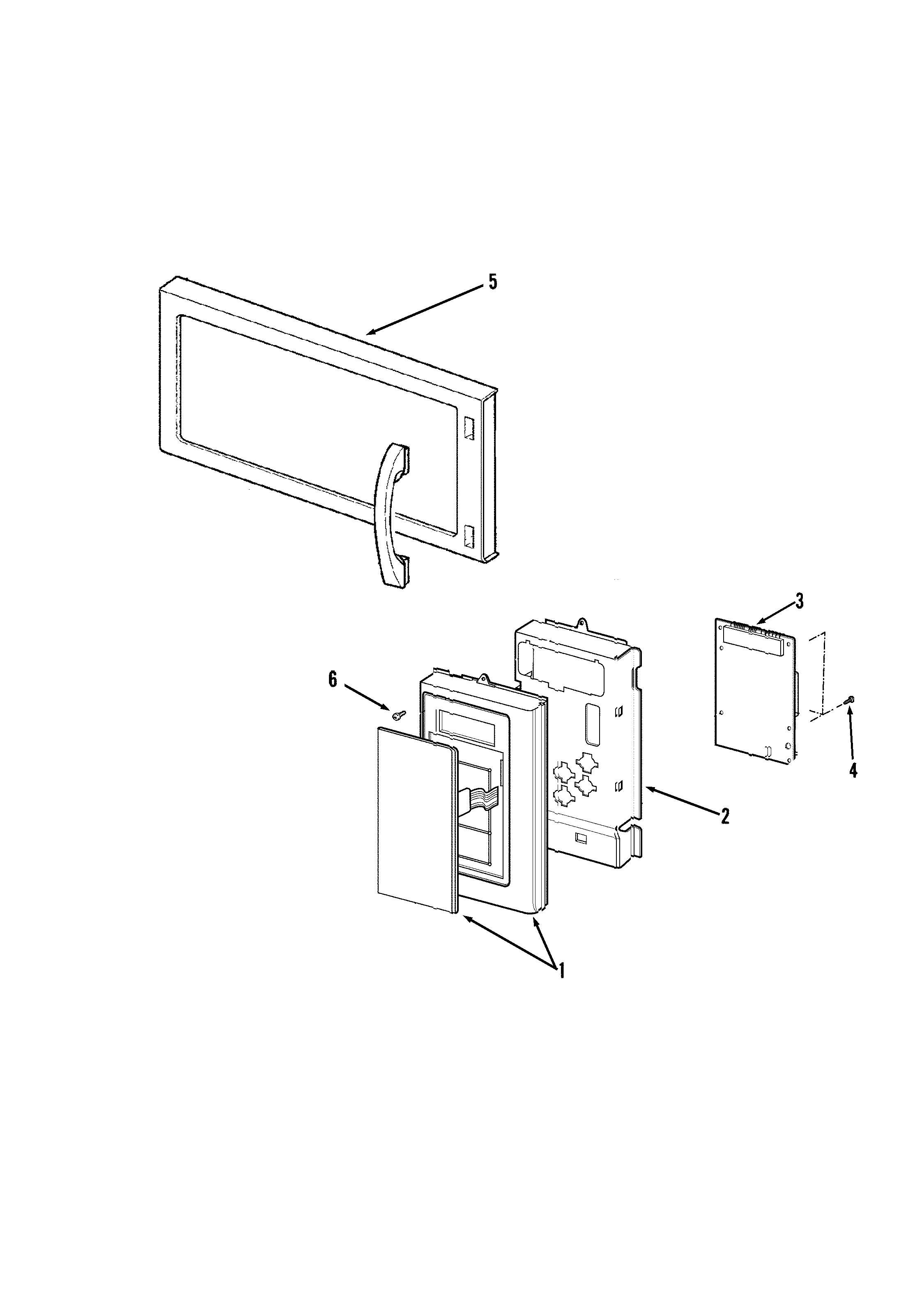

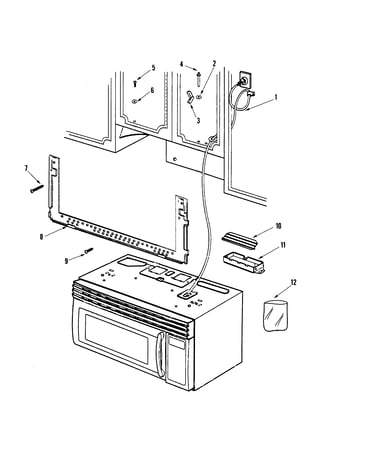

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Lamp 53001359
#11

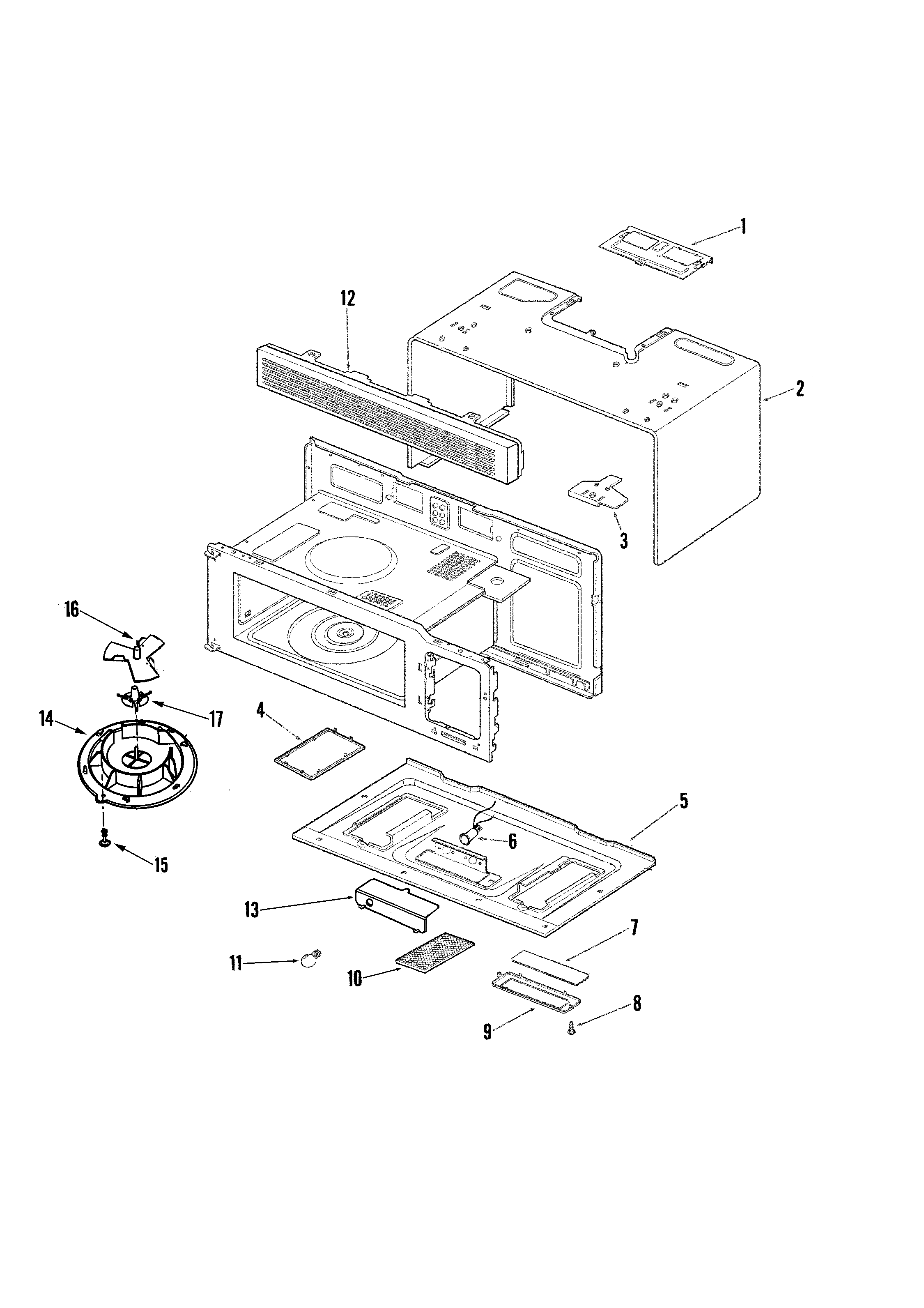

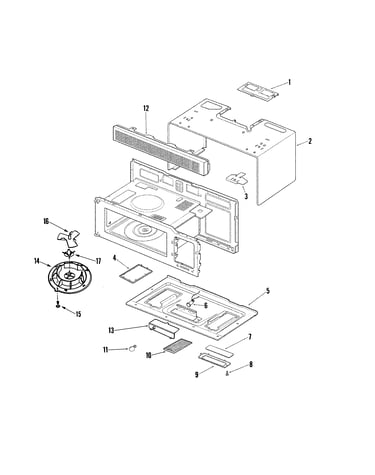

Base & cavity diagram

Lamp

Part #53001359

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces 53001359. Substitute parts can look different from the original.
BEST SELLER
$18.12 |
10% OFF Phone Price : $20.12
In Stock
Capacitor 53001365
#27

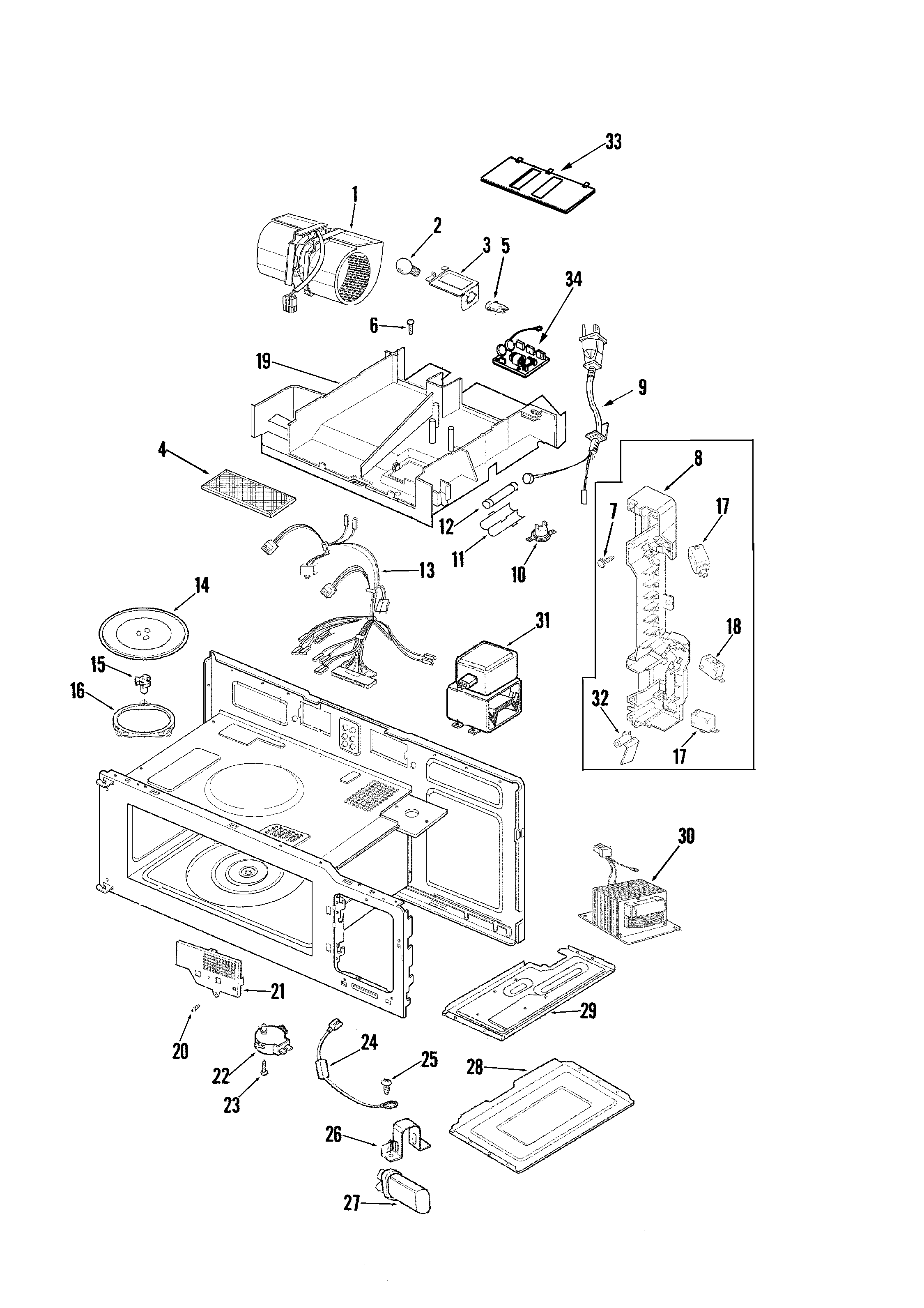

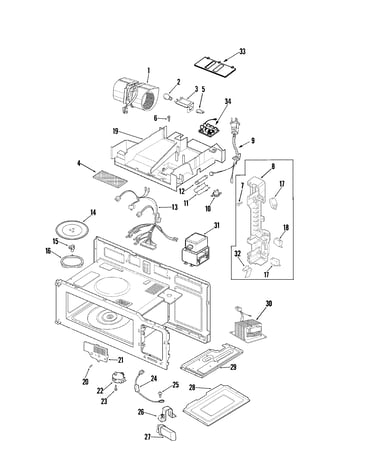

Internal controls/blower motor diagram

Capacitor

Part #53001365

Replaced by #WP59001168

?
Manufacturer substitution
This part replaces 53001365. Substitute parts can look different from the original.
$85.65 |
7% OFF Phone Price : $91.65
In Stock
Fuse R0131110
#12A

Internal controls/blower motor diagram

Fuse

Part #R0131110

Replaced by #WP8183507

?
Manufacturer substitution
This part replaces R0131110. Substitute parts can look different from the original.
This item is not returnable
$14.39 |
12% OFF Phone Price : $16.39
In Stock
Filter,(mech 53001379
#4

Internal controls/blower motor diagram

Filter,(mech

Part #53001379

Replaced by #W10864204

?
Manufacturer substitution
This part replaces 53001379. Substitute parts can look different from the original.
$23.40 |
20% OFF Phone Price : $29.40
In Stock
Grease Filter 53001357
#10

Base & cavity diagram

Grease filter

Part #53001357

Replaced by #4358853

?
Manufacturer substitution
This part replaces 53001357. Substitute parts can look different from the original.
This item is not returnable
$13.79 |
13% OFF Phone Price : $15.79
In Stock
Screw R0131029
#25

Internal controls/blower motor diagram

Screw

Part #R0131029

$13.11
In Stock
Rivet R9800452
#15

Base & cavity diagram

Rivet

Part #R9800452

Replaced by #WP4359508

?
Manufacturer substitution
This part replaces R9800452. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Plate Screw R0654036
Plate screw

Part #R0654036

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0654036. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Rotating Ring 53001024
#16

Internal controls/blower motor diagram

Rotating ring

Part #53001024

Replaced by #W10183473

?
Manufacturer substitution
This part replaces 53001024. Substitute parts can look different from the original.
$56.99 |
10% OFF Phone Price : $62.99
In Stock
Microwave Diode R9800486
#24

Internal controls/blower motor diagram

Microwave diode

Part #R9800486

Replaced by #WPR9800486

?
Manufacturer substitution
This part replaces R9800486. Substitute parts can look different from the original.
$20.69 |
22% OFF Phone Price : $26.69
