Kenmore
Compact Refrigerator

Model # 25592489010 Official Kenmore freezer

Here are the diagrams and repair parts for Official Kenmore 25592489010 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Refrigerator Thermostat 502407000101
#10

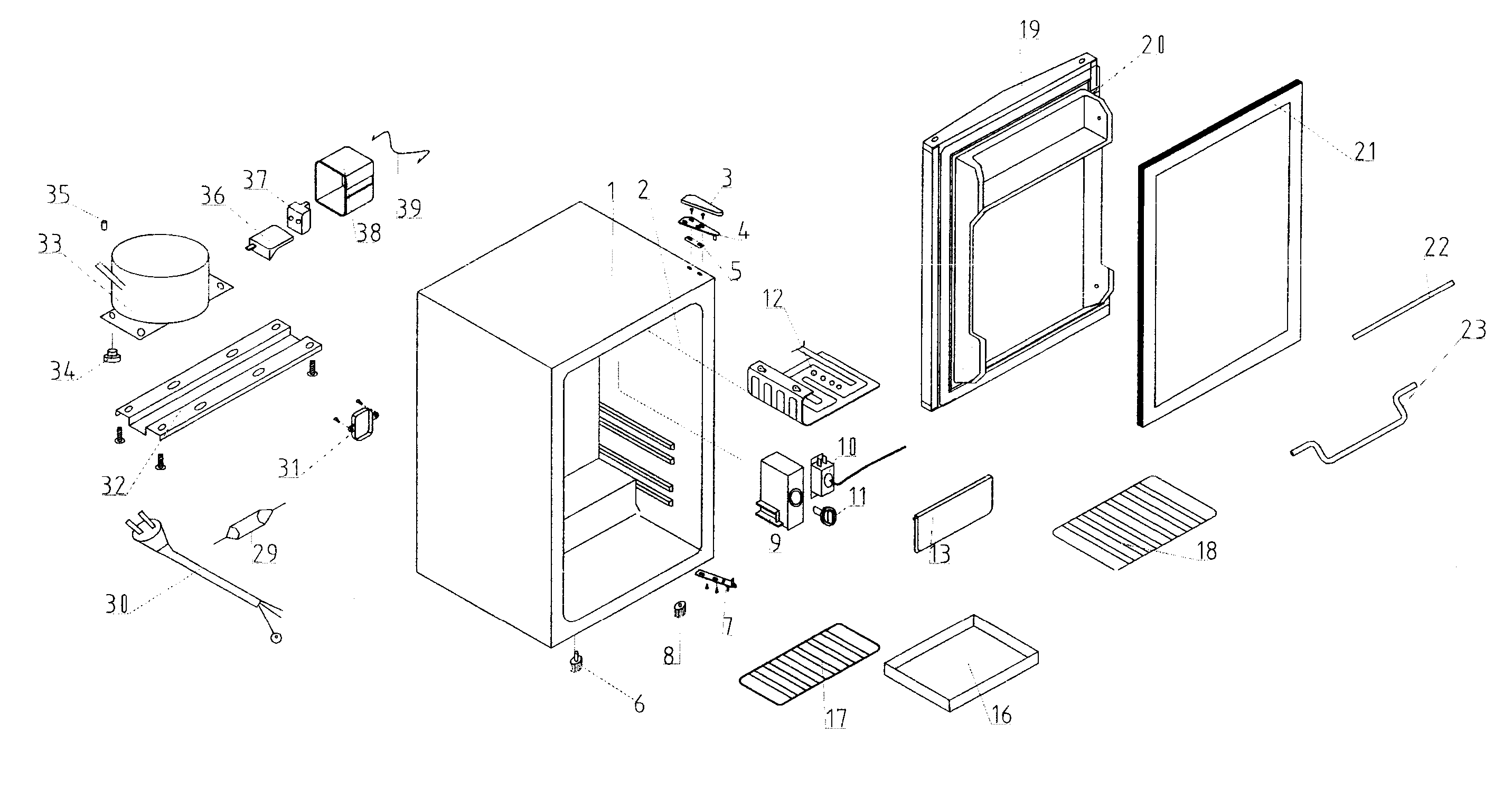

Cabinet parts diagram

Refrigerator thermostat

Part #502407000101

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Temperature Control Knob 501105040016
#11

Cabinet parts diagram

Refrigerator temperature control knob

Part #501105040016

This item is not returnable
$6.99
In Stock
Midea Refrigerator Door Upper Hinge Cover 501106840017
#3

Cabinet parts diagram

Midea refrigerator door upper hinge cover

Part #501106840017

This item is not returnable
$3.49
In Stock
Midea Refrigerator Door 501105040013
#13

Cabinet parts diagram

Midea refrigerator door

Part #501105040013

$21.49
In Stock
Midea Wine Cooler Leveling Leg 501105040029
#6

Cabinet parts diagram

Midea wine cooler leveling leg

Part #501105040029

The manufacturer no longer makes this part, and there's no substitute part

Leg Adjust 501109240098
#8

Cabinet parts diagram

Leg adjust

Part #501109240098

Replaced by #501109240098

?
Manufacturer substitution
This part replaces 501109240098. Substitute parts can look different from the original.
This item is not returnable
$4.49
In Stock
Refrigerator Shelf 502901040003
#17

Cabinet parts diagram

Refrigerator shelf

Part #502901040003

The manufacturer no longer makes this part, and there's no substitute part

Big Shelf 502901000035
#18

Cabinet parts diagram

Big shelf

Part #502901000035

Replaced by #502901000035

?
Manufacturer substitution
This part replaces 502901000035. Substitute parts can look different from the original.
$38.49
In Stock
Hinge Uppe 502905040019
#4

Cabinet parts diagram

Hinge uppe

Part #502905040019

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Shelf Wire 501106840016
#22

Cabinet parts diagram

Refrigerator shelf wire

Part #501106840016

Replaced by #501106840016

?
Manufacturer substitution
This part replaces 501106840016. Substitute parts can look different from the original.
$9.49
In Stock
