Roper
Chest Freezer

Model # RH1000RDW00 Official Roper chest freezer

Here are the diagrams and repair parts for Official Roper RH1000RDW00 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Drier Tube 4356332
#3

Unit diagram

Drier tube

Part #4356332

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4356332. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Run Capacitor 4390503
#9

Unit diagram

Run capacitor

Part #4390503

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 4390503. Substitute parts can look different from the original.
BEST SELLER
$52.20 |
10% OFF Phone Price : $58.20
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Chest Freezer Lid Hinge Screw 308685
#13

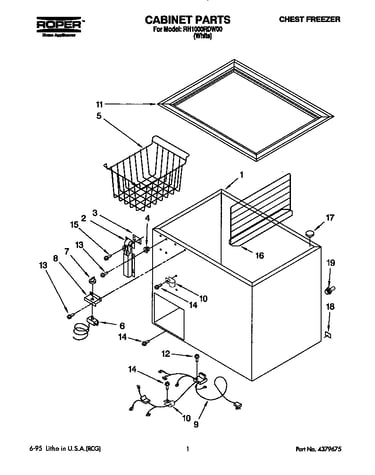

Cabinet diagram

Chest freezer lid hinge screw

Part #308685

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 308685. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 4356496
#14

Cabinet diagram

Screw

Part #4356496

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 4356496. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Door Hinge 4356490
#2

Cabinet diagram

Door hinge

Part #4356490

$117.82
In Stock
Appliance Porcelain Touch-up Paint, 1-qt (white) 799344

#NI

All parts diagram

Appliance porcelain touch-up paint, 1-qt (white)

Part #799344

$109.53 |
10% OFF Phone Price : $121.53
In Stock
Grommet 4356321
#4

Cabinet diagram

Grommet

Part #4356321

$15.29 |
12% OFF Phone Price : $17.29
In Stock
Nameplate 4356372
#5

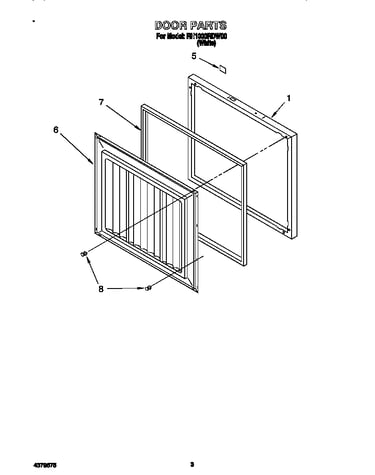

Door diagram

Nameplate

Part #4356372

$18.64
In Stock
Screw 4356491
#15

Cabinet diagram

Screw

Part #4356491

$11.59
In Stock
