Model # D55250 Official DeWalt air compressor

Here are the diagrams and repair parts for Official DeWalt D55250 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 252 parts  |
Dewalt Rod 285802-16
#431

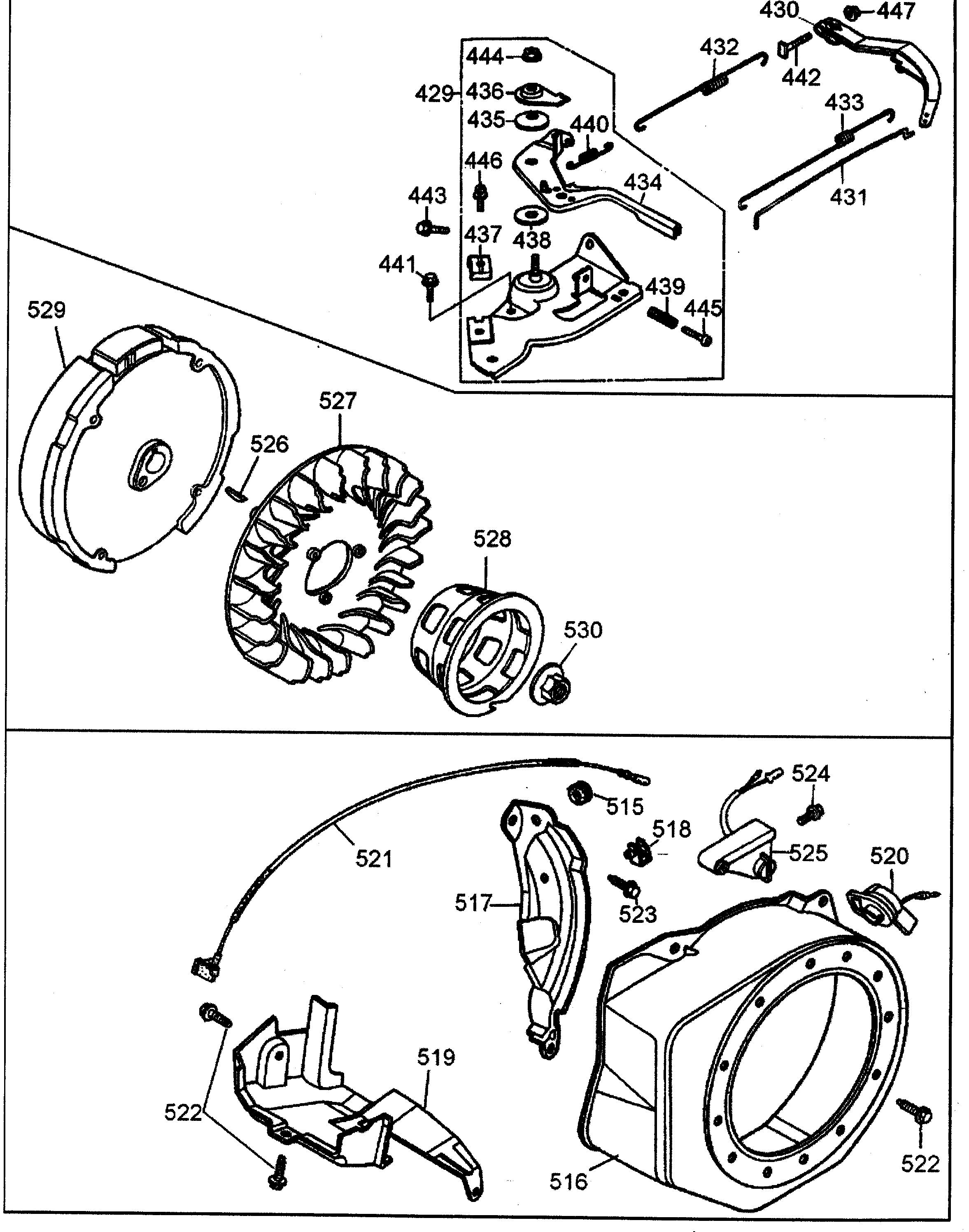

Flywheel diagram

Dewalt rod

Part #285802-16

The manufacturer no longer makes this part, and there's no substitute part

Tube 5130037-00
#32

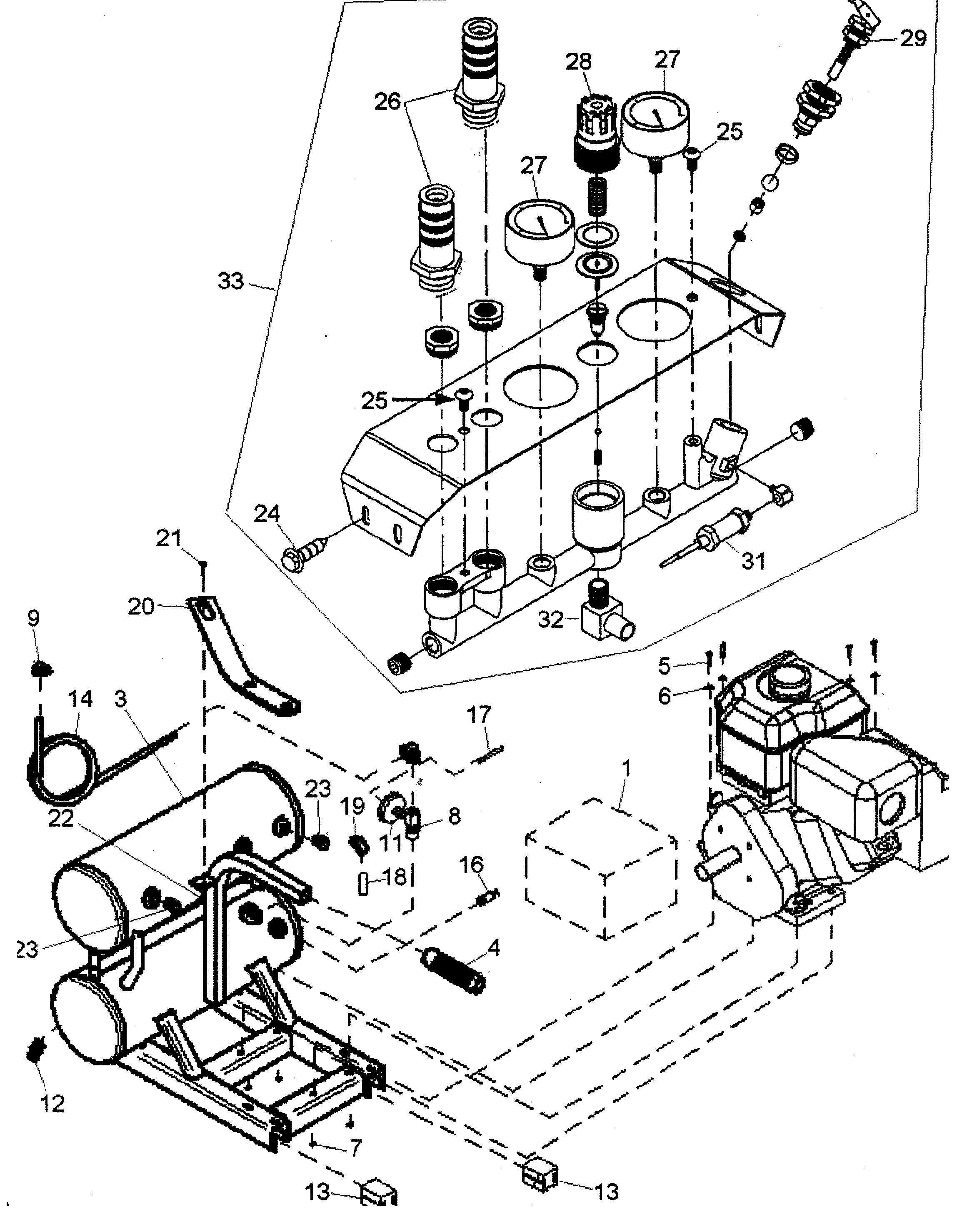

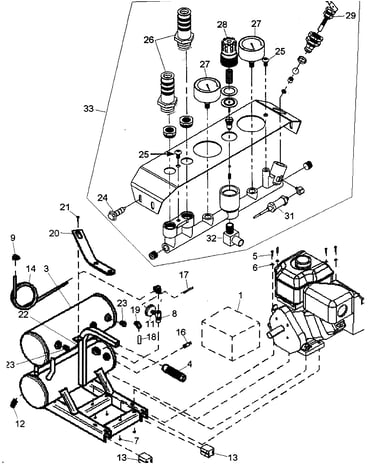

Compressor diagram

Tube

Part #5130037-00

The manufacturer no longer makes this part, and there's no substitute part

Gasket 285800-62
#463

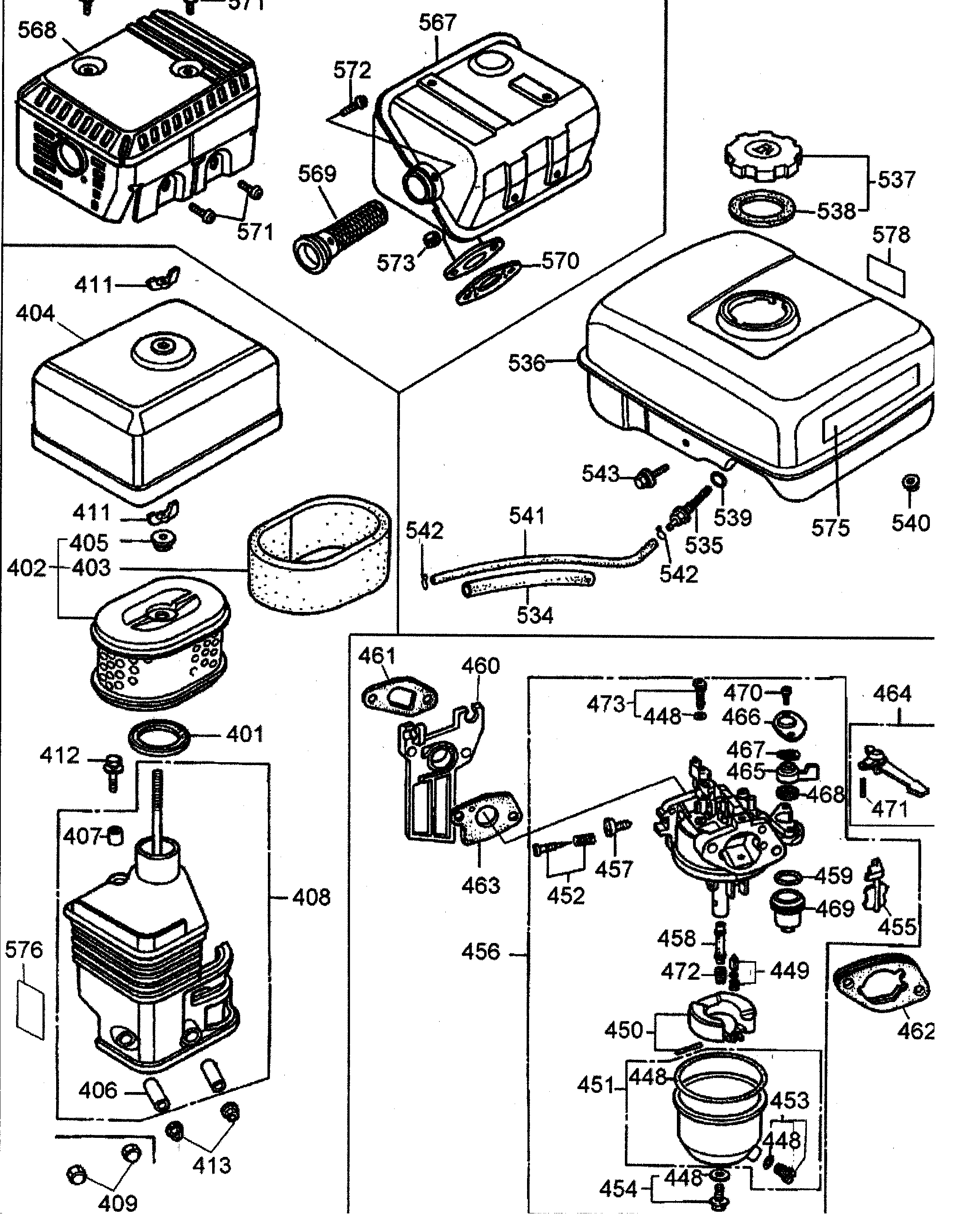

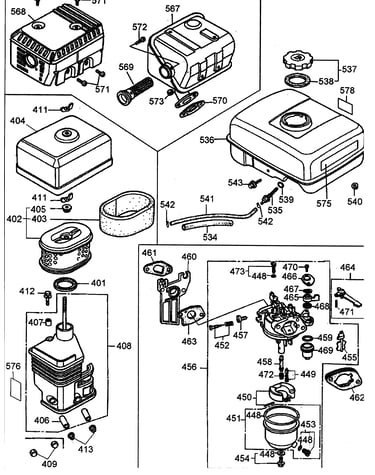

Muffler diagram

Gasket

Part #285800-62

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Tank 285802-49
#536

Muffler diagram

Dewalt tank

Part #285802-49

The manufacturer no longer makes this part, and there's no substitute part

Arm 285800-16
#416

Starter diagram

Arm

Part #285800-16

The manufacturer no longer makes this part, and there's no substitute part

Washer 285801-06
#506

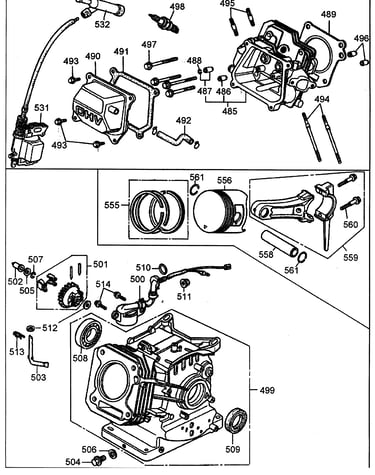

Motor diagram

Washer

Part #285801-06

The manufacturer no longer makes this part, and there's no substitute part

Spring 285800-40
#440

Flywheel diagram

Spring

Part #285800-40

The manufacturer no longer makes this part, and there's no substitute part

Ring 5130084-00
#210

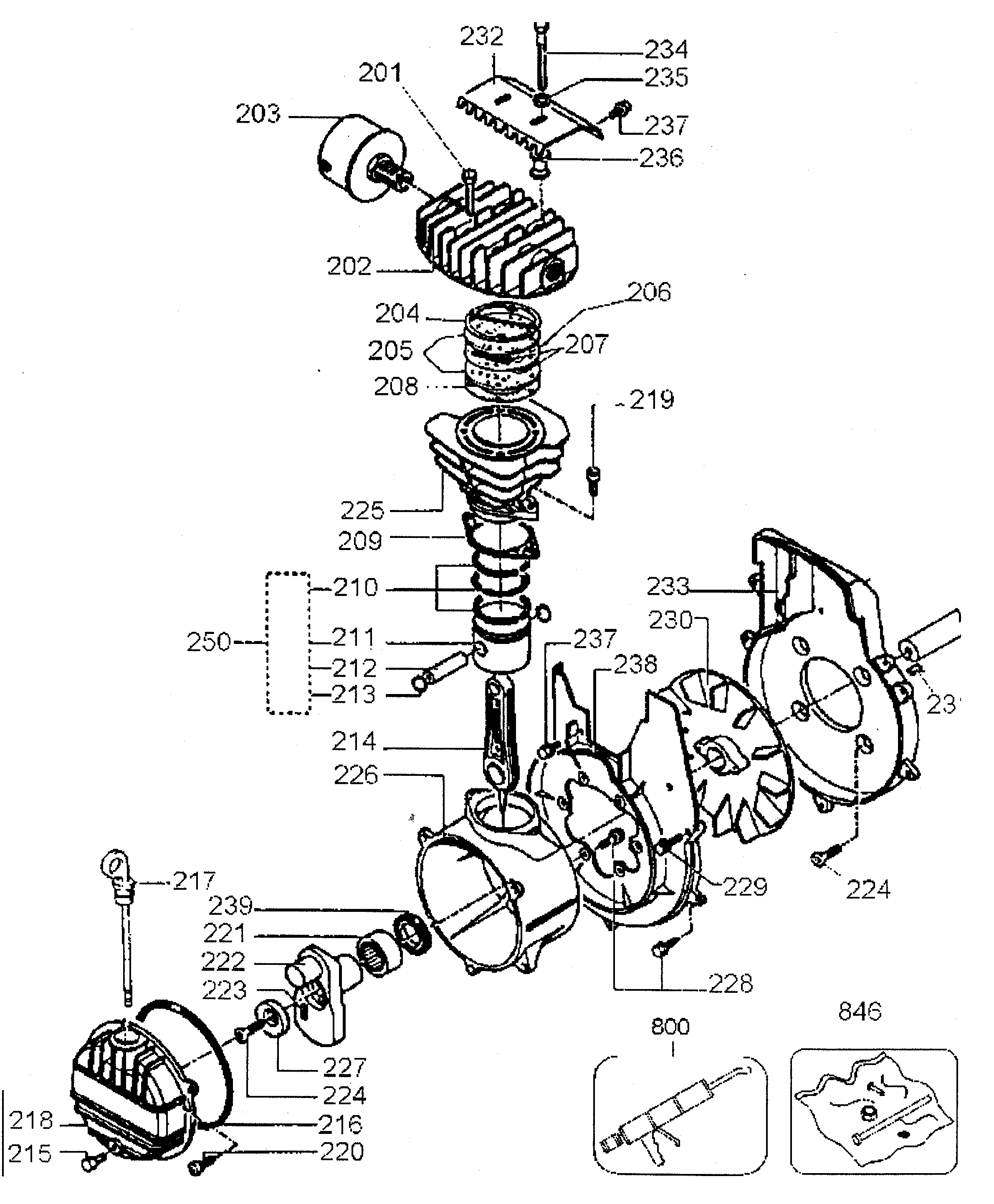

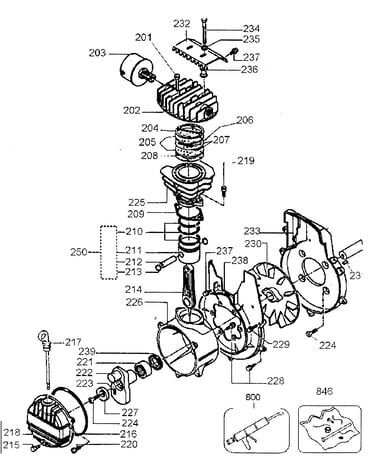

Pump diagram

Ring

Part #5130084-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Piston 285802-56
#556B

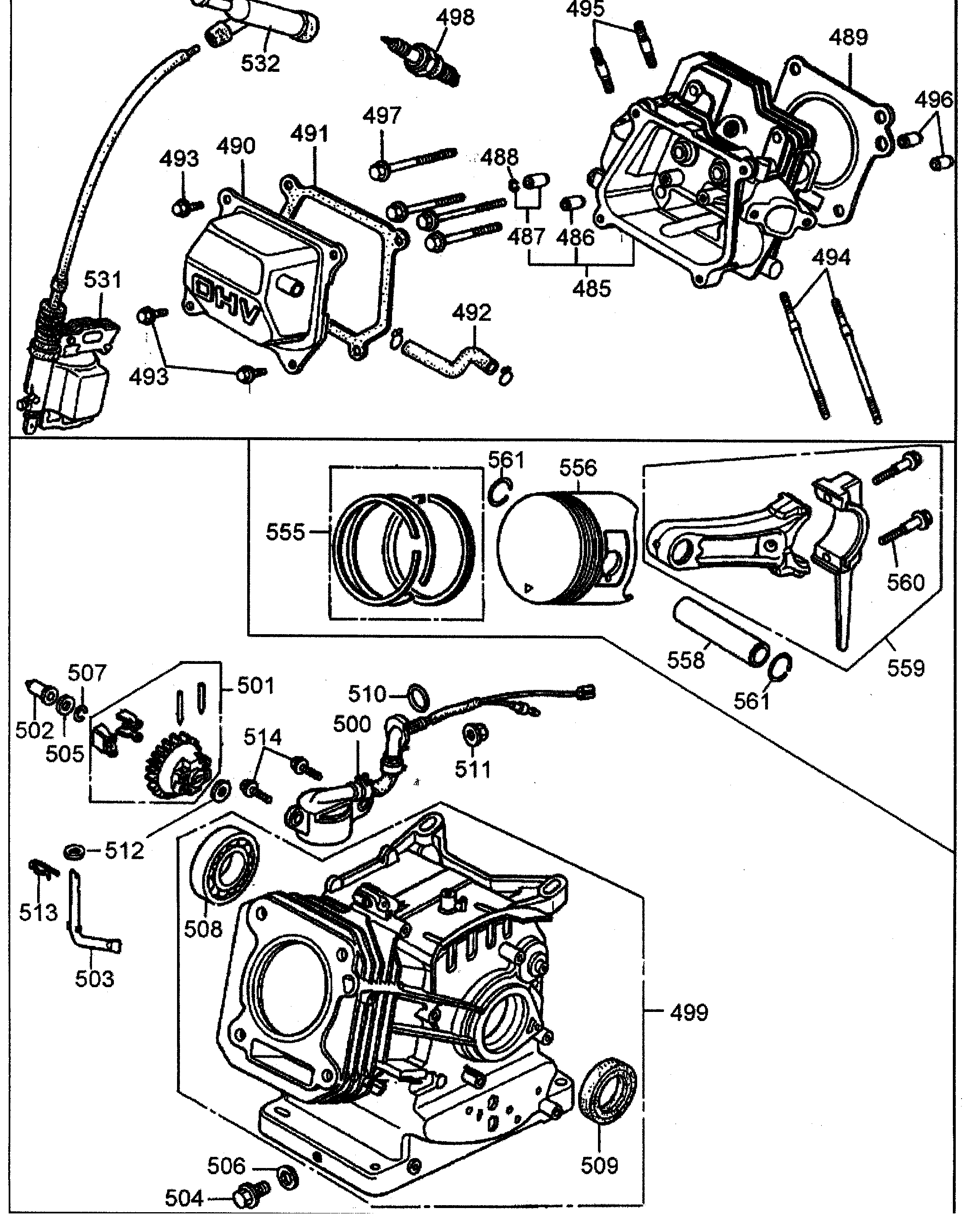

Motor diagram

Dewalt piston

Part #285802-56

The manufacturer no longer makes this part, and there's no substitute part

Retainer 285800-23
#423

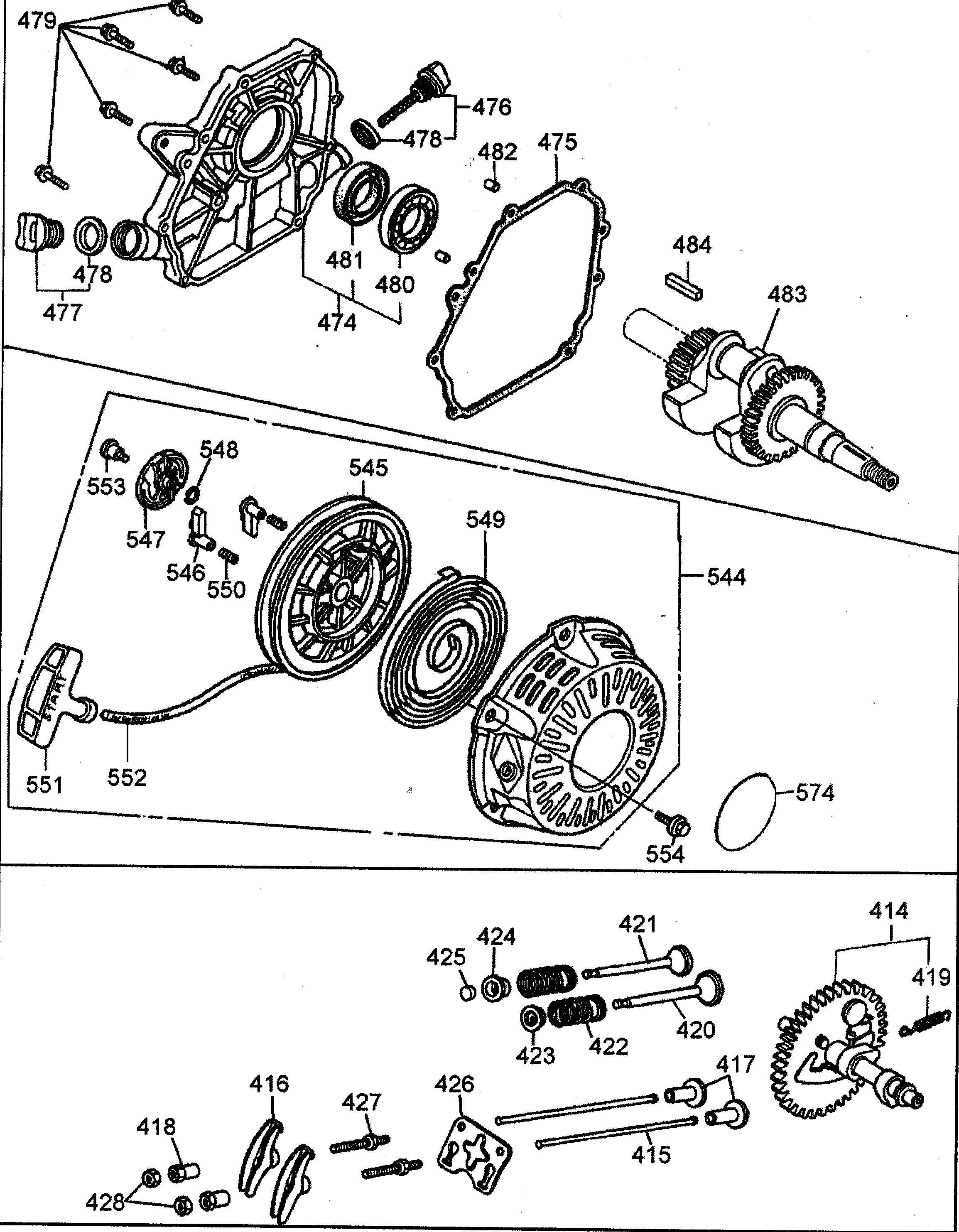

Starter diagram

Retainer

Part #285800-23

The manufacturer no longer makes this part, and there's no substitute part
