Model # 919176952 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919176952 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 95 parts |

#21

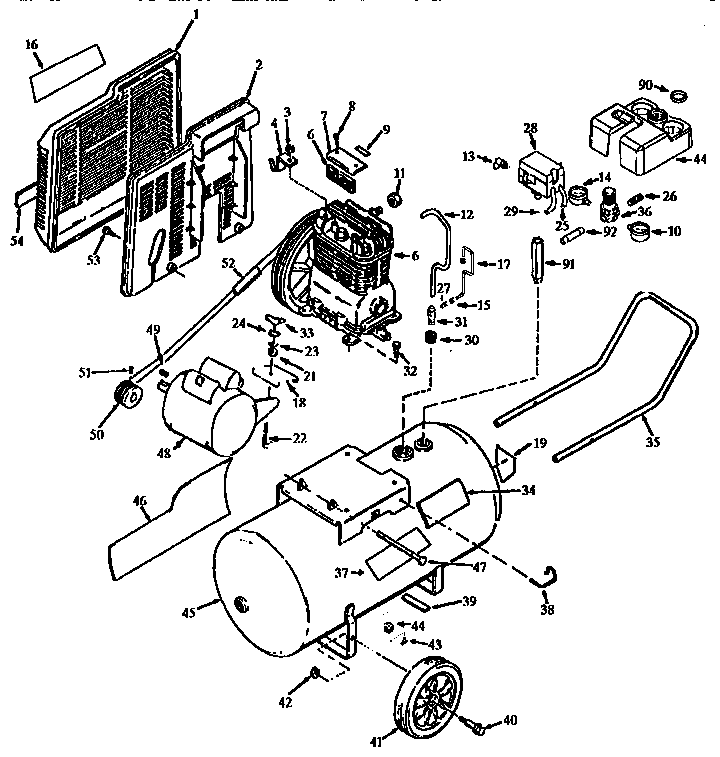

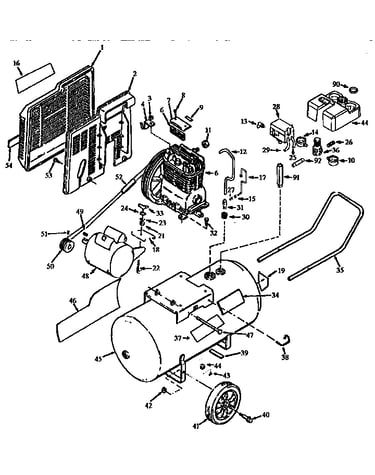

Air compressor diagram

Elastomer spring

Part #CAC-1011

The manufacturer no longer makes this part, and there's no substitute part

#71

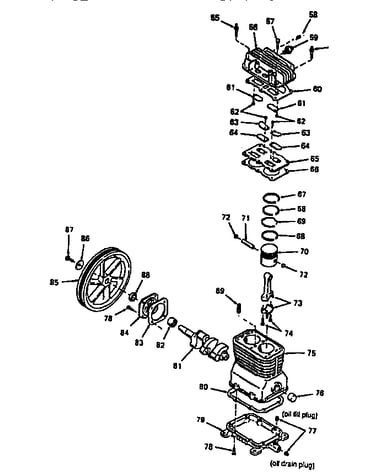

Compressor pump diagram

Porter cable piston pin

Part #265-19

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Handle Retainer Clip CAC-1059

#38

Air compressor diagram

Air compressor handle retainer clip

Part #CAC-1059

The manufacturer no longer makes this part, and there's no substitute part

#78

Compressor pump diagram

Unknown brand name #696 air compressor screw

Part #SSF-925

The manufacturer no longer makes this part, and there's no substitute part

#59

Compressor pump diagram

Unknown brand name #696 air compressor compression nut thread adapter

Part #SSP-9401

The manufacturer no longer makes this part, and there's no substitute part

Air compressor diagram

Air compressor air filter

Part #265-17

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Reed Valve Screw SSF-9821

#62

Compressor pump diagram

Air compressor reed valve screw

Part #SSF-9821

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Safety Valve, 150-psi 97503734

#13

Air compressor diagram

Air compressor safety valve, 150-psi

Part #97503734

The manufacturer no longer makes this part, and there's no substitute part

#54

Compressor pump diagram

Unknown brand name #696 label

Part #LA-1805

The manufacturer no longer makes this part, and there's no substitute part

#57

Compressor pump diagram

Unknown brand name #696 air compressor screw, 3/8-16 x 1-1/2-in

Part #SSF-955

The manufacturer no longer makes this part, and there's no substitute part
