Model # MMV4205DS0 Official Maytag microwave
Here are the diagrams and repair parts for Official Maytag MMV4205DS0 microwave, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic

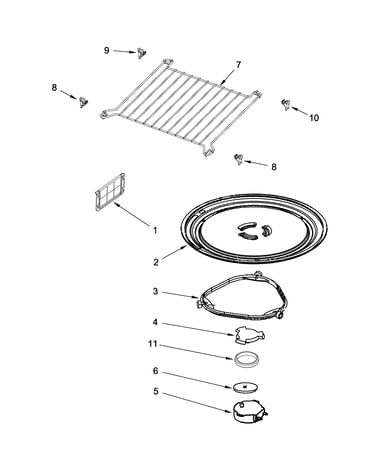

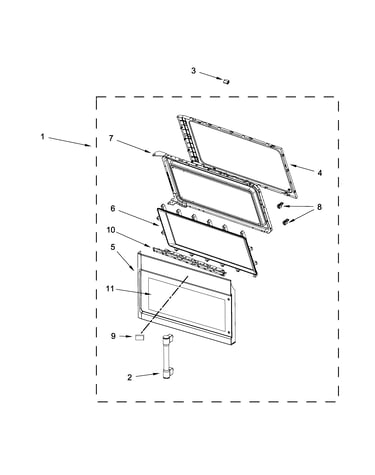

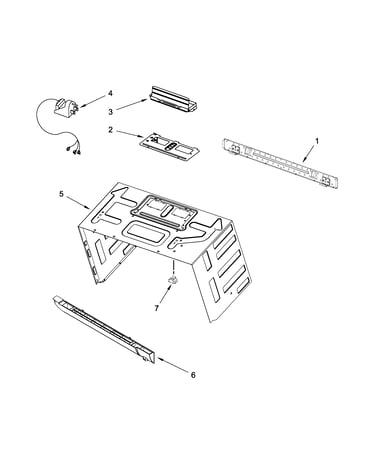

SELECT DIAGRAM
Browse Parts for
MMV4205DS0 Microwave
#13

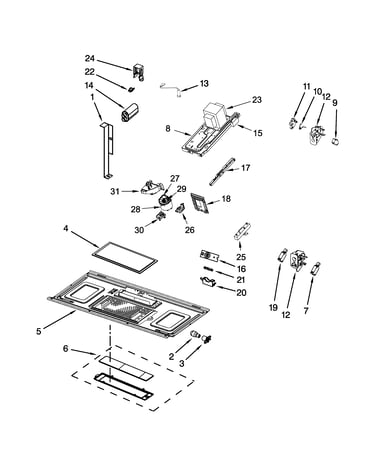

Interior and ventilation parts diagram
Diode
Part #W10575765
Replaced by #W11256462
?
Manufacturer substitution
This part replaces W10575765. Substitute parts can look different from the original.
$24.65 |
20% OFF Phone Price : $30.65
In Stock
#19
Interior and ventilation parts diagram
Microwave door switch
Part #W10269457
Replaced by #W10727360
?
Manufacturer substitution
This part replaces W10269457. Substitute parts can look different from the original.
This item is not returnable
$5.04 |
17% OFF Phone Price : $6.04
In Stock
#7
Interior and ventilation parts diagram
Microwave door interlock switch (replaces w10211973)
Part #W10269458
$24.27 |
20% OFF Phone Price : $30.27
In Stock
#2
Interior and ventilation parts diagram
Microwave/hood light bulb
Part #8206232
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
$8.63 |
10% OFF Phone Price : $9.63
In Stock
#3

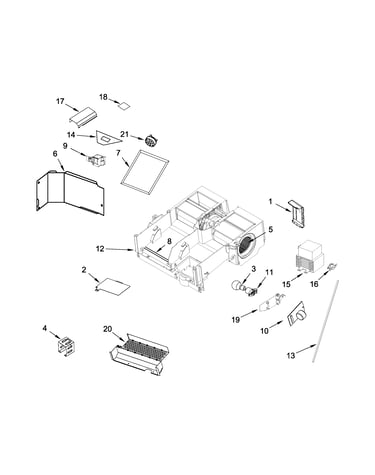

Air flow parts diagram
Lamp assembly
Part #4393681
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
$8.63 |
10% OFF Phone Price : $9.63
In Stock
#21
Interior and ventilation parts diagram
Microwave fuse (replaces w10422951)
Part #W10138793
Replaced by #W11707984
?
Manufacturer substitution
This part replaces W10138793. Substitute parts can look different from the original.
$53.15
In Stock
#12
Interior and ventilation parts diagram
Microwave door interlock support, upper
Part #8206419
Replaced by #WP8206419
?
Manufacturer substitution
This part replaces 8206419. Substitute parts can look different from the original.
$12.11 |
14% OFF Phone Price : $14.11
In Stock
#9
Interior and ventilation parts diagram
Microwave door interlock switch
Part #W10269460
$39.99 |
13% OFF Phone Price : $45.99
In Stock
#12A
Interior and ventilation parts diagram
Interlock
Part #W10156813
Replaced by #WPW10156813
?
Manufacturer substitution
This part replaces W10156813. Substitute parts can look different from the original.
$7.56 |
12% OFF Phone Price : $8.56
In Stock
#11
Interior and ventilation parts diagram
Cam plate
Part #W10156811
Replaced by #W10562613
?
Manufacturer substitution
This part replaces W10156811. Substitute parts can look different from the original.
$11.59 |
15% OFF Phone Price : $13.59
In Stock
