Model # 545472610 Official Sears 20" bmx bicycle - spx-1000

Here are the diagrams and repair parts for Official Sears 545472610 20" bmx bicycle - spx-1000, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Sears Chain Guard 074028
#19

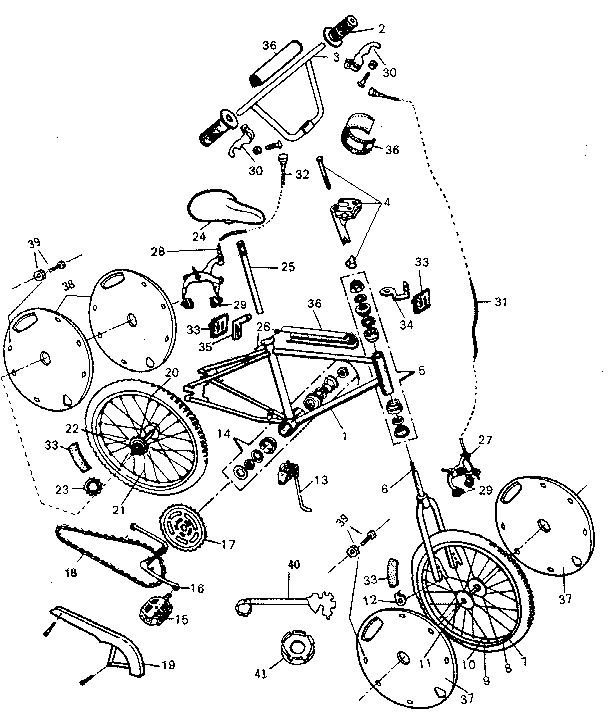

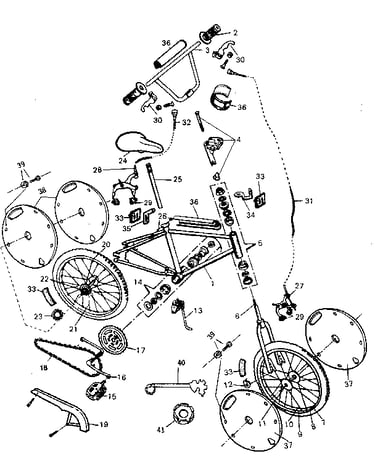

Unit parts diagram

Sears chain guard

Part #074028

The manufacturer no longer makes this part, and there's no substitute part

Kent Chain W/link 072007
#18

Unit parts diagram

Kent chain w/link

Part #072007

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Brake Tool 103015

#NI

All parts diagram

Lifestyler brake tool

Part #103015

The manufacturer no longer makes this part, and there's no substitute part

Ming Ta Bicycle Brake Shoe Set 104002
#29

Unit parts diagram

Ming ta bicycle brake shoe set

Part #104002

The manufacturer no longer makes this part, and there's no substitute part

Western Auto Rr Refl Brkt 082010
#35

Unit parts diagram

Western auto rr refl brkt

Part #082010

The manufacturer no longer makes this part, and there's no substitute part

Huffy Bicycle Wheel, Front 045006
#7

Unit parts diagram

Huffy bicycle wheel, front

Part #045006

The manufacturer no longer makes this part, and there's no substitute part

Roadmaster Bicycle Front Axle And Bearing Assembly 053011
#11

Unit parts diagram

Roadmaster bicycle front axle and bearing assembly

Part #053011

The manufacturer no longer makes this part, and there's no substitute part

Seat Clp Asm 035005
#26

Unit parts diagram

Seat clp asm

Part #035005

The manufacturer no longer makes this part, and there's no substitute part

Ft Sprkt 46t 068001
#17

Unit parts diagram

Ft sprkt 46t

Part #068001

The manufacturer no longer makes this part, and there's no substitute part

Seat Post 032009
#25

Unit parts diagram

Seat post

Part #032009

The manufacturer no longer makes this part, and there's no substitute part
