Model # B20CS81SNB/01 Official Bosch refrigerator

Here are the diagrams and repair parts for Official Bosch B20CS81SNB-01 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

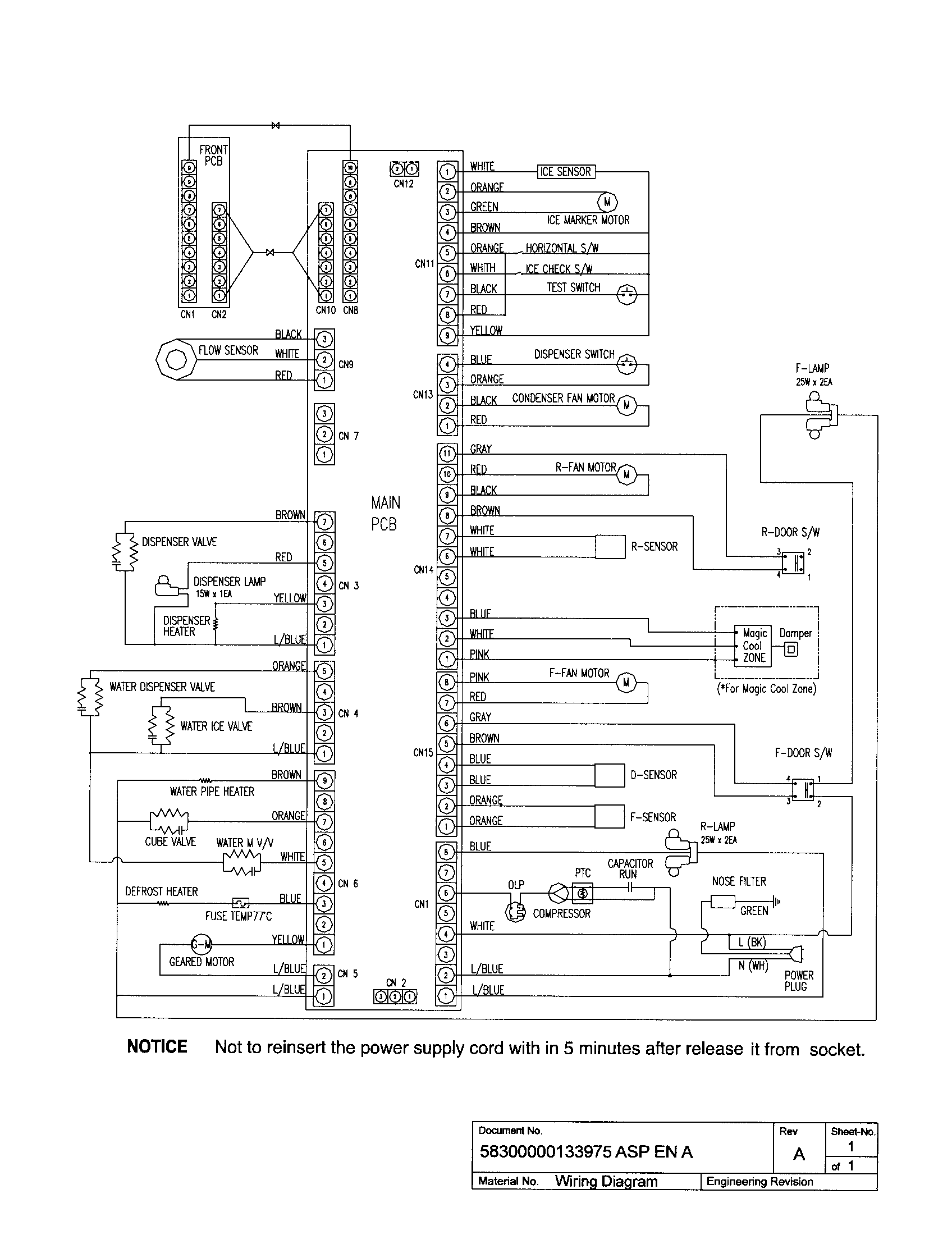

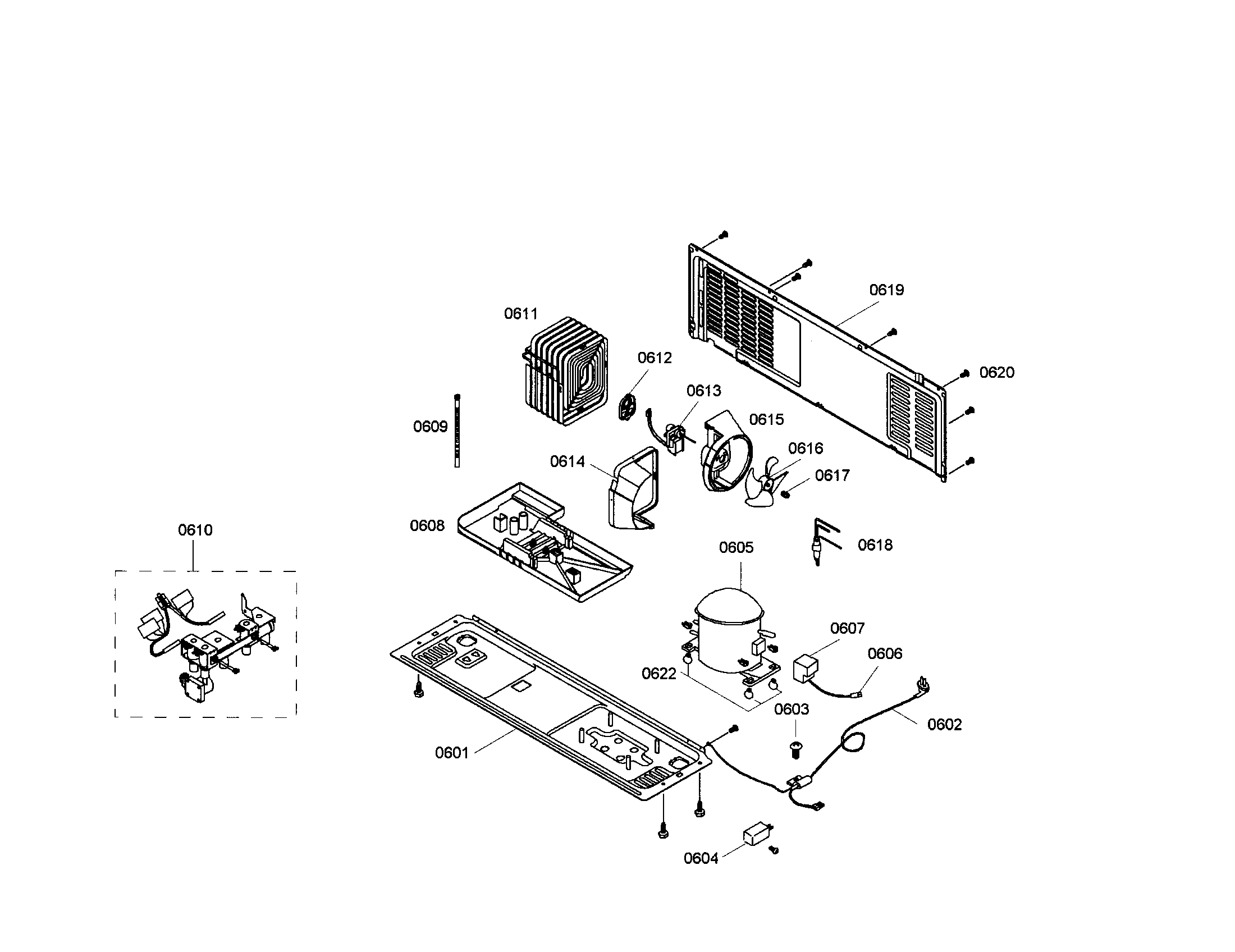

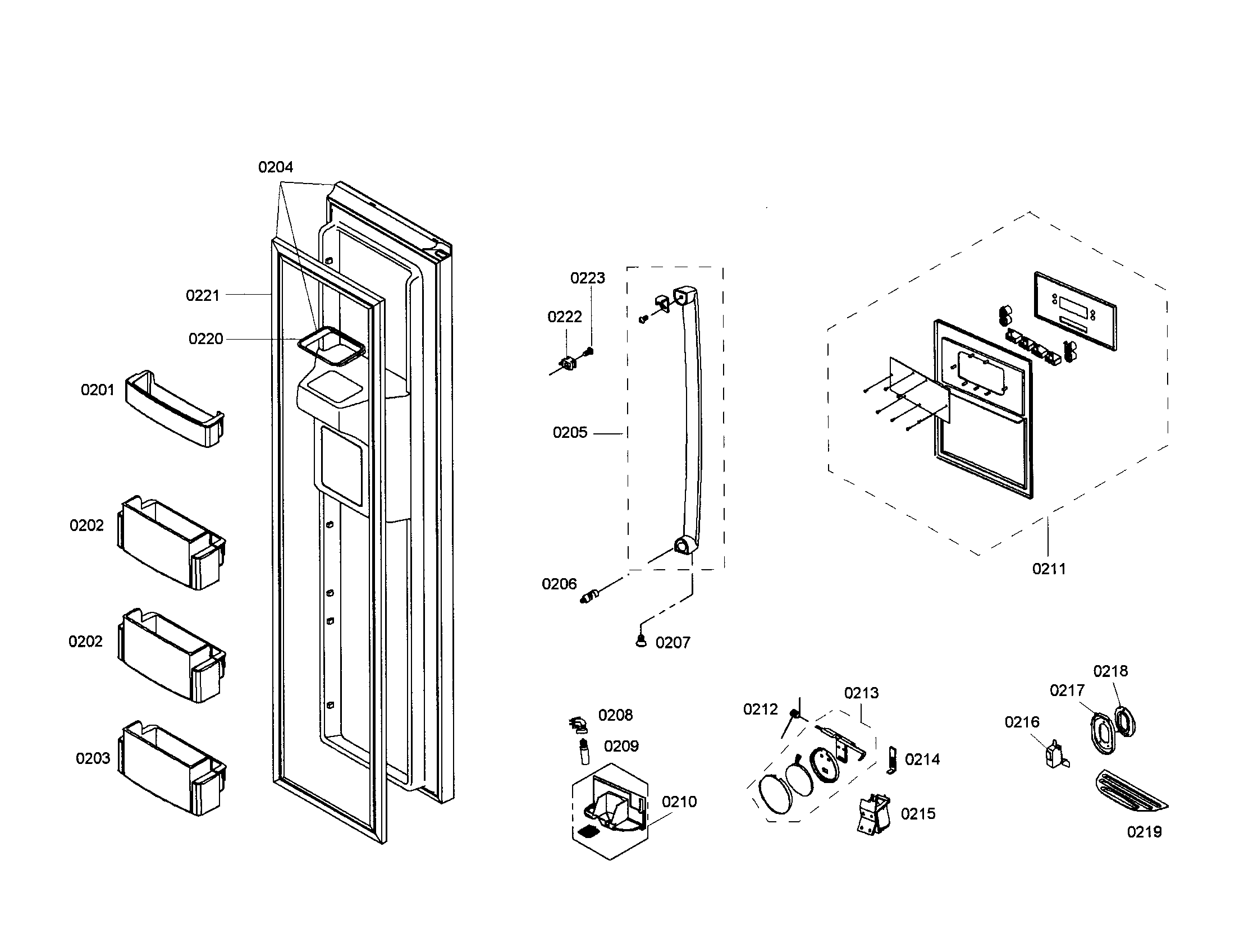

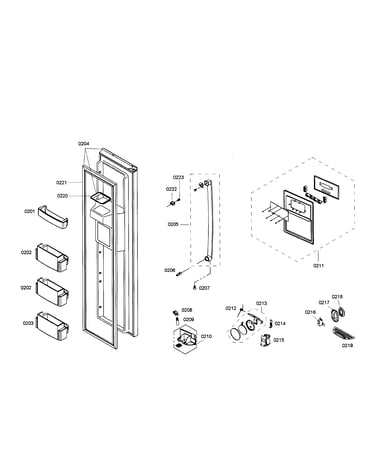

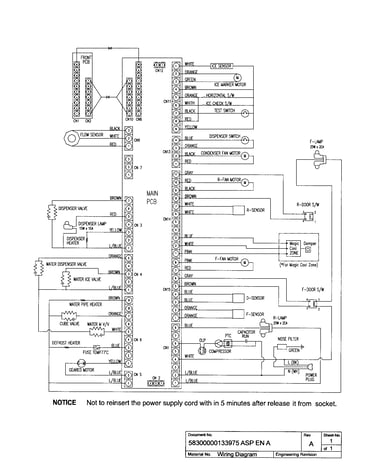

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Refrigerator Filter 601057
#527

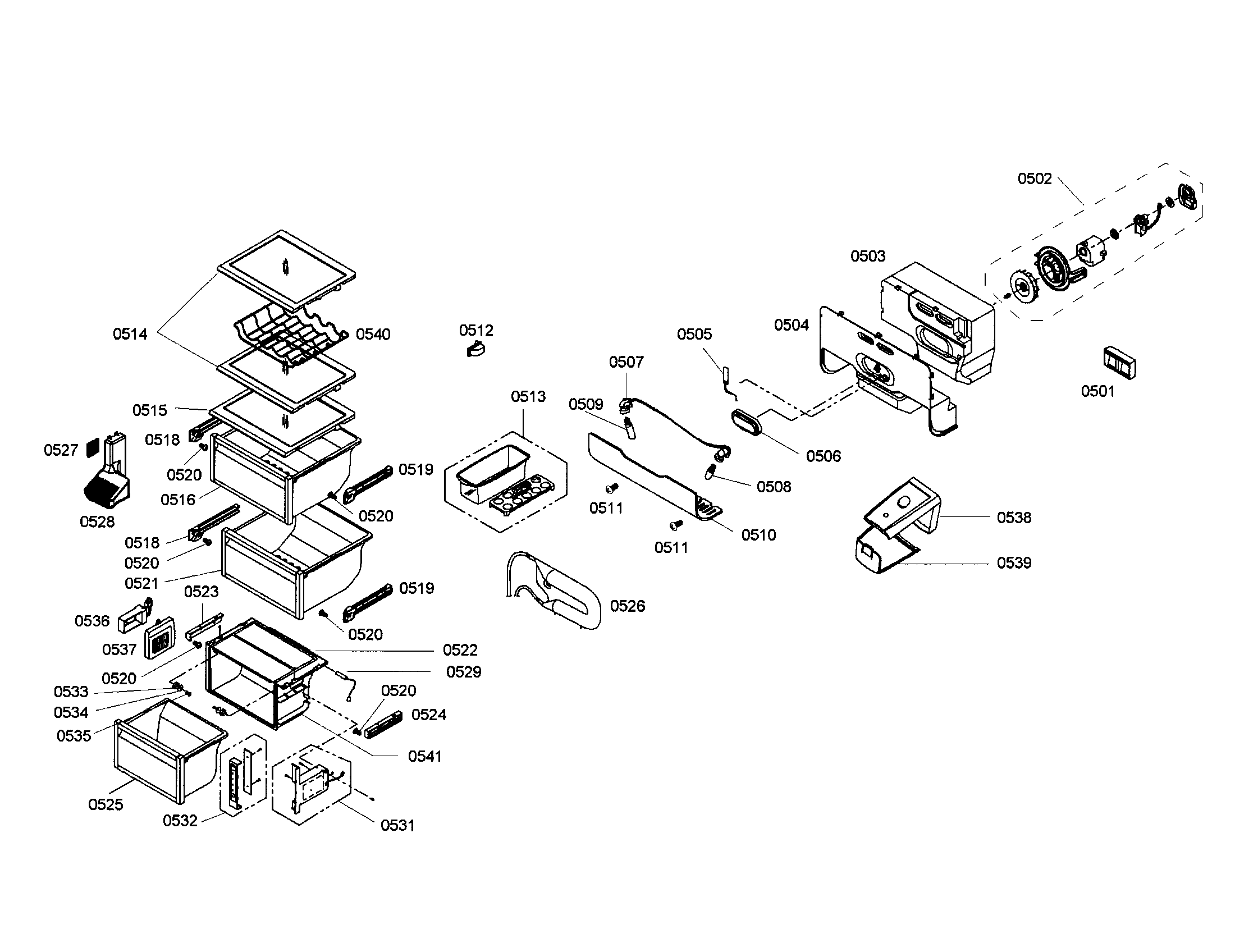

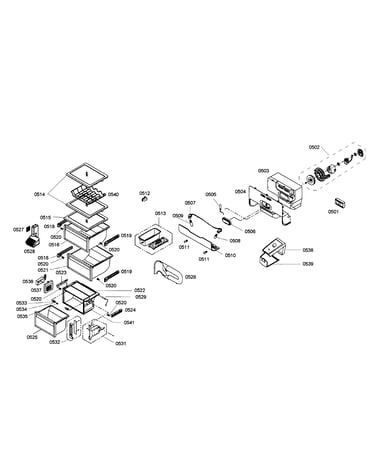

Fan/drawer diagram

Refrigerator filter

Part #601057

Replaced by #00601057

?
Manufacturer substitution
This part replaces 601057. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$26.69 |
18% OFF Phone Price : $32.69
In Stock
Refrigerator Frame 497877
#421

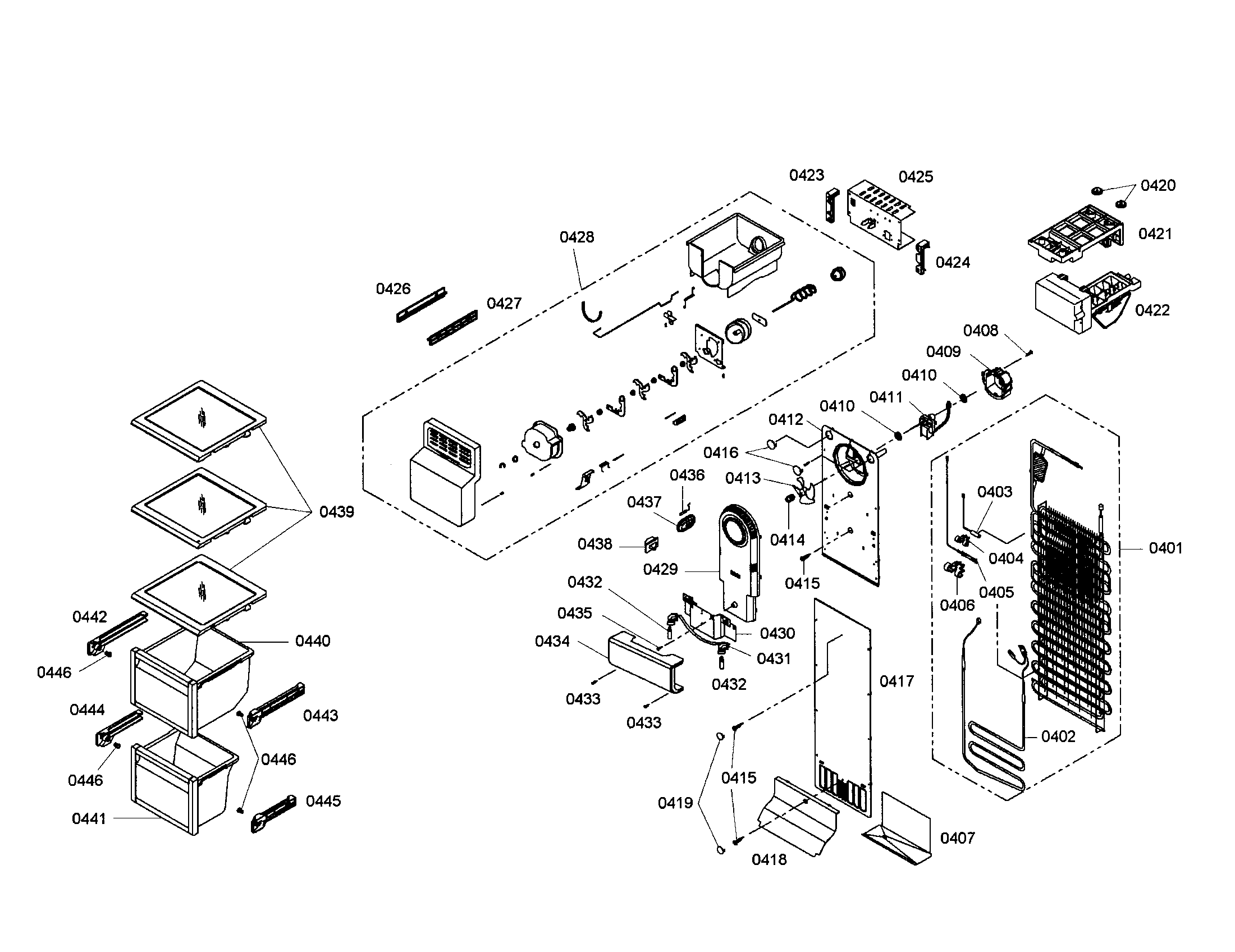

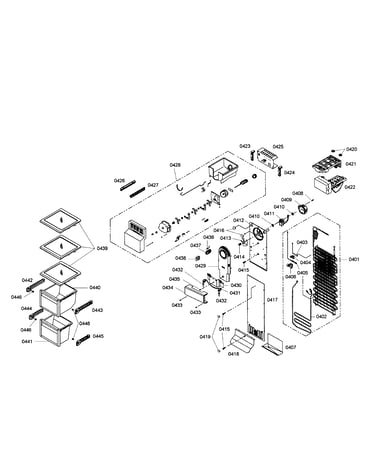

Evaporator/icemaker diagram

Refrigerator frame

Part #497877

Replaced by #00649288

?
Manufacturer substitution
This part replaces 497877. Substitute parts can look different from the original.
BEST SELLER
$204.66 |
6% OFF Phone Price : $216.66
Back Order
Refrigerator Ice Maker 497878
#422

Evaporator/icemaker diagram

Refrigerator ice maker

Part #497878

Replaced by #00649288

?
Manufacturer substitution
This part replaces 497878. Substitute parts can look different from the original.
BEST SELLER
$204.66 |
6% OFF Phone Price : $216.66
Back Order
Refrigerator Door Bin 660362
#307

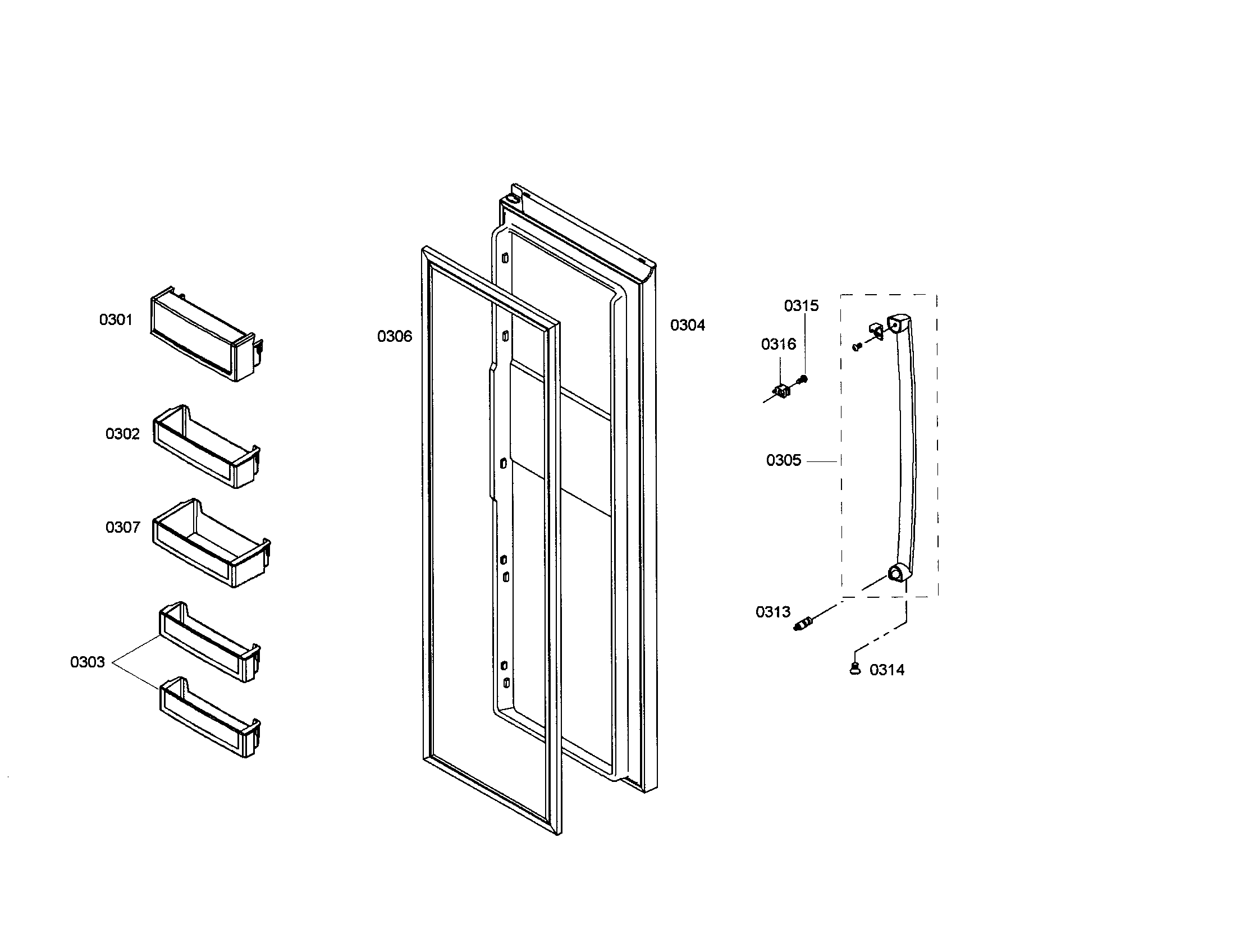

Refrigerator door diagram

Refrigerator door bin

Part #660362

Replaced by #00660362

?
Manufacturer substitution
This part replaces 660362. Substitute parts can look different from the original.
$46.39 |
11% OFF Phone Price : $52.39
In Stock
Refrigerator Fan 497841
#502

Fan/drawer diagram

Refrigerator fan

Part #497841

Replaced by #00497841

?
Manufacturer substitution
This part replaces 497841. Substitute parts can look different from the original.
$88.51 |
6% OFF Phone Price : $94.51
Back Order
Refrigerator Ice Maker Assembly 497882
#428

Evaporator/icemaker diagram

Refrigerator ice maker assembly

Part #497882

Replaced by #00497882

?
Manufacturer substitution
This part replaces 497882. Substitute parts can look different from the original.
$248.74 |
5% OFF Phone Price : $260.74
Back Order
Refrigerator Door Bin, Lower 446136
#303

Refrigerator door diagram

Refrigerator door bin, lower

Part #446136

Replaced by #00446136

?
Manufacturer substitution
This part replaces 446136. Substitute parts can look different from the original.
$83.99 |
7% OFF Phone Price : $89.99
In Stock
Refrigerator Drawer Slide Rail 445985
#442

Evaporator/icemaker diagram

Refrigerator drawer slide rail

Part #445985

Replaced by #00445985

?
Manufacturer substitution
This part replaces 445985. Substitute parts can look different from the original.
$23.49
In Stock
Refrigerator Electronic Control Board 640603
#107

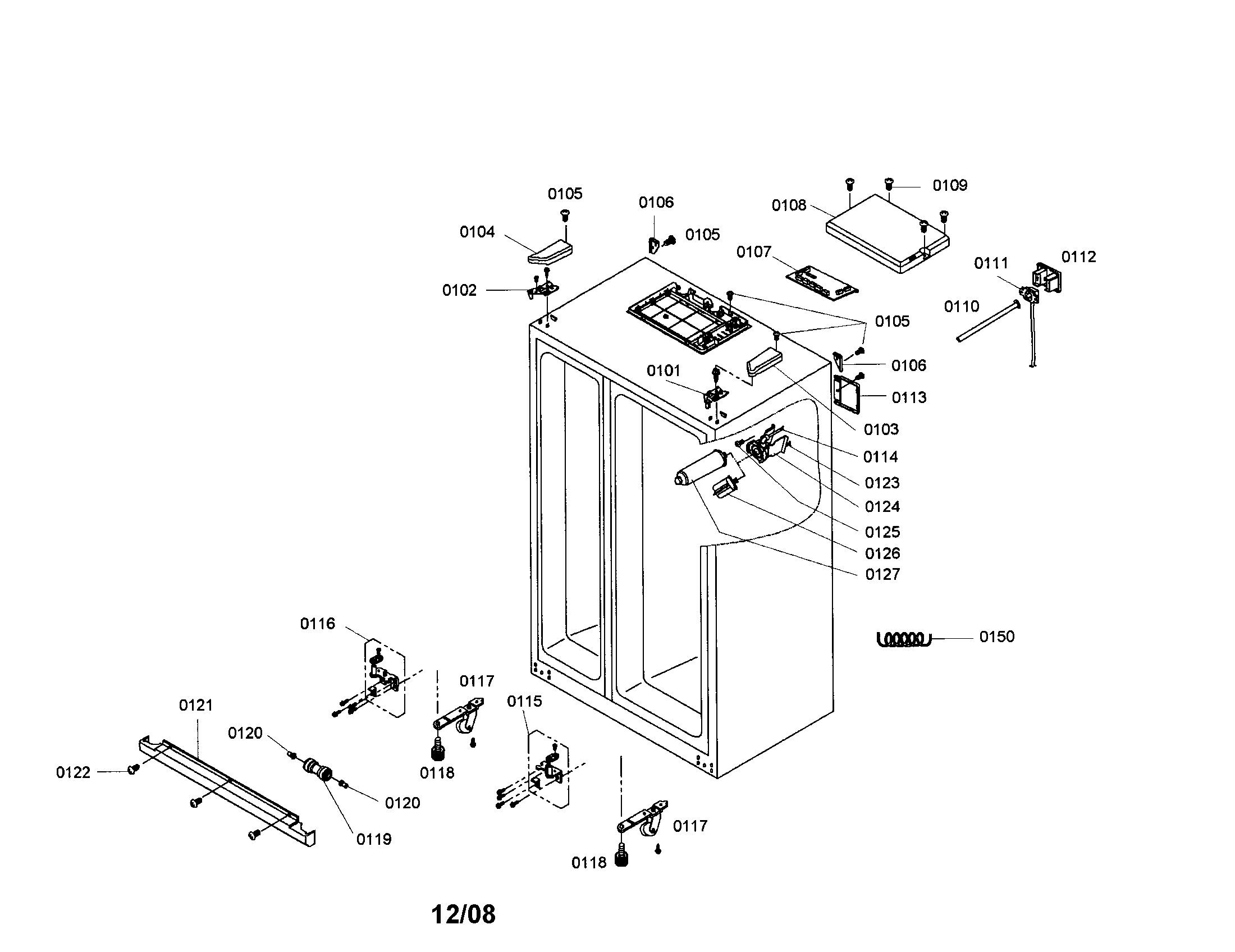

Cabinet diagram

Refrigerator electronic control board

Part #640603

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Drawer Slide Rail 449707
#518

Fan/drawer diagram

Refrigerator drawer slide rail

Part #449707

Replaced by #00445985

?
Manufacturer substitution
This part replaces 449707. Substitute parts can look different from the original.
$23.49
In Stock
