Upright Freezer

Model # 25326422100 Official Kenmore freezer

Here are the diagrams and repair parts for Official Kenmore 25326422100 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Filter Drier 216938600
#4

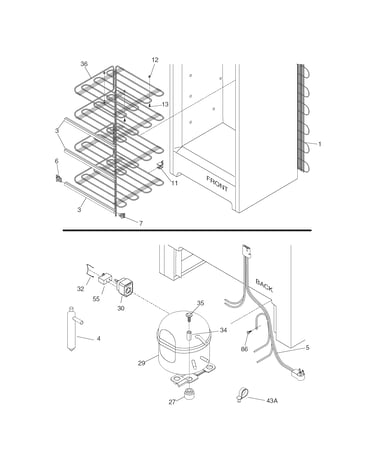

System diagram

Filter drier

Part #216938600

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216938600. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Door Key 216702900
#5

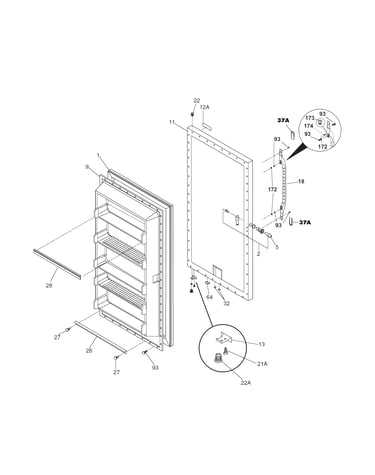

Door diagram

Freezer door key

Part #216702900

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216702900. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Compressor 297068200
#29

System diagram

Compressor

Part #297068200

Replaced by #5304507765

?
Manufacturer substitution
This part replaces 297068200. Substitute parts can look different from the original.
BEST SELLER
$449.52 |
$12.00 OFF Phone Price : $461.52
In Stock
Freezer Door Gasket 216522306
#1

Door diagram

Freezer door gasket

Part #216522306

Replaced by #5304507201

?
Manufacturer substitution
This part replaces 216522306. Substitute parts can look different from the original.
BEST SELLER
$125.82 |
9% OFF Phone Price : $137.82
In Stock
Freezer Gasket And Liner Fastener Kit 5304406520
#NI

Door diagram

Freezer gasket and liner fastener kit

Part #5304406520

BEST SELLER
$33.42 |
15% OFF Phone Price : $39.42
In Stock
Switch 216998000
#14

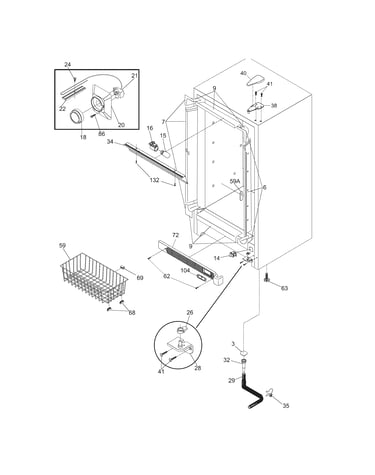

Cabinet diagram

Switch

Part #216998000

Replaced by #216822900

?
Manufacturer substitution
This part replaces 216998000. Substitute parts can look different from the original.
BEST SELLER
$51.35 |
10% OFF Phone Price : $57.35
In Stock
Upright Freezer Door Handle (white) 218803901
#18

Door diagram

Upright freezer door handle (white)

Part #218803901

Replaced by #297272500

?
Manufacturer substitution
This part replaces 218803901. Substitute parts can look different from the original.
BEST SELLER
$52.41 |
10% OFF Phone Price : $58.41
In Stock
Freezer Drain Plug (replaces 5306593887) 216502600
#3

Cabinet diagram

Freezer drain plug (replaces 5306593887)

Part #216502600

BEST SELLER
This item is not returnable
$13.04 |
13% OFF Phone Price : $15.04
In Stock
Screw 240521301
#174

Door diagram

Screw

Part #240521301

Replaced by #240521303

?
Manufacturer substitution
This part replaces 240521301. Substitute parts can look different from the original.
BEST SELLER
$14.79 |
12% OFF Phone Price : $16.79
In Stock
Freezer Run Capacitor (replaces 216787800, 7218909912) 218909912
#55

System diagram

Freezer run capacitor (replaces 216787800, 7218909912)

Part #218909912

$58.16 |
9% OFF Phone Price : $64.16
In Stock
