Model # JV625S1BB Official GE range hood

Here are the diagrams and repair parts for Official GE JV625S1BB range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Filter WB2X8400
#907

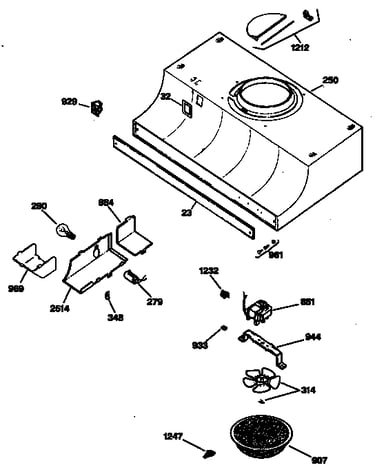

Hood/fan/motor diagram

Filter

Part #WB2X8400

Replaced by #WB2X2052

?
Manufacturer substitution
This part replaces WB2X8400. Substitute parts can look different from the original.
$28.95 |
17% OFF Phone Price : $34.95
In Stock
Refrigerator Fan Blade WR2X3198

#NI

All parts diagram

Refrigerator fan blade

Part #WR2X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Magnetron NOT AVAIL
#250

Hood/fan/motor diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Fustat 15amp Type S OBT LOCAL
#280

Hood/fan/motor diagram

Fustat 15amp type s

Part #OBT LOCAL

The manufacturer no longer makes this part, and there's no substitute part

Rivet Kit WB1X663
#961

Hood/fan/motor diagram

Rivet kit

Part #WB1X663

The manufacturer no longer makes this part, and there's no substitute part

Guard Wire WB2X3368
#884A

Hood/fan/motor diagram

Guard wire

Part #WB2X3368

The manufacturer no longer makes this part, and there's no substitute part

Lght Skt WB8X5109
#279

Hood/fan/motor diagram

Lght skt

Part #WB8X5109

The manufacturer no longer makes this part, and there's no substitute part

Strain Release WB2X8407
#1232

Hood/fan/motor diagram

Strain release

Part #WB2X8407

The manufacturer no longer makes this part, and there's no substitute part

Wiring Guard WB2X8444
#884

Hood/fan/motor diagram

Wiring guard

Part #WB2X8444

The manufacturer no longer makes this part, and there's no substitute part

Light Box WB2X7370
#2514B

Hood/fan/motor diagram

Light box

Part #WB2X7370

The manufacturer no longer makes this part, and there's no substitute part
