Model # MDB8951BWS1 Official Maytag undercounter dishwasher

Here are the diagrams and repair parts for Official Maytag MDB8951BWS1 undercounter dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

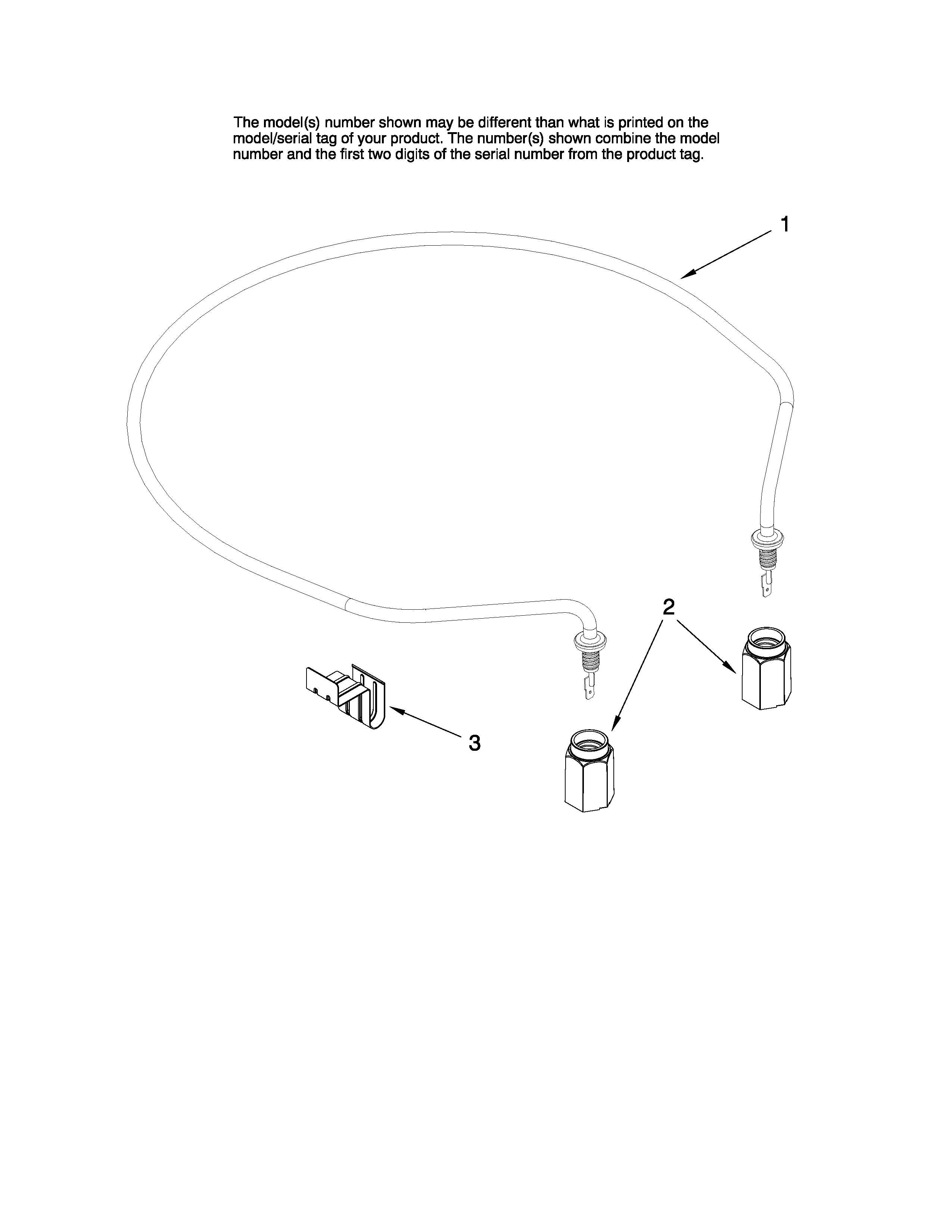

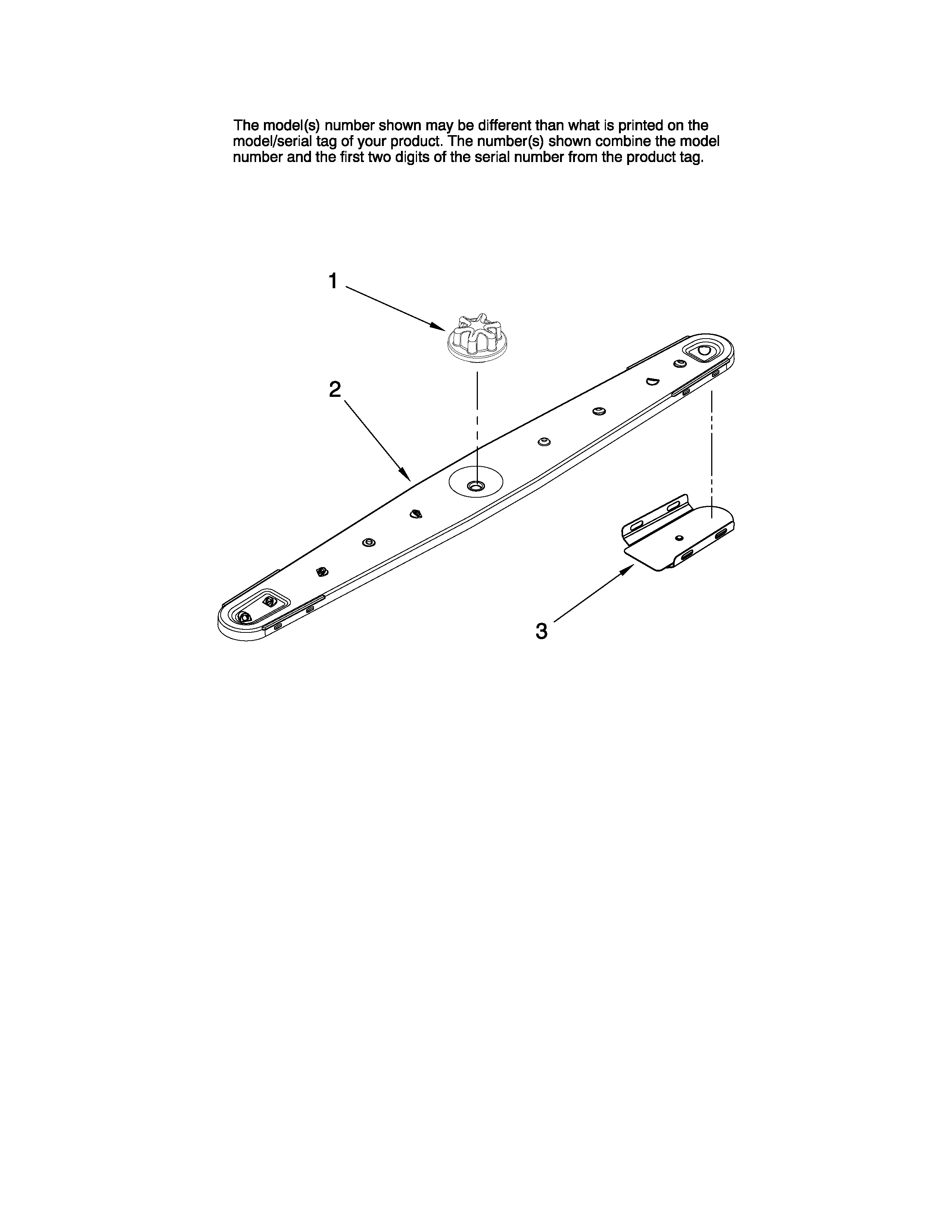

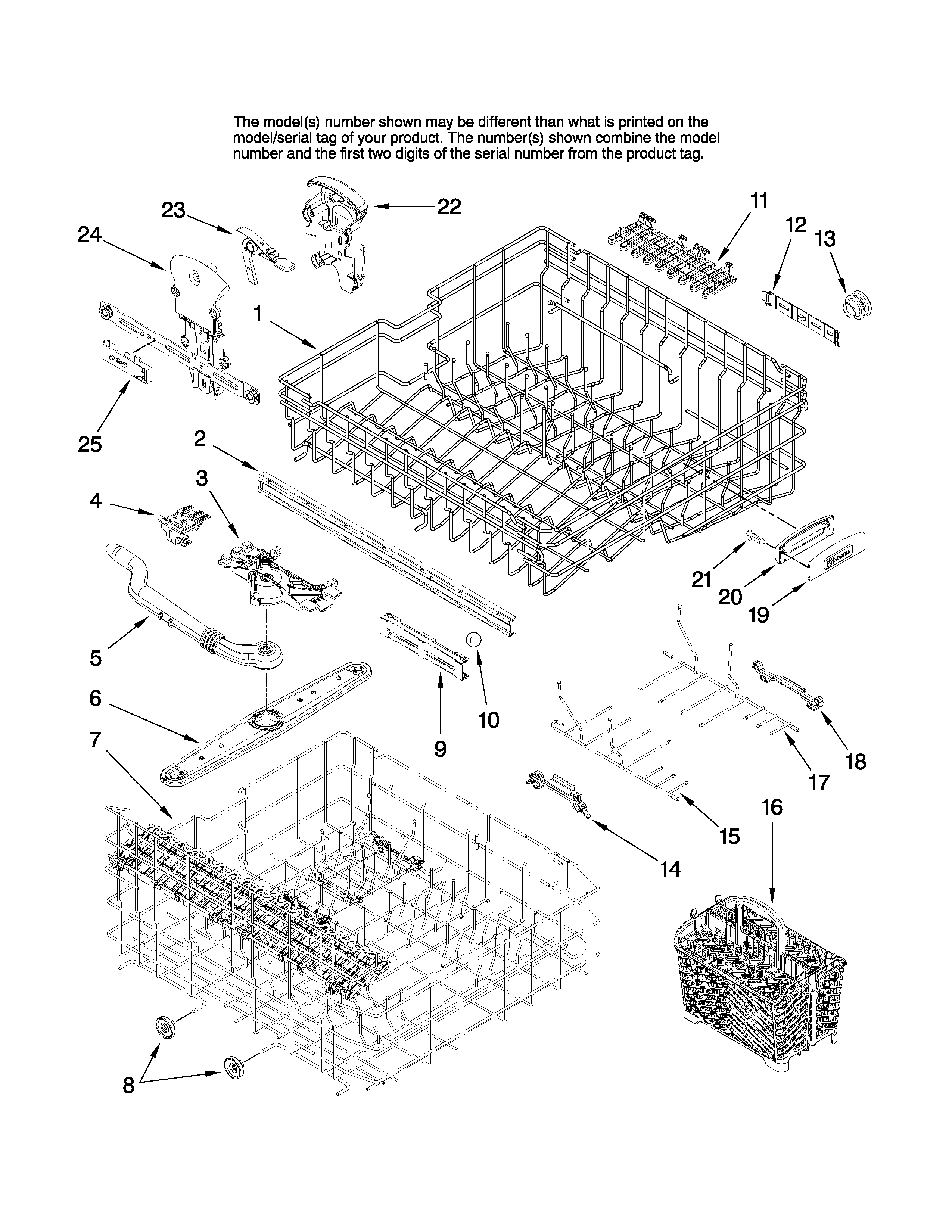

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Clamp Spring 911856
#2

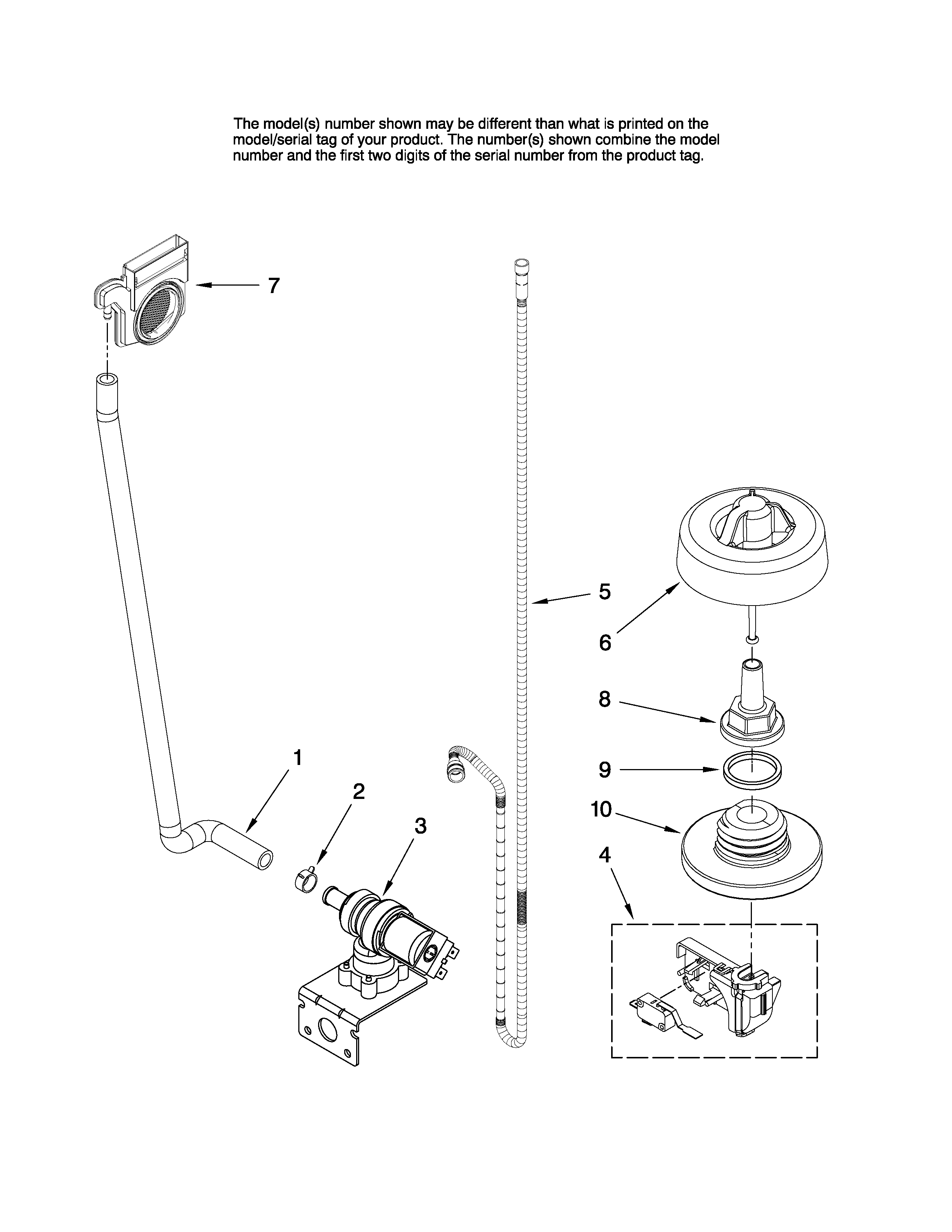

Fill and overfill parts diagram

Clamp spring

Part #911856

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 911856. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dishwasher Door Latch 99003347
#6

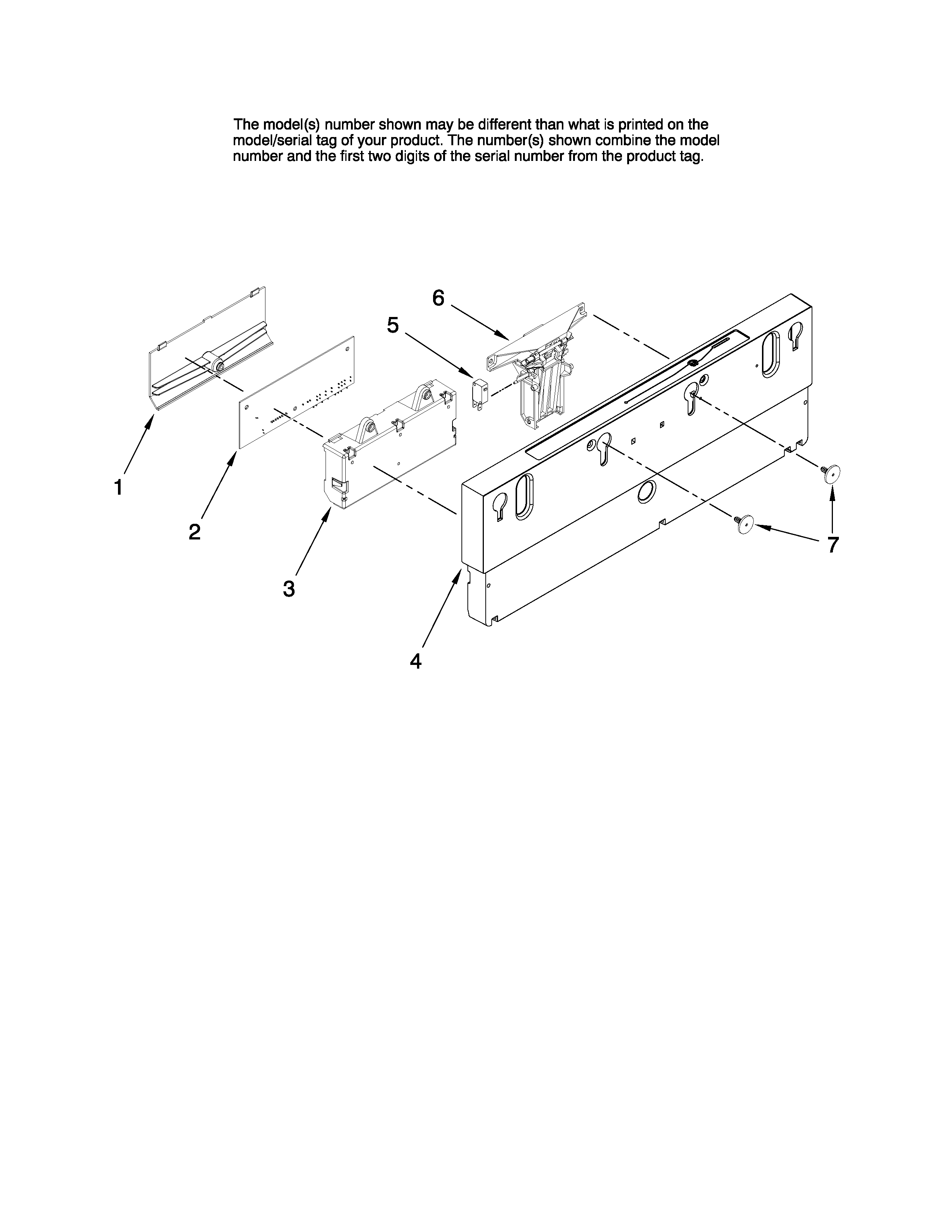

Control panel parts diagram

Dishwasher door latch

Part #99003347

Replaced by #WPW10275768

?
Manufacturer substitution
This part replaces 99003347. Substitute parts can look different from the original.
BEST SELLER
$48.78 |
11% OFF Phone Price : $54.78
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Dishwasher Door Cable 99003446
#12

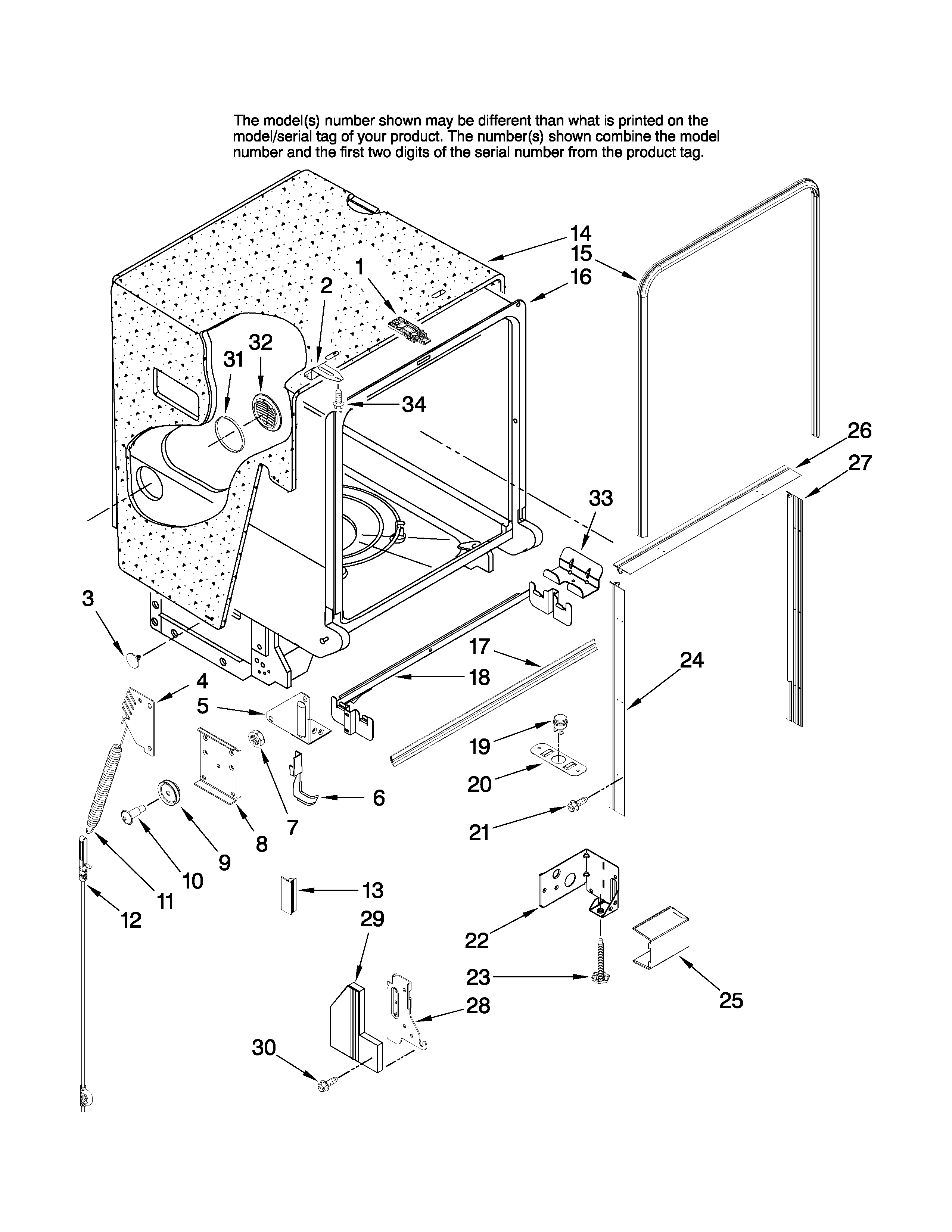

Tub and frame parts diagram

Dishwasher door cable

Part #99003446

The manufacturer no longer makes this part, and there's no substitute part

Wash Motor W10118627
#15

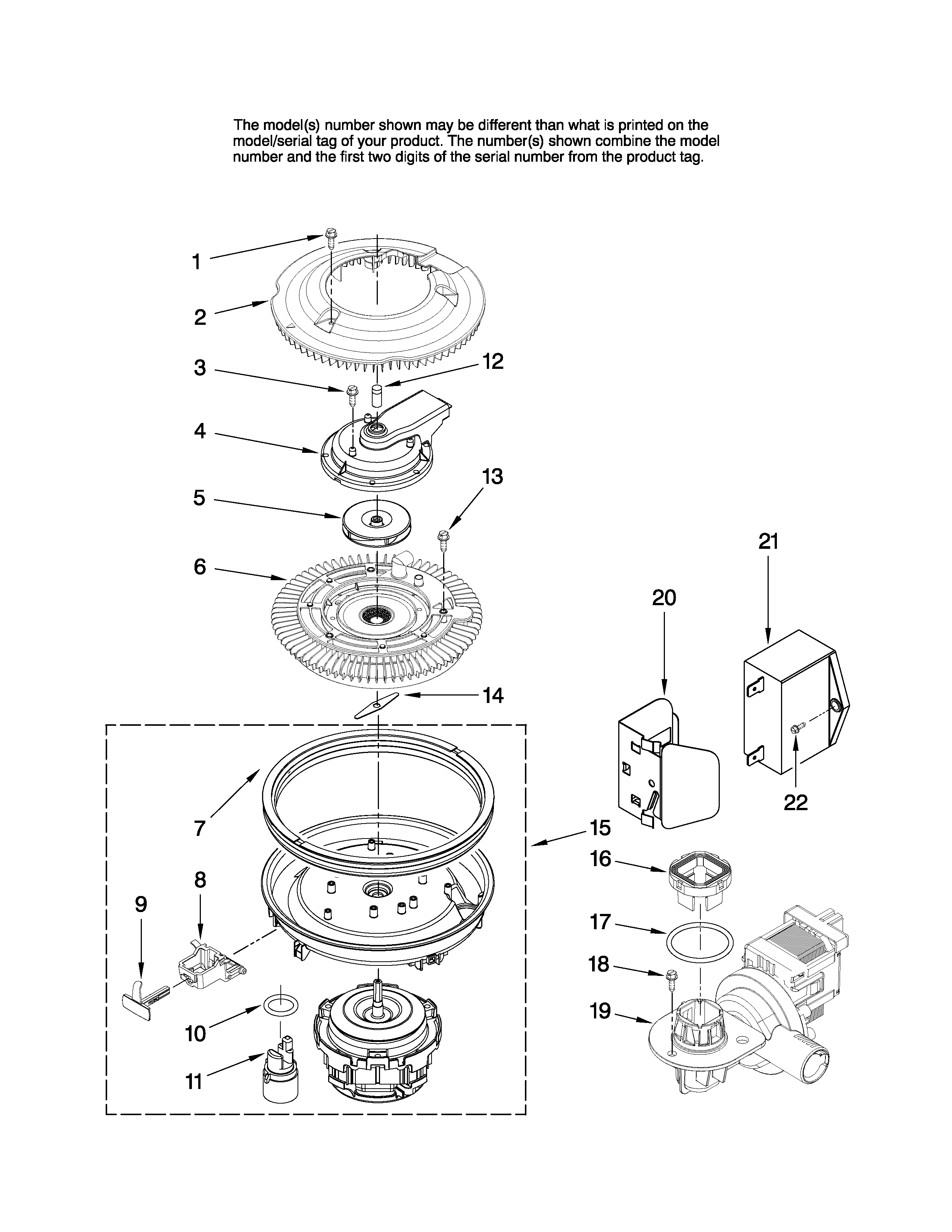

Pump and motor parts diagram

Wash motor

Part #W10118627

Replaced by #6-919963

?
Manufacturer substitution
This part replaces W10118627. Substitute parts can look different from the original.
$350.80 |
$12.00 OFF Phone Price : $362.80
In Stock
Dishwasher Screw Y912620
#5

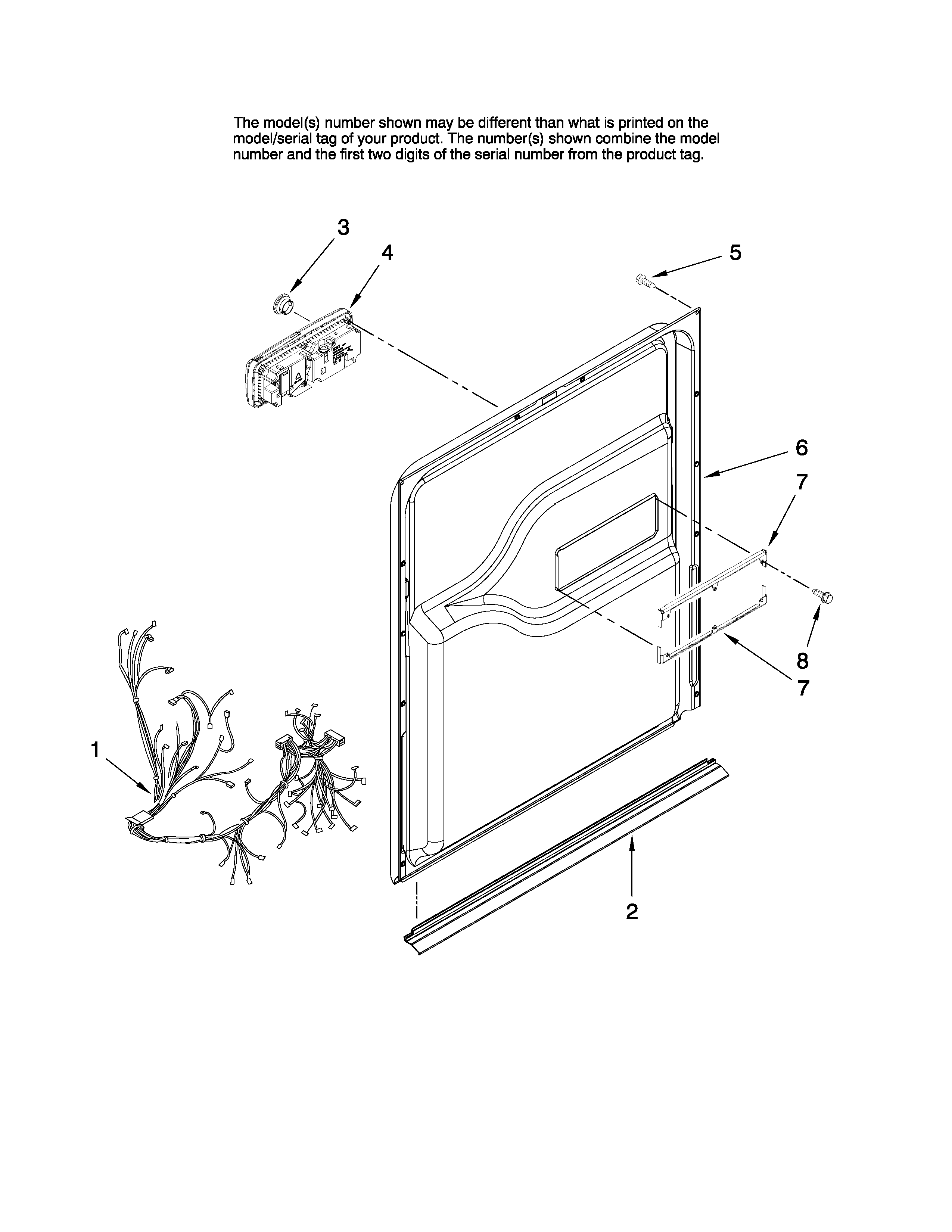

Door and latch parts diagram

Dishwasher screw

Part #Y912620

The manufacturer no longer makes this part, and there's no substitute part

Touch-up Paint 4392899
#NI

Optional parts (not included) diagram

Touch-up paint

Part #4392899

Replaced by #4392899

?
Manufacturer substitution
This part replaces 4392899. Substitute parts can look different from the original.
This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
In Stock
Water Switch (white) 99002560
#18A

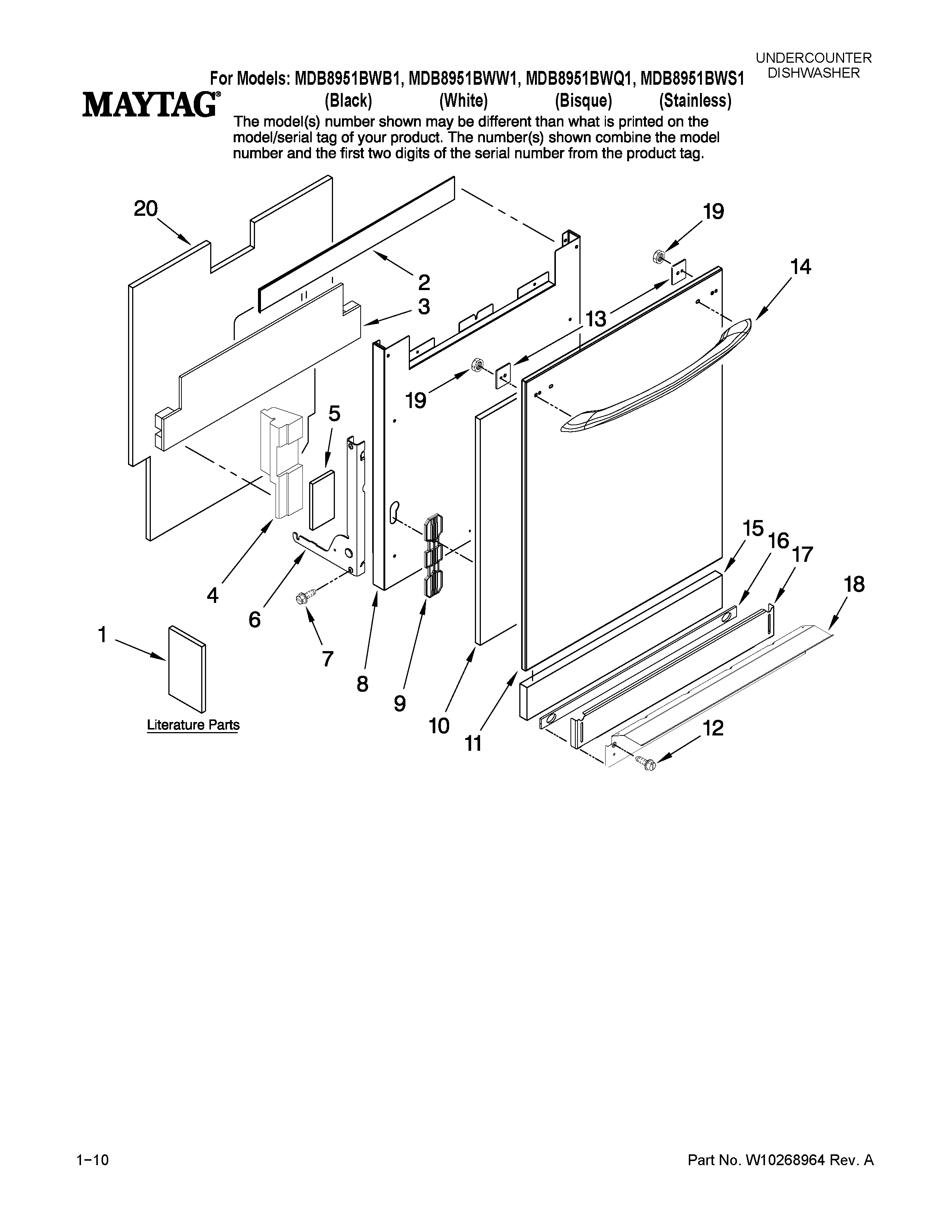

Door and panel parts diagram

Water switch (white)

Part #99002560

Replaced by #WP99002560

?
Manufacturer substitution
This part replaces 99002560. Substitute parts can look different from the original.
$31.76 |
16% OFF Phone Price : $37.76
In Stock
Tub Arm Washer 99002911
#5

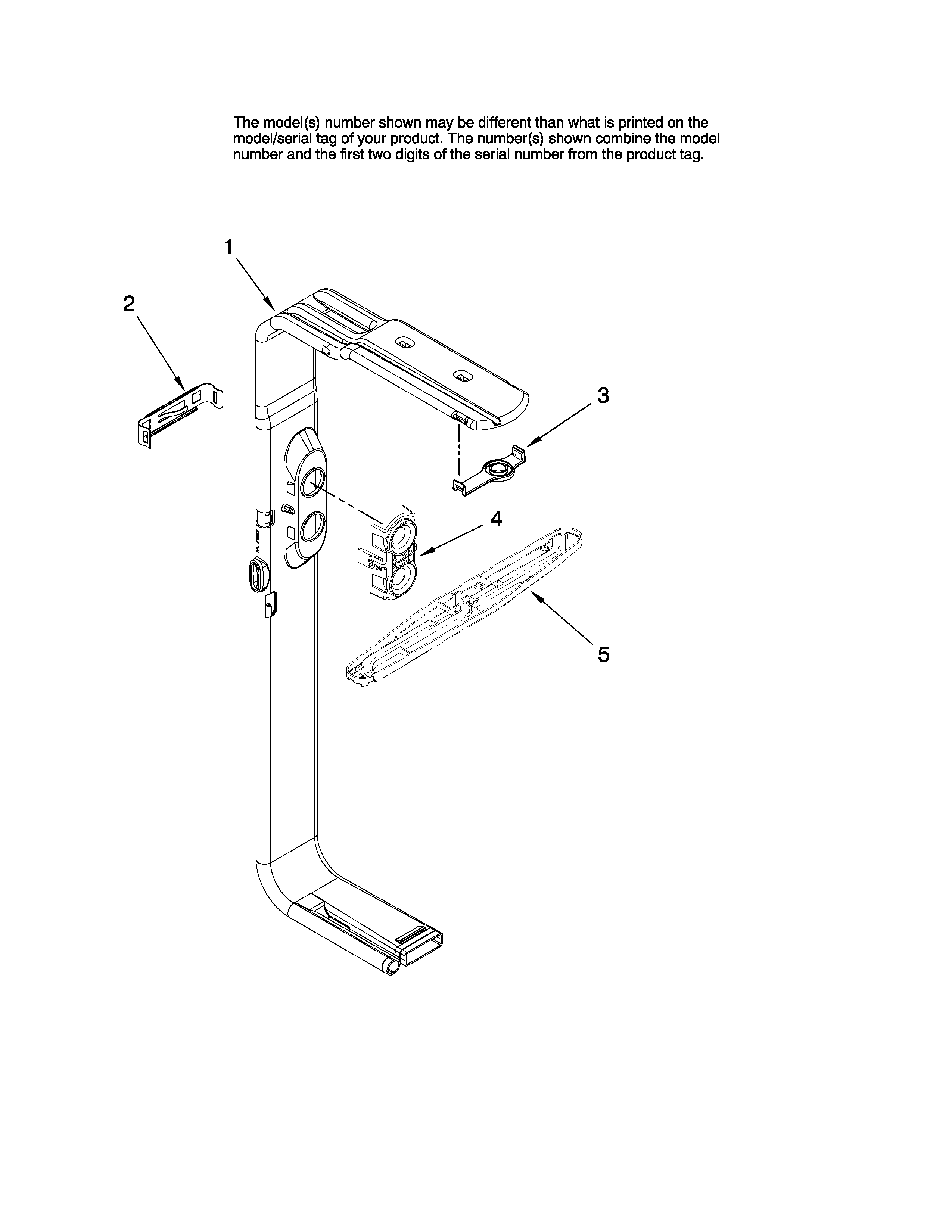

Upper wash and rinse parts diagram

Tub arm washer

Part #99002911

Replaced by #WP6-917644

?
Manufacturer substitution
This part replaces 99002911. Substitute parts can look different from the original.
This item is not returnable
$35.21 |
15% OFF Phone Price : $41.21
In Stock
Trim Tube 99003041
#17

Tub and frame parts diagram

Trim tube

Part #99003041

Replaced by #WP99003041

?
Manufacturer substitution
This part replaces 99003041. Substitute parts can look different from the original.
$50.09 |
11% OFF Phone Price : $56.09
In Stock
