Model # 25319531991 Official Kenmore chest freezer

Here are the diagrams and repair parts for Official Kenmore 25319531991 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Clips & Holders

Screws

ALL PARTS

Showing 10 of 61 parts |

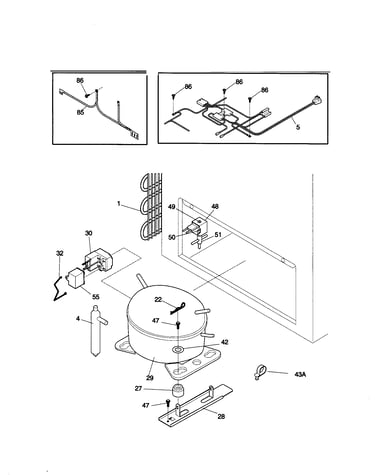

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

$12.71 |

14% OFF Phone Price : $14.71

In Stock

Qty

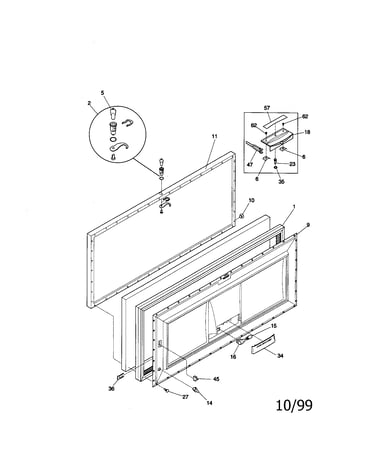

Door diagram

Key

Part #216388700

Replaced by #297147700

$9.25 |

10% OFF Phone Price : $10.25

In Stock

Qty

#29

System diagram

Compressor

Part #5303925441

Replaced by #5304507765

$449.52 |

$12.00 OFF Phone Price : $461.52

In Stock

Qty

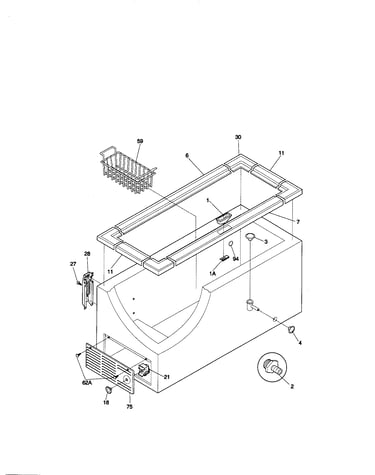

Cabinet diagram

Freezer drain plug (replaces 5306593887)

Part #216502600

This item is not returnable

$13.04 |

13% OFF Phone Price : $15.04

In Stock

Qty

#15

Door diagram

Lamp bulb

Part #216222700

Replaced by #216846400

$40.15 |

13% OFF Phone Price : $46.15

In Stock

Qty

Freezer Inner Door Panel Rivet 5303212828

#27

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |

9% OFF Phone Price : $21.49

In Stock

Qty

#28

Cabinet diagram

Hinge (white)

Part #216035200

Replaced by #297321900

$68.89 |

8% OFF Phone Price : $74.89

In Stock

Qty

#27

Cabinet diagram

Hinge screw

Part #216629600

Replaced by #216629601

This item is not returnable

$10.92 |

15% OFF Phone Price : $12.92

In Stock

Qty

System diagram

Freezer condenser coil

Part #5303925238

$335.48

In Stock

Qty

#43A

System diagram

Freezer wire harness clamp

Part #5303212614

This item is not returnable

$2.16

In Stock

Qty
