Model # WSLP1100H0WW Official GE washer

Here are the diagrams and repair parts for Official GE WSLP1100H0WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Washer Faucet Adapter WD01X1447
#92

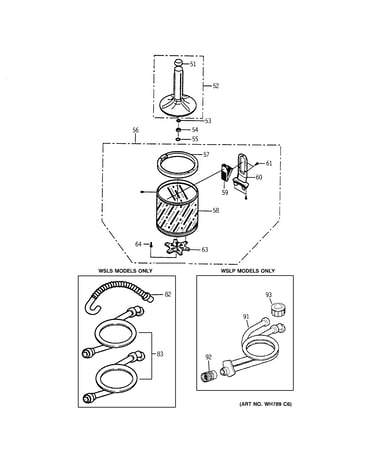

Tub & agitator diagram

Washer faucet adapter

Part #WD01X1447

This item is not returnable
$6.99
In Stock
Washer Drain Pump WH23X10011
#38

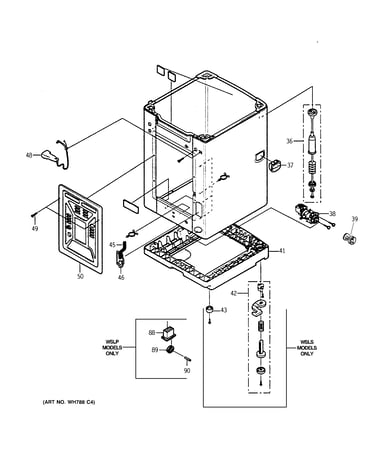

Cabinet & case diagram

Washer drain pump

Part #WH23X10011

$167.65 |
7% OFF Phone Price : $179.65
In Stock
Tapping Screw WH02X10081
#66

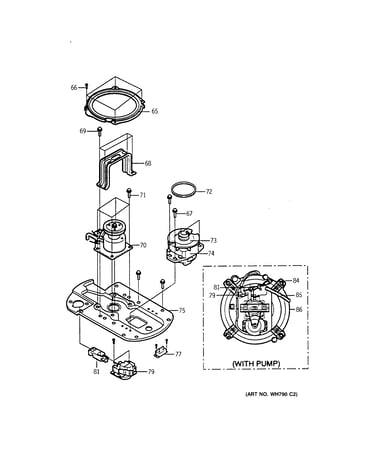

Drive assembly diagram

Tapping screw

Part #WH02X10081

$7.51
In Stock
Washer Lint Filter WH43X10036
#59

Tub & agitator diagram

Washer lint filter

Part #WH43X10036

Replaced by #WH42X10020

?
Manufacturer substitution
This part replaces WH43X10036. Substitute parts can look different from the original.
$59.04
In Stock
Washer Outer Tub WH45X10036
#86

Drive assembly diagram

Washer outer tub

Part #WH45X10036

The manufacturer no longer makes this part, and there's no substitute part

Assy-leg (ri WH46X10107
#42

Cabinet & case diagram

Assy-leg (ri

Part #WH46X10107

The manufacturer no longer makes this part, and there's no substitute part

Washer Suspension Rod And Spring Assembly, Front WH16X10035
#36

Cabinet & case diagram

Washer suspension rod and spring assembly, front

Part #WH16X10035

The manufacturer no longer makes this part, and there's no substitute part

Shaft Wheel WH09X10002
#90

Cabinet & case diagram

Shaft wheel

Part #WH09X10002

The manufacturer no longer makes this part, and there's no substitute part

Flange Shaft WH40X10003
#63

Tub & agitator diagram

Flange shaft

Part #WH40X10003

The manufacturer no longer makes this part, and there's no substitute part

Motor Screw WH02X10083
#69

Drive assembly diagram

Motor screw

Part #WH02X10083

The manufacturer no longer makes this part, and there's no substitute part
