Craftsman
Garage Door Opener

Model # 139654301 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 139654301 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Nut 133A106
#11

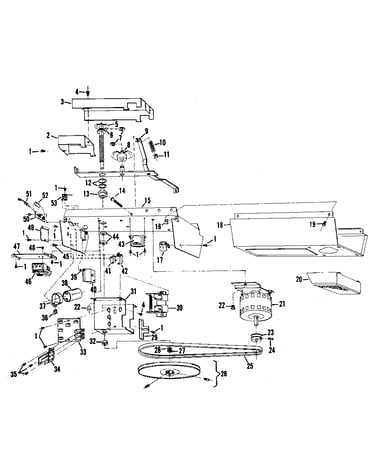

Chassis assembly diagram

Nut

Part #133A106

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A184
Screw

Part #171A184

The manufacturer no longer makes this part, and there's no substitute part

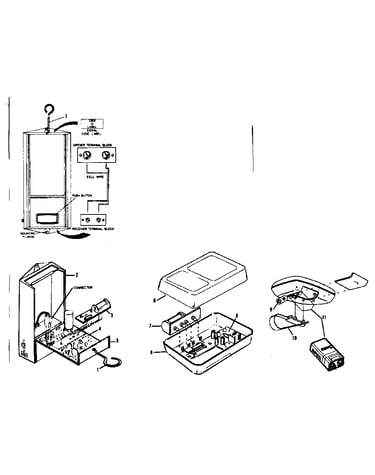

Transmitter 654330

#NI

All parts diagram

Transmitter

Part #654330

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A183
#1

Chassis assembly diagram

Screw

Part #171A183

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A15
#48

Chassis assembly diagram

Screw

Part #171A15

The manufacturer no longer makes this part, and there's no substitute part

Trolley Assembly 1A955
#10

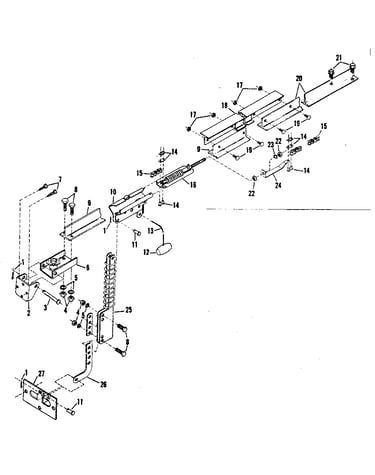

Rail assembly diagram
