Model # 139536141SR Official Craftsman 1/2-hp garage door opener

Here are the diagrams and repair parts for Official Craftsman 139536141SR 1/2-hp garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

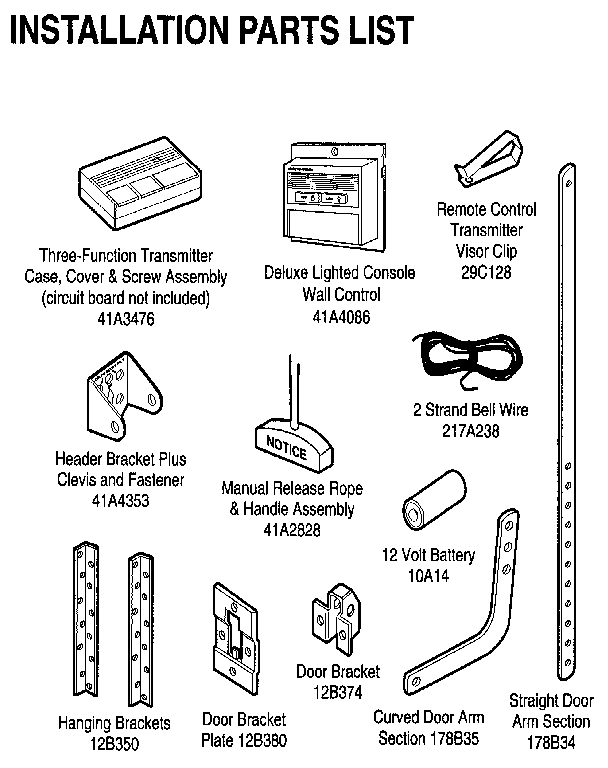

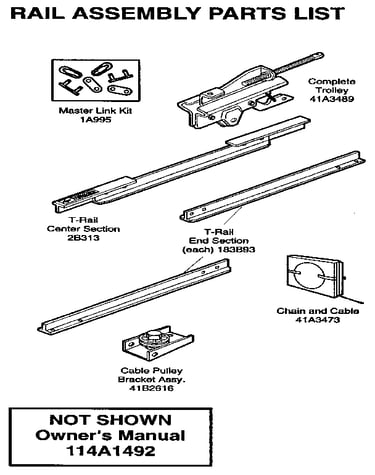

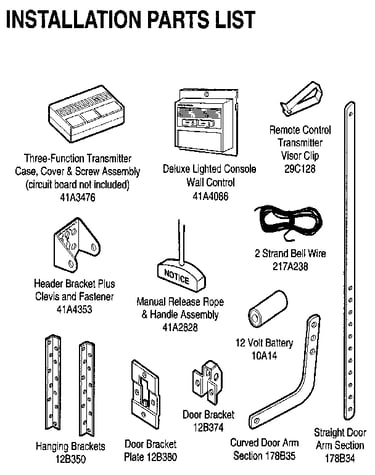

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 22 parts |

#15

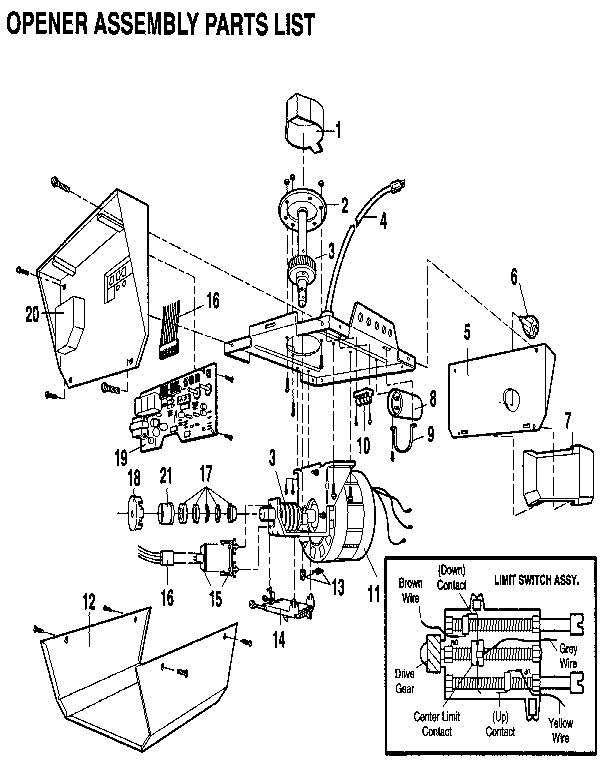

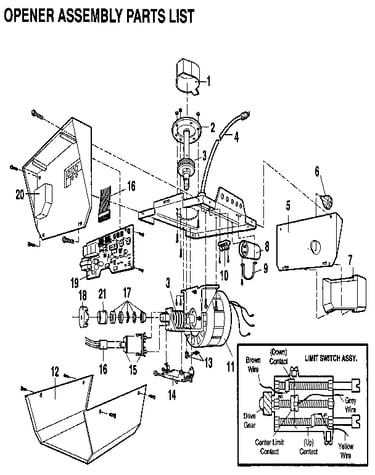

Opener assembly diagram

Sensor assembly

Part #41C4398

The manufacturer no longer makes this part, and there's no substitute part

#14

Opener assembly diagram

Garage door opener limit switch

Part #41D3452

The manufacturer no longer makes this part, and there's no substitute part

Opener assembly diagram

Garage door opener drive and worm gear kit (replaces 3002375, 65409)

Part #41A2817

The manufacturer no longer makes this part, and there's no substitute part

Opener assembly diagram

Light socket

Part #175B88M

The manufacturer no longer makes this part, and there's no substitute part

Opener assembly diagram

Start cap

Part #30B363

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Motor Assembly 41D3058

#11

Opener assembly diagram

Garage door opener motor assembly

Part #41D3058

The manufacturer no longer makes this part, and there's no substitute part

Opener assembly diagram

Line cord

Part #41B2991

The manufacturer no longer makes this part, and there's no substitute part

Opener assembly diagram

Garage door opener sprocket cover

Part #31D380

The manufacturer no longer makes this part, and there's no substitute part

#13

Opener assembly diagram

Garage door opener helical gear

Part #41A2818

The manufacturer no longer makes this part, and there's no substitute part

#10

Opener assembly diagram

Terminal block

Part #41A3150

The manufacturer no longer makes this part, and there's no substitute part
