Model # SF362BEGQ6 Official Whirlpool gas range

Here are the diagrams and repair parts for Official Whirlpool SF362BEGQ6 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

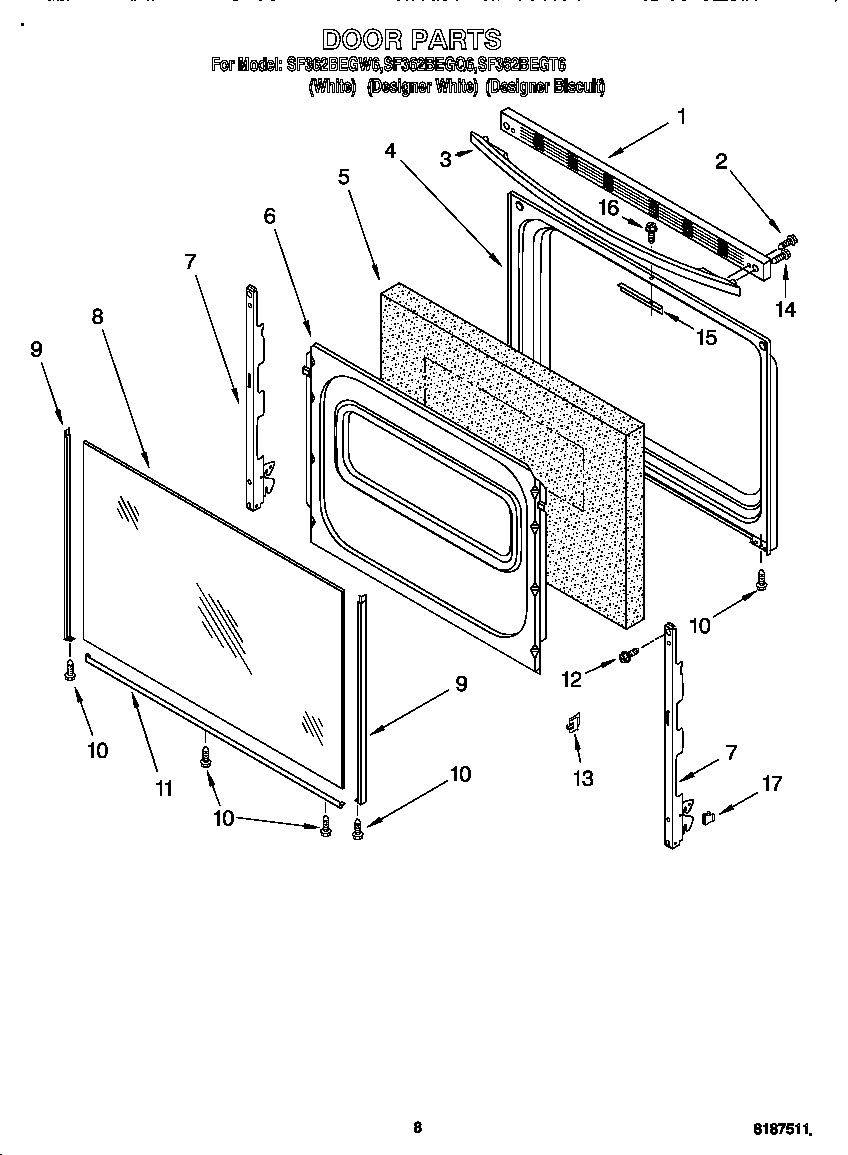

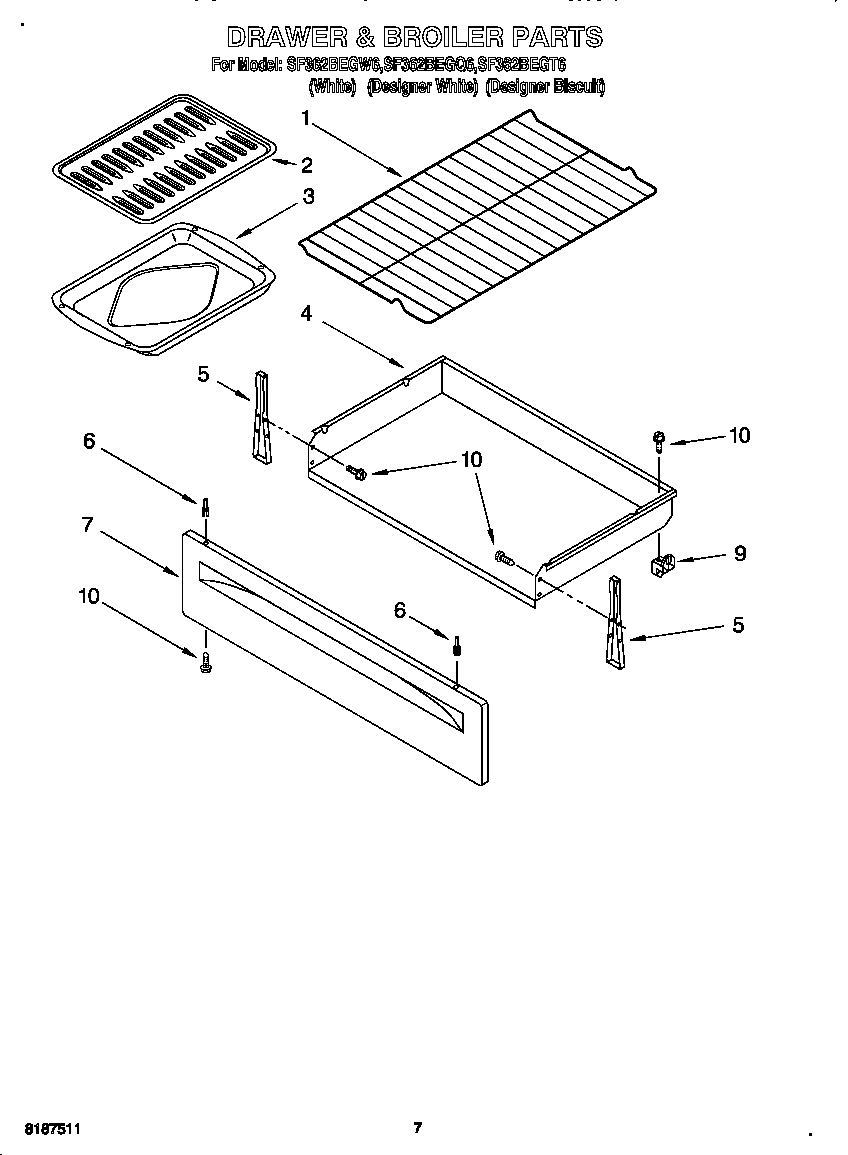

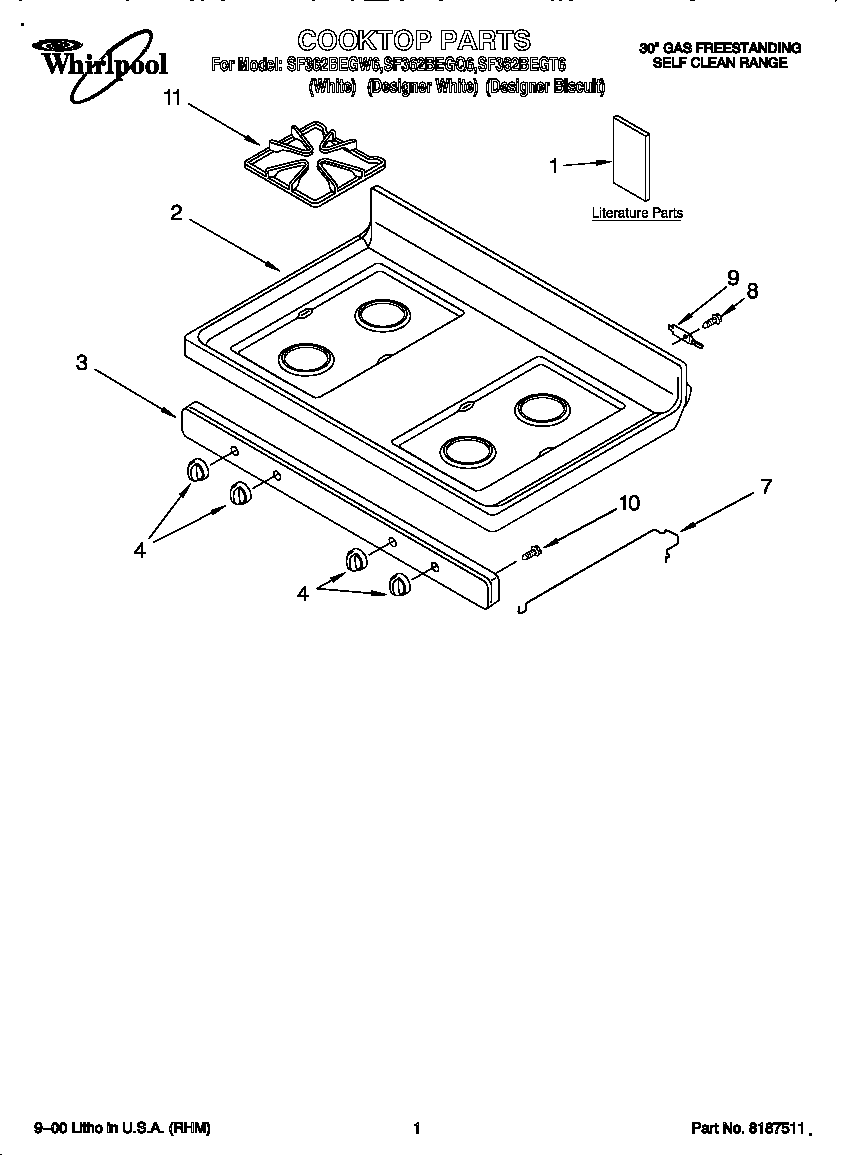

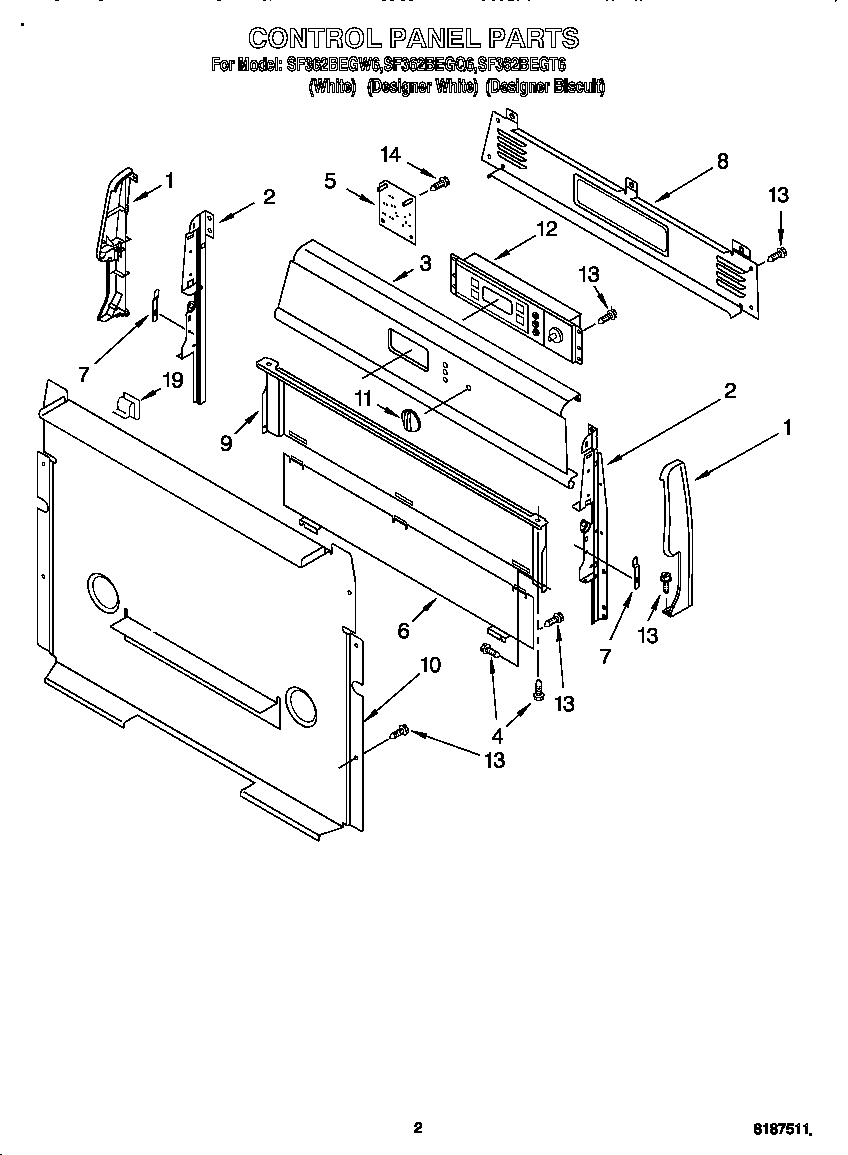

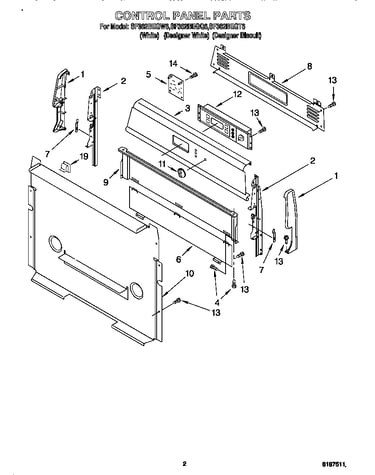

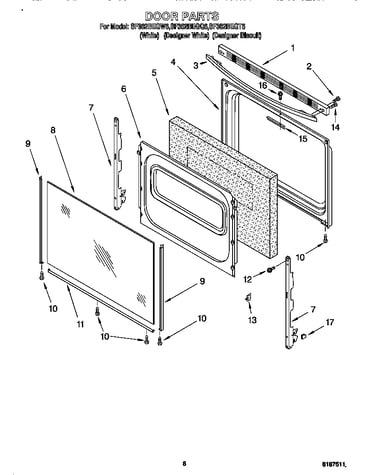

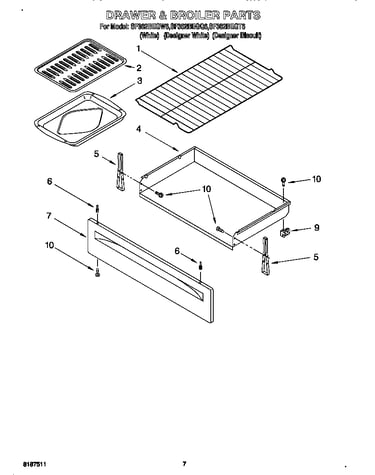

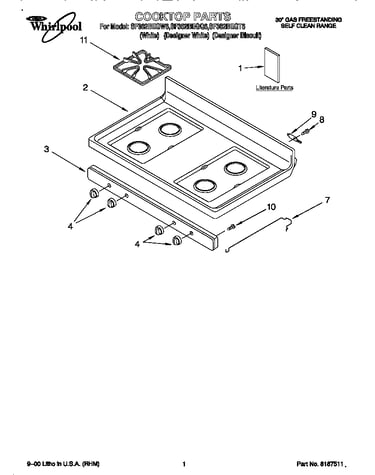

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 201 parts  |
Light Bulb 311255
#29

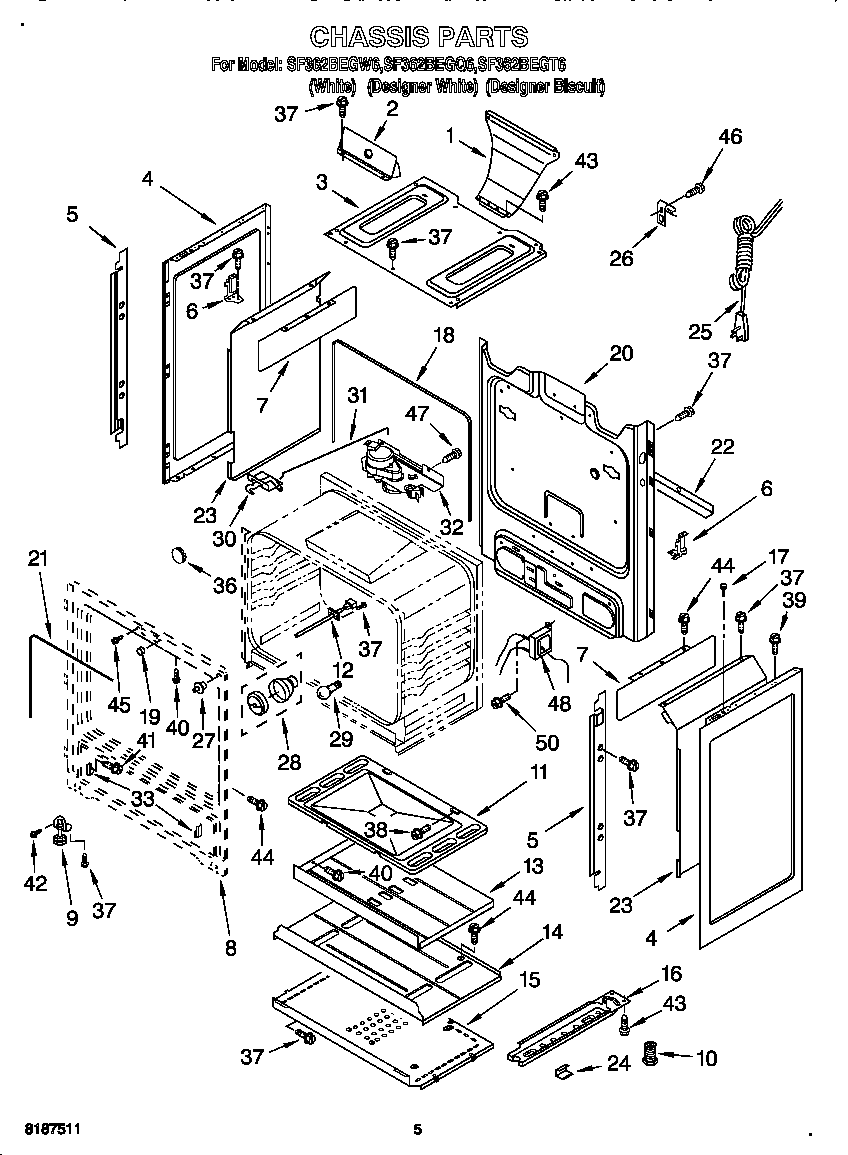

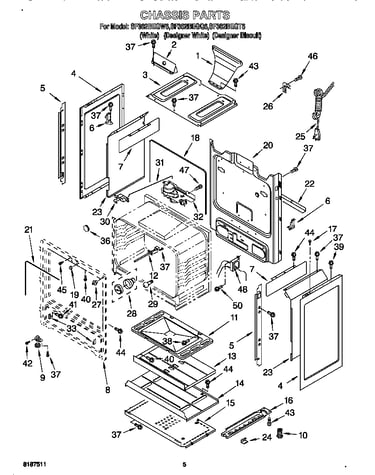

Chassis diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Transformer 8273972
#48

Chassis diagram

Transformer

Part #8273972

Replaced by #WPW10331686

?
Manufacturer substitution
This part replaces 8273972. Substitute parts can look different from the original.
BEST SELLER
$248.09 |
5% OFF Phone Price : $260.09
In Stock
Range Oven Igniter 8054129
#16A

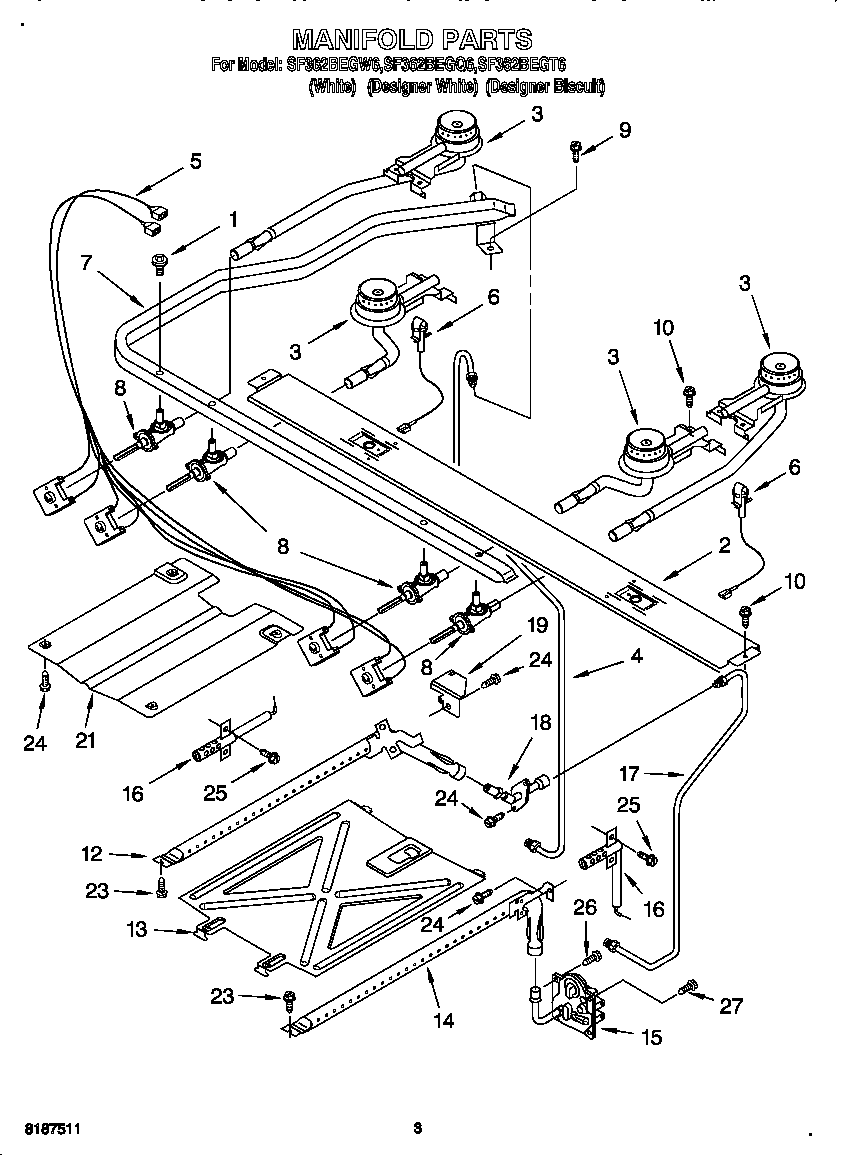

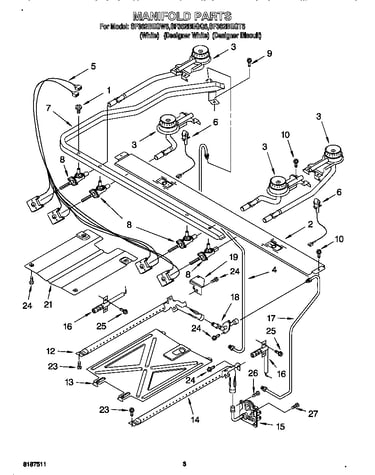

Manifold diagram

Range oven igniter

Part #8054129

Replaced by #WP8054129

?
Manufacturer substitution
This part replaces 8054129. Substitute parts can look different from the original.
BEST SELLER
$66.23 |
8% OFF Phone Price : $72.23
In Stock
Appliance Touch-up Paint 72017

#NI

All parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930

#NI

All parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Latch Motor 3196953
#32

Chassis diagram

Latch motor

Part #3196953

Replaced by #WPW10107820

?
Manufacturer substitution
This part replaces 3196953. Substitute parts can look different from the original.
$99.70 |
11% OFF Phone Price : $111.70
In Stock
Range Screw 3196160
Range screw

Part #3196160

Replaced by #W10491985

?
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 3196178
Screw

Part #3196178

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 3196178. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 3196176
Screw

Part #3196176

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 3196176. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw (black) 3196168
Screw (black)

Part #3196168

Replaced by #WP3400832

?
Manufacturer substitution
This part replaces 3196168. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
