Norge
Gas Range

Model # N3478VVV Official Norge gas range

Here are the diagrams and repair parts for Official Norge N3478VVV gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

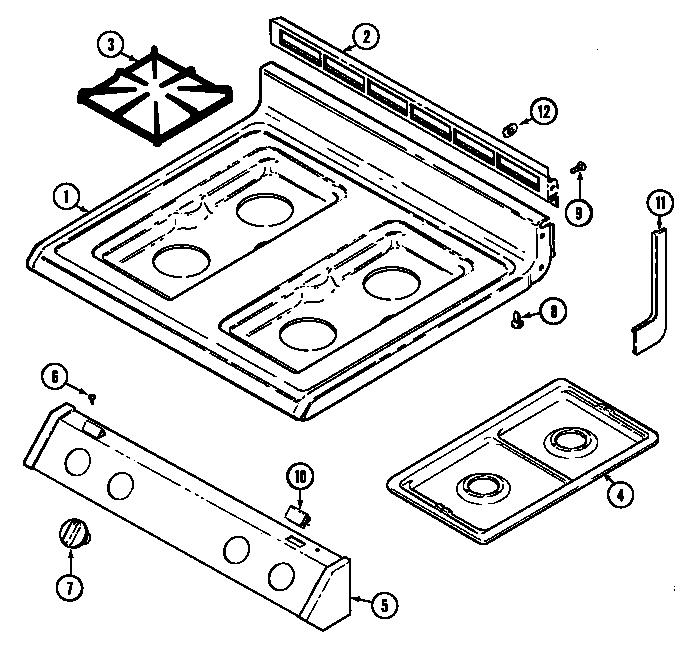

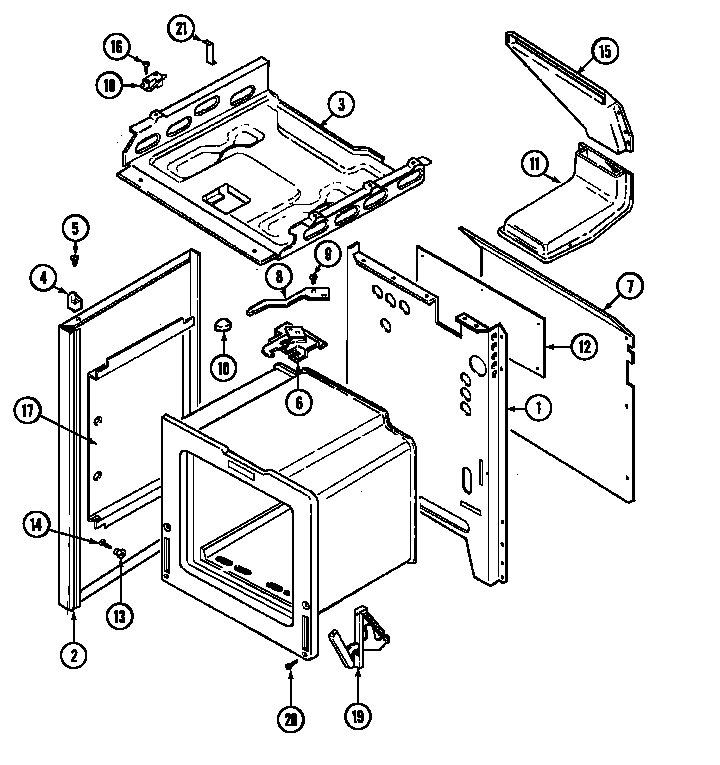

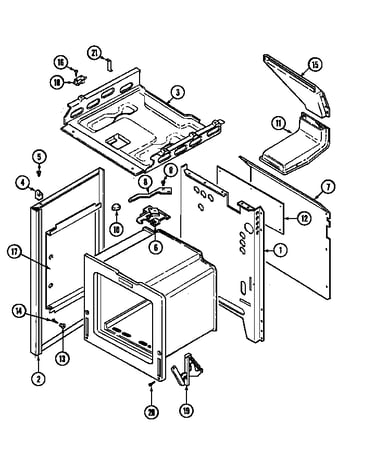

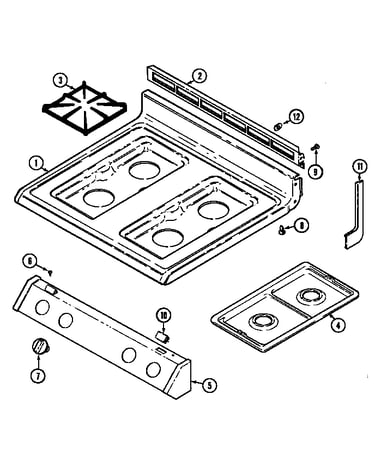

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Oven Bulb 7407P103-60
#10

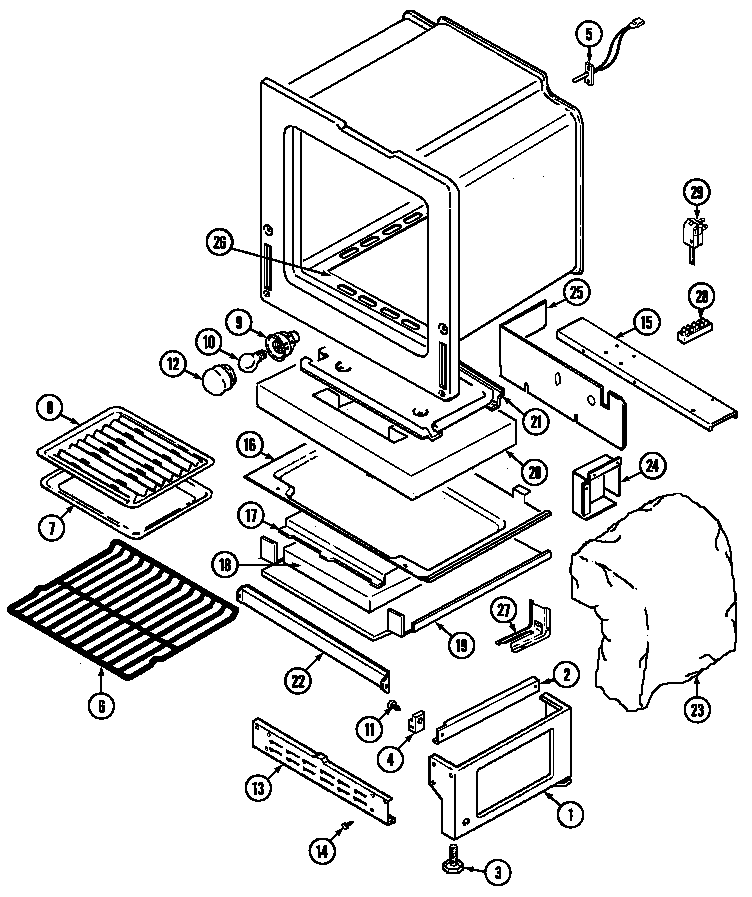

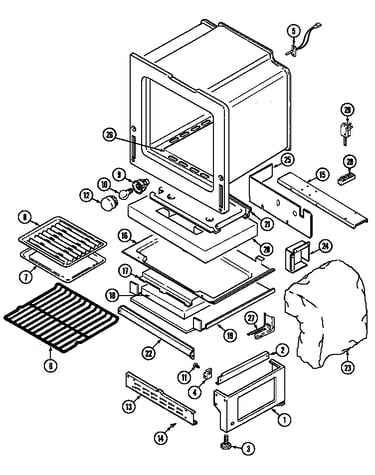

Oven/base diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Screw, #10 X 7101P274-60
#3

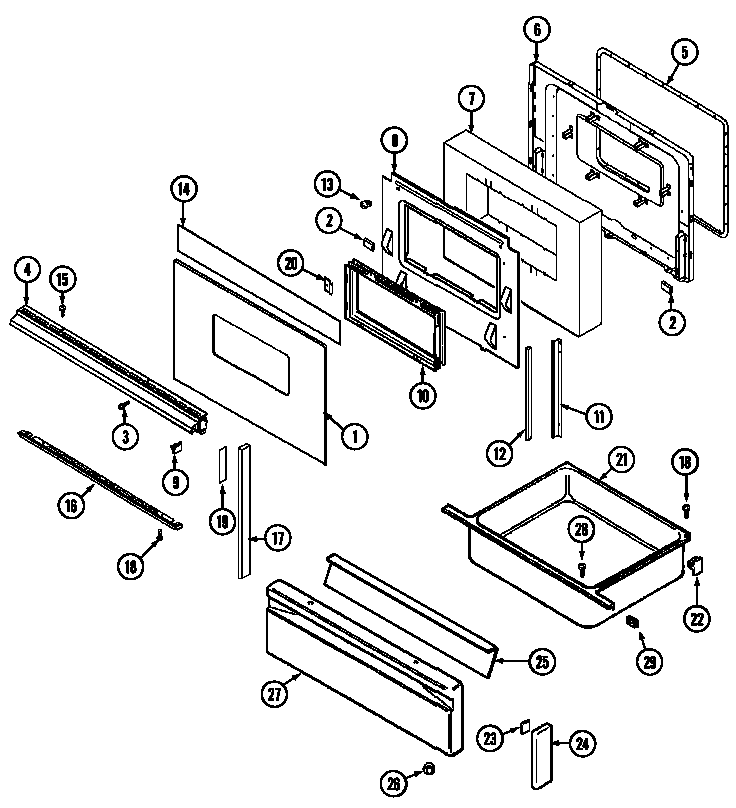

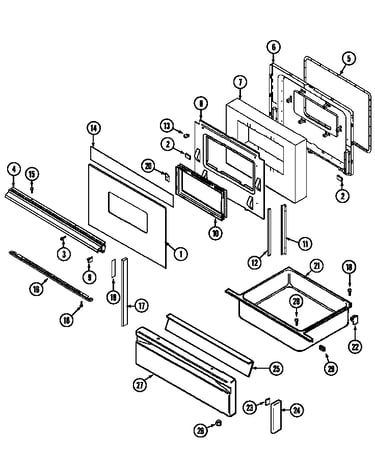

Door/drawer diagram

Screw, #10 x

Part #7101P274-60

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 7101P274-60. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Door Gasket 7201P046-60
Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
BEST SELLER
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Sealed Burner 3412D018-26
#11

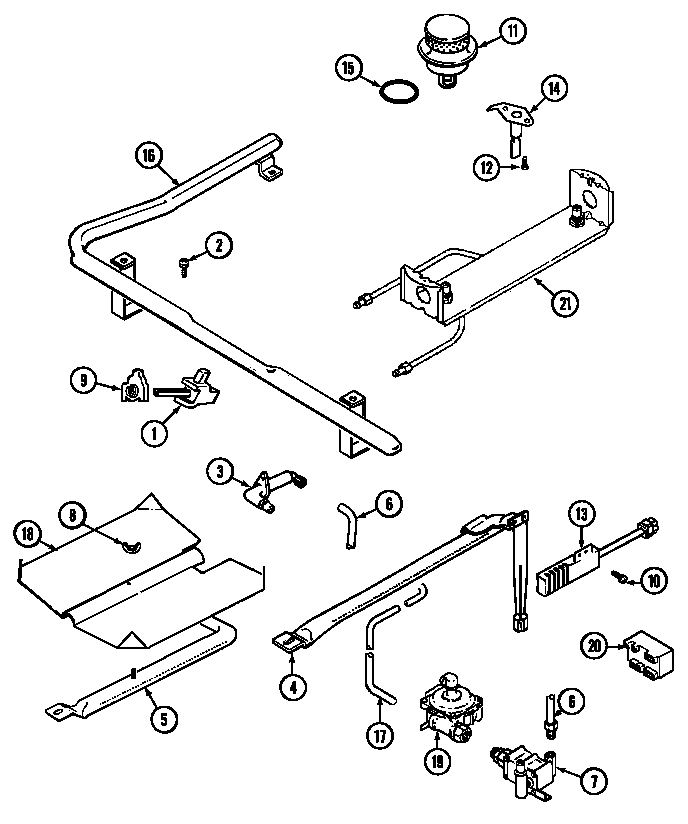

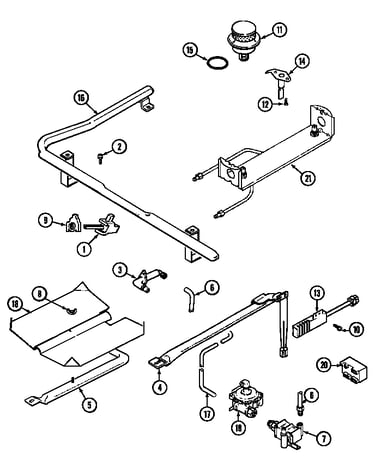

Gas controls diagram

Sealed burner

Part #3412D018-26

Replaced by #WP3412D024-26

?
Manufacturer substitution
This part replaces 3412D018-26. Substitute parts can look different from the original.
$51.64 |
10% OFF Phone Price : $57.64
In Stock
Spark Module 7431P027-60
#20

Gas controls diagram

Spark module

Part #7431P027-60

Replaced by #12001596

?
Manufacturer substitution
This part replaces 7431P027-60. Substitute parts can look different from the original.
$70.36 |
8% OFF Phone Price : $76.36
In Stock
"bracket, Ant" 3801F218-51
#27

Oven/base diagram

"bracket, ant"

Part #3801F218-51

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 3801F218-51. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Screw 7101P315-60
#12

Gas controls diagram

Screw

Part #7101P315-60

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 7101P315-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw, Switc 7101P148-60
#2A

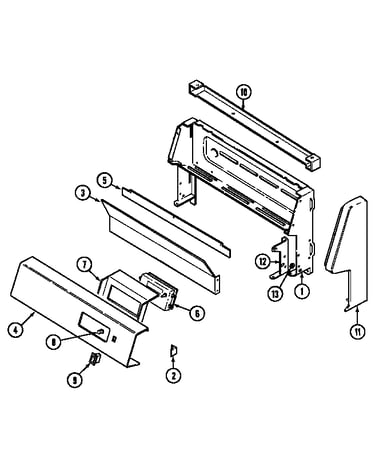

Control panel diagram

Screw, switc

Part #7101P148-60

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 7101P148-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Receptacle 7407P088-60
#9

Oven/base diagram

Receptacle

Part #7407P088-60

Replaced by #WP7407P182-60

?
Manufacturer substitution
This part replaces 7407P088-60. Substitute parts can look different from the original.
$42.19 |
12% OFF Phone Price : $48.19
In Stock
Seal 7208P011-60
#21

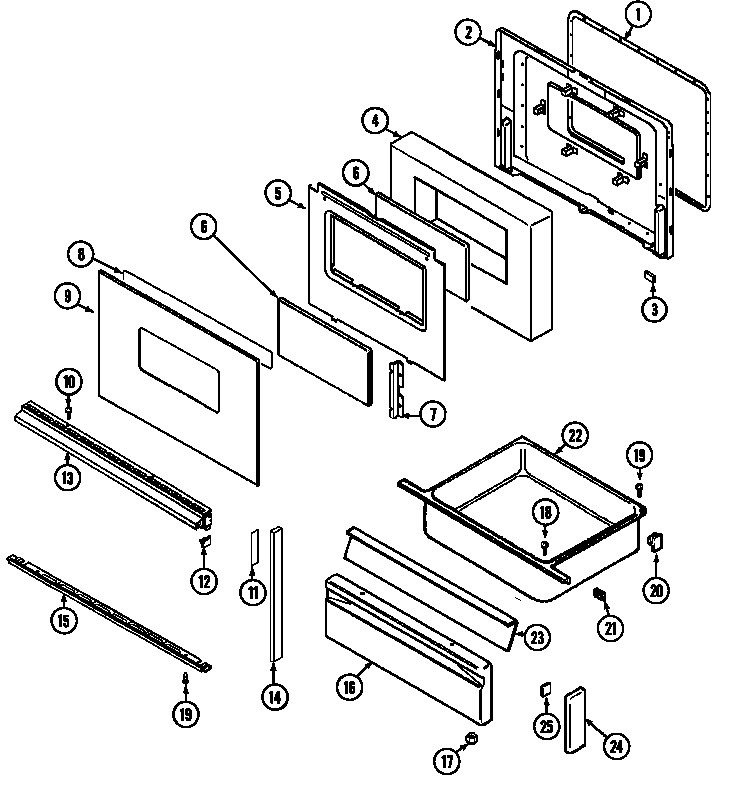

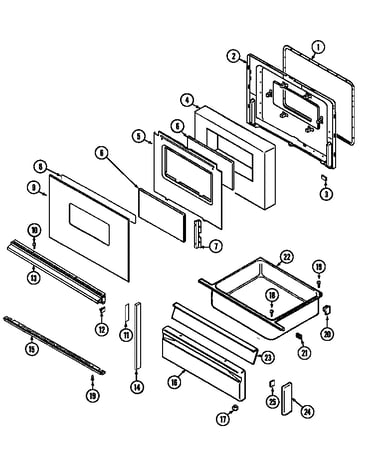

Door/drawer (serial prefix 15) diagram

Seal

Part #7208P011-60

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 7208P011-60. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
