Electric Range

Model # MER5755QCW Official Maytag electric freestanding range

Here are the diagrams and repair parts for Official Maytag MER5755QCW electric freestanding range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
MER5755QCW Ranges
Oven Bulb 7407P103-60
#5

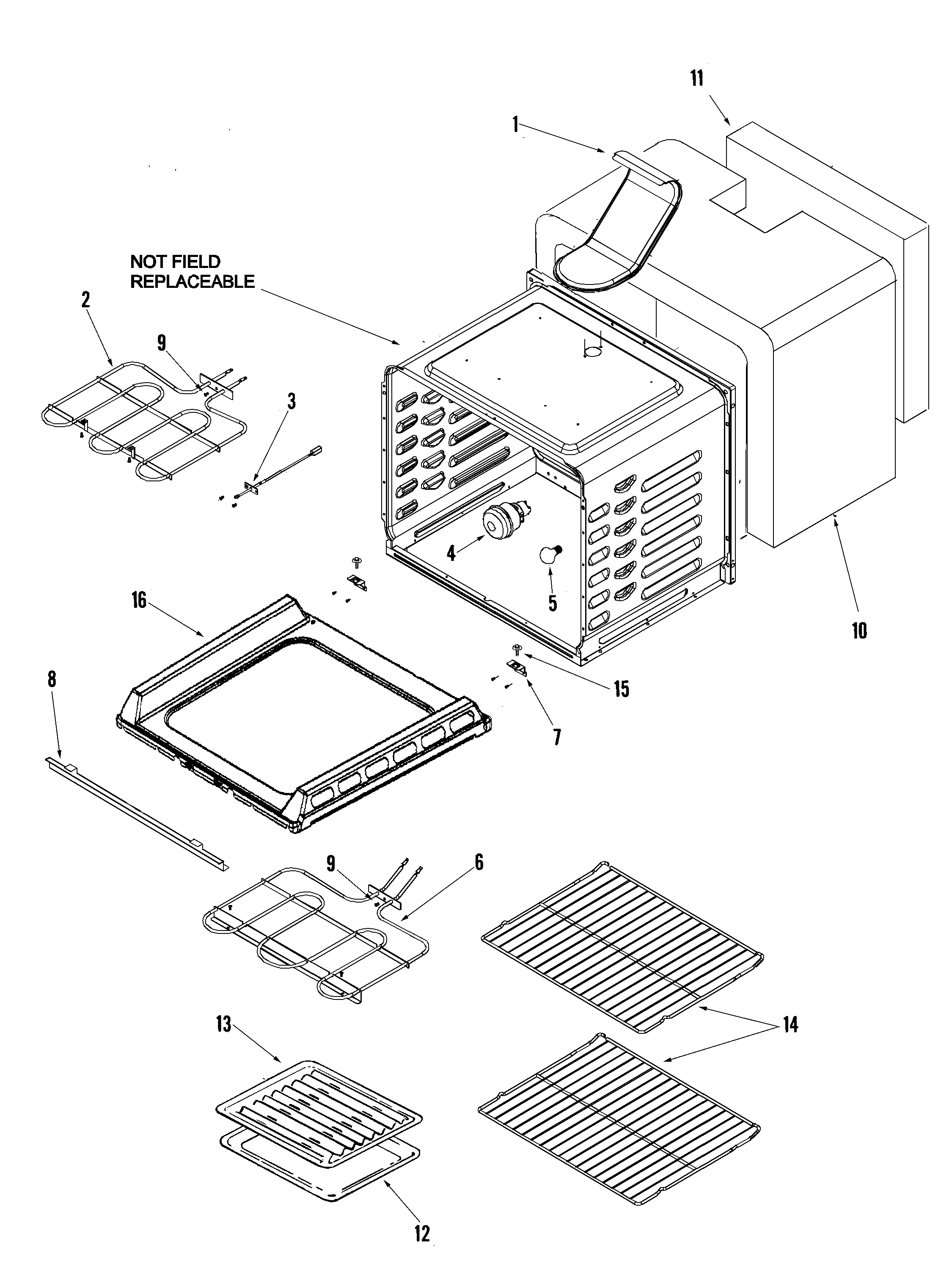

Cavity diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
1.72 (18)
BEST SELLER
$17.23 |
10% OFF Phone Price : $19.23
In Stock
Terminal Block 7401P039-60
#26

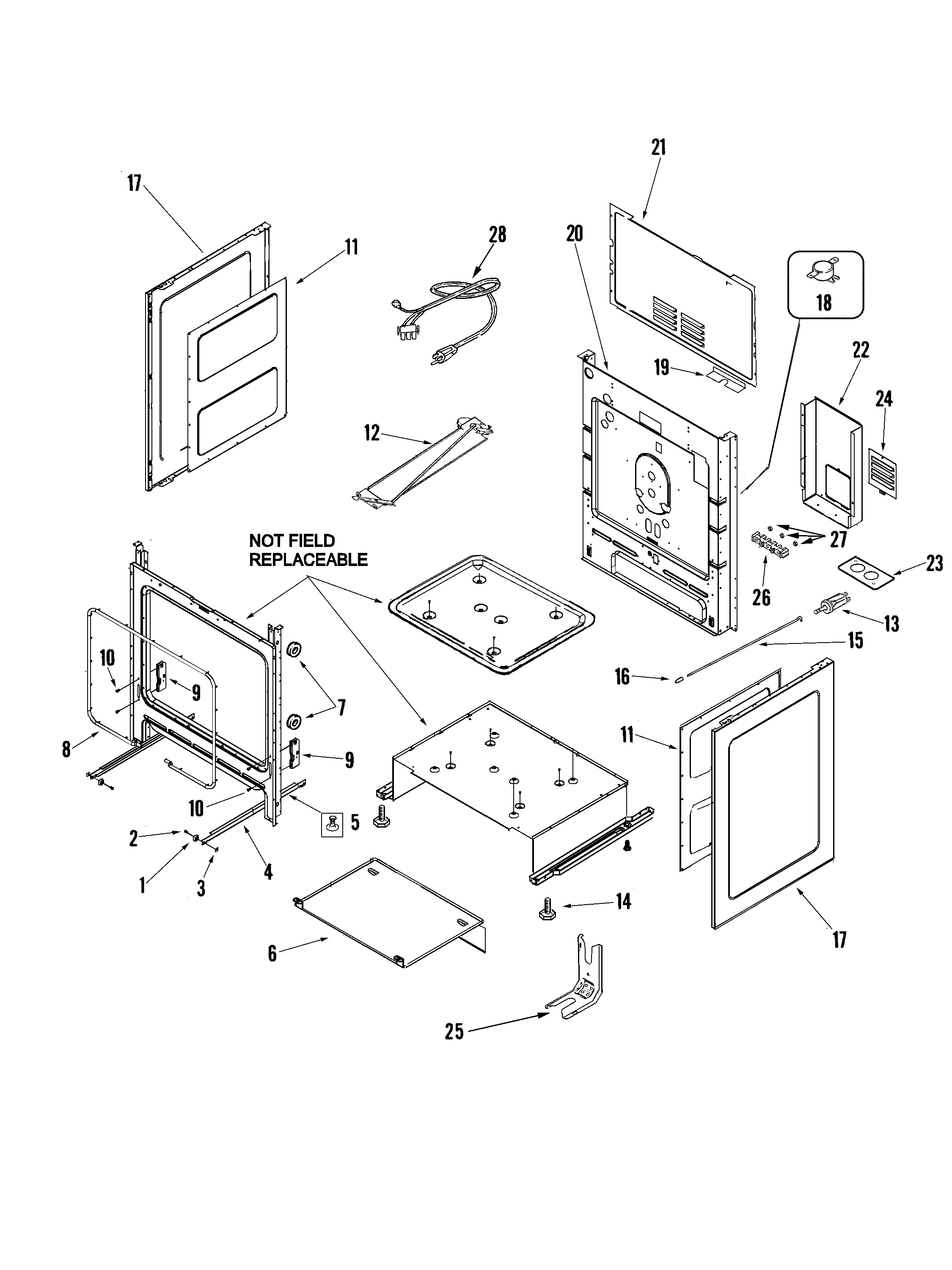

Cabinet diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
5 (3)
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Range Surface Element Control Switch 7403P238-60
#6

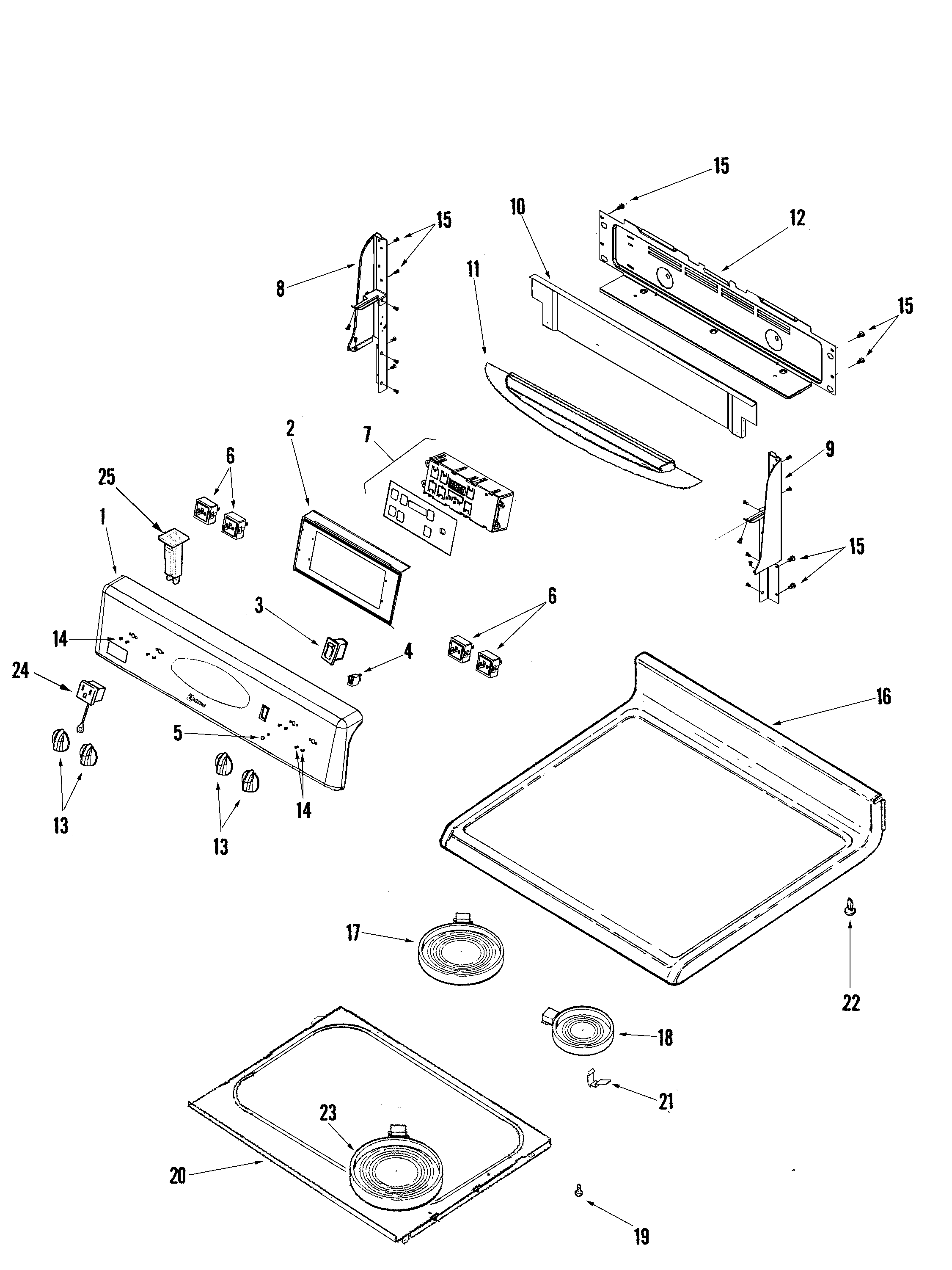

Control panel/top assembly diagram

Range surface element control switch

Part #7403P238-60

Replaced by #WP7403P238-60

?
Manufacturer substitution
This part replaces 7403P238-60. Substitute parts can look different from the original.
5 (2)
BEST SELLER
$50.39 |
11% OFF Phone Price : $56.39
In Stock
Element (120 74008568
#17

Control panel/top assembly diagram

Element (120

Part #74008568

Replaced by #W10823711

?
Manufacturer substitution
This part replaces 74008568. Substitute parts can look different from the original.
3.75 (12)
BEST SELLER
$121.71 |
9% OFF Phone Price : $133.71
In Stock
Panel Screw 7101P041-60
#19

Control panel/top assembly diagram

Panel screw

Part #7101P041-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P041-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 74001530
Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Gasket 74008696
#8

Cabinet diagram

Gasket

Part #74008696

Replaced by #W11562931

?
Manufacturer substitution
This part replaces 74008696. Substitute parts can look different from the original.
$104.05
In Stock
Element (250 74009034
#18

Control panel/top assembly diagram

Element (250

Part #74009034

Replaced by #W10823696

?
Manufacturer substitution
This part replaces 74009034. Substitute parts can look different from the original.
3.4 (5)
$114.72 |
9% OFF Phone Price : $126.72
In Stock
Clock With Overlay 74009213
#7A

Control panel/top assembly diagram

Clock with overlay

Part #74009213

Replaced by #WP5701M719-60

?
Manufacturer substitution
This part replaces 74009213. Substitute parts can look different from the original.
5 (3)
$306.70 |
$12.00 OFF Phone Price : $318.70
In Stock
Screw 7101P112-60
#10

Cabinet diagram

Screw

Part #7101P112-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P112-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
