WC Wood
Chest Freezer

Model # C1501W3 Official WC Wood freezer

Here are the diagrams and repair parts for Official WC Wood C1501W3 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Drier 3-34960-001
#22

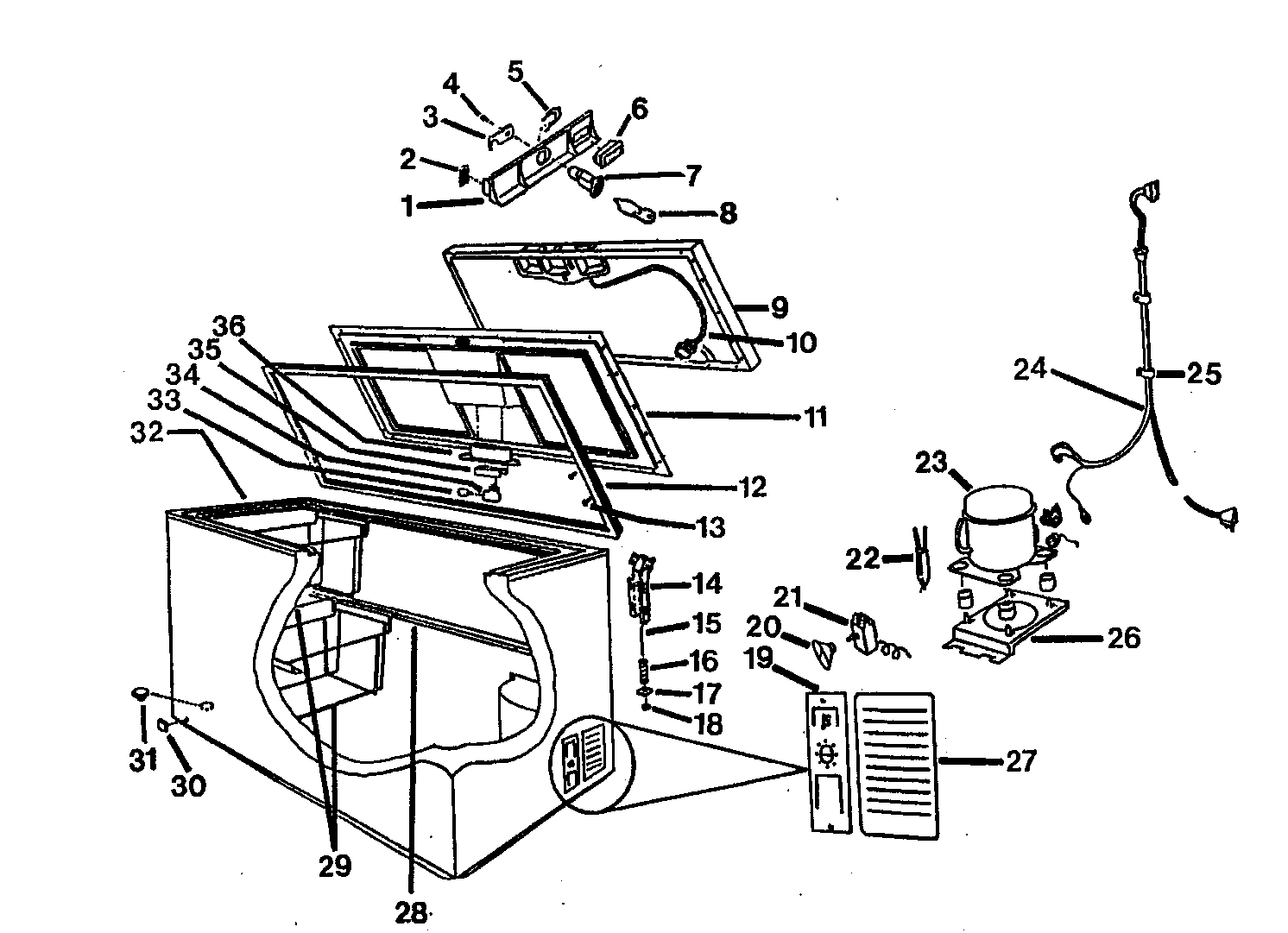

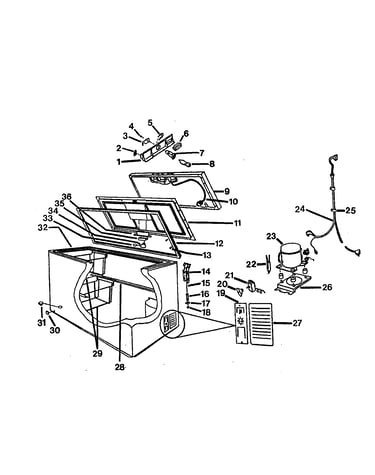

Cabinet parts diagram

Drier

Part #3-34960-001

The manufacturer no longer makes this part, and there's no substitute part

Bolt 3-24004-100
#4

Cabinet parts diagram

Bolt

Part #3-24004-100

The manufacturer no longer makes this part, and there's no substitute part

Gasket Kit 0-90000-017
#12

Cabinet parts diagram

Gasket kit

Part #0-90000-017

The manufacturer no longer makes this part, and there's no substitute part

Bolt 2-35195-002
#3

Cabinet parts diagram

Bolt

Part #2-35195-002

The manufacturer no longer makes this part, and there's no substitute part

Lock Kit 0-90003-012
#7

Cabinet parts diagram

Lock kit

Part #0-90003-012

The manufacturer no longer makes this part, and there's no substitute part

Access Pan 4-35099-001
#27

Cabinet parts diagram

Access pan

Part #4-35099-001

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 4-35130-004
#24

Cabinet parts diagram

Power cord

Part #4-35130-004

The manufacturer no longer makes this part, and there's no substitute part

Strip 4-35011-004
#32C

Cabinet parts diagram

Strip

Part #4-35011-004

The manufacturer no longer makes this part, and there's no substitute part

Clamp 3-25095-021
#25

Cabinet parts diagram

Clamp

Part #3-25095-021

The manufacturer no longer makes this part, and there's no substitute part

Clip 3-24059-024
#2

Cabinet parts diagram

Clip

Part #3-24059-024

The manufacturer no longer makes this part, and there's no substitute part
