Model # C23B-A/P60330-84WA Official Amana chest freezer
Here are the diagrams and repair parts for Official Amana C23B-A/P60330-84WA chest freezer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
C23B-A/P60330-84WA Freestanding Freezers
#7

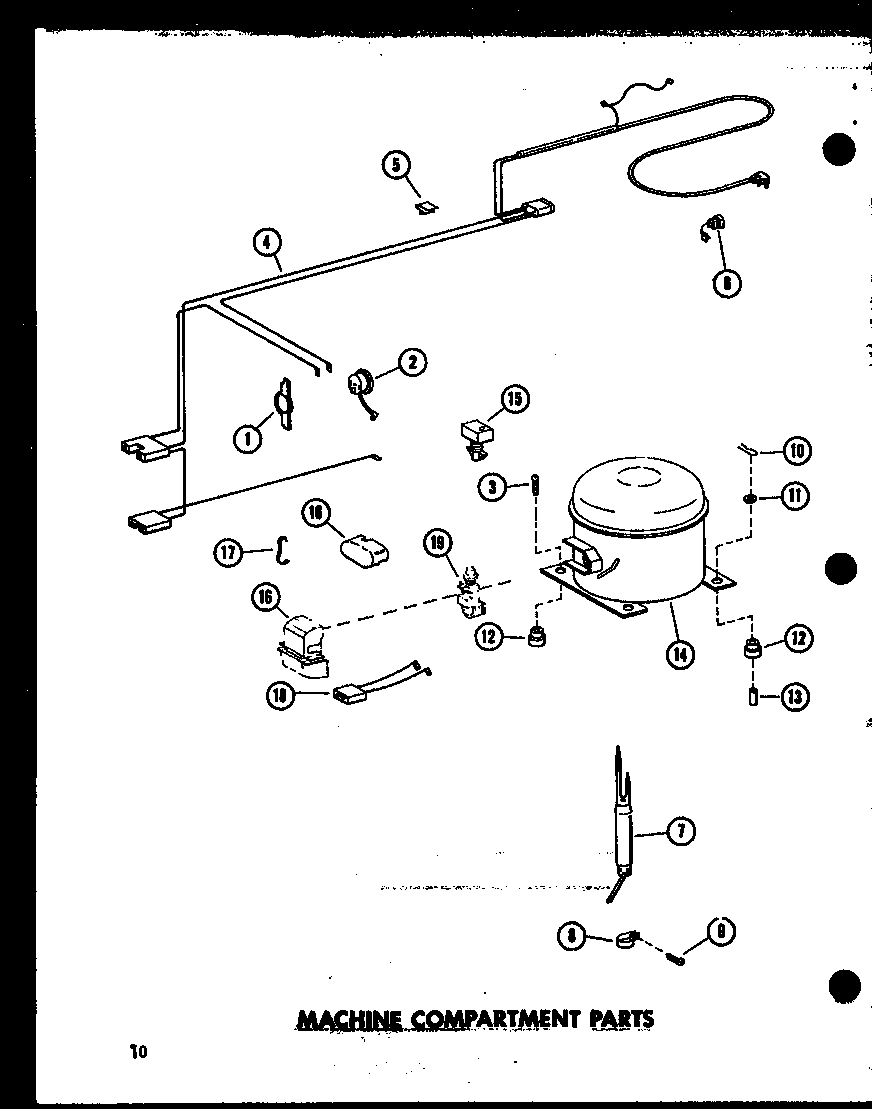

Machine compartment parts diagram
Drier
Part #B5715001
Replaced by #WPB2150504
?
Manufacturer substitution
This part replaces B5715001. Substitute parts can look different from the original.
$76.50 |
7% OFF Phone Price : $82.50
In Stock
#11

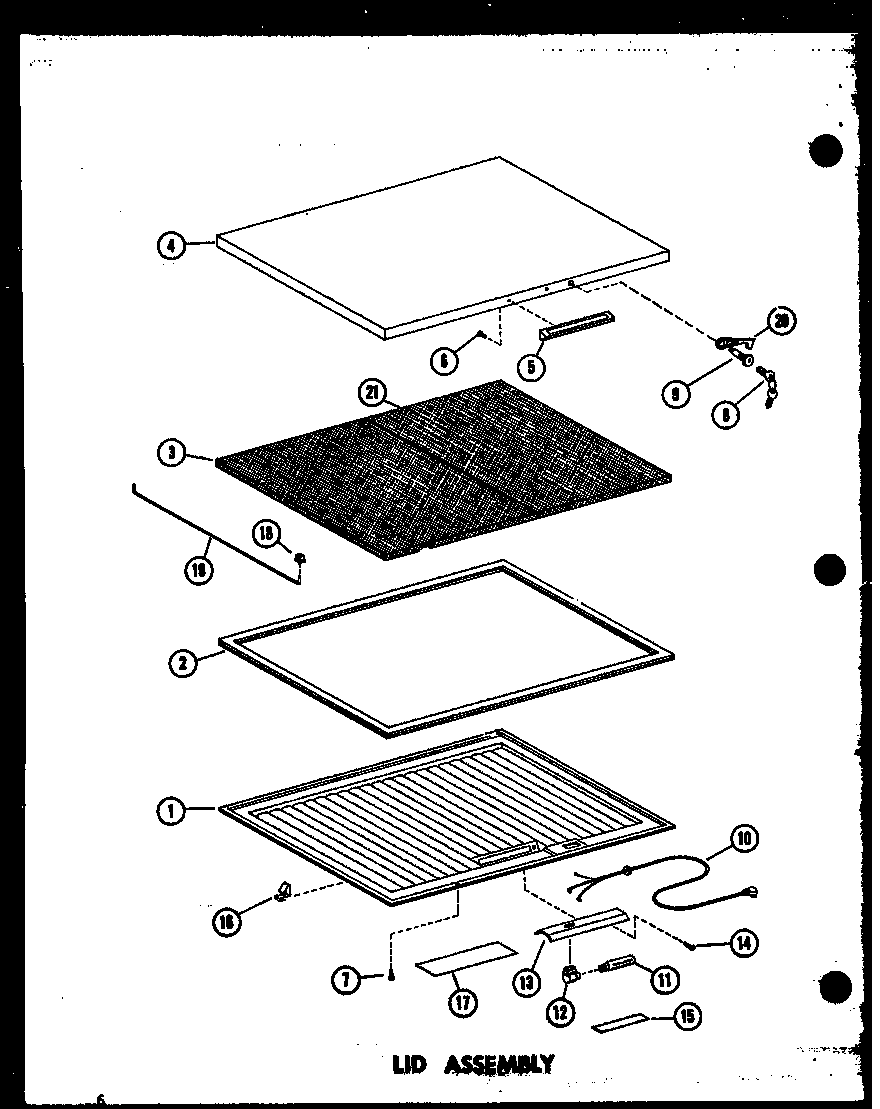

Lid assembly diagram
Bulb
Part #A3073101
Replaced by #WPA3073101
?
Manufacturer substitution
This part replaces A3073101. Substitute parts can look different from the original.
$18.12 |
10% OFF Phone Price : $20.12
In Stock
#NI
All parts diagram
Imperial refrigerator insulation fill hole plug
Part #A3076901
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw
Part #M0211018
Replaced by #M0211018
?
Manufacturer substitution
This part replaces M0211018. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#16

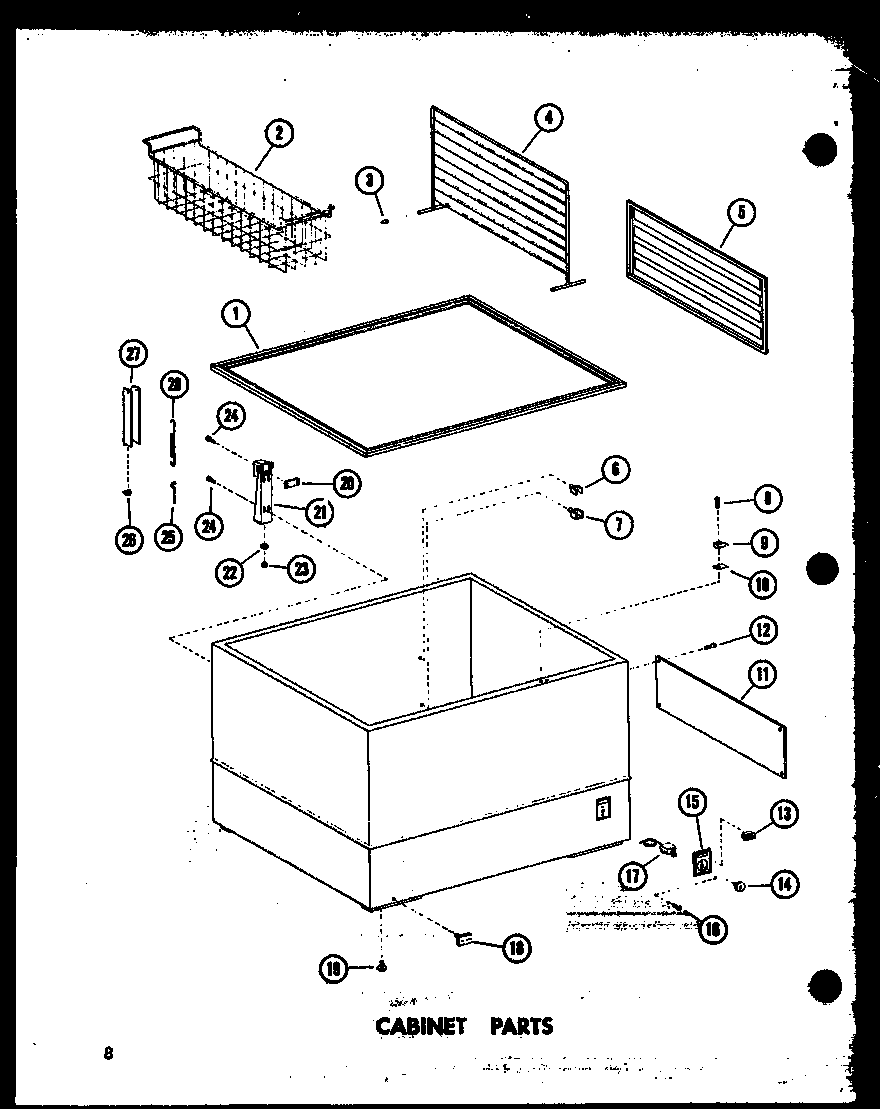

Cabinet parts diagram
Screw
Part #M0202530
Replaced by #M0202530
?
Manufacturer substitution
This part replaces M0202530. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
#18
Machine compartment parts diagram
Compressor wiring harness
Part #B5680501
The manufacturer no longer makes this part, and there's no substitute part
#16B
Machine compartment parts diagram
Cover
Part #B0559501
The manufacturer no longer makes this part, and there's no substitute part
#4B
Lid assembly diagram
Outer lid shell, almond
Part #D7388421
The manufacturer no longer makes this part, and there's no substitute part
#16C
Machine compartment parts diagram
Terminal cover
Part #B0551801
The manufacturer no longer makes this part, and there's no substitute part
#18
Lid assembly diagram
Grammet, screw
Part #A0288701
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
