WC Wood
Chest Freezer

Model # CF05W Official WC Wood tool chest

Here are the diagrams and repair parts for Official WC Wood CF05W tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Drier 3-34960-001
#22

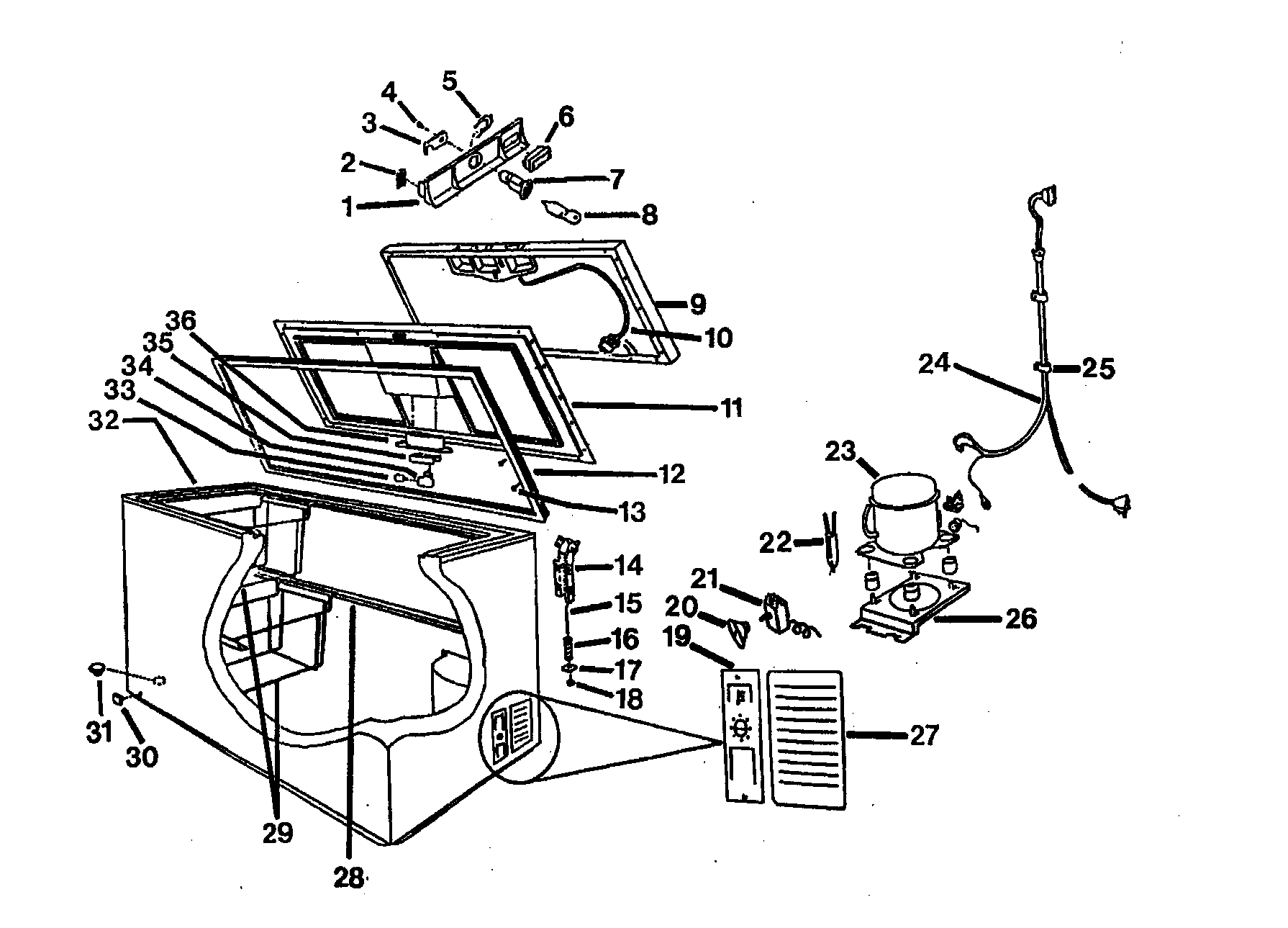

Cabinet parts diagram

Drier

Part #3-34960-001

The manufacturer no longer makes this part, and there's no substitute part

Compressor 0-90006-168
#23

Cabinet parts diagram

Compressor

Part #0-90006-168

The manufacturer no longer makes this part, and there's no substitute part

Freezer Basket 4-33521-001
#29

Cabinet parts diagram

Freezer basket

Part #4-33521-001

The manufacturer no longer makes this part, and there's no substitute part

Clip 3-24059-024
#2

Cabinet parts diagram

Clip

Part #3-24059-024

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 3-35956-014
#23C

Cabinet parts diagram

Capacitor

Part #3-35956-014

The manufacturer no longer makes this part, and there's no substitute part

Bolt 3-24004-100
#4

Cabinet parts diagram

Bolt

Part #3-24004-100

The manufacturer no longer makes this part, and there's no substitute part

Cover 4-34046-012
#23D

Cabinet parts diagram

Cover

Part #4-34046-012

The manufacturer no longer makes this part, and there's no substitute part

Access Pan 4-35099-001
#27

Cabinet parts diagram

Access pan

Part #4-35099-001

The manufacturer no longer makes this part, and there's no substitute part

Hinge Shim 1-17548-006
#14B

Cabinet parts diagram

Hinge shim

Part #1-17548-006

The manufacturer no longer makes this part, and there's no substitute part

Control Box 90058-005
#19

Cabinet parts diagram

Control box

Part #90058-005

The manufacturer no longer makes this part, and there's no substitute part
