Model # 31517320 Official Craftsman power planer

Here are the diagrams and repair parts for Official Craftsman 31517320 power planer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

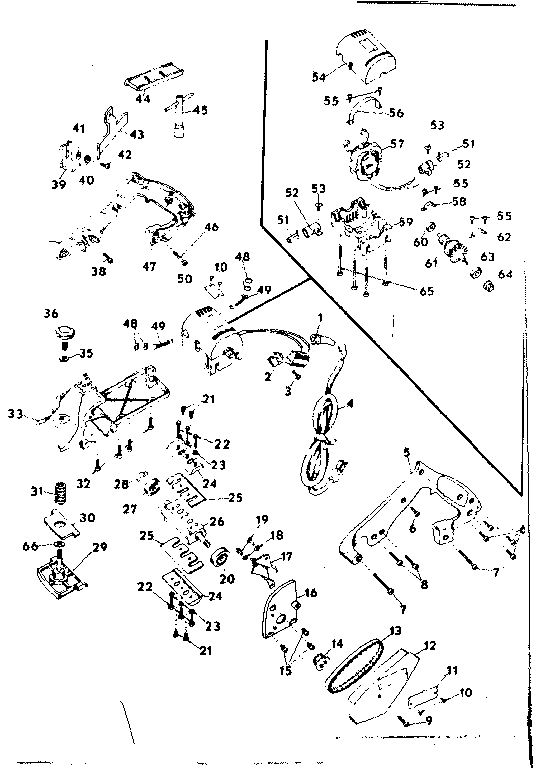

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Rubber Plate 2-606802-01
#30

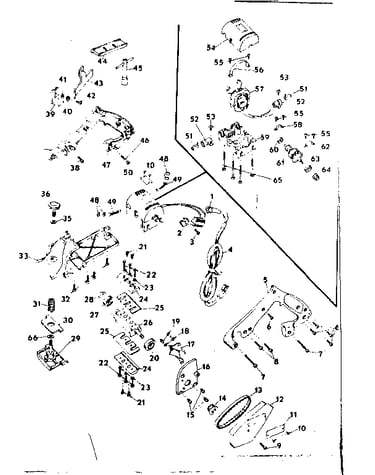

Unit parts diagram

Rubber plate

Part #2-606802-01

The manufacturer no longer makes this part, and there's no substitute part

Blade Binder 2-606893-01
#24

Unit parts diagram

Blade binder

Part #2-606893-01

The manufacturer no longer makes this part, and there's no substitute part

Fstnng Screw 1-940049-07
#38

Unit parts diagram

Fstnng screw

Part #1-940049-07

The manufacturer no longer makes this part, and there's no substitute part

Washer 1-931744-822
#35

Unit parts diagram

Washer

Part #1-931744-822

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-606896-01
#22

Unit parts diagram

Screw

Part #1-606896-01

The manufacturer no longer makes this part, and there's no substitute part

Bearing Strap 1-606808-02
#58

Unit parts diagram

Bearing strap

Part #1-606808-02

The manufacturer no longer makes this part, and there's no substitute part

Drive Pulley 2-607139-01
#64

Unit parts diagram

Drive pulley

Part #2-607139-01

The manufacturer no longer makes this part, and there's no substitute part

Handle Cover 5-606733-01
#5

Unit parts diagram

Handle cover

Part #5-606733-01

The manufacturer no longer makes this part, and there's no substitute part

Drive Screw 1-795247-06
#10

Unit parts diagram

Drive screw

Part #1-795247-06

The manufacturer no longer makes this part, and there's no substitute part

Switch 2-622960-01
#2

Unit parts diagram

Switch

Part #2-622960-01

The manufacturer no longer makes this part, and there's no substitute part
