Model # B10CB80NVS/05 Official Bosch refrigerator

Here are the diagrams and repair parts for Official Bosch B10CB80NVS-05 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Refrigerator Evaporator Fan Motor Assembly (replaces 795952) 00795952
#301

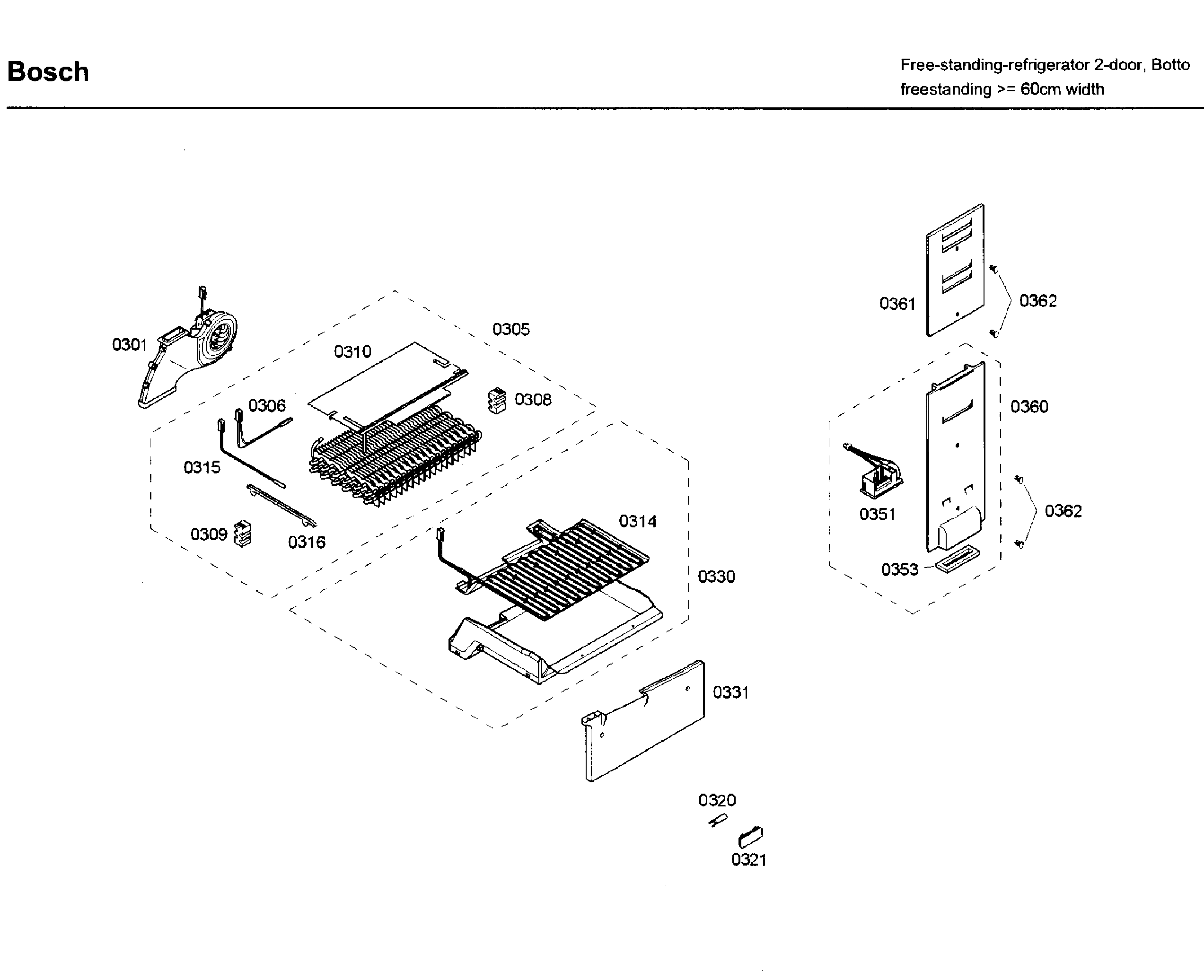

Evap asy diagram

Refrigerator evaporator fan motor assembly (replaces 795952)

Part #00795952

$168.49 |
7% OFF Phone Price : $180.49
In Stock
Refrigerator Stop 00620946
#218

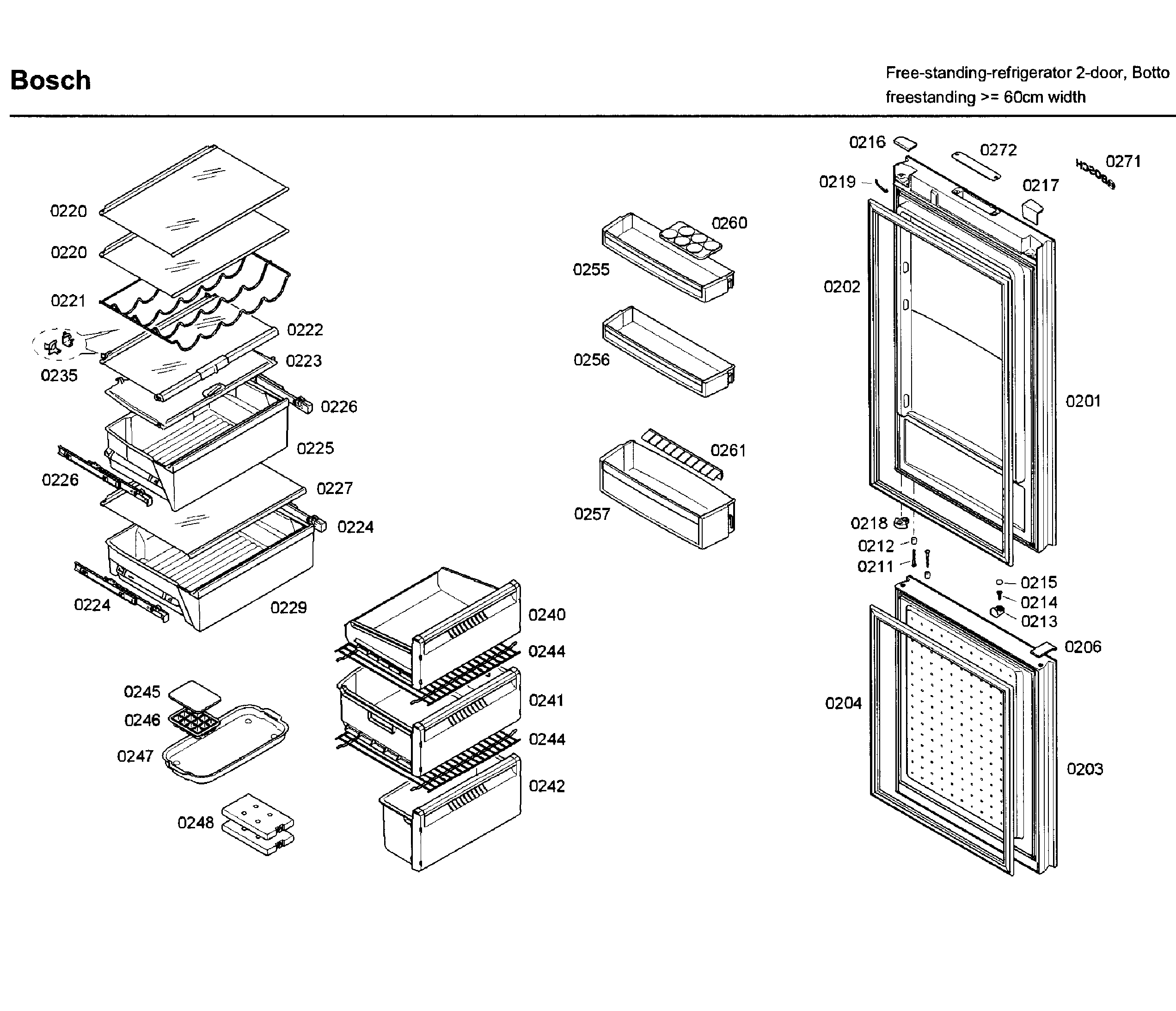

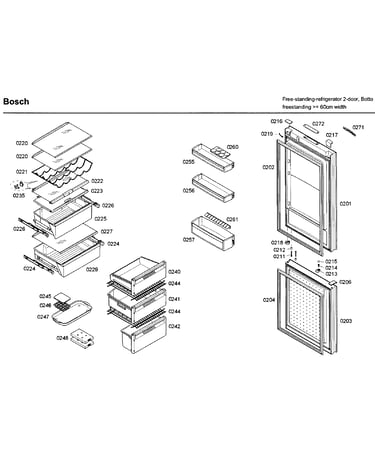

Door/drawer asy diagram

Refrigerator stop

Part #00620946

This item is not returnable
$6.51
In Stock
Refrigerator Panel 00660763
#331

Evap asy diagram

Refrigerator panel

Part #00660763

$23.40
In Stock
Refrigerator Carbon Air Filter 00616742
#107

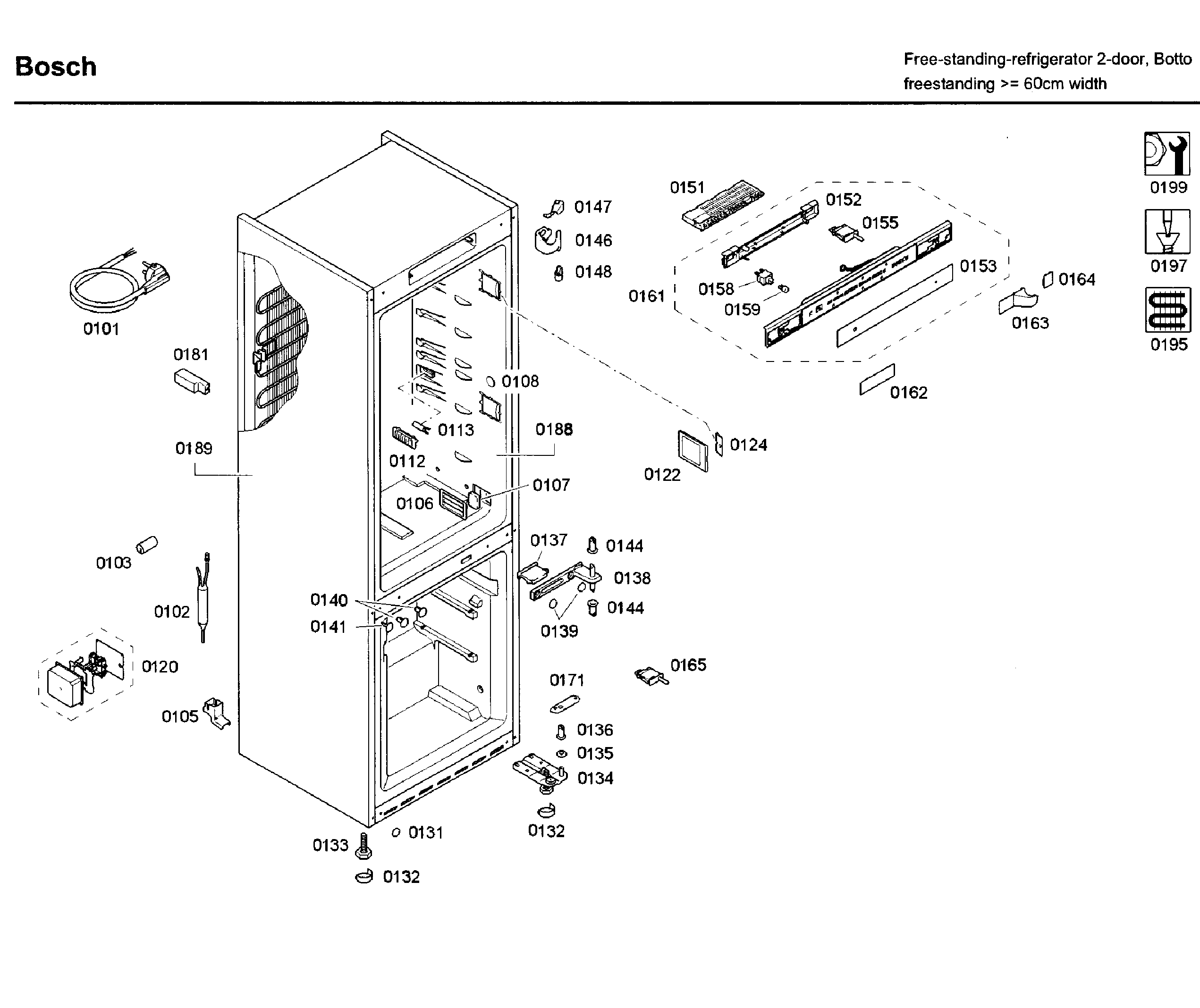

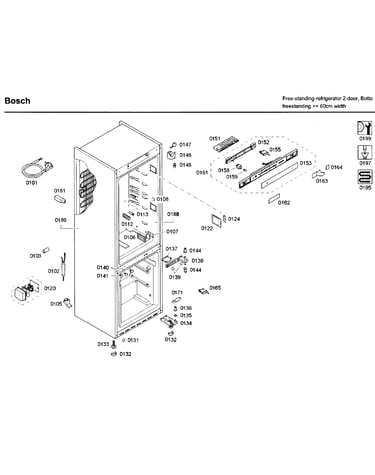

Cabinet diagram

Refrigerator carbon air filter

Part #00616742

Get free shipping with Automatic Reorder

$18.23
In Stock
Refrigerator Compressor 00145292
#401

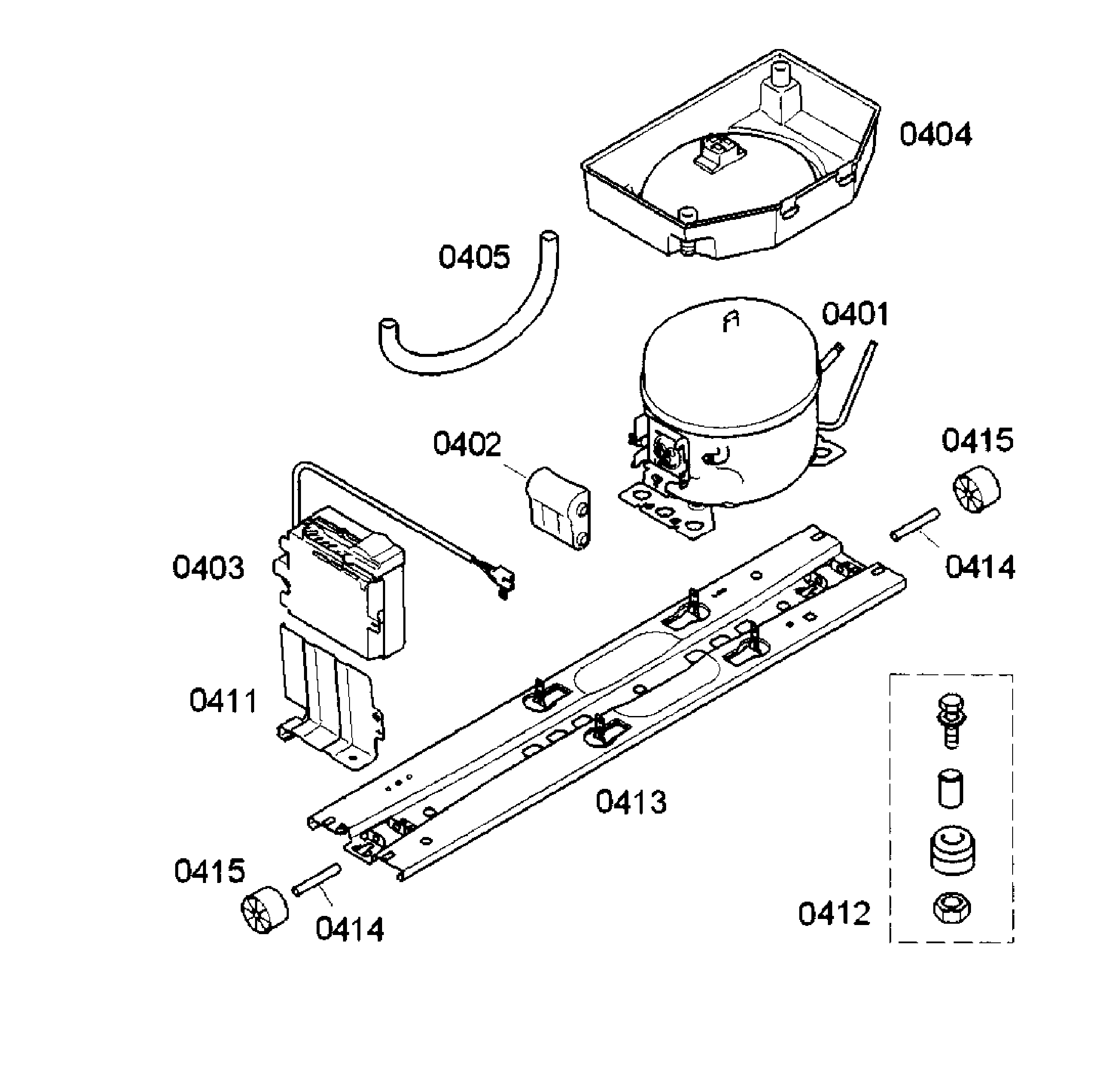

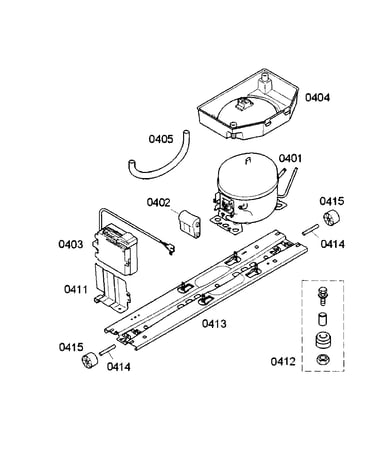

Compressor diagram

Refrigerator compressor

Part #00145292

$485.68
In Stock
Refrigerator Tray 00660507
#247

Door/drawer asy diagram

Refrigerator tray

Part #00660507

$26.58
In Stock
Shk Absorb 00605361
#103

Cabinet diagram

Shk absorb

Part #00605361

$10.51
In Stock
Refrigerator Owner's Manual 18011667
#NI

Cabinet diagram

Refrigerator owner's manual

Part #18011667

$24.43
In Stock
Refrigerator Stop 00757744
#181

Cabinet diagram

Refrigerator stop

Part #00757744

$10.80
In Stock
Duct Vent 00667753
#361

Evap asy diagram

Duct vent

Part #00667753

$24.98
In Stock
