Model # 7539 Official Porter Cable plunge router

Here are the diagrams and repair parts for Official Porter Cable 7539 plunge router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 102 parts |

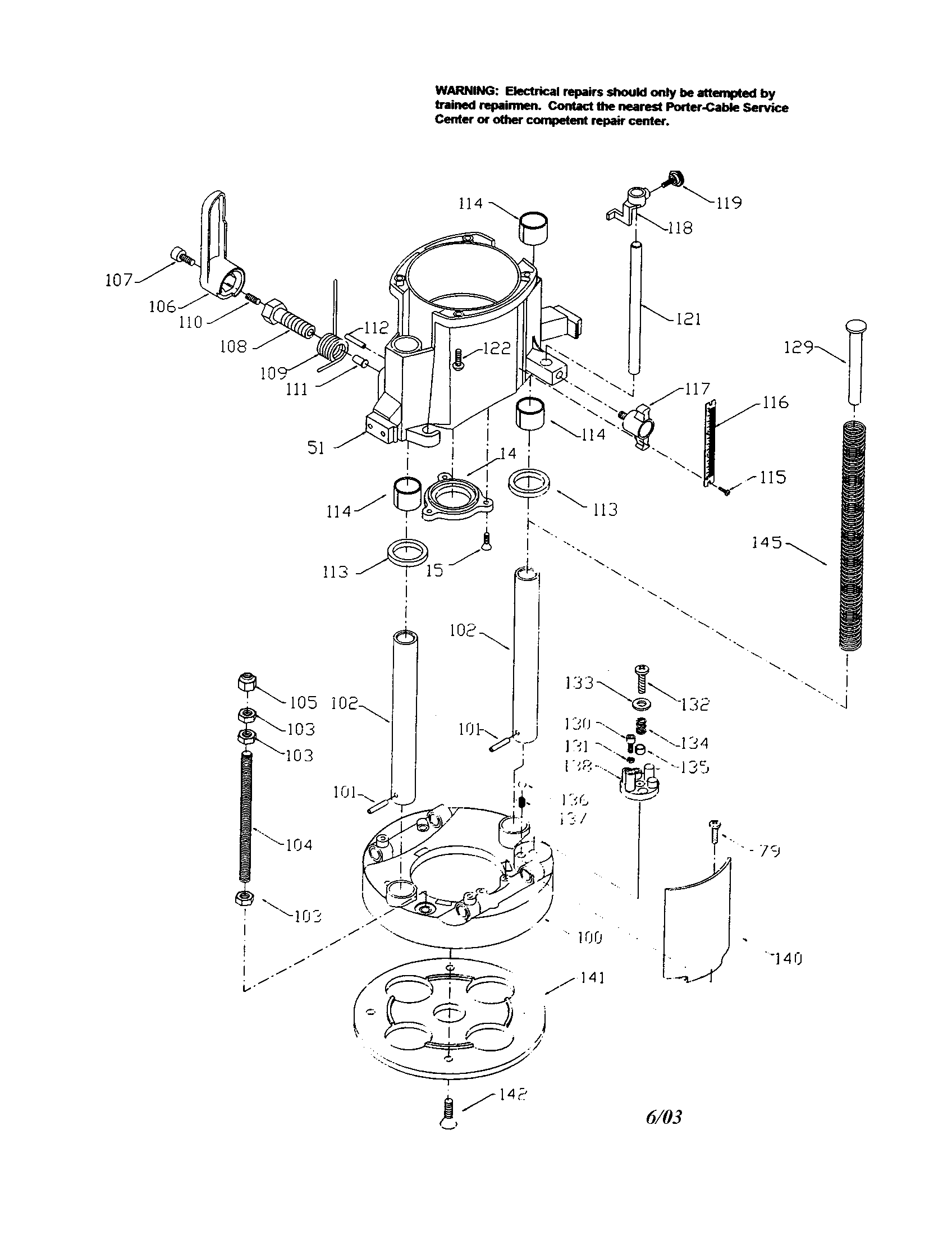

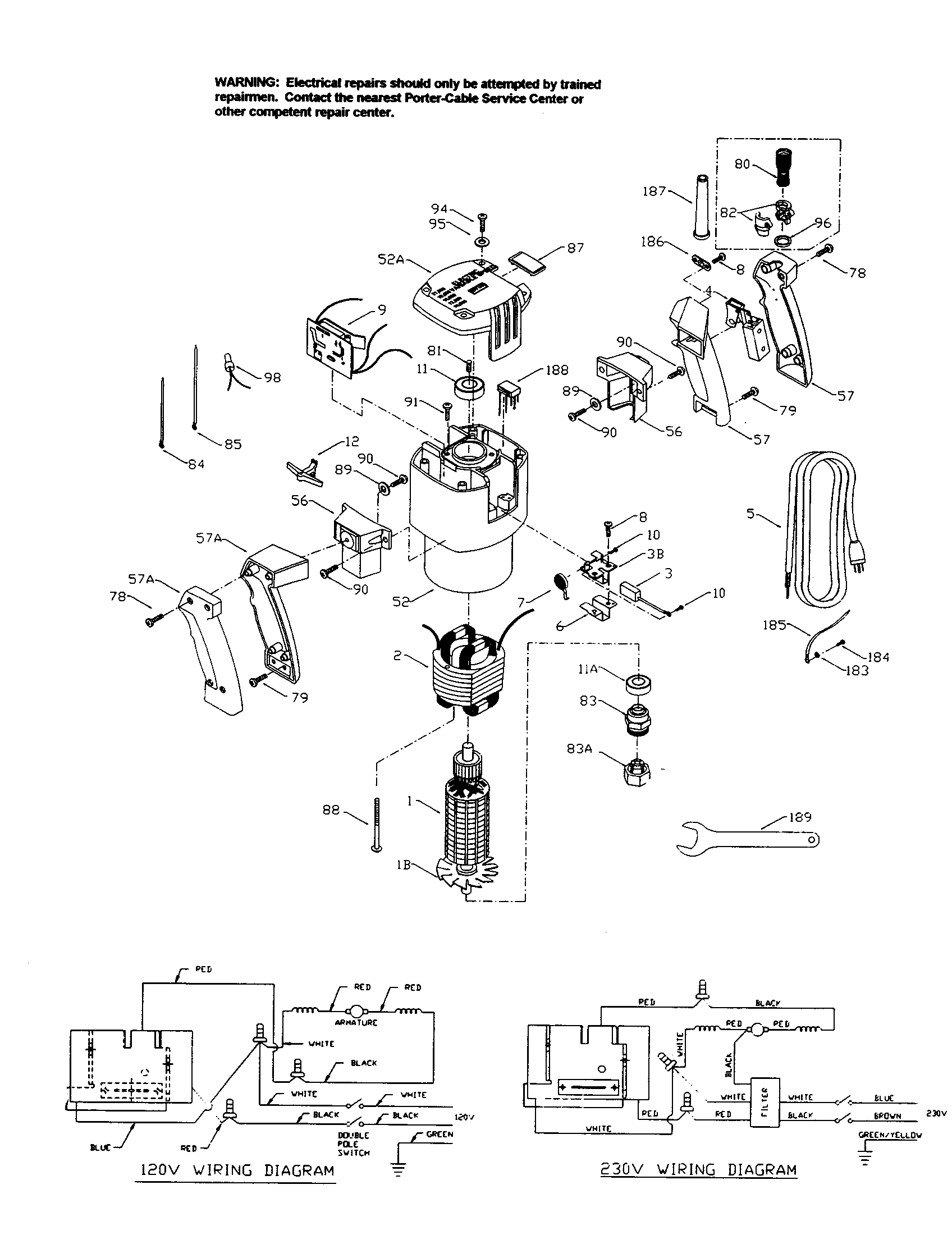

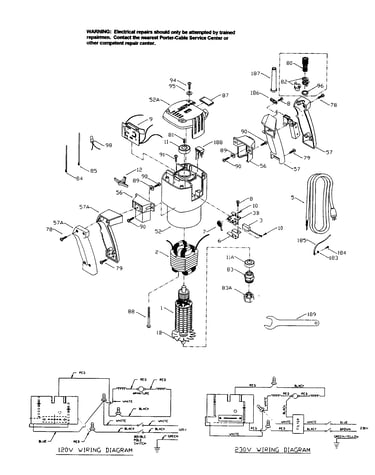

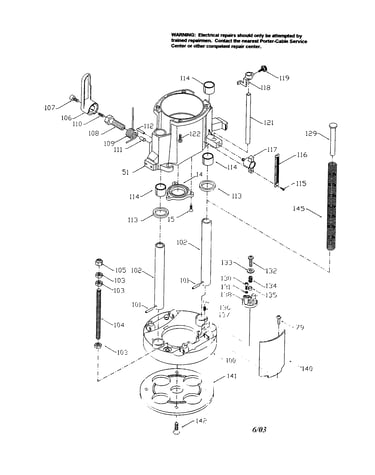

All parts diagram

Insulator

Part #698874

The manufacturer no longer makes this part, and there's no substitute part

#90

All parts diagram

Screw

Part #872519

The manufacturer no longer makes this part, and there's no substitute part

#79

All parts diagram

Screw

Part #850596

The manufacturer no longer makes this part, and there's no substitute part

#137

All parts diagram

Spring

Part #693848

The manufacturer no longer makes this part, and there's no substitute part

#145

All parts diagram

Spring

Part #698829

The manufacturer no longer makes this part, and there's no substitute part

#1B

All parts diagram

Fan

Part #875931

The manufacturer no longer makes this part, and there's no substitute part

#116A

All parts diagram

Porter cable scale

Part #884824

The manufacturer no longer makes this part, and there's no substitute part

#98

All parts diagram

Connector

Part #689032

The manufacturer no longer makes this part, and there's no substitute part

All parts diagram

Armature

Part #873638

The manufacturer no longer makes this part, and there's no substitute part

#104

All parts diagram

Rod upstop

Part #698842

The manufacturer no longer makes this part, and there's no substitute part
