Model # 41789395701 Official Kenmore combination washer/dryer
Here are the diagrams and repair parts for Official Kenmore 41789395701 combination washer/dryer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

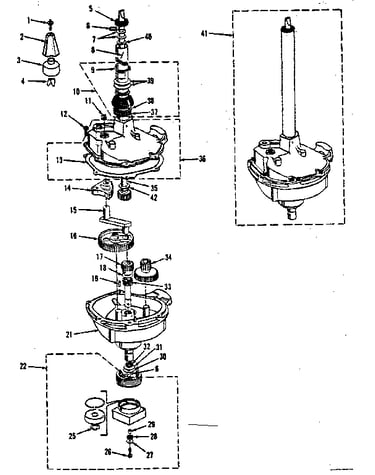

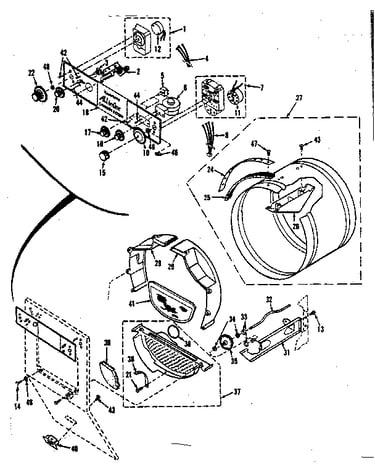

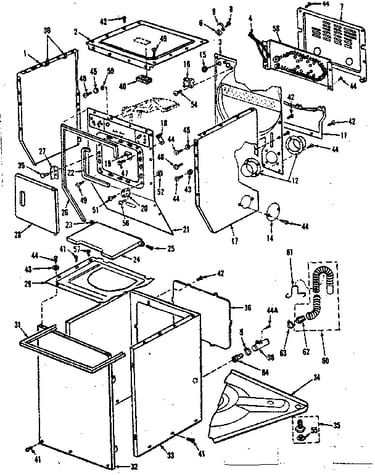

SELECT DIAGRAM
Browse Parts for
41789395701 Combination Washer/Dryer
Screw
Part #136469-000
Replaced by #131168200
?
Manufacturer substitution
This part replaces 136469-000. Substitute parts can look different from the original.
$12.76 |
14% OFF Phone Price : $14.76
In Stock
#NI
All parts diagram
Spray paint (white)
Part #F94566-010
Replaced by #350930
?
Manufacturer substitution
This part replaces F94566-010. Substitute parts can look different from the original.
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
#41

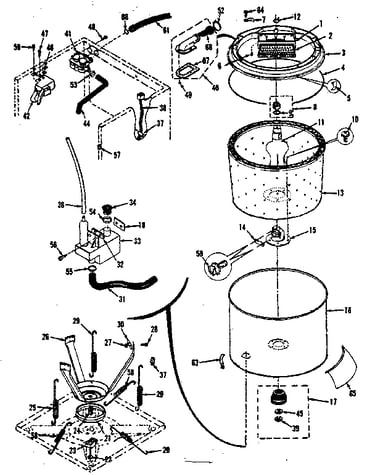

Tubs water valve, lid switch diagram
Water valve
Part #140274-000
Replaced by #134190200
?
Manufacturer substitution
This part replaces 140274-000. Substitute parts can look different from the original.
$133.49 |
8% OFF Phone Price : $145.49
In Stock
#66
Tubs water valve, lid switch diagram
Washer
Part #139814-000
Replaced by #5303161296
?
Manufacturer substitution
This part replaces 139814-000. Substitute parts can look different from the original.
This item is not returnable
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Screw
Part #073653-000
The manufacturer no longer makes this part, and there's no substitute part
#61
Tubs water valve, lid switch diagram
Inlet hose
Part #140162-000
Replaced by #5303912532
?
Manufacturer substitution
This part replaces 140162-000. Substitute parts can look different from the original.
$72.74 |
8% OFF Phone Price : $78.74
In Stock
#61A
Tubs water valve, lid switch diagram
Inlet hose
Part #073610-000
Replaced by #5303912532
?
Manufacturer substitution
This part replaces 073610-000. Substitute parts can look different from the original.
$72.74 |
8% OFF Phone Price : $78.74
In Stock
Screw
Part #060753-000
Replaced by #5303015671
?
Manufacturer substitution
This part replaces 060753-000. Substitute parts can look different from the original.
This item is not returnable
$3.74
In Stock
#7

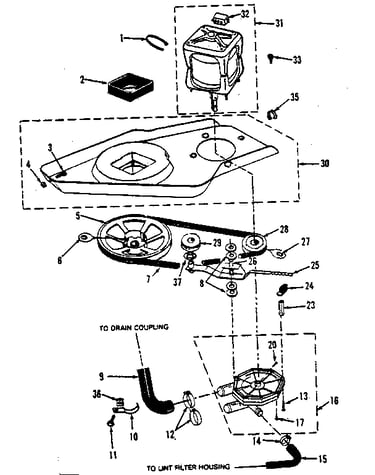

Washer drive system, pump diagram
Belt
Part #133171-000
Replaced by #5303280326
?
Manufacturer substitution
This part replaces 133171-000. Substitute parts can look different from the original.
This item is not returnable
$35.60 |
14% OFF Phone Price : $41.60
In Stock
#22

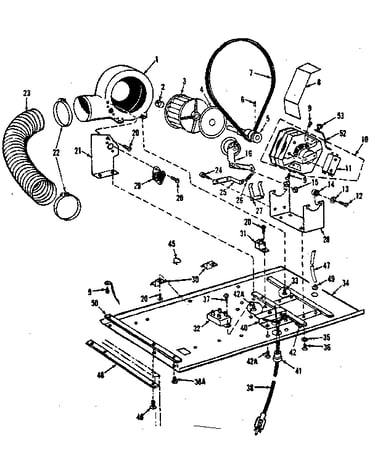

Dryer motor, blower, belt diagram
Clamp
Part #136124-000
Replaced by #5304436333
?
Manufacturer substitution
This part replaces 136124-000. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Most common symptoms to help you fix your laundry centers
Choose a symptom to see related laundry center repairs.
Main causes: lack of water supply, failed lid switch or lid lock, bad water level pressure switch, control system failur…
Main causes: bad lid switch or lid lock, drive motor failure, broken motor coupler, bad timer, faulty electronic control…
Main causes: blocked exhaust vent, clogged lint screen, bad timer, moisture sensing problems, weak gas valve coils, bad …
Main causes: broken dryer drive belt, weak drive motor, binding drum seals…
Main causes: control system failure, broken heating element, bad gas valve coils, gas supply failure, voltage supply pro…
Main causes: unbalanced load, broken suspension springs or shocks, worn snubber ring…
Main causes: door not fully shut, bad door switch, faulty push-to-start switch, wiring failure, bad drive motor, blown f…
Main causes: clogged drain system, blocked drain hose, bad drain pump…
Main causes: broken lid switch or lid lock, faulty drive motor, drain system problem, broken drive system components…
Most common repair guides to help fix your laundry centers
These step-by-step repair guides will help you safely fix what’s broken on your laundry center.
How to replace a laundry center washer timer
If the washer doesn't fill, spin or drain, the timer could be the problem. …
Repair difficulty
Time required
15 minutes or less
How to replace a laundry center washer snubber ring
If the washer tub bangs the cabinet during the spin cycle even though the load is balanced, you might need to replace th…
Repair difficulty
Time required
15 minutes or less
How to replace a laundry center dryer door switch
The dryer won’t start if the door switch is defective. Your can replace it in about 15 minutes.…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your laundry centers
Use the advice and tips in these articles and videos to get the most out of your laundry center.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
Learn how to repair broken, frayed or damaged wires in your appliances.…
