Model # DW682 Official DeWalt plate joiner

Here are the diagrams and repair parts for Official DeWalt DW682 plate joiner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Guide 147785-00
#60

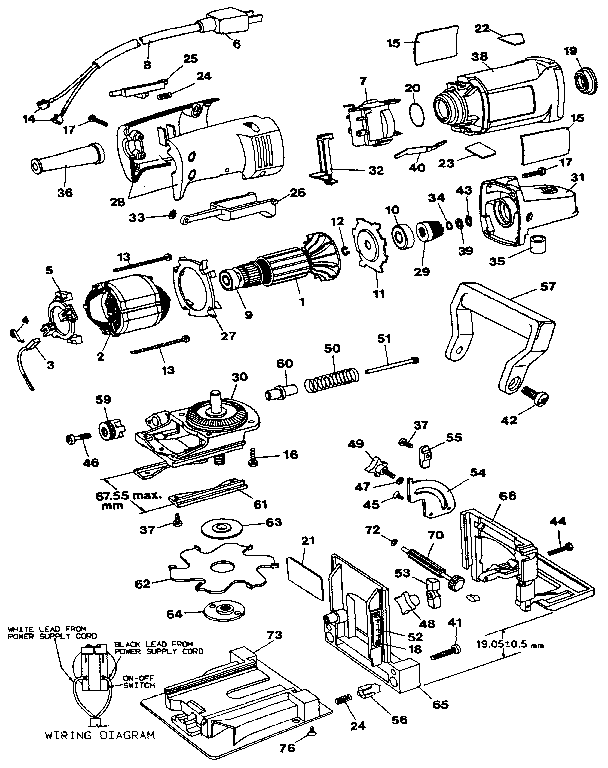

Unit parts diagram

Guide

Part #147785-00

The manufacturer no longer makes this part, and there's no substitute part

Retaing Ring 38751-00
#43

Unit parts diagram

Retaing ring

Part #38751-00

The manufacturer no longer makes this part, and there's no substitute part

Stop 147760-00
#59

Unit parts diagram

Stop

Part #147760-00

The manufacturer no longer makes this part, and there's no substitute part

M4x10 Scrw 98102-10
#45

Unit parts diagram

M4x10 scrw

Part #98102-10

The manufacturer no longer makes this part, and there's no substitute part

Compression Spring 147758-00
#50

Unit parts diagram

Compression spring

Part #147758-00

The manufacturer no longer makes this part, and there's no substitute part

Clamp Washer 147725-00
#63

Unit parts diagram

Clamp washer

Part #147725-00

The manufacturer no longer makes this part, and there's no substitute part

Handle And Cover 147727-03
#28

Unit parts diagram

Handle and cover

Part #147727-03

The manufacturer no longer makes this part, and there's no substitute part

M5x0.8x25mm 98022-25
#44

Unit parts diagram

M5x0.8x25mm

Part #98022-25

The manufacturer no longer makes this part, and there's no substitute part

Dust Deflctr 151002-00

#NI

All parts diagram

Dust deflctr

Part #151002-00

The manufacturer no longer makes this part, and there's no substitute part

Stop 147786-00
#55

Unit parts diagram

Stop

Part #147786-00

The manufacturer no longer makes this part, and there's no substitute part
