Kenmore
Mechanical Sewing Machine

Model # 15813180 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 15813180 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

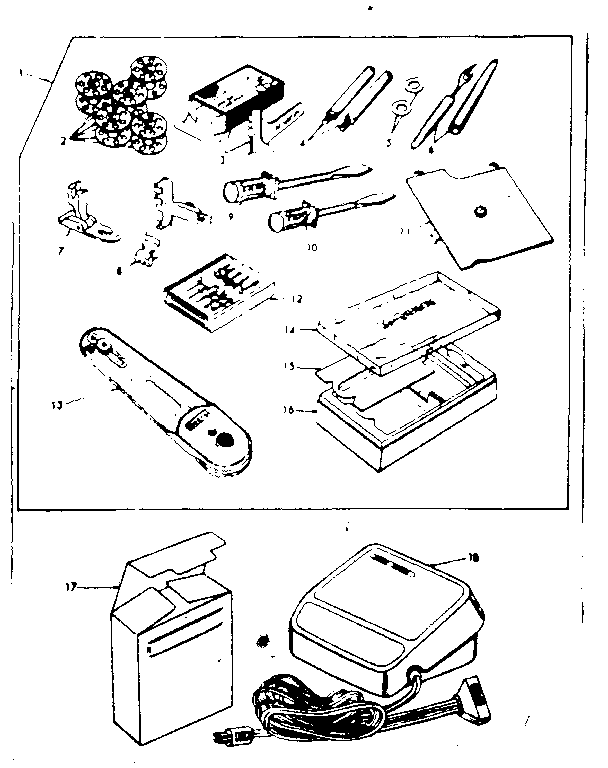

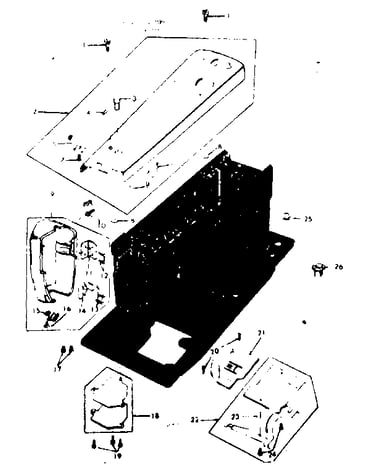

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 220 parts  |
Spring 33925
#12

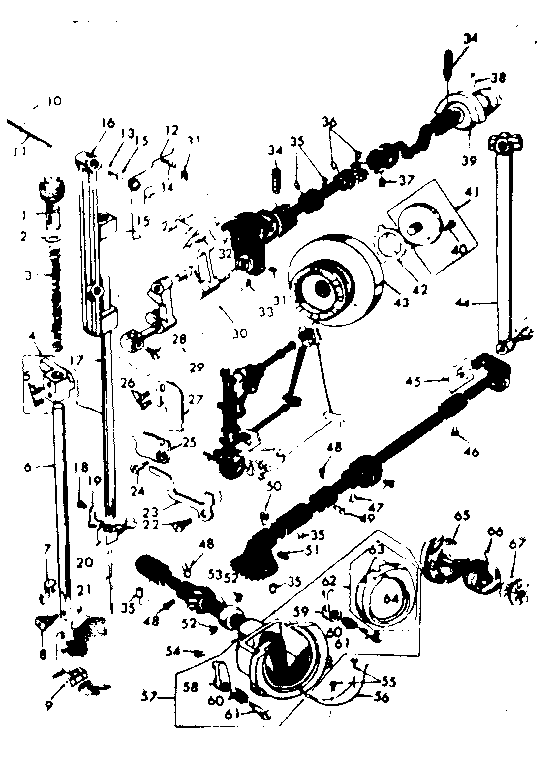

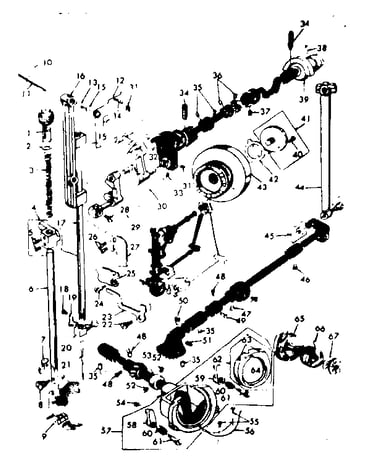

Presser bar assembly diagram

Spring

Part #33925

The manufacturer no longer makes this part, and there's no substitute part

Pin 28610
#29

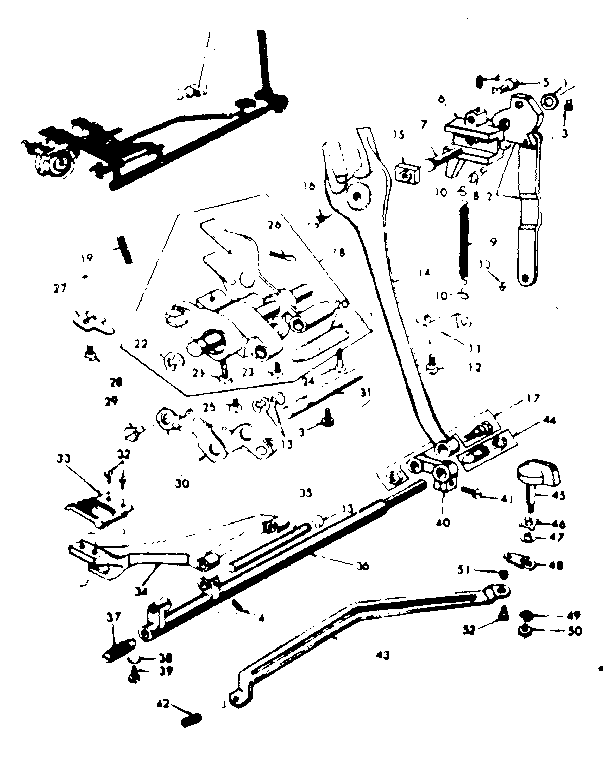

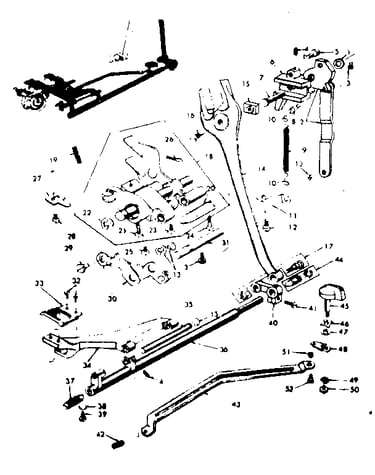

Feed regulator assembly diagram

Pin

Part #28610

The manufacturer no longer makes this part, and there's no substitute part

Bracket 35352
#11

Feed regulator assembly diagram

Bracket

Part #35352

The manufacturer no longer makes this part, and there's no substitute part

Washer 30040
#31

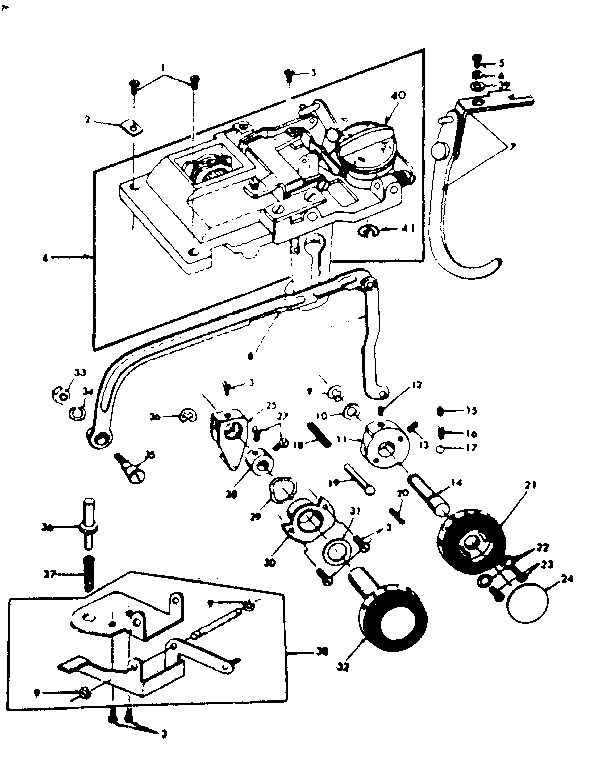

Zigzag guide assembly diagram

Washer

Part #30040

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 32710
#30

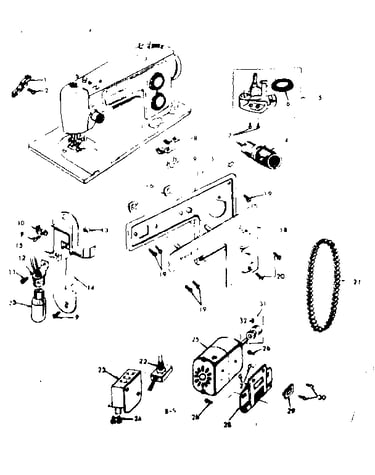

Motor assembly diagram

Set screw

Part #32710

The manufacturer no longer makes this part, and there's no substitute part

Shaft 33891
#36

Feed regulator assembly diagram

Shaft

Part #33891

The manufacturer no longer makes this part, and there's no substitute part

Spring 8576
#60

Presser bar assembly diagram

Spring

Part #8576

The manufacturer no longer makes this part, and there's no substitute part

Control Pin 33850
#19

Zigzag guide assembly diagram

Control pin

Part #33850

The manufacturer no longer makes this part, and there's no substitute part

Connect Bar 26794
#43

Feed regulator assembly diagram

Connect bar

Part #26794

The manufacturer no longer makes this part, and there's no substitute part

Washer 26227
#1

Feed regulator assembly diagram

Washer

Part #26227

The manufacturer no longer makes this part, and there's no substitute part
