Microwave/Hood Combo

Model # LMV2053SW/00 Official LG microwave

Here are the diagrams and repair parts for Official LG LMV2053SW/00 microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

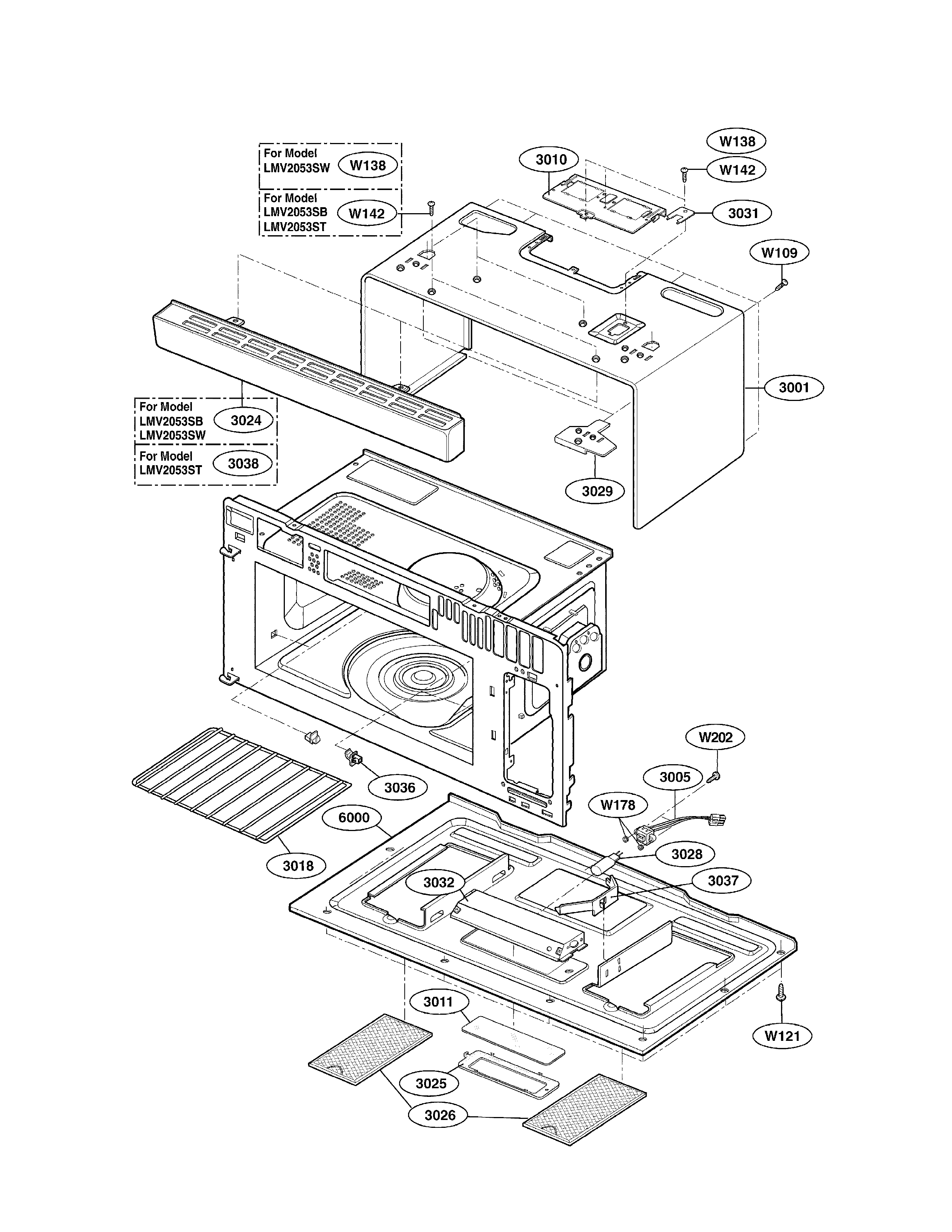

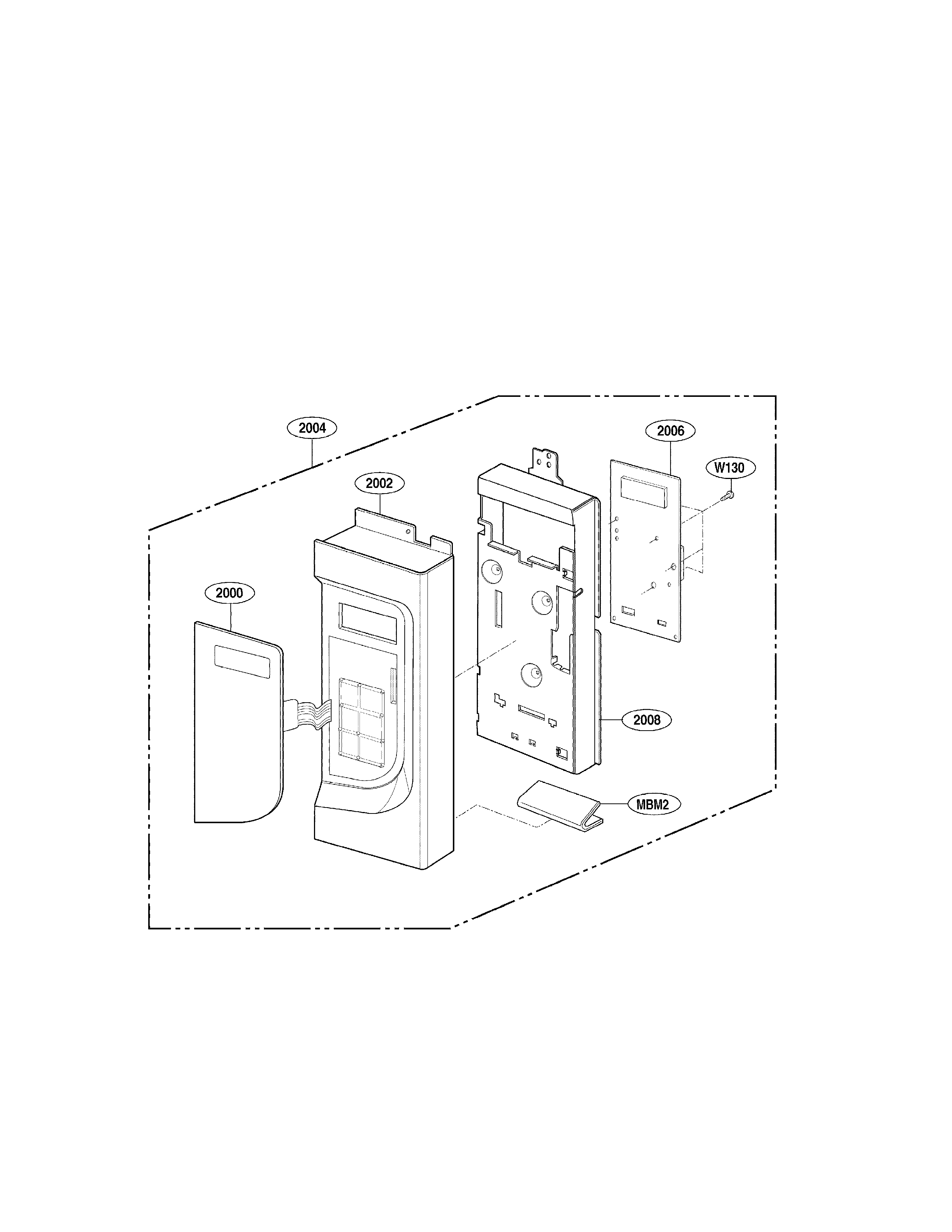

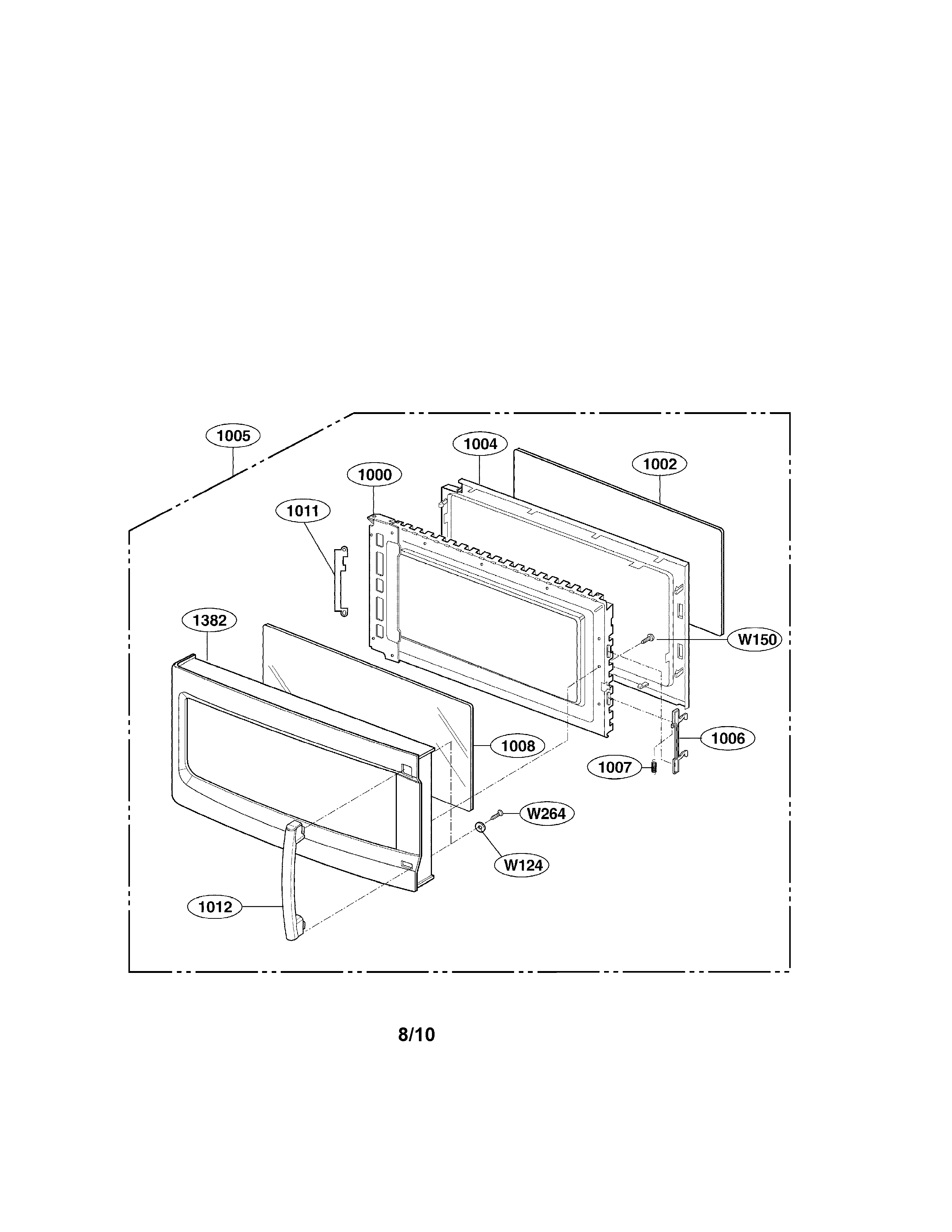

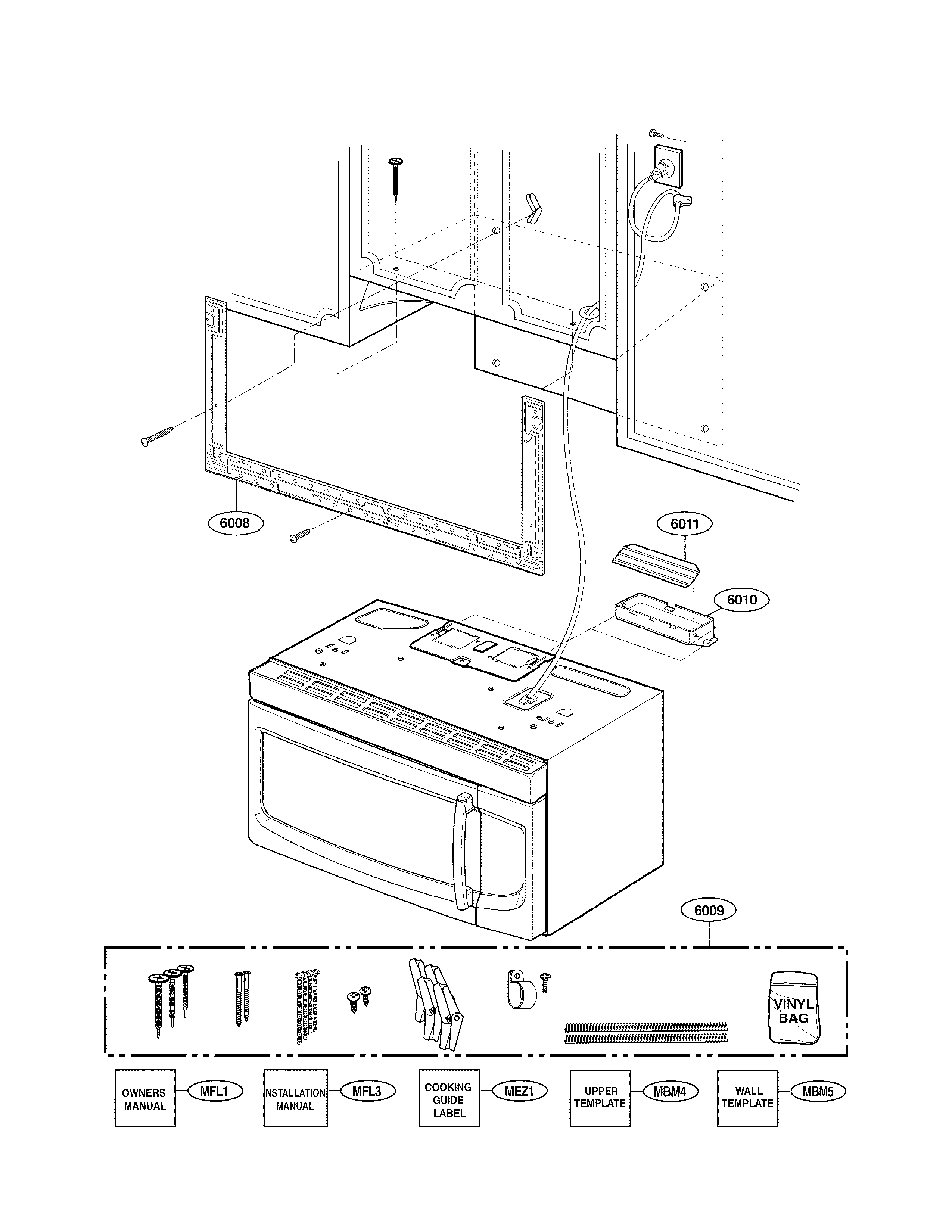

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
LMV2053SW/00 Microwave
Microwave Magnetron 6324W1A001E
#5009

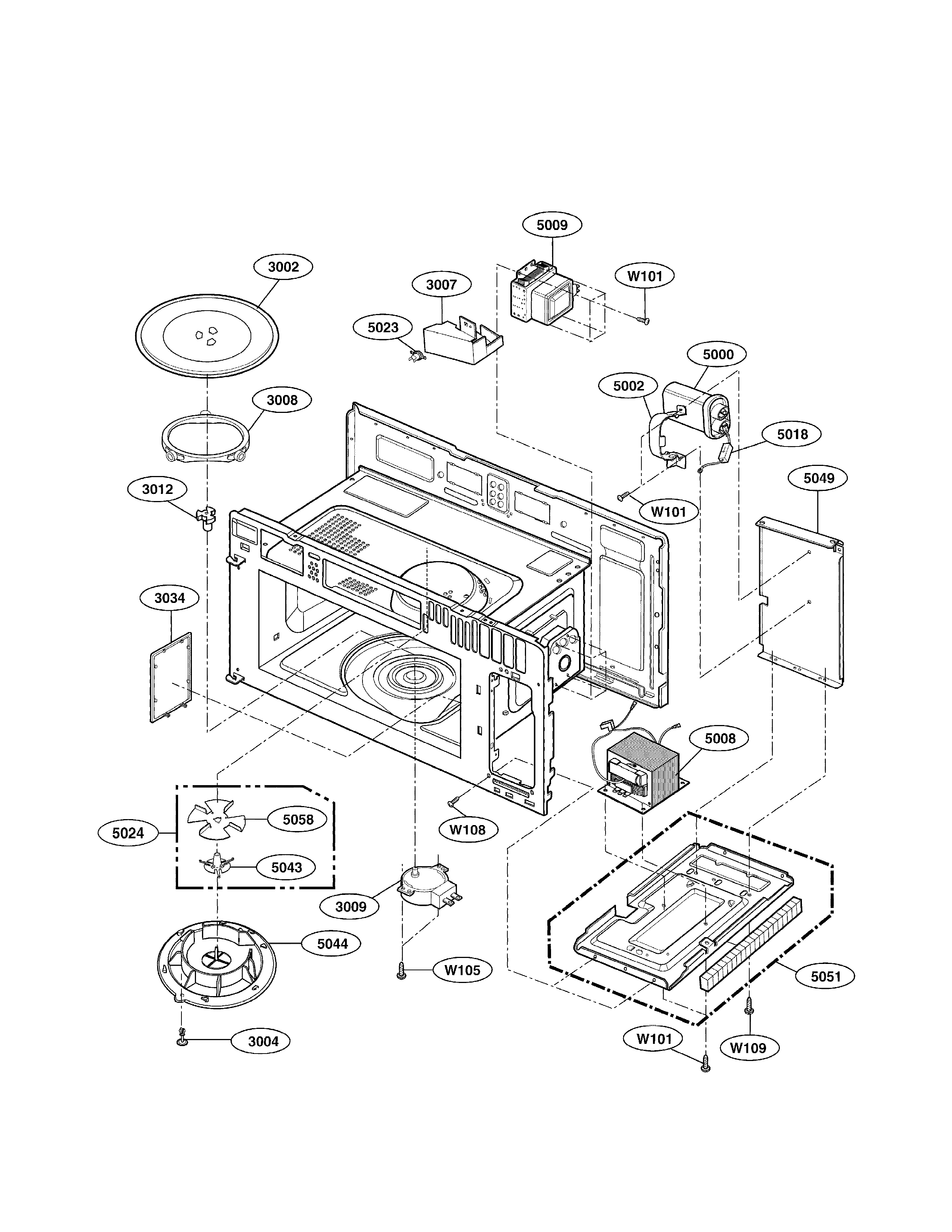

Interior parts(i) diagram

Microwave magnetron

Part #6324W1A001E

Replaced by #6324W1A001L

?
Manufacturer substitution
This part replaces 6324W1A001E. Substitute parts can look different from the original.
BEST SELLER
$128.12 |
9% OFF Phone Price : $140.12
In Stock
Goldstar Microwave High-voltage Capacitor (replaces 0czzw1h001q, 0czzw1h002h, 0czzw1h003h, 0czzw1h003j, 6120w3h003j, 6120wrh001h) 0CZZW1H004C
#5000A

Interior parts(i) diagram

Goldstar microwave high-voltage capacitor (replaces 0czzw1h001q, 0czzw1h002h, 0czzw1h003h, 0czzw1h003j, 6120w3h003j, 6120wrh001h)

Part #0CZZW1H004C

BEST SELLER
$32.79 |
15% OFF Phone Price : $38.79
In Stock
Capacitor 6120W3H003J
#5000B

Interior parts(i) diagram

Capacitor

Part #6120W3H003J

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 6120W3H003J. Substitute parts can look different from the original.
BEST SELLER
$32.79 |
15% OFF Phone Price : $38.79
In Stock
Capacitor 0CZZW1H002J
#5000

Interior parts(i) diagram

Capacitor

Part #0CZZW1H002J

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H002J. Substitute parts can look different from the original.
BEST SELLER
$32.79 |
15% OFF Phone Price : $38.79
In Stock
High-voltage Diode 6021W3B001Q
#5018A

Interior parts(i) diagram

High-voltage diode

Part #6021W3B001Q

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001Q. Substitute parts can look different from the original.
BEST SELLER
$10.84 |
16% OFF Phone Price : $12.84
In Stock
Microwave High-voltage Diode 6021W3B001M
#5018

Interior parts(i) diagram

Microwave high-voltage diode

Part #6021W3B001M

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001M. Substitute parts can look different from the original.
BEST SELLER
$10.84 |
16% OFF Phone Price : $12.84
In Stock
Lg Microwave Charcoal Filter 5230W1A003A
#5037

Interior parts(ii) diagram

Lg microwave charcoal filter

Part #5230W1A003A

BEST SELLER
$45.12 |
12% OFF Phone Price : $51.12
In Stock
Microwave Door Interlock Switch 3B73361E
#4003

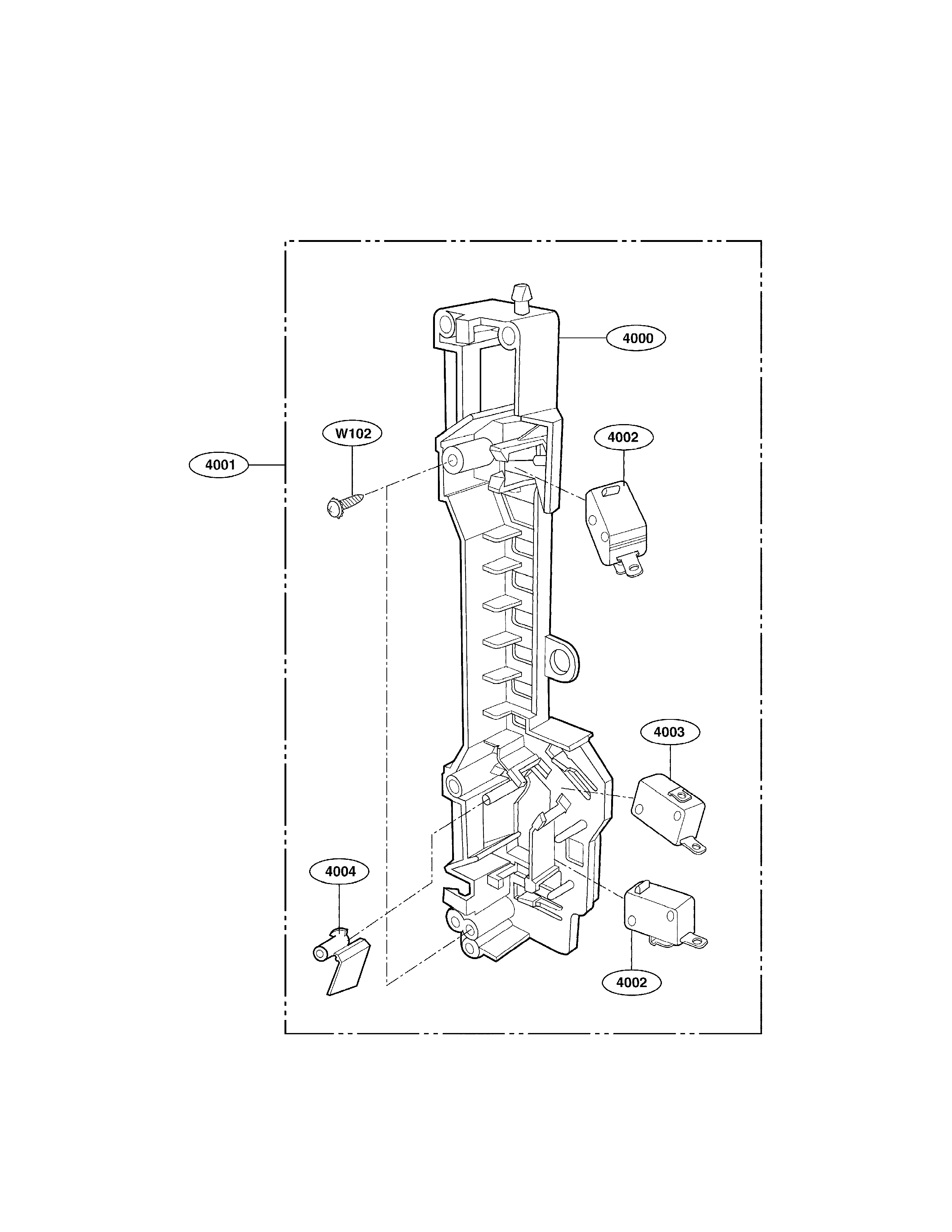

Latch board parts diagram

Microwave door interlock switch

Part #3B73361E

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 3B73361E. Substitute parts can look different from the original.
BEST SELLER
$13.07 |
13% OFF Phone Price : $15.07
In Stock
Oven Lamp 6912W3Q001A
#5015

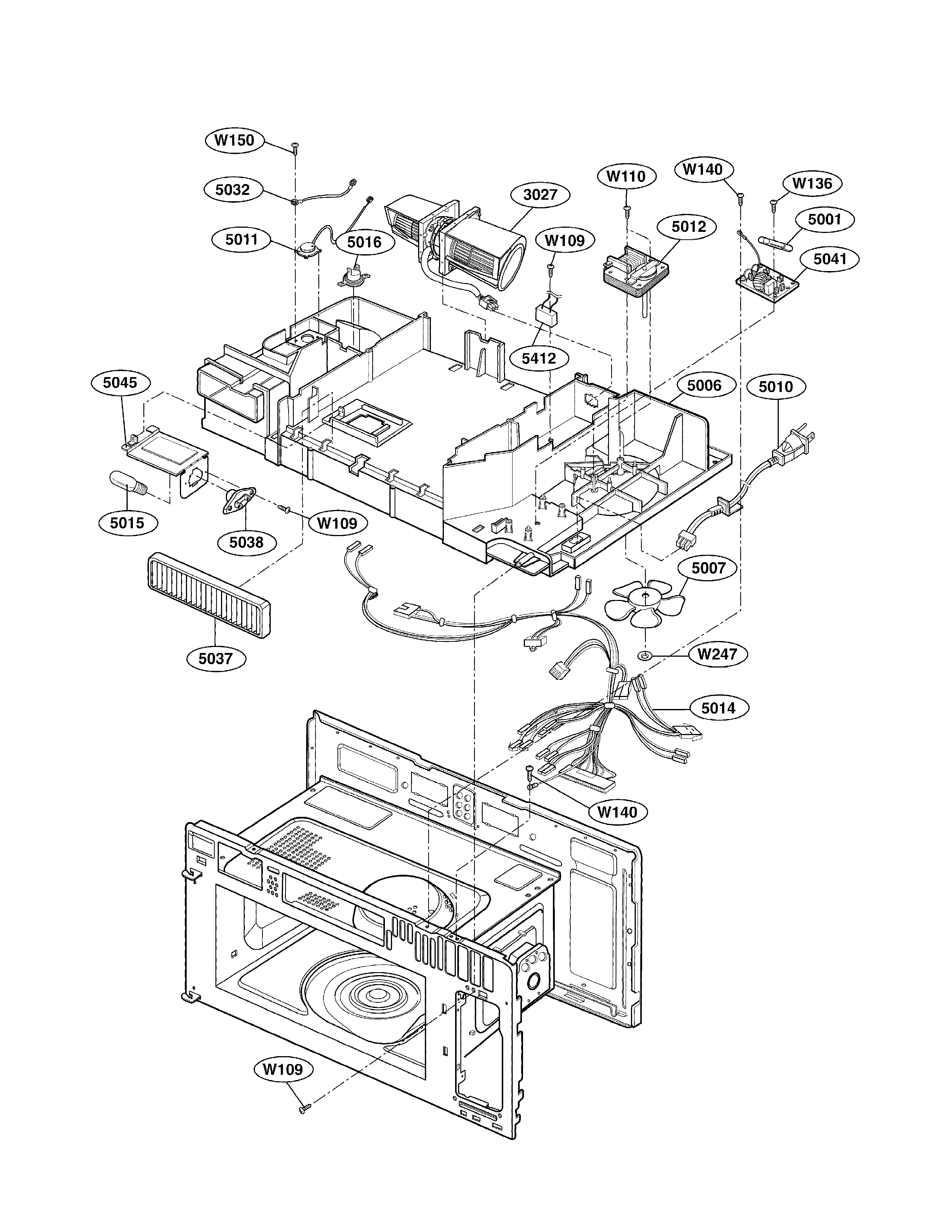

Interior parts(ii) diagram

Oven lamp

Part #6912W3Q001A

Replaced by #6912W1Z004B

?
Manufacturer substitution
This part replaces 6912W3Q001A. Substitute parts can look different from the original.
BEST SELLER
$12.09 |
14% OFF Phone Price : $14.09
In Stock
Microwave/hood Lamp 6912W3Q001D
#5015A

Interior parts(ii) diagram

Microwave/hood lamp

Part #6912W3Q001D

Replaced by #6912W1Z004B

?
Manufacturer substitution
This part replaces 6912W3Q001D. Substitute parts can look different from the original.
BEST SELLER
$12.09 |
14% OFF Phone Price : $14.09
In Stock
