Model # LA415LXD1 Official White-Westinghouse top-loading washer - lw31288080

Here are the diagrams and repair parts for Official White-Westinghouse LA415LXD1 top-loading washer - lw31288080, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

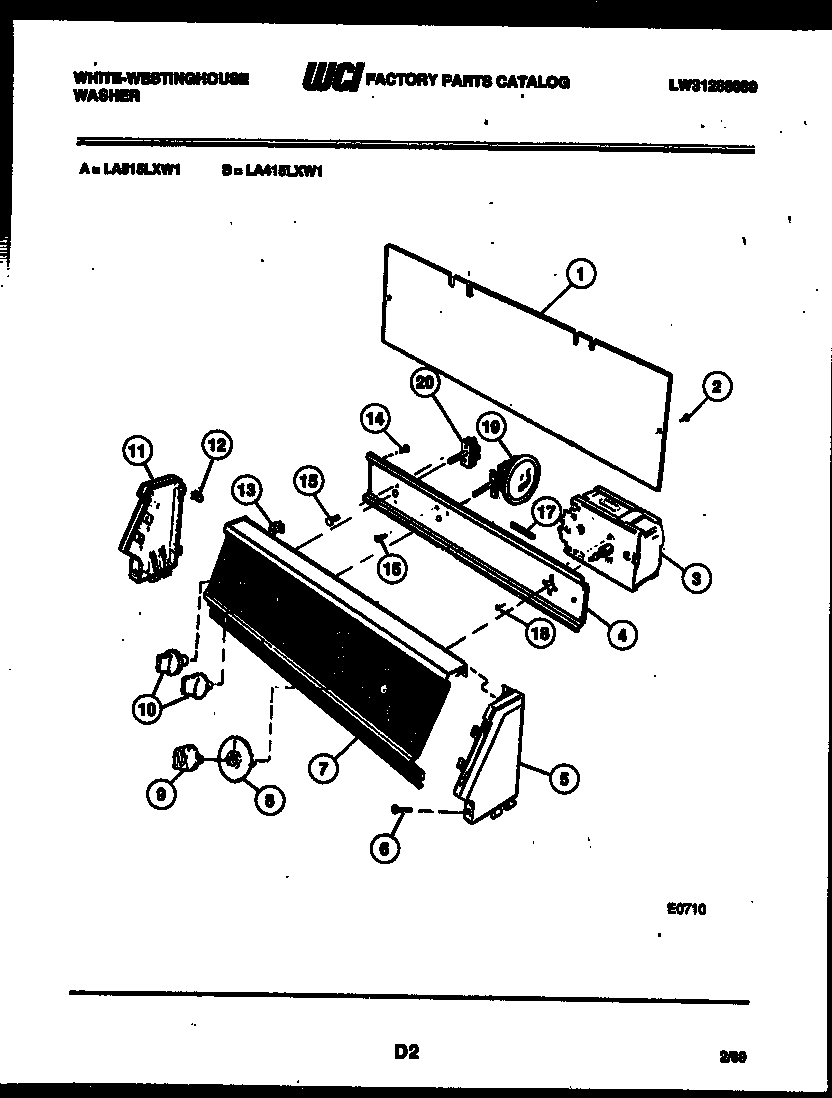

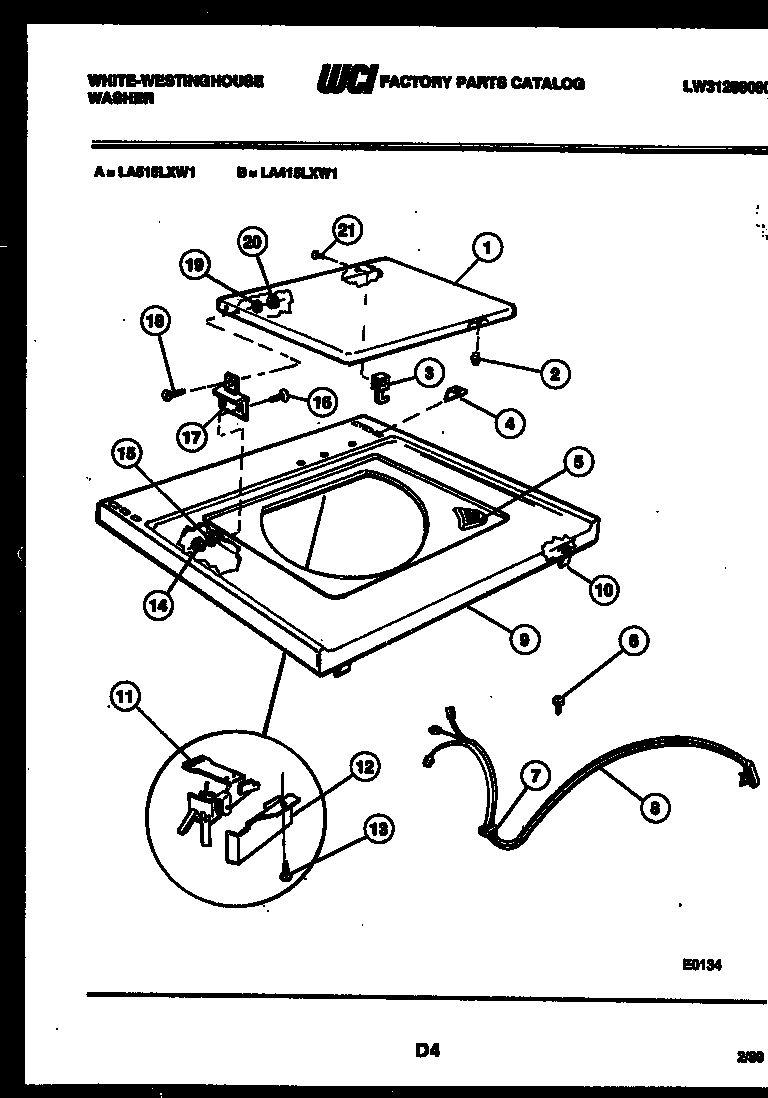

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 194 parts  |
Lock Plate 08001923
#14

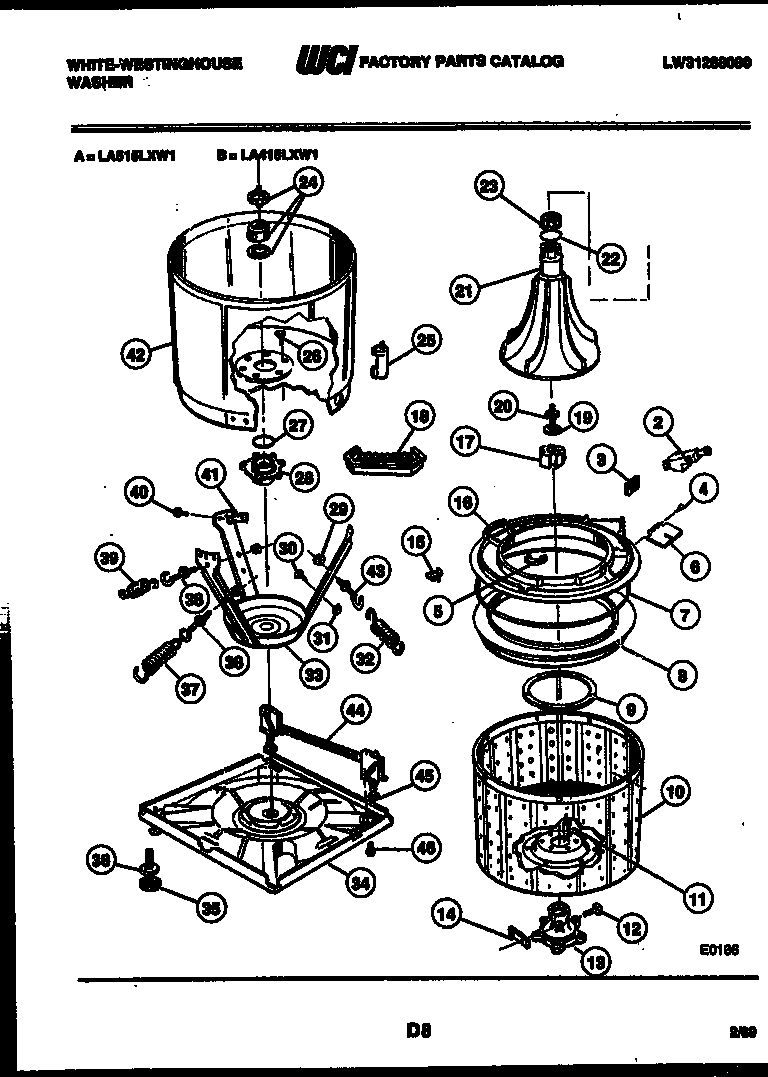

Tub detail diagram

Lock plate

Part #08001923

Replaced by #137107000

?
Manufacturer substitution
This part replaces 08001923. Substitute parts can look different from the original.
BEST SELLER
$28.29 |
17% OFF Phone Price : $34.29
In Stock
Adhesive Q000022072
#15

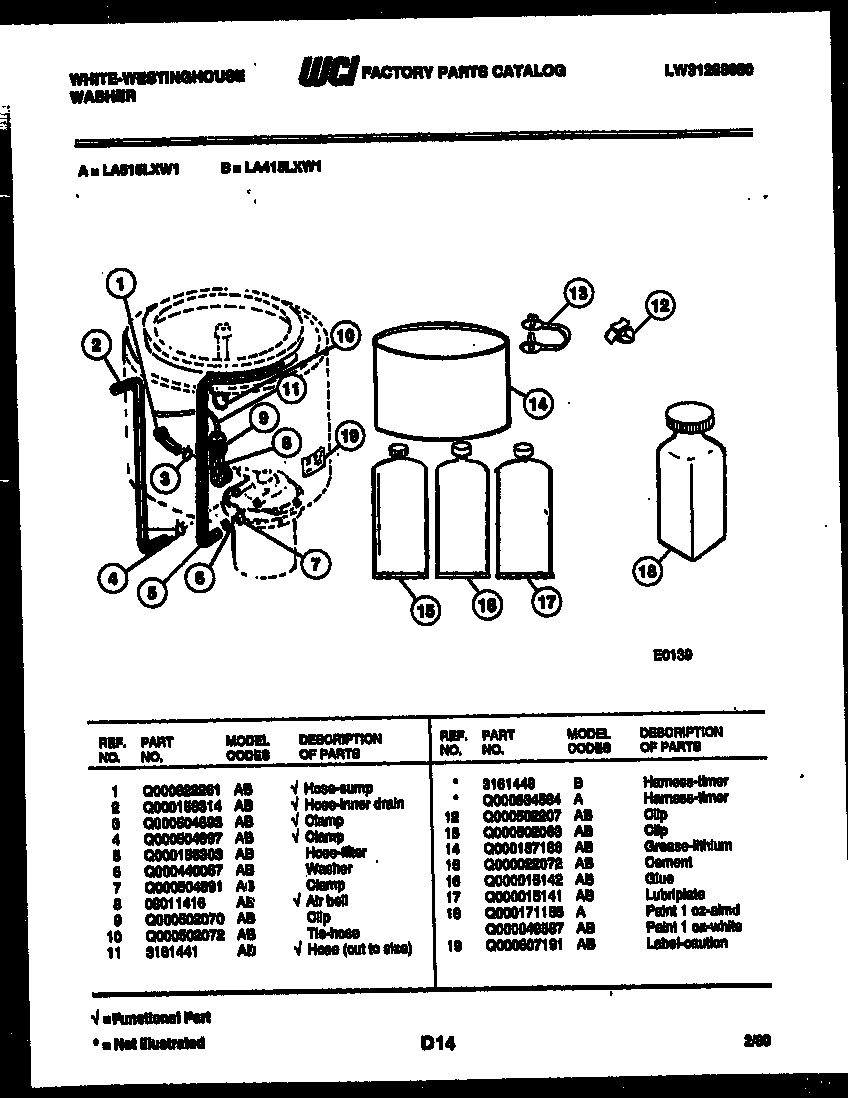

Washer and miscellaneous parts diagram

Adhesive

Part #Q000022072

Replaced by #5308027429

?
Manufacturer substitution
This part replaces Q000022072. Substitute parts can look different from the original.
$48.99 |
11% OFF Phone Price : $54.99
In Stock
Adhesive Q000015142
#16

Washer and miscellaneous parts diagram

Adhesive

Part #Q000015142

Replaced by #5308027429

?
Manufacturer substitution
This part replaces Q000015142. Substitute parts can look different from the original.
$48.99 |
11% OFF Phone Price : $54.99
In Stock
Washer 3161410
#16

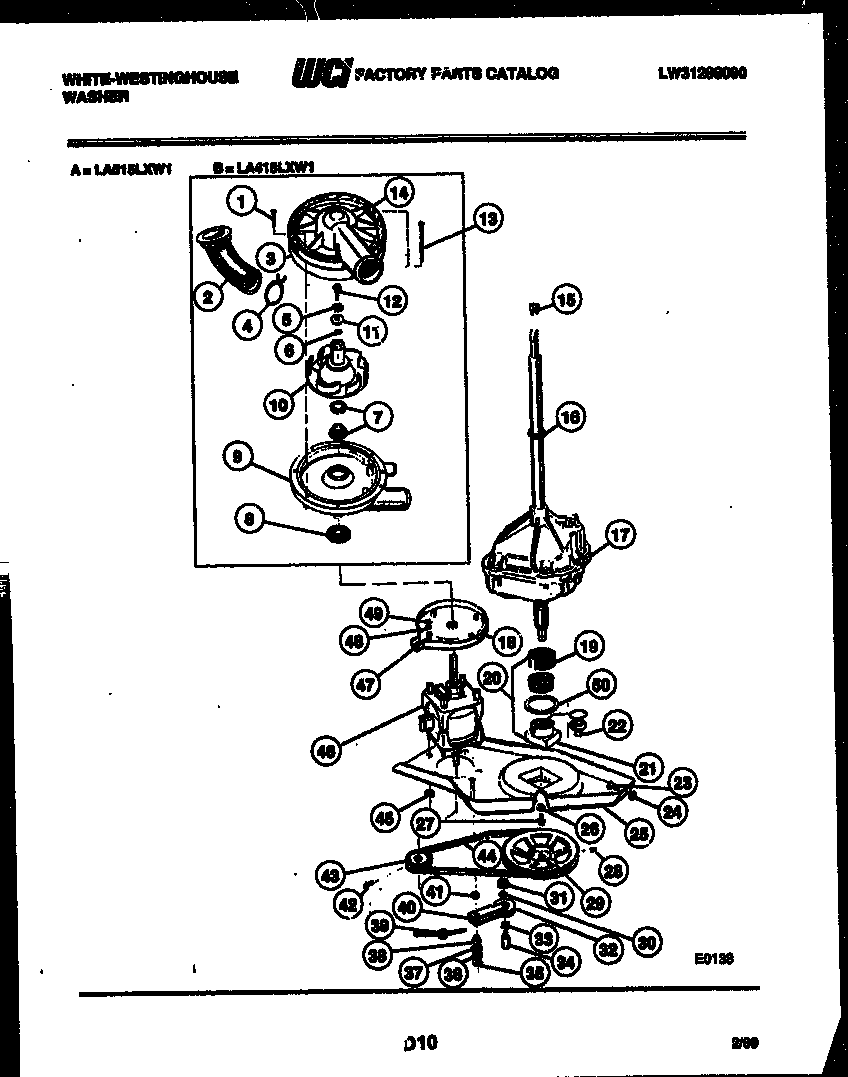

Motor, transmission and drive parts diagram

Washer

Part #3161410

Replaced by #5308002401

?
Manufacturer substitution
This part replaces 3161410. Substitute parts can look different from the original.
$20.89 |
22% OFF Phone Price : $26.89
In Stock
Washer Q000412501
#19

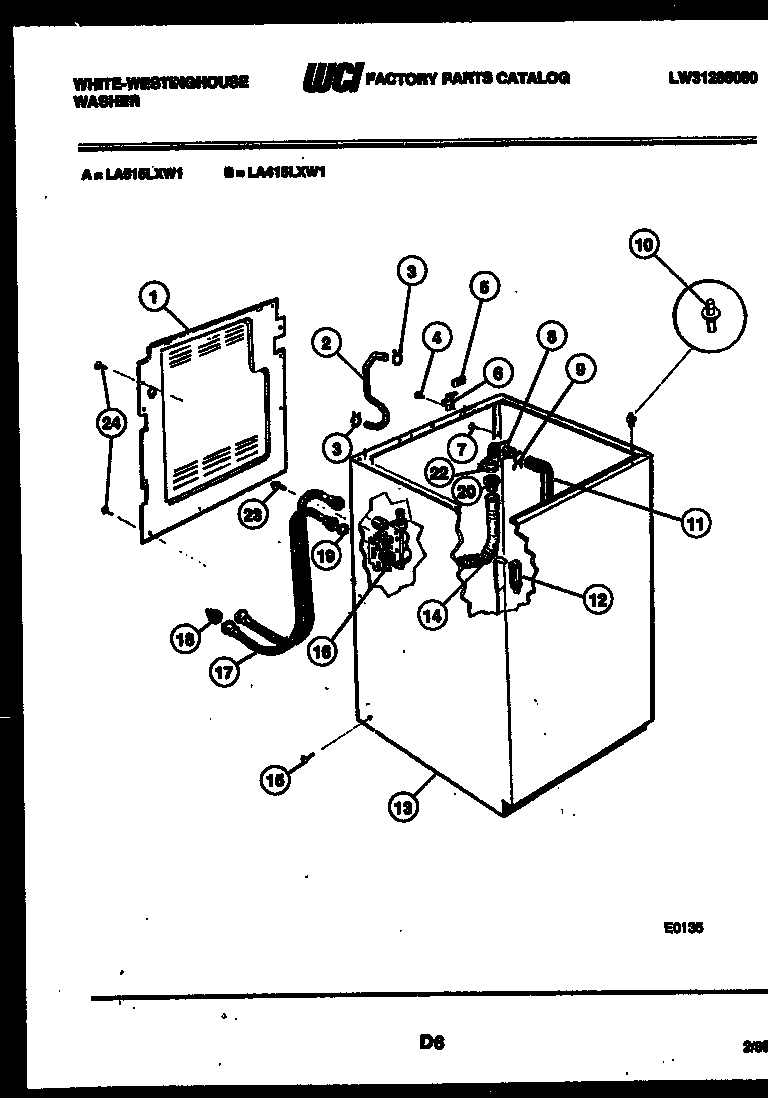

Cabinet parts diagram

Washer

Part #Q000412501

Replaced by #5303161296

?
Manufacturer substitution
This part replaces Q000412501. Substitute parts can look different from the original.
This item is not returnable
$10.44 |
16% OFF Phone Price : $12.44
In Stock
Retainer 0001467173
#35

Motor, transmission and drive parts diagram

Retainer

Part #0001467173

Replaced by #3161433

?
Manufacturer substitution
This part replaces 0001467173. Substitute parts can look different from the original.
$18.17
In Stock
Spacer 08001727
#5

Cabinet parts diagram

Spacer

Part #08001727

This item is not returnable
$2.29
In Stock
Screw Q000504382
#15

Cabinet parts diagram

Screw

Part #Q000504382

Replaced by #08001851

?
Manufacturer substitution
This part replaces Q000504382. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Lubricant Q000015141
#17

Washer and miscellaneous parts diagram

Lubricant

Part #Q000015141

Replaced by #5303307893

?
Manufacturer substitution
This part replaces Q000015141. Substitute parts can look different from the original.
This item is not returnable
$27.79 |
18% OFF Phone Price : $33.79
In Stock
Seal-upper L F130866000
#23

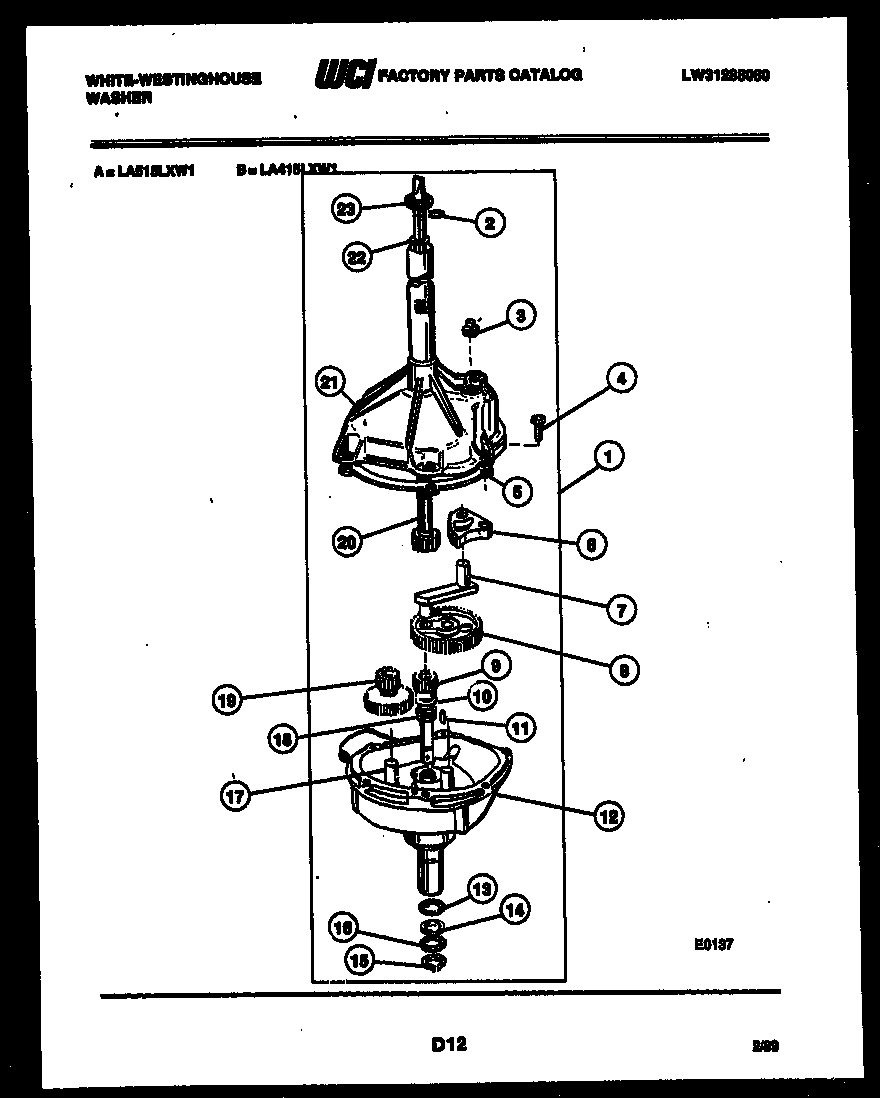

Transmission parts diagram

Seal-upper l

Part #F130866000

Replaced by #5303161307

?
Manufacturer substitution
This part replaces F130866000. Substitute parts can look different from the original.
$19.44 |
9% OFF Phone Price : $21.44
In Stock
