Craftsman
Gas Walk-Behind Mower

Model # 917370730 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917370730 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 277 parts  |
Lawn Mower Wheel And Tire, 8 X 1.75-in 194231X460
#32

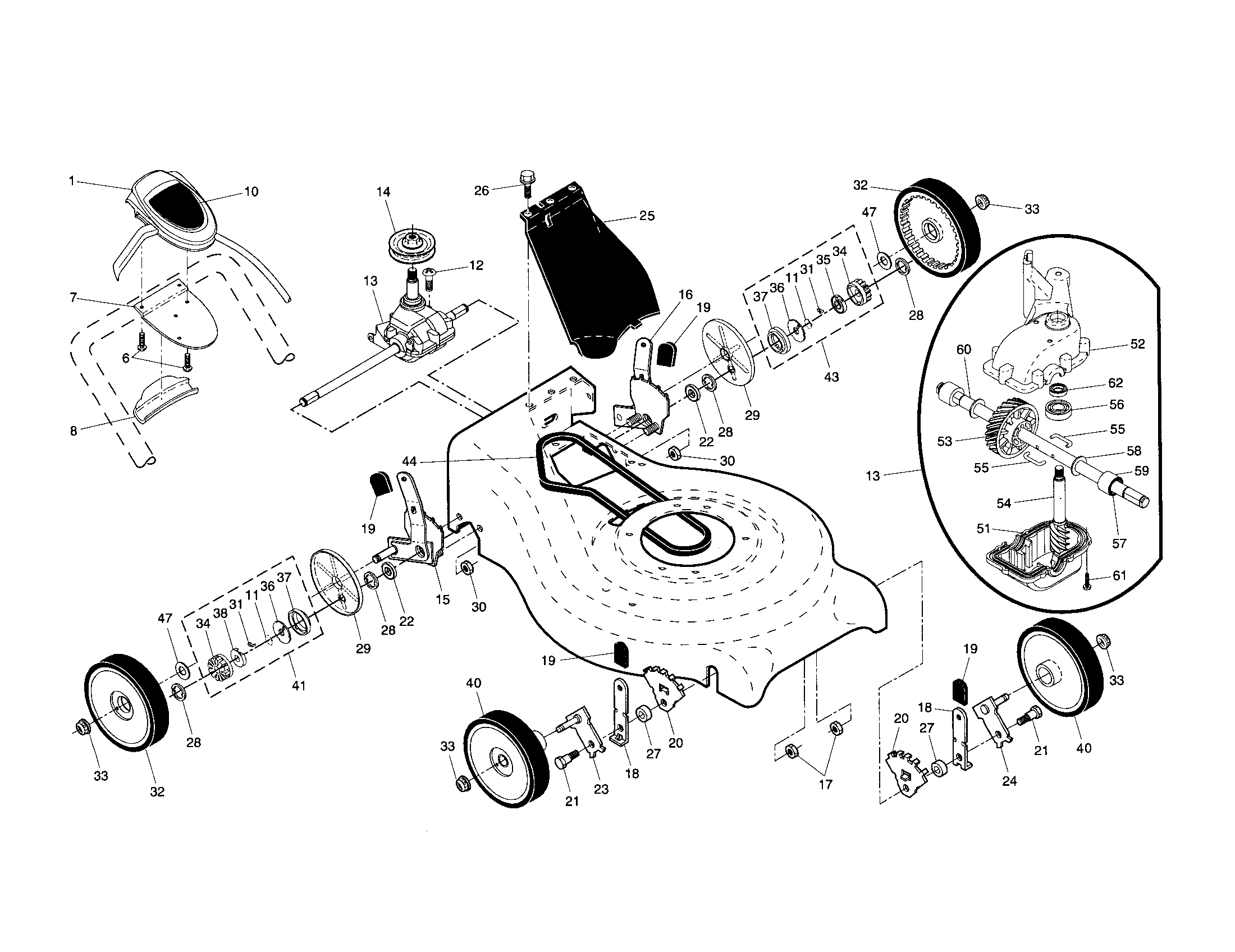

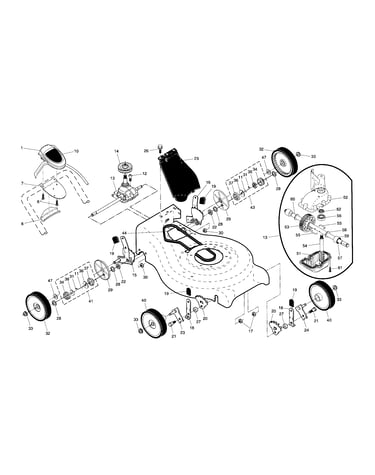

Wheels/drive control/gearcase diagram

Lawn mower wheel and tire, 8 x 1.75-in

Part #194231X460

Replaced by #583719501

?
Manufacturer substitution
This part replaces 194231X460. Substitute parts can look different from the original.
BEST SELLER
$34.31 |
15% OFF Phone Price : $40.31
In Stock
Lawn Mower Height Adjuster Knob 701037
#19

Wheels/drive control/gearcase diagram

Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Spring 188291
#11

Wheels/drive control/gearcase diagram

Spring

Part #188291

Replaced by #532188291

?
Manufacturer substitution
This part replaces 188291. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn & Garden Equipment Lock Nut 73800400
#30

Wheels/drive control/gearcase diagram

Lawn & garden equipment lock nut

Part #73800400

Replaced by #582478602

?
Manufacturer substitution
This part replaces 73800400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Nut 132004
#5

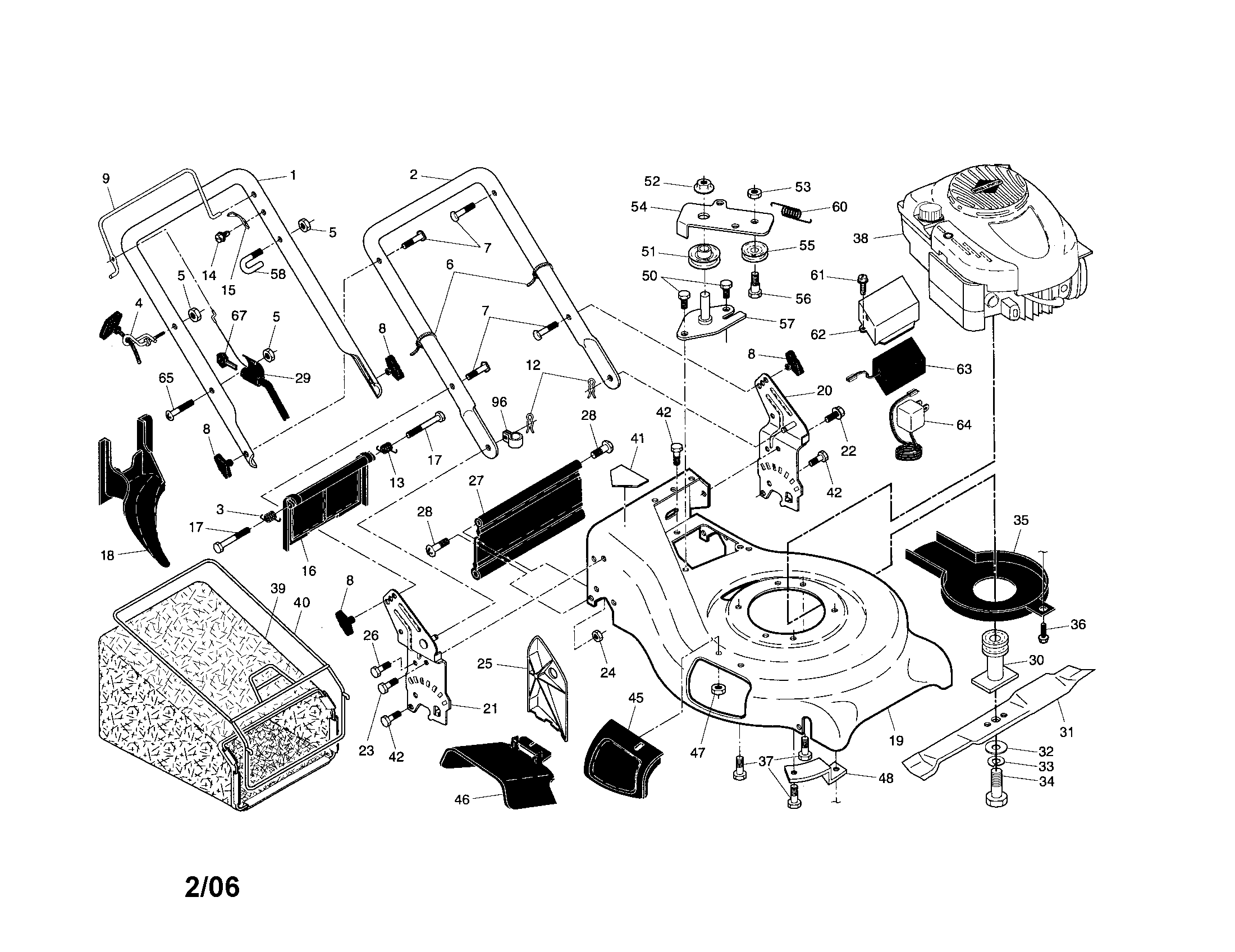

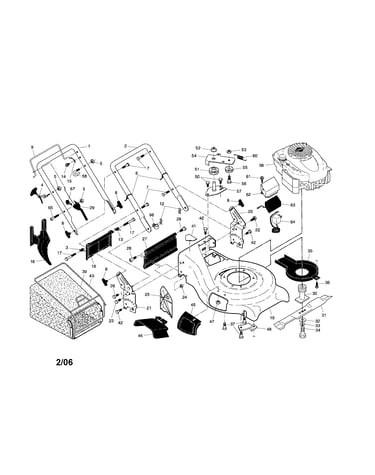

Handle/engine/bag/deck diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#28

Handle/engine/bag/deck diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Short Lever 188281
#4

Wheels/drive control/gearcase diagram

Short lever

Part #188281

Replaced by #583170901

?
Manufacturer substitution
This part replaces 188281. Substitute parts can look different from the original.
$32.17 |
16% OFF Phone Price : $38.17
In Stock
Guide.rope.s 194788
#4

Handle/engine/bag/deck diagram

Guide.rope.s

Part #194788

Replaced by #586122501

?
Manufacturer substitution
This part replaces 194788. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Gbag.4061016 403270
#39

Handle/engine/bag/deck diagram

Gbag.4061016

Part #403270

Replaced by #583274701

?
Manufacturer substitution
This part replaces 403270. Substitute parts can look different from the original.
$64.60 |
8% OFF Phone Price : $70.60
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
#28

Wheels/drive control/gearcase diagram

Lawn mower e-ring (replaces 12000057)

Part #12000058

Replaced by #812000058

?
Manufacturer substitution
This part replaces 12000058. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
