Model # RH361-88433 Official Fisher & Paykel range hood

Here are the diagrams and repair parts for Official Fisher & Paykel RH361-88433 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Light Panel R104639SSF
#18

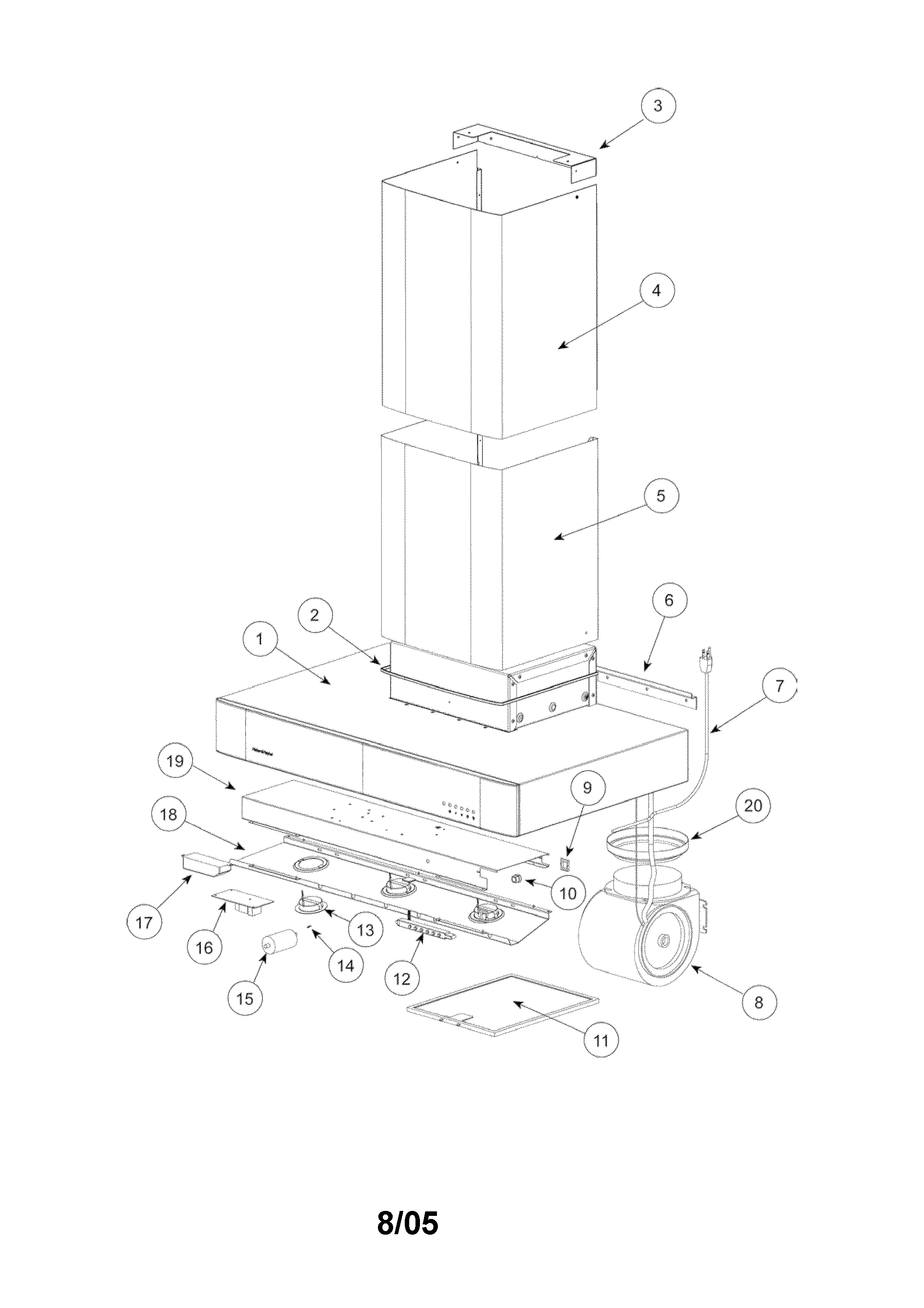

Hood assembly diagram

Light panel

Part #R104639SSF

$195.49
In Stock
Bracket R104610F
#3

Hood assembly diagram

Bracket

Part #R104610F

$35.49
In Stock
Bushing R107675
#10

Hood assembly diagram

Bushing

Part #R107675

$46.49
In Stock
Bracket R104609F
#6

Hood assembly diagram

Bracket

Part #R104609F

$33.49
In Stock
Ac Cord R104365
#7

Hood assembly diagram

Ac cord

Part #R104365

$46.99
In Stock
Cover R104606F
#19

Hood assembly diagram

Cover

Part #R104606F

$80.99
In Stock
Range Hood Light Panel R104605IRF
#18A

Hood assembly diagram

Range hood light panel

Part #R104605IRF

$158.39 |
7% OFF Phone Price : $170.39
In Stock
Adapter R104766
#20

Hood assembly diagram

Adapter

Part #R104766

$111.99
In Stock
Fisher & Paykel Range Hood Grease Filter R104660
#11

Hood assembly diagram

Fisher & paykel range hood grease filter

Part #R104660

$174.98 |
6% OFF Phone Price : $186.98
In Stock
Chimney R104641SSF
#5

Hood assembly diagram

Chimney

Part #R104641SSF

$189.11 |
6% OFF Phone Price : $201.11
In Stock
