Jenn-Air
Range Hood

Model # JXT8836ADS Official Jenn-Air range hood

Here are the diagrams and repair parts for Official Jenn-Air JXT8836ADS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

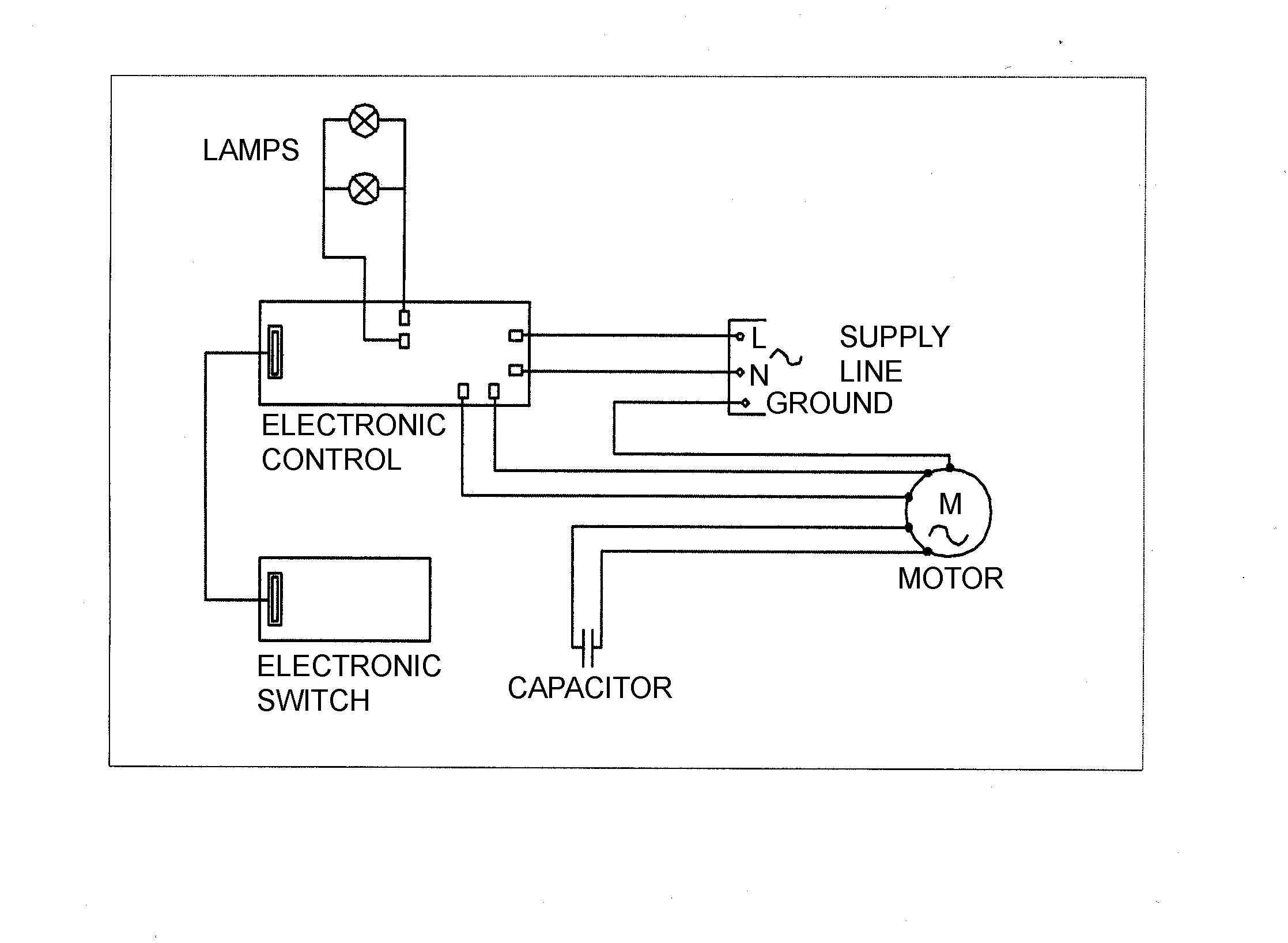

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Jenn-air Range Hood Grease Filter, 3-pack 49001003
#13

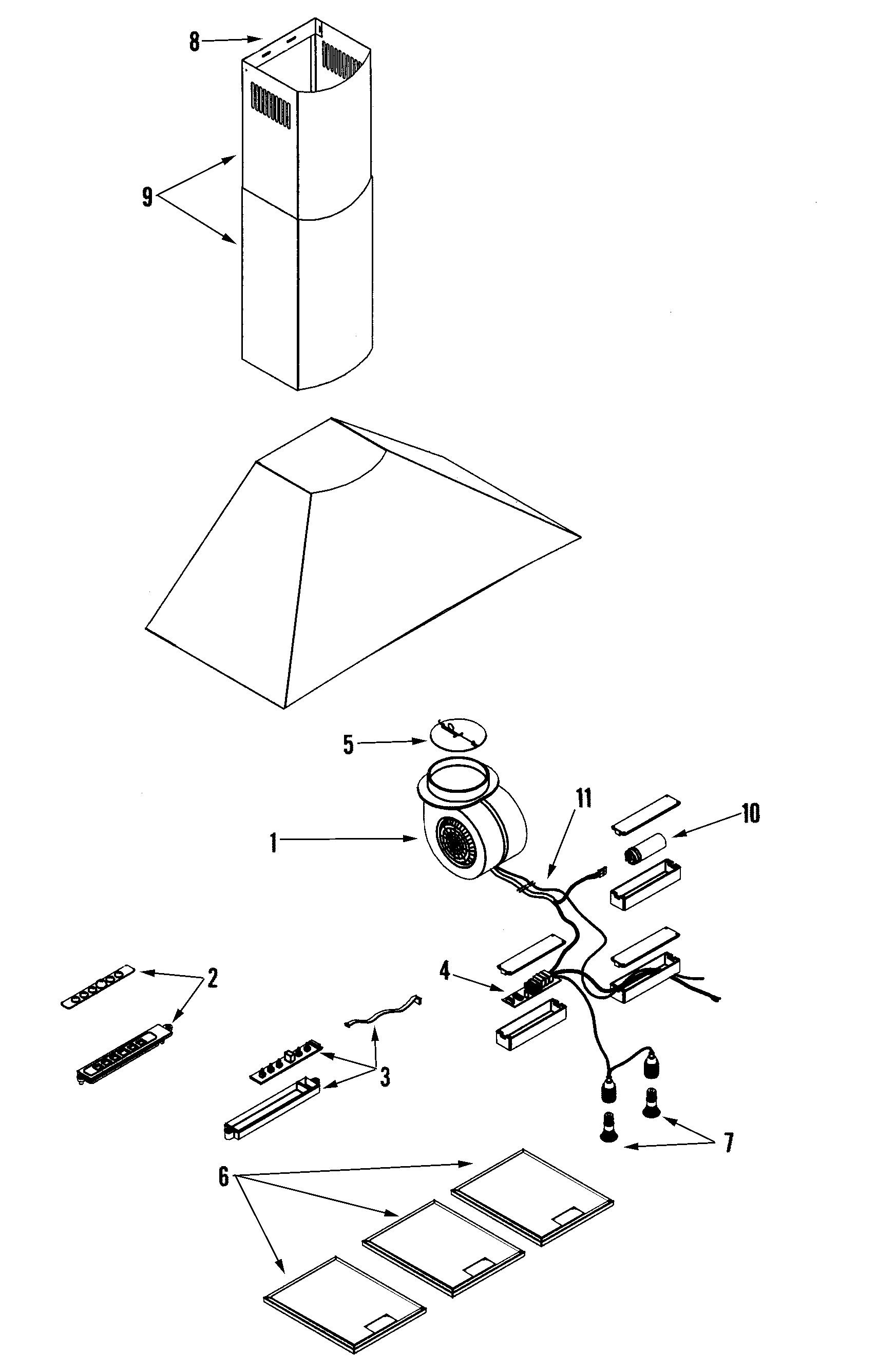

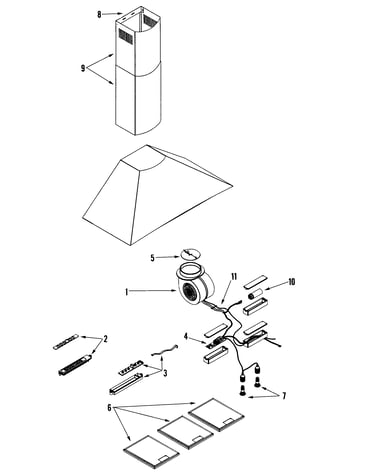

Hood components (complete) diagram

Jenn-air range hood grease filter, 3-pack

Part #49001003

$148.17 |
7% OFF Phone Price : $160.17
In Stock
Electronic Board 49001053
#4

Hood components (complete) diagram

Electronic board

Part #49001053

The manufacturer no longer makes this part, and there's no substitute part

Chimney Cover 49001049
#9

Hood components (complete) diagram

Chimney cover

Part #49001049

The manufacturer no longer makes this part, and there's no substitute part

Valve Damper 49001045
#5

Hood components (complete) diagram

Valve damper

Part #49001045

The manufacturer no longer makes this part, and there's no substitute part

Extension, C 49001176
#15

Hood components (complete) diagram

Extension, c

Part #49001176

The manufacturer no longer makes this part, and there's no substitute part

Halogen Bulb 49001047
#7

Hood components (complete) diagram

Halogen bulb

Part #49001047

The manufacturer no longer makes this part, and there's no substitute part

Filter, Carb 49001170
#14

Hood components (complete) diagram

Filter, carb

Part #49001170

The manufacturer no longer makes this part, and there's no substitute part

Wiring Harness 49001166
#11

Hood components (complete) diagram

Wiring harness

Part #49001166

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Assembly 49001042
#1

Hood components (complete) diagram

Range hood blower assembly

Part #49001042

The manufacturer no longer makes this part, and there's no substitute part

Condensator 49001050
#10

Hood components (complete) diagram

Condensator

Part #49001050

The manufacturer no longer makes this part, and there's no substitute part
