Kenmore
Electric Range

Model # 1034267593 Official Kenmore electric built-in oven

Here are the diagrams and repair parts for Official Kenmore 1034267593 electric built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Range Oven Light Bulb 111257
#87

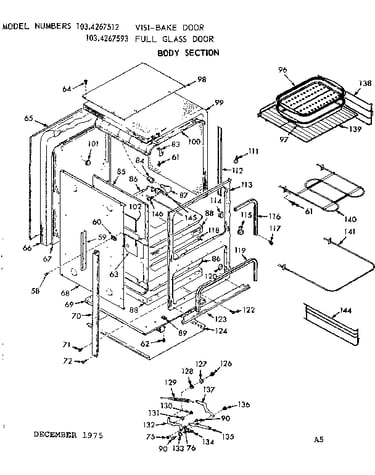

Body section diagram

Range oven light bulb

Part #111257

Replaced by #40A15

?
Manufacturer substitution
This part replaces 111257. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Hex Nut 97816
Hex nut

Part #97816

Replaced by #WB1X1259

?
Manufacturer substitution
This part replaces 97816. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Nut 110340
#239

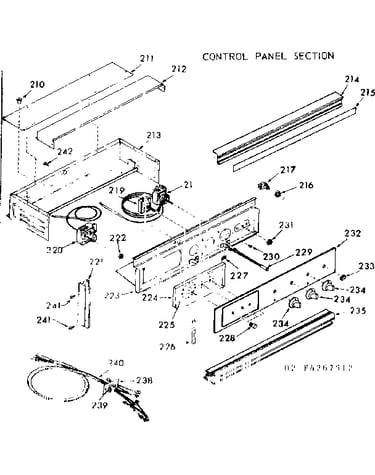

Control panel section diagram

Nut

Part #110340

This item is not returnable
$2.16
In Stock
Bracket 104659
#115

Body section diagram

Bracket

Part #104659

This item is not returnable
$2.29
In Stock
Bake Element 303296
#141E

Body section diagram

Bake element

Part #303296

The manufacturer no longer makes this part, and there's no substitute part

Screw 295849
Screw

Part #295849

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 295849. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Bake Element 302449
#141A

Body section diagram

Bake element

Part #302449

The manufacturer no longer makes this part, and there's no substitute part

Hex Screw 102429
#71

Body section diagram

Hex screw

Part #102429

Replaced by #WB1X1297

?
Manufacturer substitution
This part replaces 102429. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Rivet 281160
#58

Body section diagram

Rivet

Part #281160

Replaced by #WB1X1173

?
Manufacturer substitution
This part replaces 281160. Substitute parts can look different from the original.
This item is not returnable
$5.00
In Stock
Bake Element 303295
#141B

Body section diagram

Bake element

Part #303295

The manufacturer no longer makes this part, and there's no substitute part
