Model # WVW7336JS0 Official Whirlpool range hood

Here are the diagrams and repair parts for Official Whirlpool WVW7336JS0 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |
Grease Filter W11245983
#7

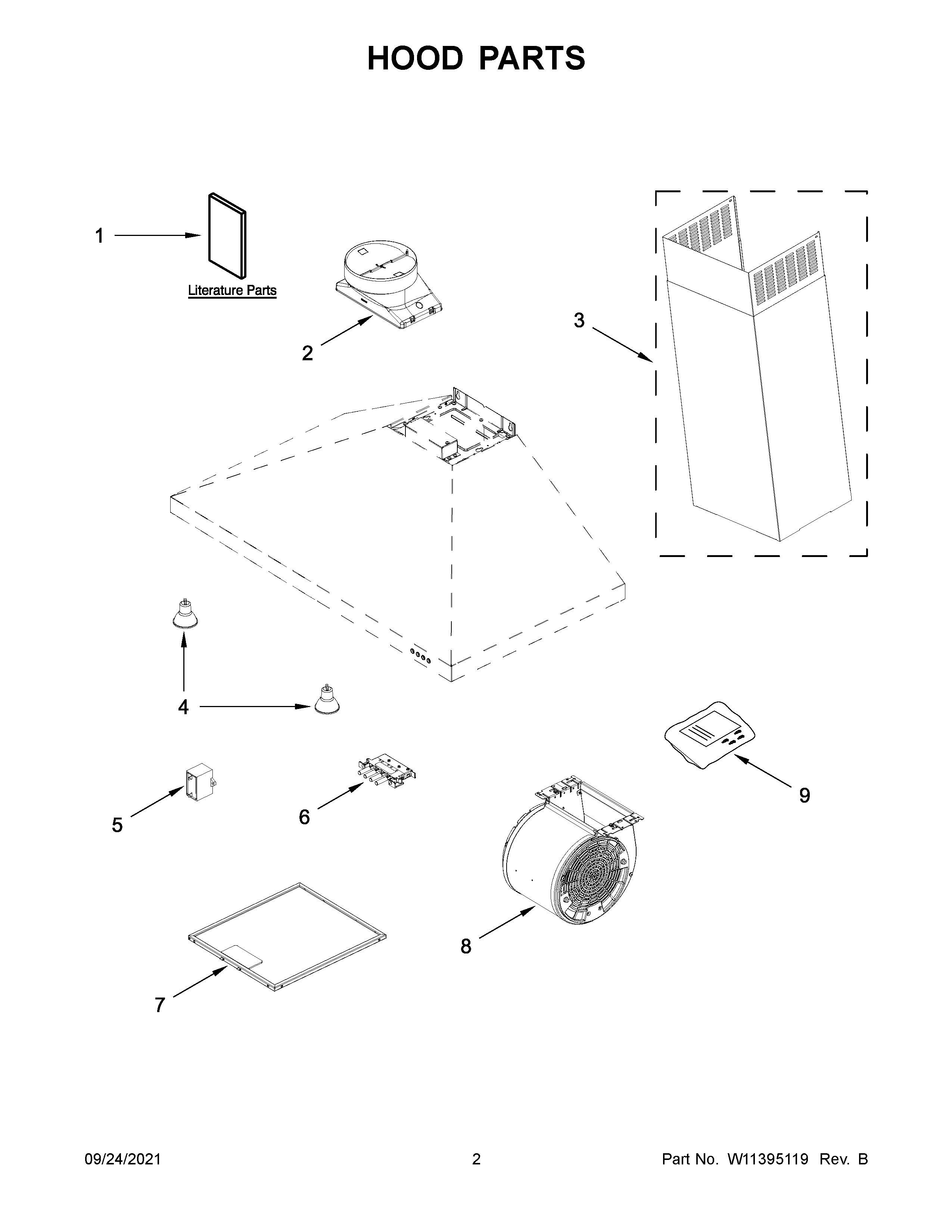

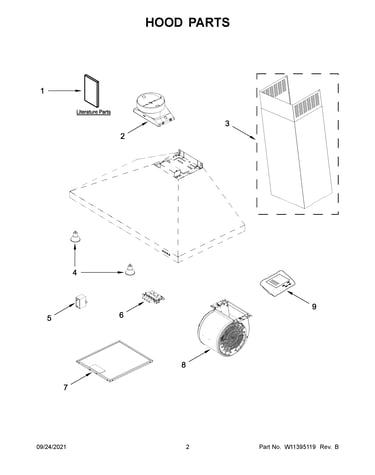

Hood parts diagram

Grease filter

Part #W11245983

Replaced by #W10169961A

?
Manufacturer substitution
This part replaces W11245983. Substitute parts can look different from the original.
$29.60 |
17% OFF Phone Price : $35.60
In Stock
Range Hood Damper W10592040
#2

Hood parts diagram

Range hood damper

Part #W10592040

Replaced by #W10847841

?
Manufacturer substitution
This part replaces W10592040. Substitute parts can look different from the original.
$79.74 |
7% OFF Phone Price : $85.74
In Stock
Electronic Control W11245985
#6

Hood parts diagram

Electronic control

Part #W11245985

$111.13
In Stock
Capacitor (15 Mf) W11245981
#5

Hood parts diagram

Capacitor (15 mf)

Part #W11245981

$40.44
In Stock
Range Hood Installation Kit W11245986
#9

Hood parts diagram

Range hood installation kit

Part #W11245986

$77.07
In Stock
Capacitor (16 Mf) W11245982
#5A

Hood parts diagram

Capacitor (16 mf)

Part #W11245982

$40.44
In Stock
Self Ballast W11388445
#4

Hood parts diagram

Self ballast

Part #W11388445

Replaced by #W11388881

?
Manufacturer substitution
This part replaces W11388445. Substitute parts can look different from the original.
$64.18
In Stock
Capacitor (25 Mf) W11245979
#5B

Hood parts diagram

Capacitor (25 mf)

Part #W11245979

Replaced by #W11715950

?
Manufacturer substitution
This part replaces W11245979. Substitute parts can look different from the original.
$68.11
In Stock
Range Hood Blower Fan W10350820
#8

Hood parts diagram

Range hood blower fan

Part #W10350820

Replaced by #WPW10350820

?
Manufacturer substitution
This part replaces W10350820. Substitute parts can look different from the original.
$407.24 |
$12.00 OFF Phone Price : $419.24
In Stock
Chimney, Upper And Lower W11354650
#3

Hood parts diagram

Chimney, upper and lower

Part #W11354650

The manufacturer no longer makes this part, and there's no substitute part
