Model # 229960260 Official Kenmore gas fixed steam boiler

Here are the diagrams and repair parts for Official Kenmore 229960260 gas fixed steam boiler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Burner 146-62-092
#7

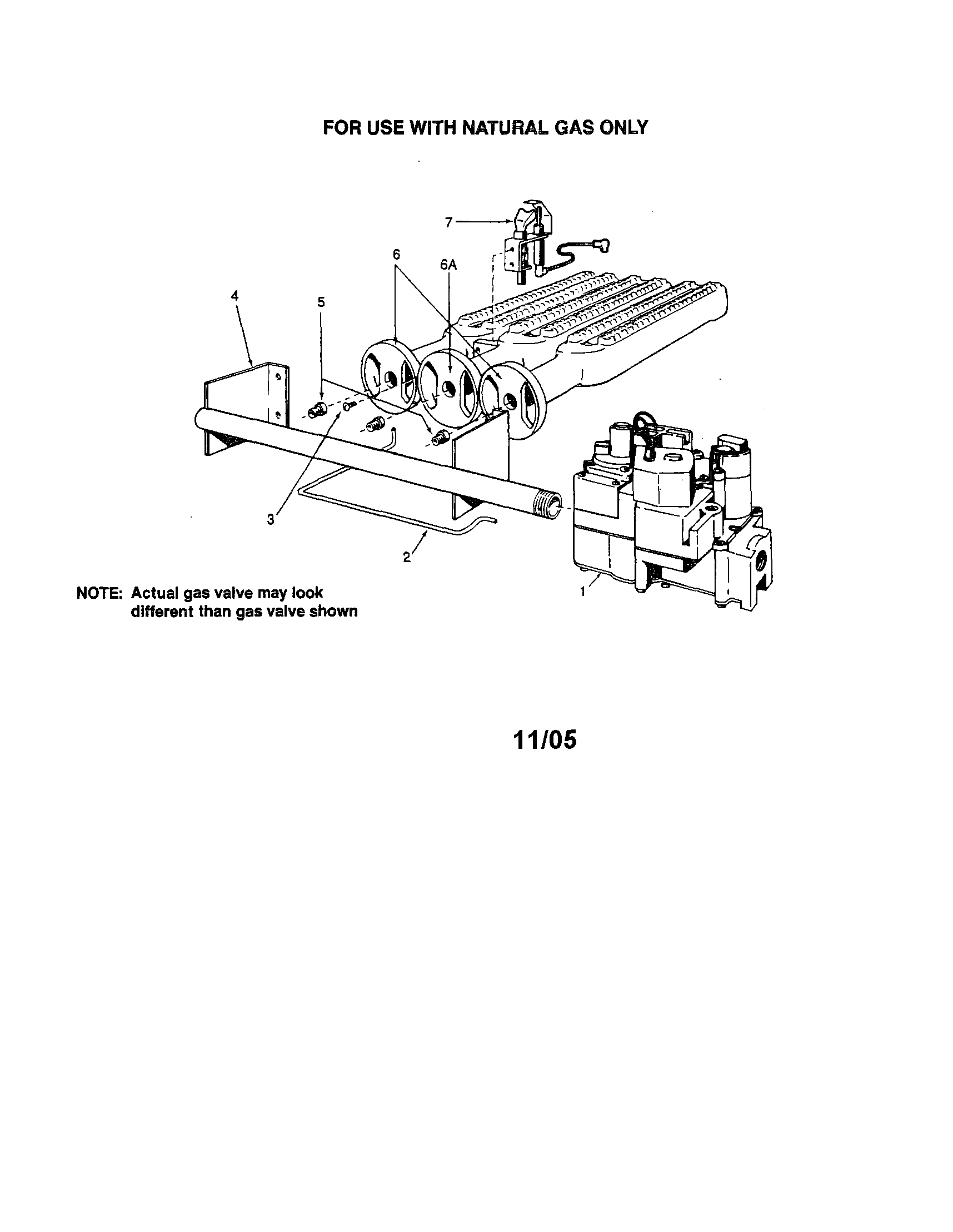

Gas burners/manifold parts diagram

Burner

Part #146-62-092

Replaced by #240011102

?
Manufacturer substitution
This part replaces 146-62-092. Substitute parts can look different from the original.
$62.99 |
9% OFF Phone Price : $68.99
In Stock
Water Feeder 146-26-040

#NI10

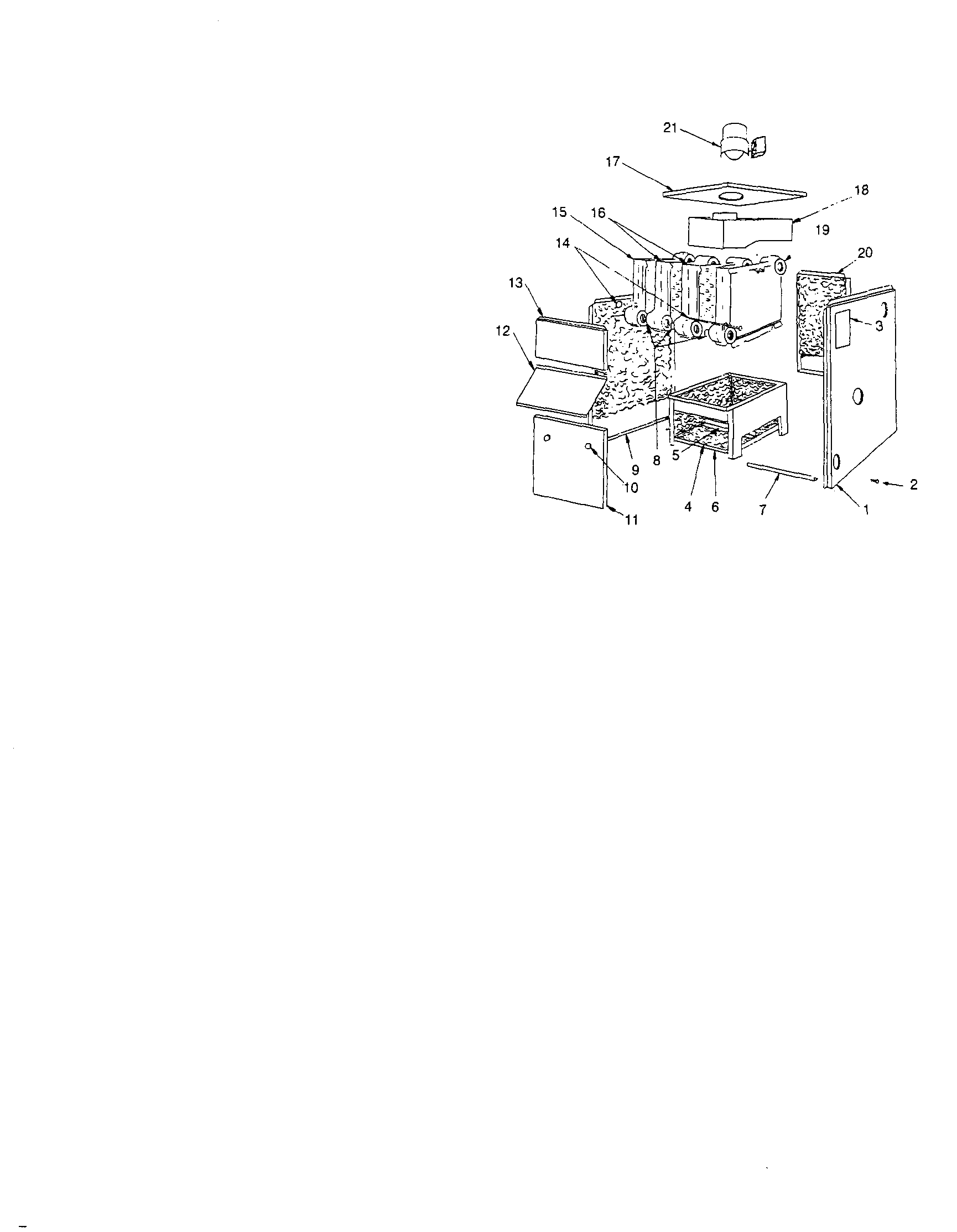

All parts diagram

Water feeder

Part #146-26-040

Replaced by #WFE-24V

?
Manufacturer substitution
This part replaces 146-26-040. Substitute parts can look different from the original.
$512.57 |
$12.00 OFF Phone Price : $524.57
In Stock
Drain Valve 146-22-001
#16A

Boiler controls/piping diagram

Drain valve

Part #146-22-001

Replaced by #31-606-04

?
Manufacturer substitution
This part replaces 146-22-001. Substitute parts can look different from the original.
$36.16
In Stock
Press Limit 146-62-015
#8

Boiler controls/piping diagram

Press limit

Part #146-62-015

Replaced by #PA404A1033

?
Manufacturer substitution
This part replaces 146-62-015. Substitute parts can look different from the original.
$312.53 |
$12.00 OFF Phone Price : $324.53
In Stock
Cut-off 146-26-042
#11A

Boiler controls/piping diagram

Cut-off

Part #146-26-042

Replaced by #67

?
Manufacturer substitution
This part replaces 146-26-042. Substitute parts can look different from the original.
$770.50
In Stock
Vent Damper 146-28-003
Vent damper

Part #146-28-003

Replaced by #FC46487201

?
Manufacturer substitution
This part replaces 146-28-003. Substitute parts can look different from the original.
$233.99
In Stock
Gas Valve 146-62-058
#1

Gas burners/manifold parts diagram

Gas valve

Part #146-62-058

The manufacturer no longer makes this part, and there's no substitute part

Spill Switch 146-60-002

#NI12

All parts diagram

Spill switch

Part #146-60-002

Replaced by #1500009

?
Manufacturer substitution
This part replaces 146-60-002. Substitute parts can look different from the original.
$19.09
In Stock
Relief 146-22-002
#1

Boiler controls/piping diagram

Relief

Part #146-22-002

Replaced by #1570001

?
Manufacturer substitution
This part replaces 146-22-002. Substitute parts can look different from the original.
$73.51
In Stock
Gas Valve 146-62-060
#1A

Gas burners/manifold parts diagram

Gas valve

Part #146-62-060

The manufacturer no longer makes this part, and there's no substitute part
