Frigidaire
Upright Freezer

Model # FFUH17F2NWB Official Frigidaire upright freezer

Here are the diagrams and repair parts for Official Frigidaire FFUH17F2NWB upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Dryer Filter 297396820
#4

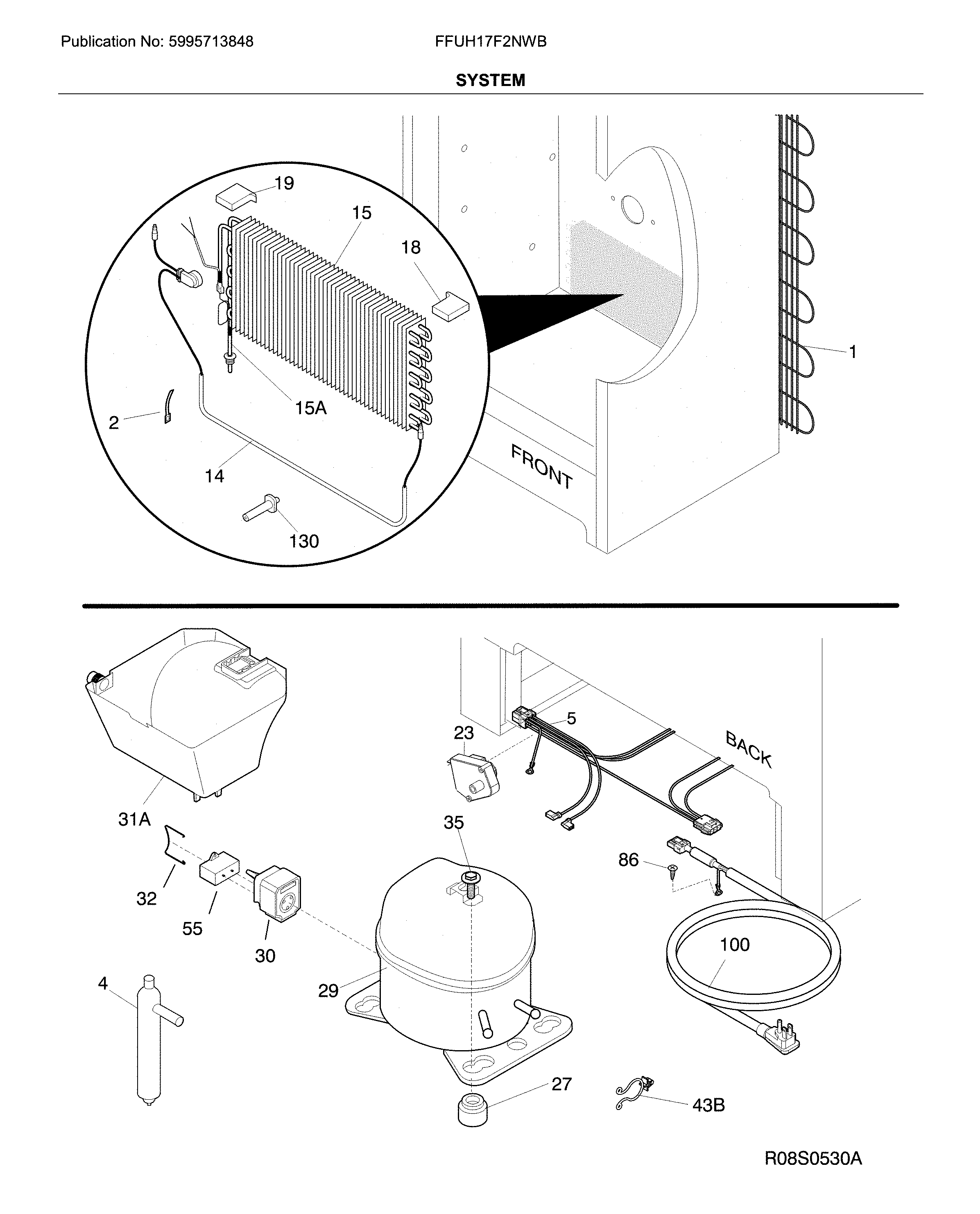

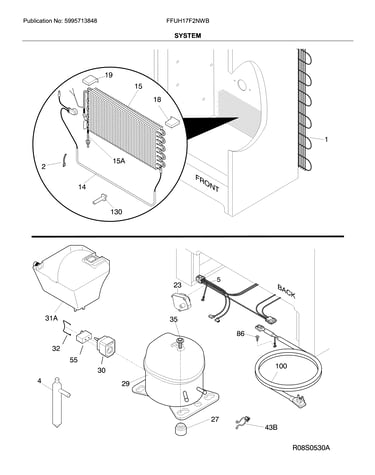

System diagram

Dryer filter

Part #297396820

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 297396820. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Crosley Freezer Evaporator (replaces 297414900) 297414901
#15

System diagram

Crosley freezer evaporator (replaces 297414900)

Part #297414901

BEST SELLER
$90.05 |
6% OFF Phone Price : $96.05
In Stock
White-westinghouse Freezer Heat Exchanger (replaces 5304504767, 5304506363, 7297217900) 297217900
#15A

System diagram

White-westinghouse freezer heat exchanger (replaces 5304504767, 5304506363, 7297217900)

Part #297217900

BEST SELLER
$60.21 |
9% OFF Phone Price : $66.21
In Stock
Blade 216325600
#5

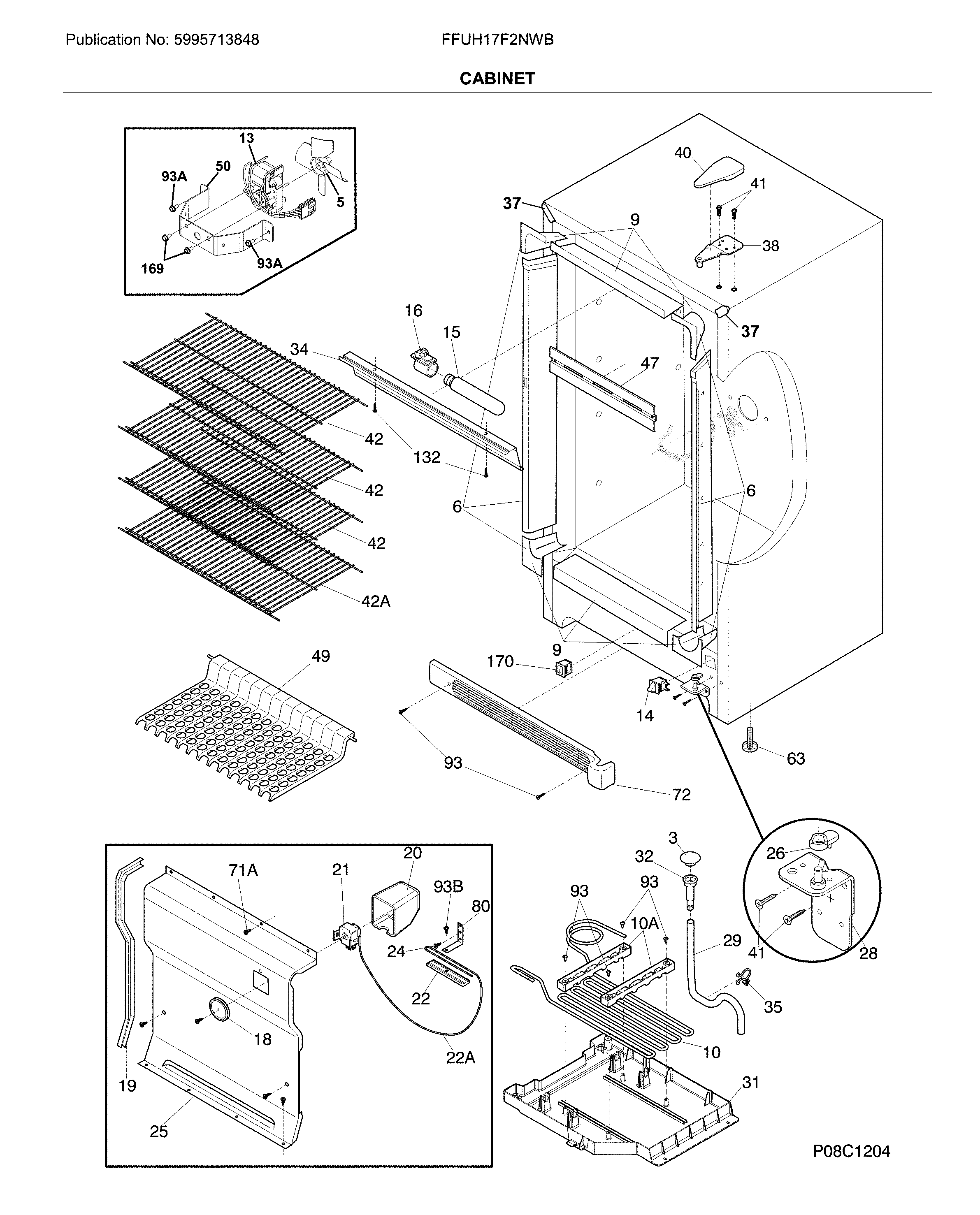

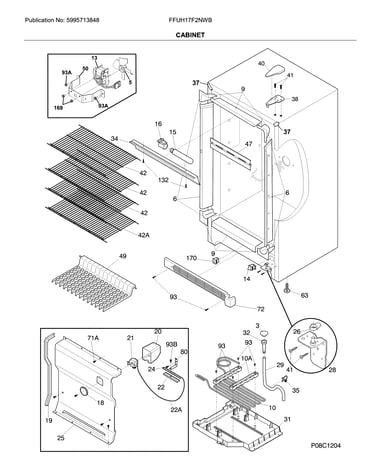

Cabinet diagram

Blade

Part #216325600

Replaced by #5308000010

?
Manufacturer substitution
This part replaces 216325600. Substitute parts can look different from the original.
BEST SELLER
$41.13 |
13% OFF Phone Price : $47.13
In Stock
Gibson Freezer Door Key (replaces 216702900, 7297147700) 297147700
#5

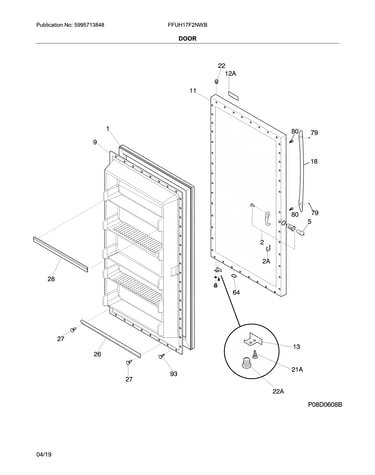

Door diagram

Gibson freezer door key (replaces 216702900, 7297147700)

Part #297147700

BEST SELLER
$9.07 |
10% OFF Phone Price : $10.07
In Stock
Freezer Defrost Timer 297318010
#23

System diagram

Freezer defrost timer

Part #297318010

Replaced by #5304518034

?
Manufacturer substitution
This part replaces 297318010. Substitute parts can look different from the original.
BEST SELLER
$43.79 |
12% OFF Phone Price : $49.79
In Stock
Freezer Door Gasket 216522359
#1

Door diagram

Freezer door gasket

Part #216522359

Replaced by #5304507200

?
Manufacturer substitution
This part replaces 216522359. Substitute parts can look different from the original.
BEST SELLER
$118.88 |
9% OFF Phone Price : $130.88
In Stock
White-westinghouse Freezer Defrost Heater (replaces A00958703) 5304496284
#14

System diagram

White-westinghouse freezer defrost heater (replaces a00958703)

Part #5304496284

BEST SELLER
$75.77 |
7% OFF Phone Price : $81.77
In Stock
Freezer Door Handle Set Screw, #10-32 X 3/8-in (replaces 218755406, 218755407, 218755409, 7218755402) 218755402
#79

Door diagram

Freezer door handle set screw, #10-32 x 3/8-in (replaces 218755406, 218755407, 218755409, 7218755402)

Part #218755402

BEST SELLER
This item is not returnable
$6.89 |
13% OFF Phone Price : $7.89
In Stock
Refrigerator Strap 5308000110
#2

System diagram

Refrigerator strap

Part #5308000110

BEST SELLER
$52.30 |
10% OFF Phone Price : $58.30
In Stock
