Model # LCE462AW1 Official Frigidaire 24" laundry center - 5995240230

Here are the diagrams and repair parts for Official Frigidaire LCE462AW1 24" laundry center - 5995240230, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

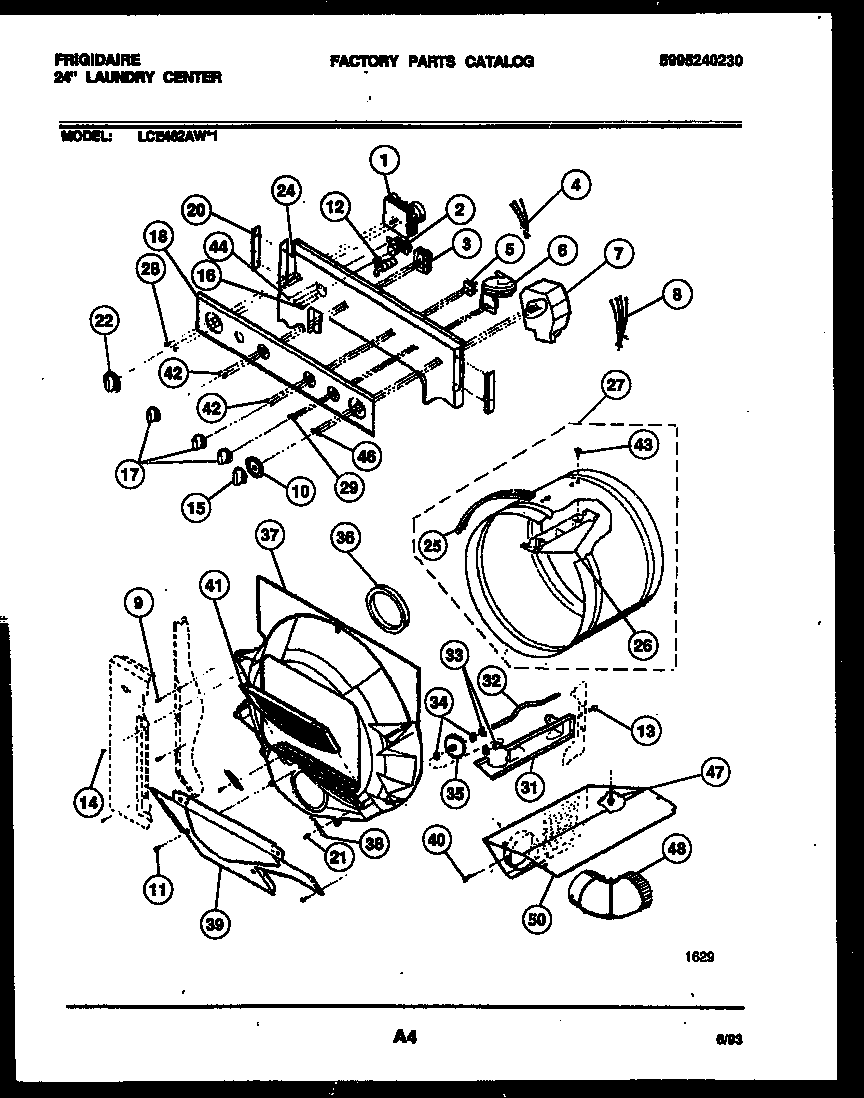

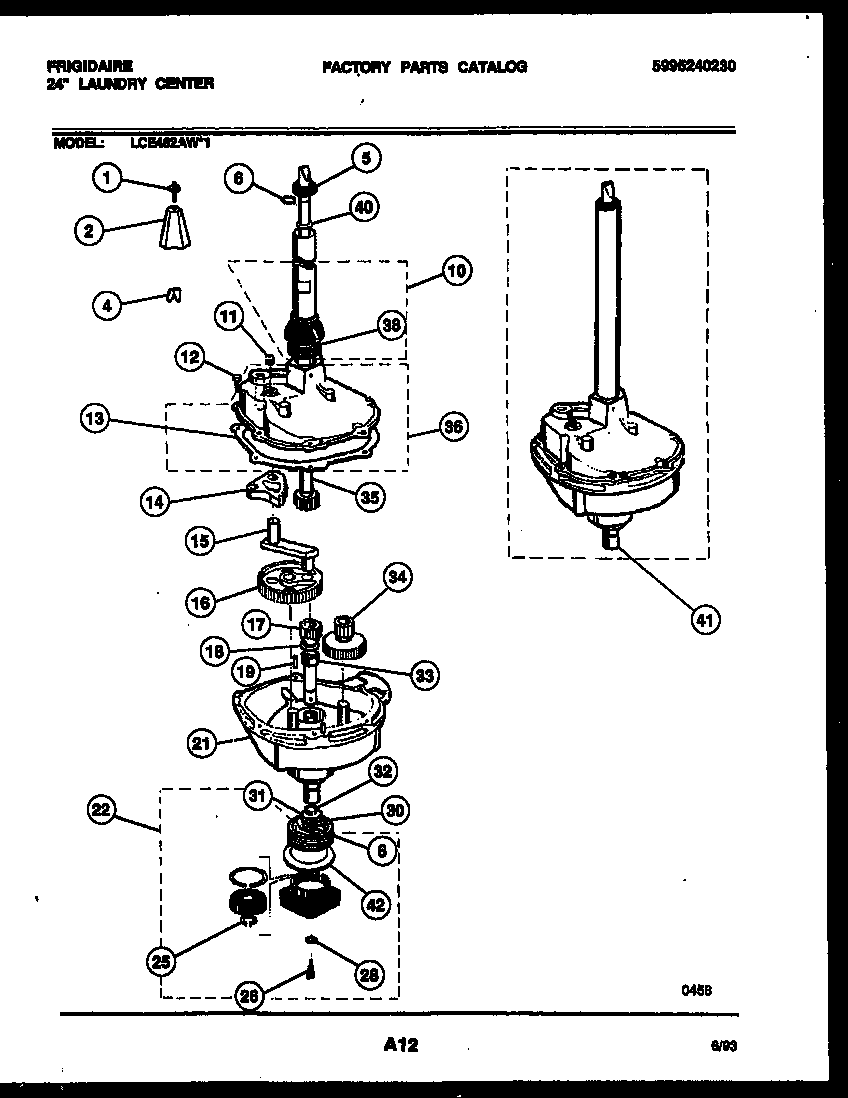

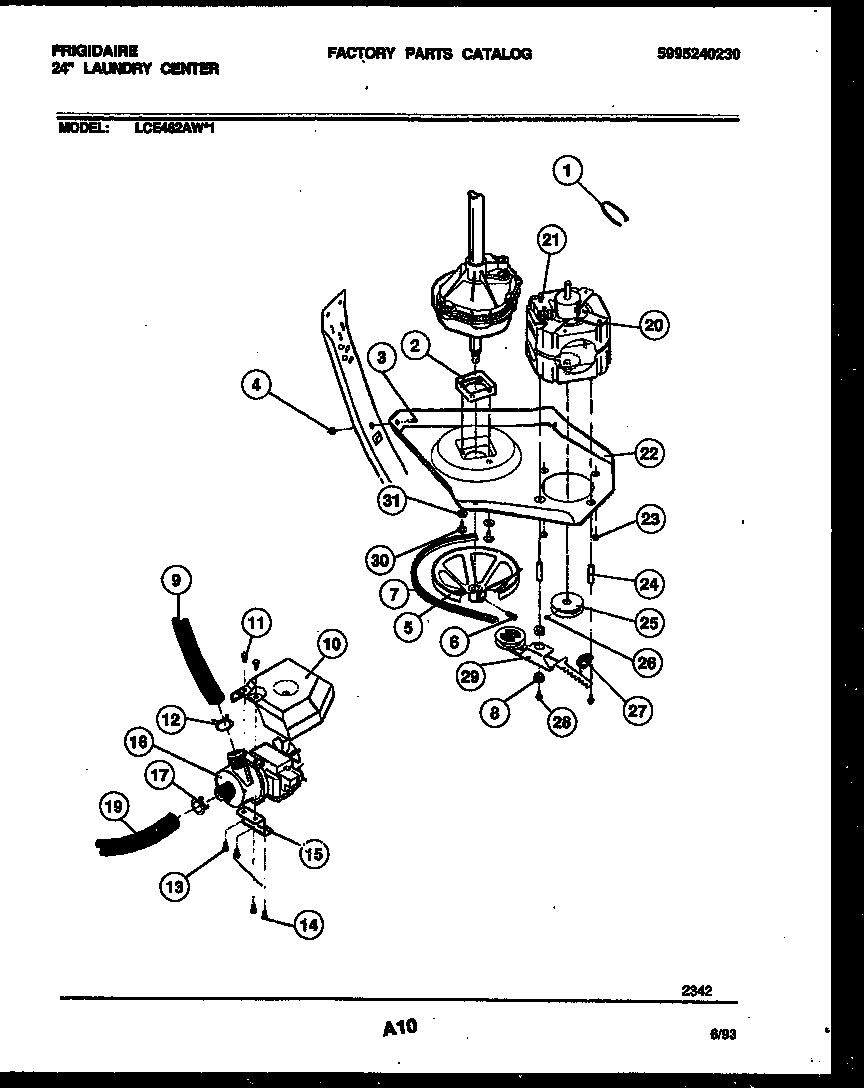

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 254 parts  |
Trunnion 5303283294
#15

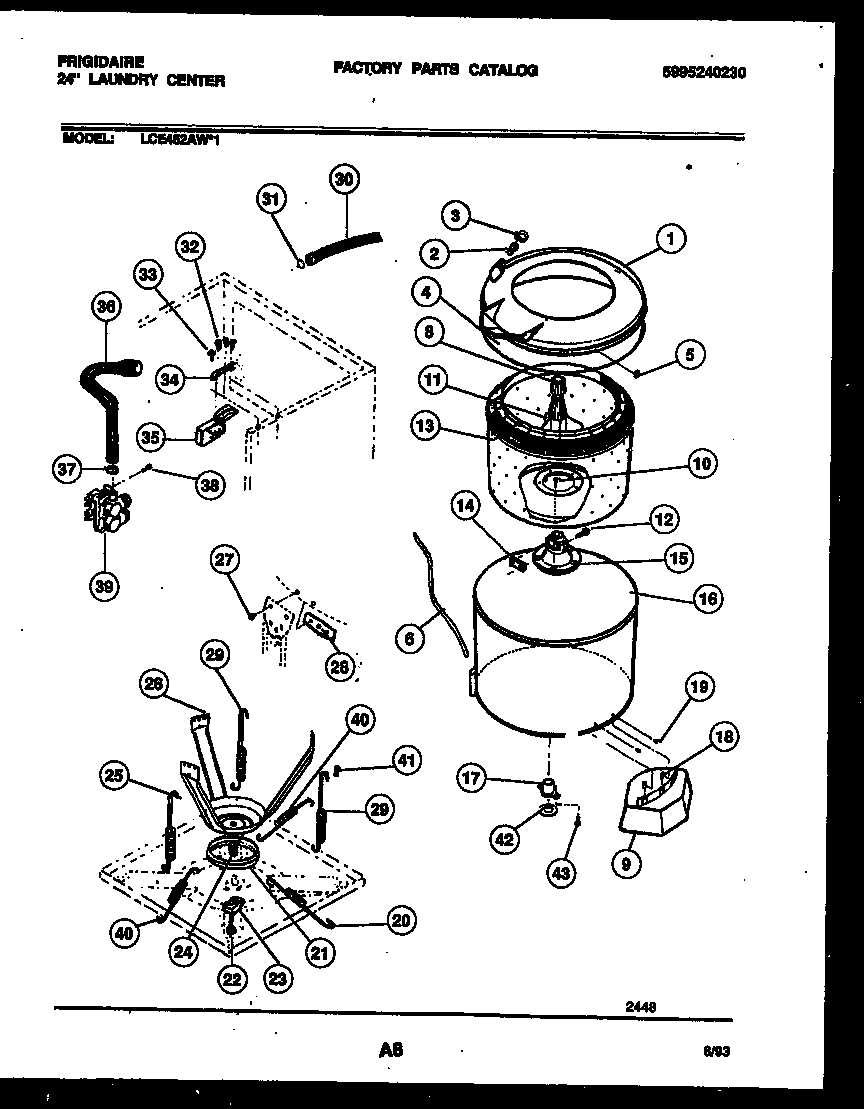

Tubs, water valve and lid switch diagram

Trunnion

Part #5303283294

Replaced by #131545101

?
Manufacturer substitution
This part replaces 5303283294. Substitute parts can look different from the original.
BEST SELLER
$102.42 |
10% OFF Phone Price : $114.42
In Stock
Lock Plate 5308001923
#14

Tubs, water valve and lid switch diagram

Lock plate

Part #5308001923

Replaced by #137107000

?
Manufacturer substitution
This part replaces 5308001923. Substitute parts can look different from the original.
BEST SELLER
$28.29 |
17% OFF Phone Price : $34.29
In Stock
Screw 5303207399
#42

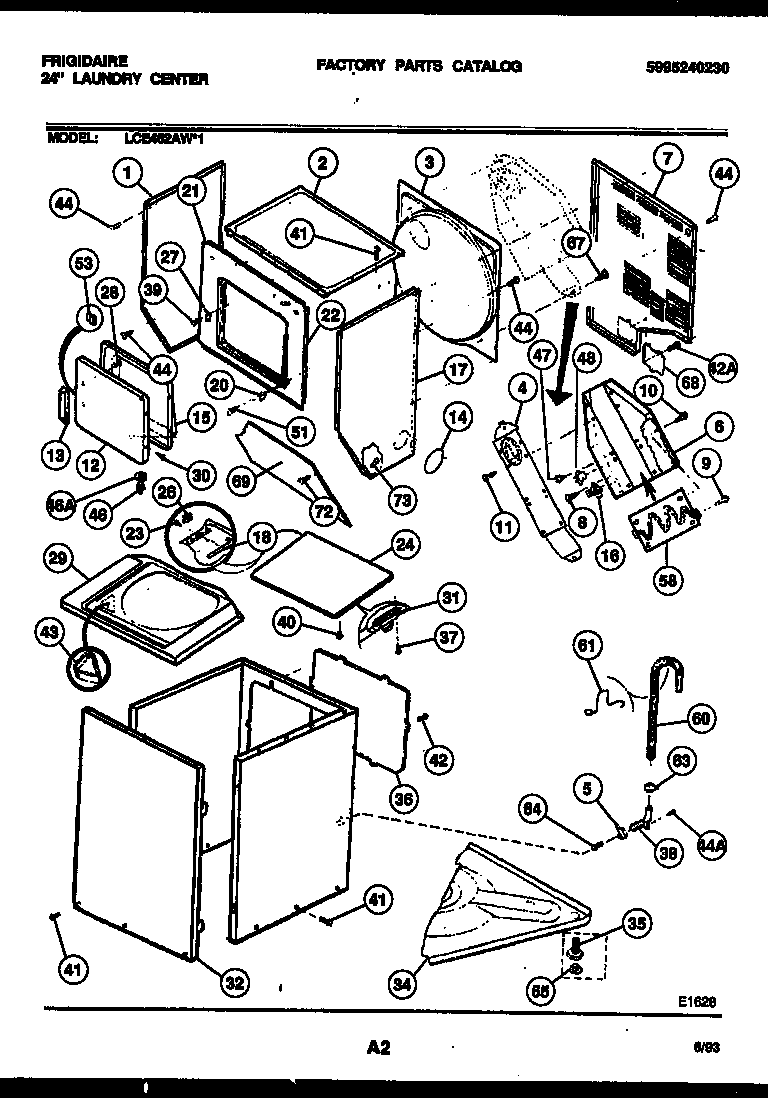

Cabinet parts and heater diagram

Screw

Part #5303207399

Replaced by #131302800

?
Manufacturer substitution
This part replaces 5303207399. Substitute parts can look different from the original.
BEST SELLER
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Washer Valve 5303207418
#39

Tubs, water valve and lid switch diagram

Washer valve

Part #5303207418

Replaced by #134190200

?
Manufacturer substitution
This part replaces 5303207418. Substitute parts can look different from the original.
$125.33 |
9% OFF Phone Price : $137.33
In Stock
Foot 5303272067
#35

Cabinet parts and heater diagram

Foot

Part #5303272067

Replaced by #134548800

?
Manufacturer substitution
This part replaces 5303272067. Substitute parts can look different from the original.
This item is not returnable
$14.57 |
12% OFF Phone Price : $16.57
In Stock
Screw 5303161244
Screw

Part #5303161244

Replaced by #131205100

?
Manufacturer substitution
This part replaces 5303161244. Substitute parts can look different from the original.
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Screw 5308006553
Screw

Part #5308006553

Replaced by #131205100

?
Manufacturer substitution
This part replaces 5308006553. Substitute parts can look different from the original.
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Hose 5303280320
#30

Tubs, water valve and lid switch diagram

Hose

Part #5303280320

Replaced by #5303912532

?
Manufacturer substitution
This part replaces 5303280320. Substitute parts can look different from the original.
$67.57 |
8% OFF Phone Price : $73.57
In Stock
Pressure Tube 5303294290
#47

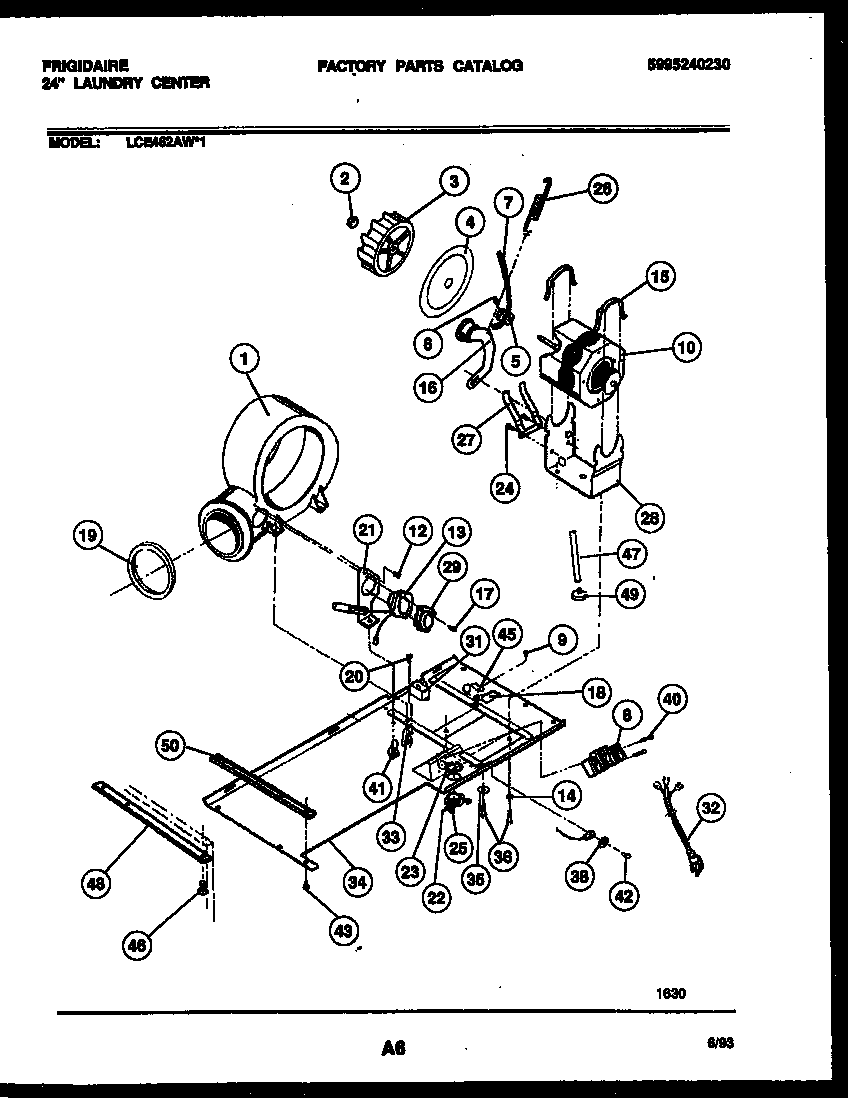

Dryer motor, blower and belt diagram

Pressure tube

Part #5303294290

Replaced by #5304401845

?
Manufacturer substitution
This part replaces 5303294290. Substitute parts can look different from the original.
$49.98 |
11% OFF Phone Price : $55.98
In Stock
Gibson Laundry Center Dryer Thermal Limiter 5303211472
#48

Cabinet parts and heater diagram

Gibson laundry center dryer thermal limiter

Part #5303211472

$54.51 |
10% OFF Phone Price : $60.51
In Stock
