Model # FUF20DUCRWW Official GE freezer - c series
Here are the diagrams and repair parts for Official GE FUF20DUCRWW freezer - c series, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
FUF20DUCRWW Freestanding Freezers
#740

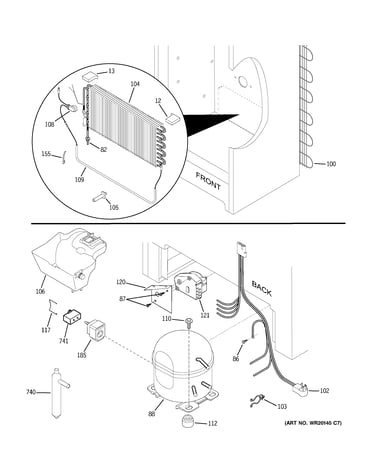

Unit parts diagram
Freezer dryer filter
Part #WR86X10044
Replaced by #WR86X25269
?
Manufacturer substitution
This part replaces WR86X10044. Substitute parts can look different from the original.
$78.01 |
7% OFF Phone Price : $84.01
In Stock
#8

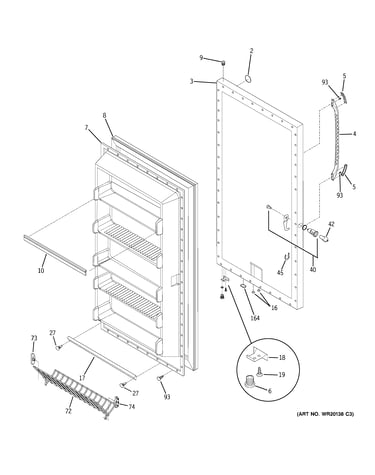

Door diagram
G.e. freezer door gasket
Part #WR24X10010
$234.70 |
5% OFF Phone Price : $246.70
In Stock
#43

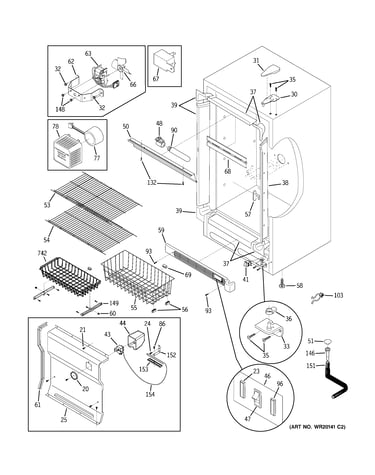

Cabinet diagram
Freezer temperature control thermostat
Part #WR09X10061
Replaced by #WR09X29511
?
Manufacturer substitution
This part replaces WR09X10061. Substitute parts can look different from the original.
$97.84 |
17% OFF Was : $118.50
Back Order
#58
Cabinet diagram
Adjustment foot
Part #WR02X9485
Replaced by #WR2X9485
?
Manufacturer substitution
This part replaces WR02X9485. Substitute parts can look different from the original.
$28.96 |
17% OFF Phone Price : $34.96
In Stock
#153
Cabinet diagram
Clamp capillary tube
Part #WR02X11441
$17.26
In Stock
#62
Cabinet diagram
Fan bracket
Part #WR02X12686
$22.42
In Stock
#148
Cabinet diagram
Hex washer head screw
Part #WR01X10798
$24.44
In Stock
#100
Unit parts diagram
Condenser
Part #WR84X5007
$213.20
In Stock
#155
Unit parts diagram
Strap-evap/h
Part #WR02X11458
$77.52 |
7% OFF Phone Price : $83.52
In Stock
#41
Cabinet diagram
Freezer door switch
Part #WR23X10303
$69.85 |
8% OFF Phone Price : $75.85
In Stock
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
