Model # GSD830X-72WW Official GE dishwasher
Here are the diagrams and repair parts for Official GE GSD830X-72WW dishwasher, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
GSD830X-72WW Dishwasher
#310

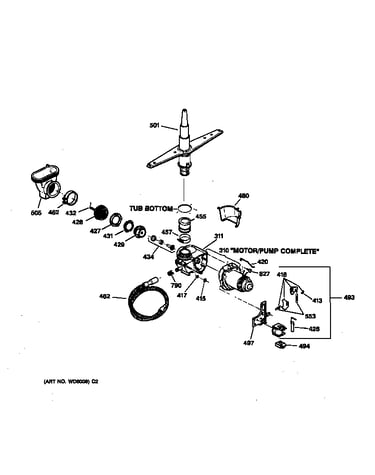

Motor-pump mechanism diagram
Motor
Part #WD26X81
Replaced by #WD26X10013
?
Manufacturer substitution
This part replaces WD26X81. Substitute parts can look different from the original.
$174.38 |
6% OFF Phone Price : $186.38
In Stock
#701

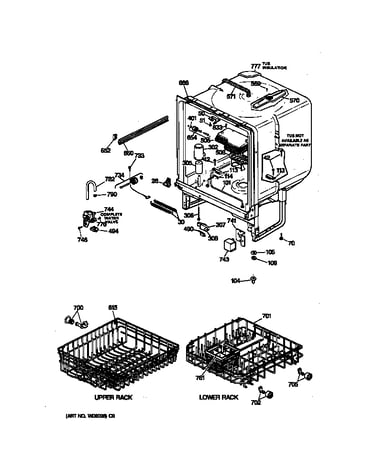

Body parts diagram
Rack roller
Part #WD28X305
Replaced by #WD28X31819
?
Manufacturer substitution
This part replaces WD28X305. Substitute parts can look different from the original.
$119.02 |
9% OFF Phone Price : $131.02
Back Order
#26A
Body parts diagram
Dishwasher tub corner baffle, right (replaces wd08x0227, wd8x196)
Part #WD8X227
$21.40 |
22% OFF Phone Price : $27.40
In Stock
#426
Motor-pump mechanism diagram
Dishwasher drain solenoid link (replaces wd01x1316)
Part #WD1X1316
$30.07 |
17% OFF Phone Price : $36.07
In Stock
#26B
Body parts diagram
Dishwasher tub corner baffle, left (replaces wd08x0228, wd8x195)
Part #WD8X228
$20.28 |
23% OFF Phone Price : $26.28
In Stock
#803

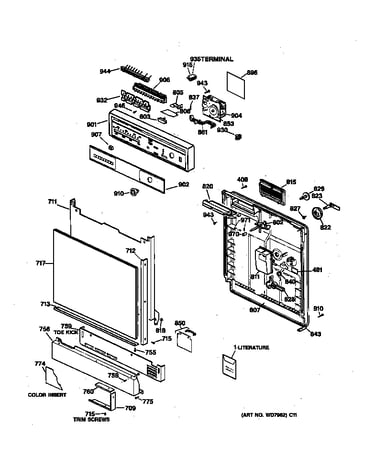

Escutcheon & door assembly diagram
Interlock
Part #WD21X557
Replaced by #WD21X10261
?
Manufacturer substitution
This part replaces WD21X557. Substitute parts can look different from the original.
$21.69 |
22% OFF Phone Price : $27.69
In Stock
#829
Escutcheon & door assembly diagram
Dishwasher rinse-aid dispenser cap
Part #WD12X409
Replaced by #WD12X24238
?
Manufacturer substitution
This part replaces WD12X409. Substitute parts can look different from the original.
This item is not returnable
$8.46 |
11% OFF Phone Price : $9.46
In Stock
#462
Motor-pump mechanism diagram
Drain tube
Part #WD24X219
Replaced by #WD24X10014
?
Manufacturer substitution
This part replaces WD24X219. Substitute parts can look different from the original.
$30.06 |
17% OFF Phone Price : $36.06
In Stock
#104
Body parts diagram
Nut twr h
Part #WD1X1491
Replaced by #WD01X10070
?
Manufacturer substitution
This part replaces WD1X1491. Substitute parts can look different from the original.
This item is not returnable
$8.67 |
10% OFF Phone Price : $9.67
In Stock
#501
Motor-pump mechanism diagram
Dishwasher spray arm (replaces wd22x0154, wd22x139, wd22x148)
Part #WD22X154
$24.71 |
20% OFF Phone Price : $30.71
In Stock
