Murray
Front-Engine Lawn Tractor

Model # 42583X9A Official Murray tractor

Here are the diagrams and repair parts for Official Murray 42583X9A tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

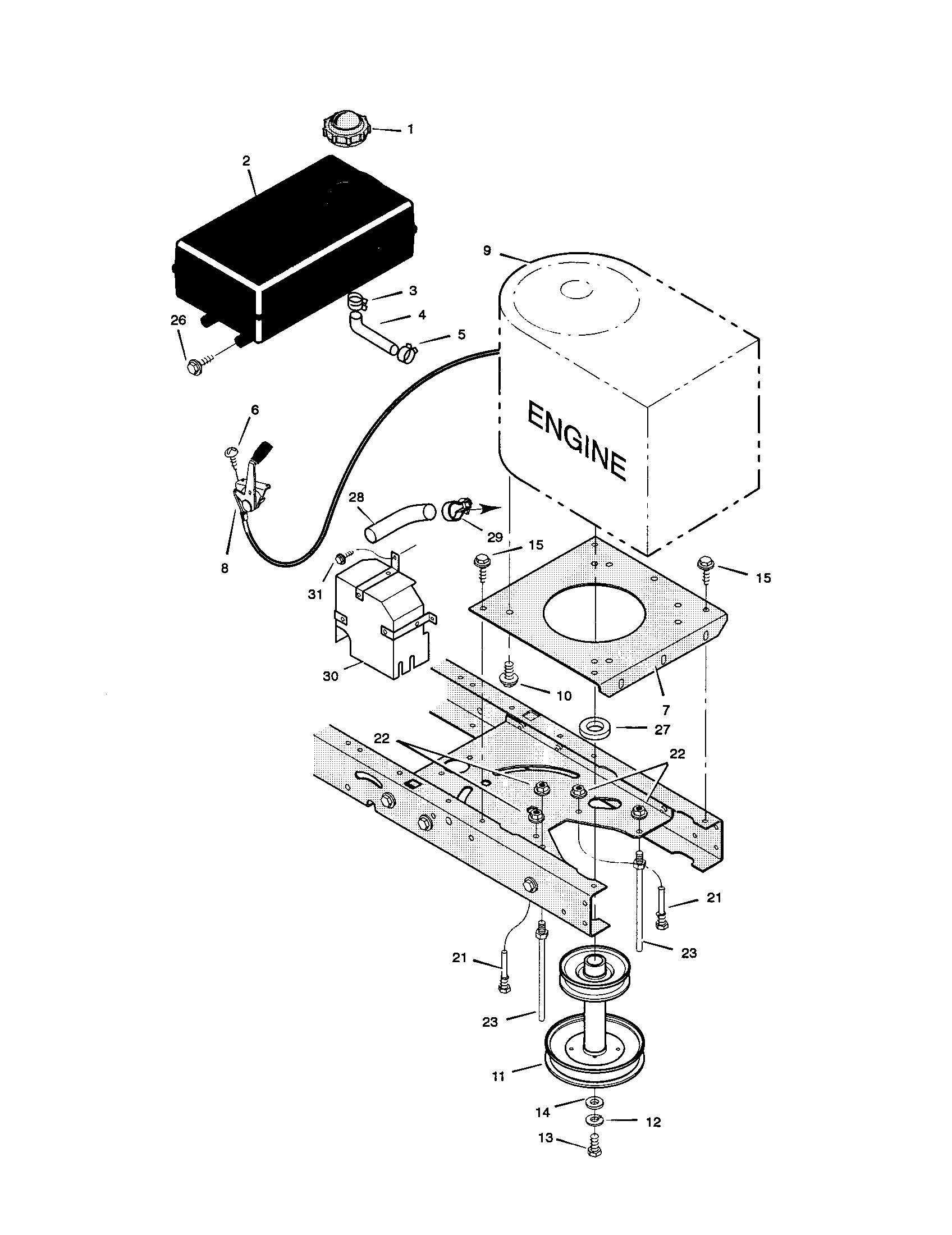

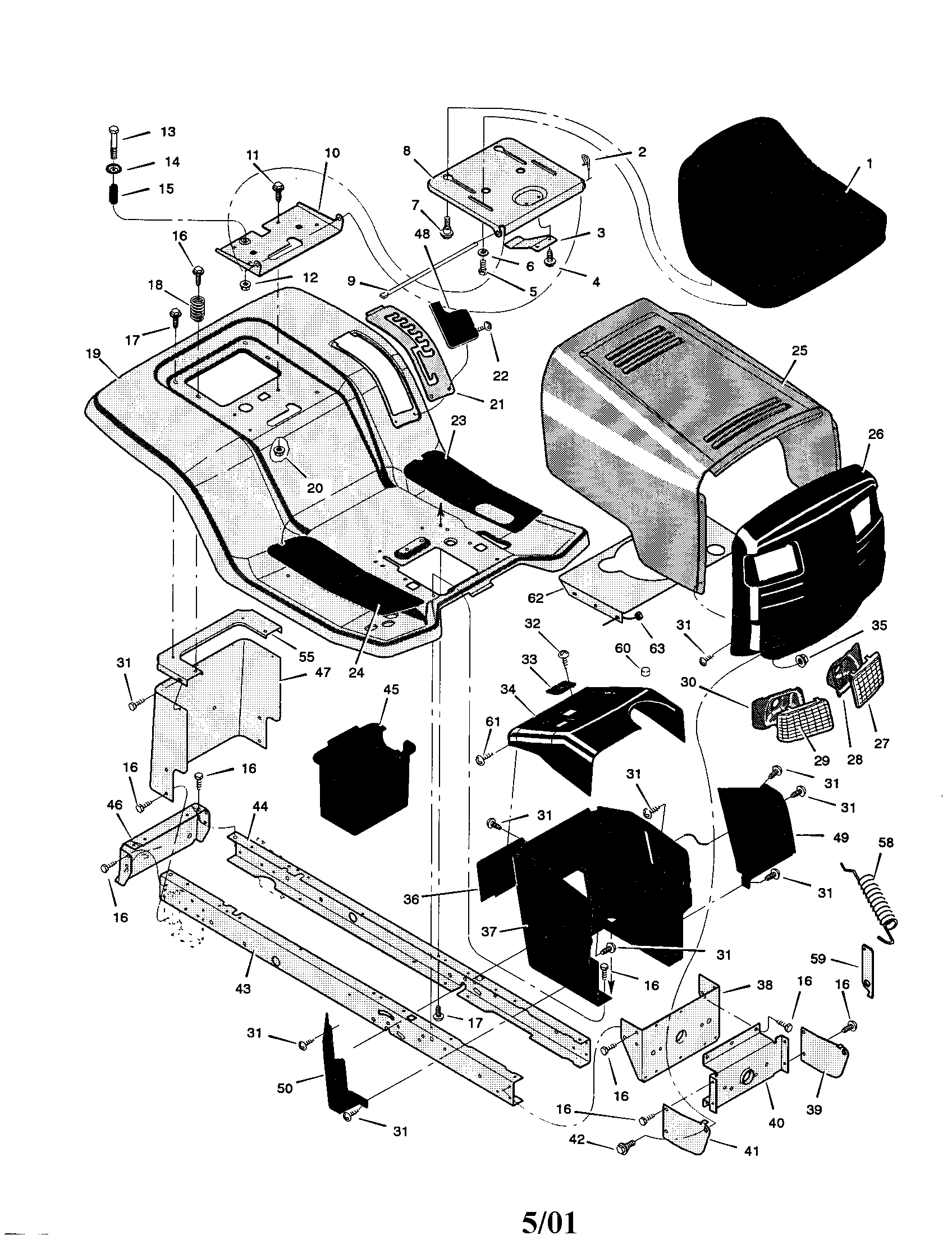

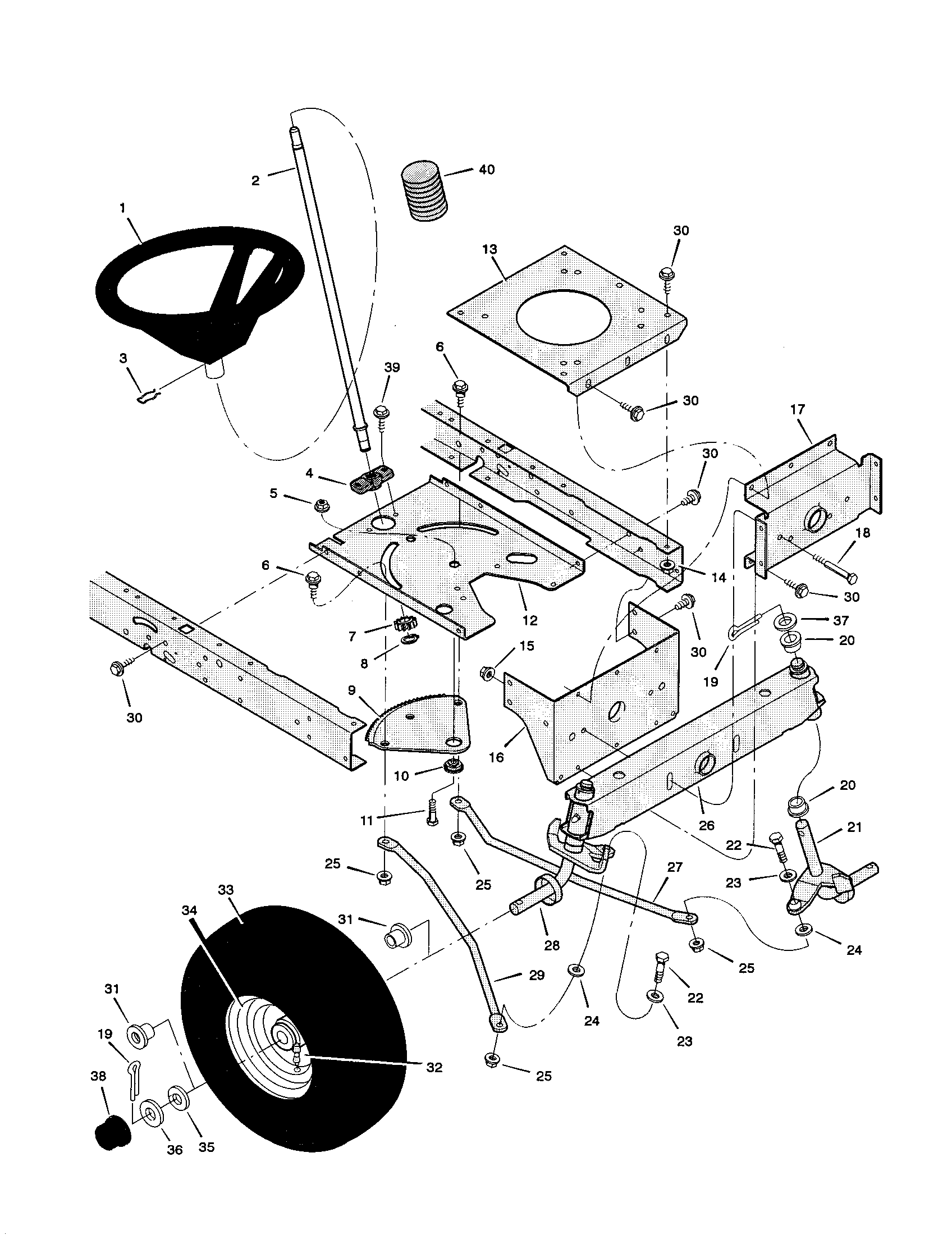

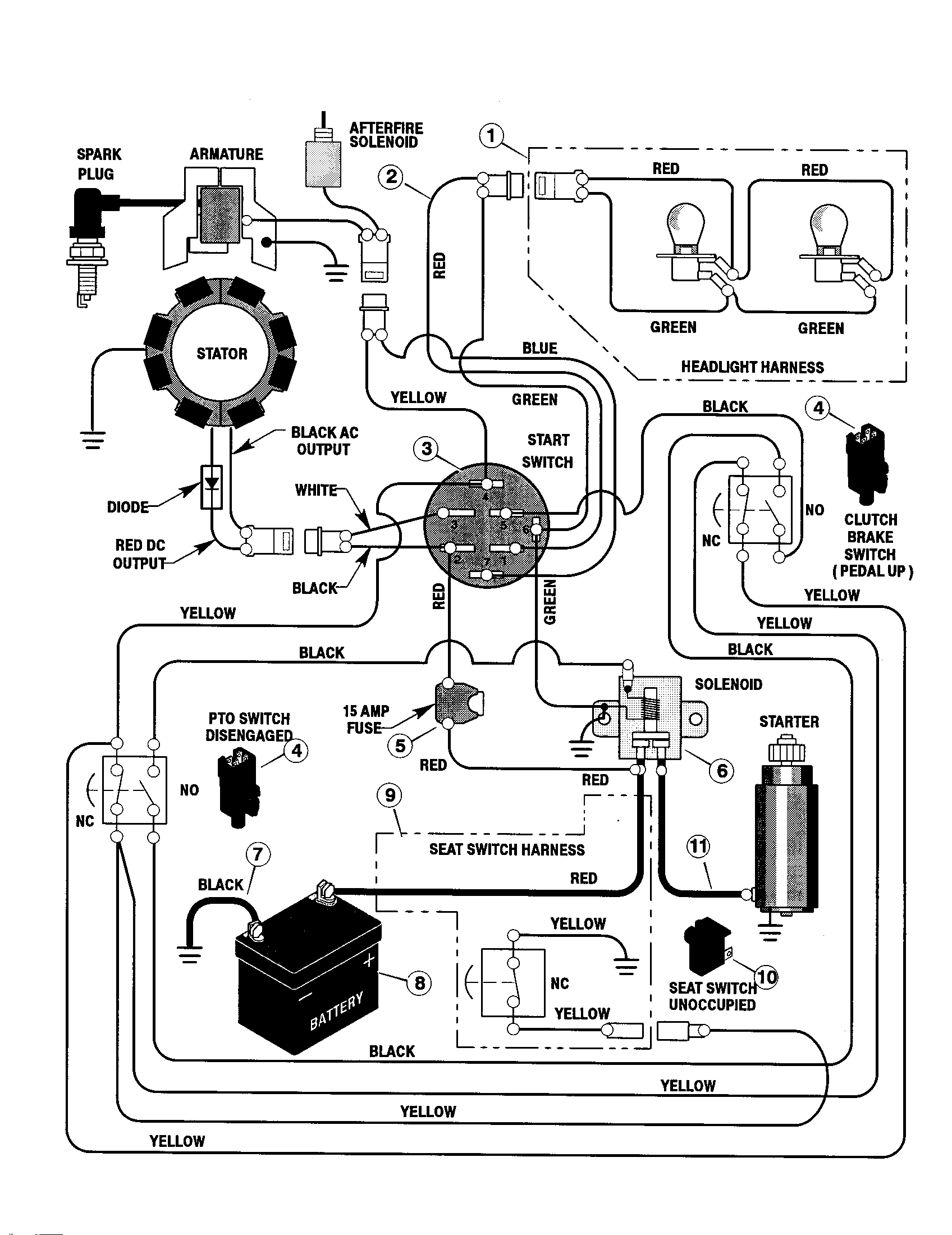

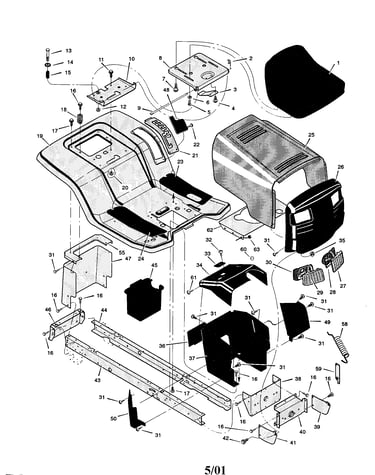

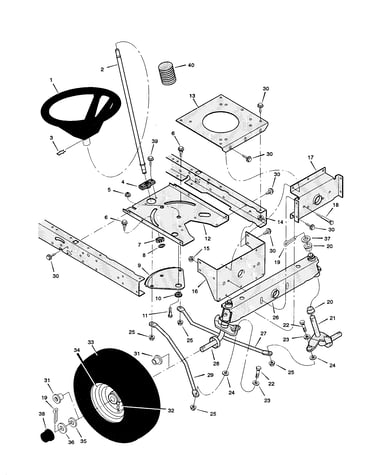

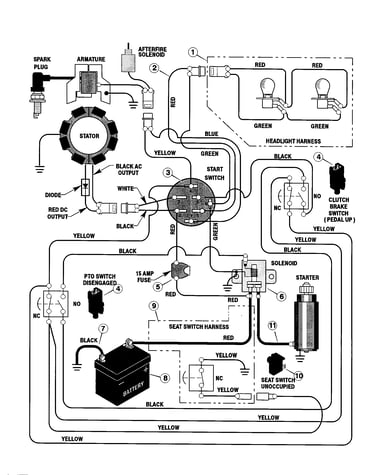

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 272 parts  |
Nut 15X116
Nut

Part #15X116

Replaced by #703232

?
Manufacturer substitution
This part replaces 15X116. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
Extension Spring 165X112
#44

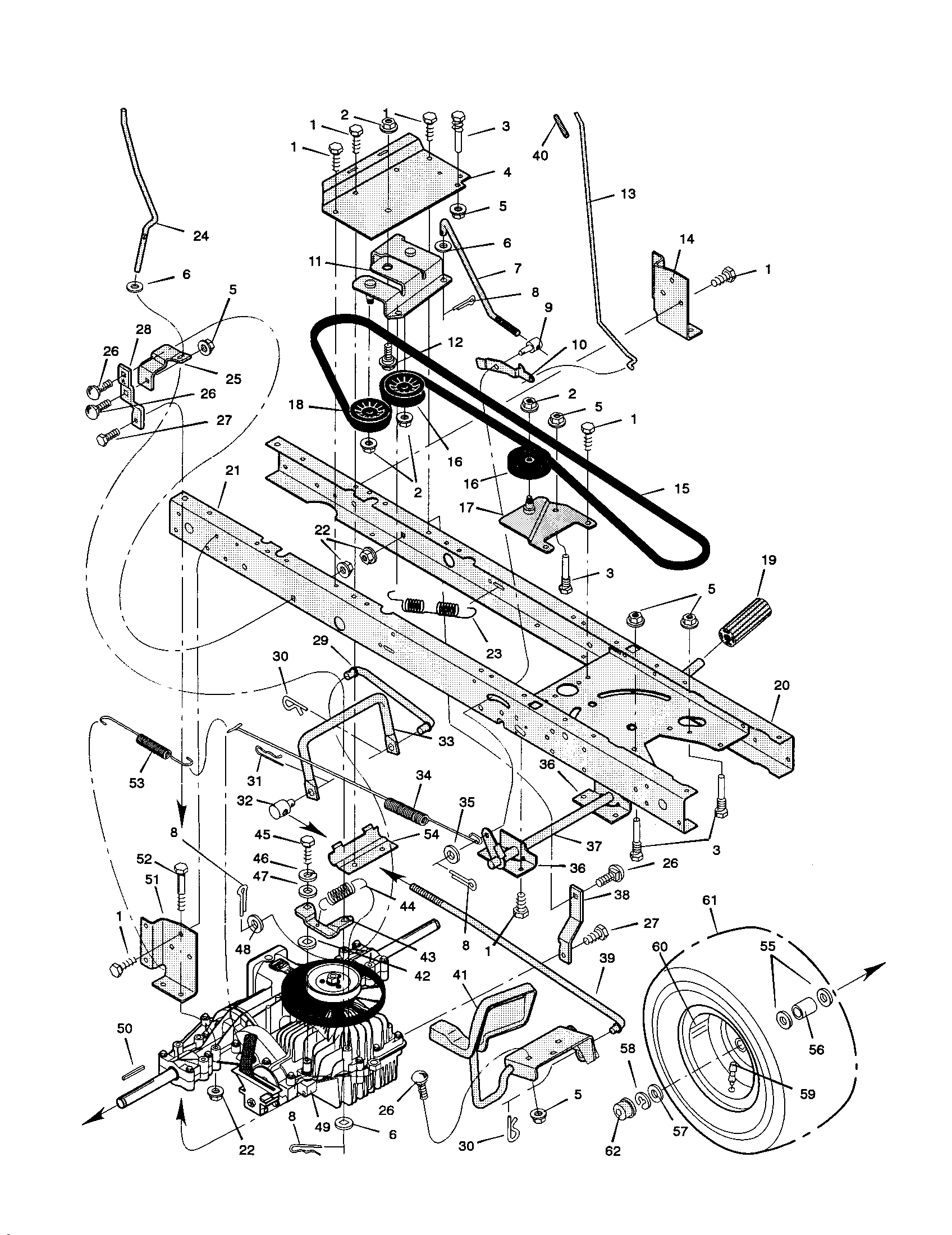

Motion drive diagram

Extension spring

Part #165X112

Replaced by #1736469YP

?
Manufacturer substitution
This part replaces 165X112. Substitute parts can look different from the original.
$11.89 |
14% OFF Phone Price : $13.89
In Stock
Hairpin Pin 31X4
Hairpin pin

Part #31X4

Replaced by #703300

?
Manufacturer substitution
This part replaces 31X4. Substitute parts can look different from the original.
This item is not returnable
$6.69 |
13% OFF Phone Price : $7.69
In Stock
Flange Nut 15X79
Flange nut

Part #15X79

Replaced by #703409

?
Manufacturer substitution
This part replaces 15X79. Substitute parts can look different from the original.
$9.27 |
10% OFF Phone Price : $10.27
In Stock
Hairpin Pin 31X6
#31

Motion drive diagram

Hairpin pin

Part #31X6

Replaced by #703300

?
Manufacturer substitution
This part replaces 31X6. Substitute parts can look different from the original.
This item is not returnable
$6.69 |
13% OFF Phone Price : $7.69
In Stock
Idler Pulley 91178
#18

Motion drive diagram

Idler pulley

Part #91178

Replaced by #420613MA

?
Manufacturer substitution
This part replaces 91178. Substitute parts can look different from the original.
This item is not returnable
$25.18 |
19% OFF Phone Price : $31.18
In Stock
Threaded Pin 94067
#30

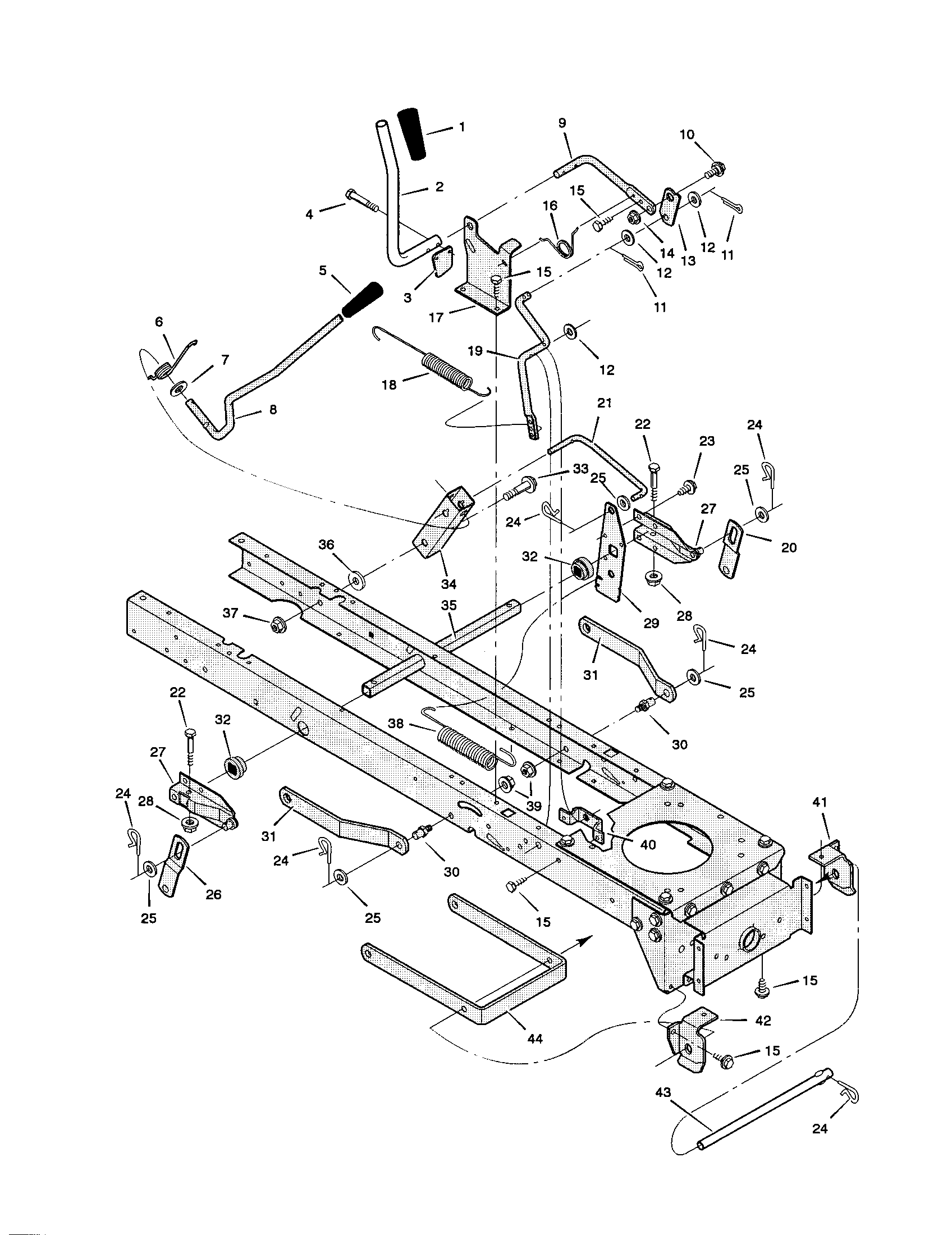

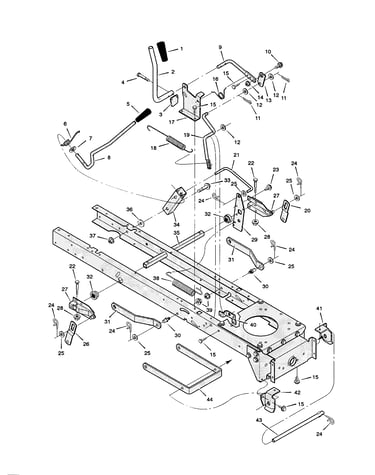

Mower housing suspension diagram

Threaded pin

Part #94067

Replaced by #704054

?
Manufacturer substitution
This part replaces 94067. Substitute parts can look different from the original.
This item is not returnable
$12.09 |
14% OFF Phone Price : $14.09
In Stock
Splined Shaft 94129
#6

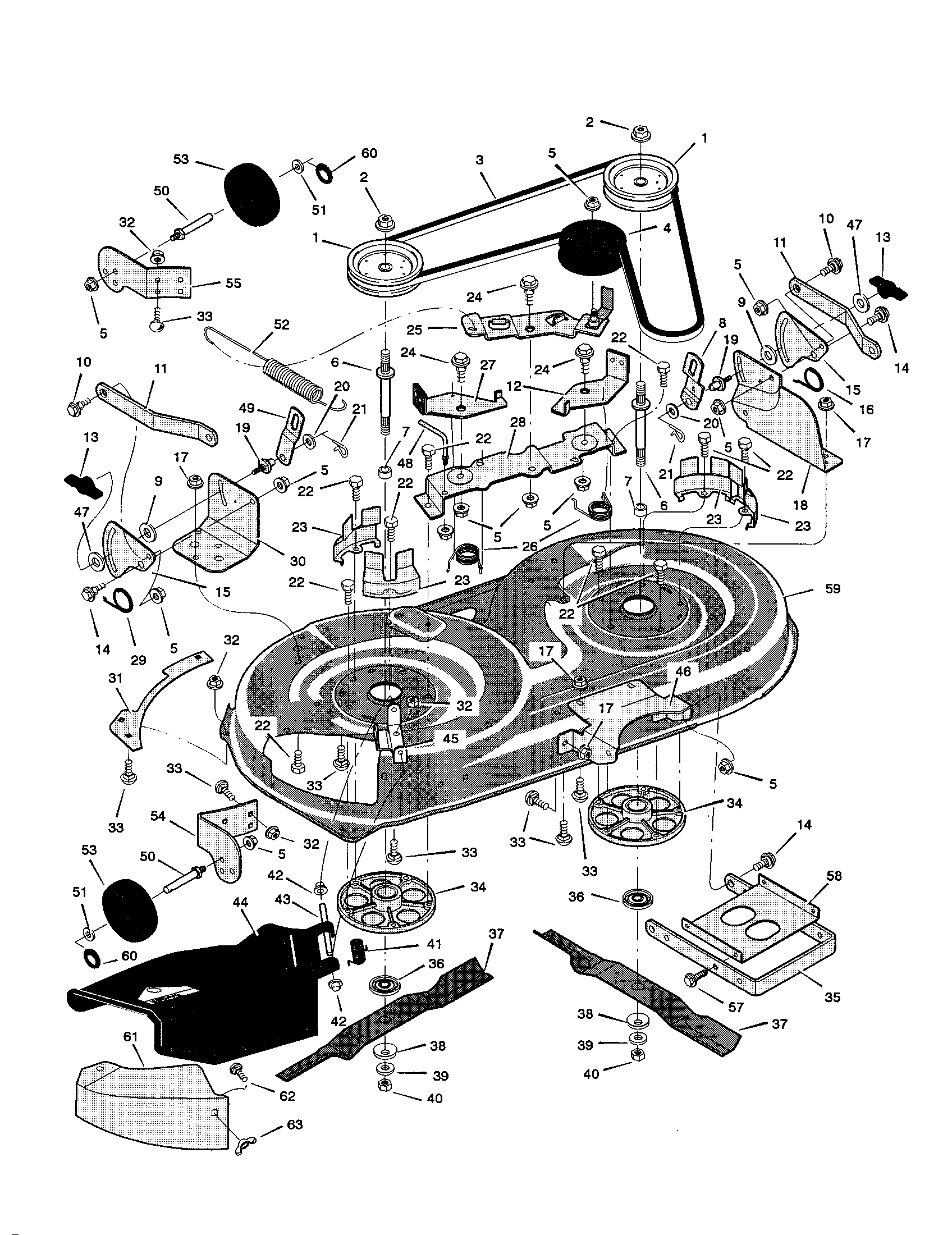

Mower housing diagram

Splined shaft

Part #94129

Replaced by #774091MA

?
Manufacturer substitution
This part replaces 94129. Substitute parts can look different from the original.
$29.18
In Stock
Flat Washer 17X195
Flat washer

Part #17X195

Replaced by #17X195MA

?
Manufacturer substitution
This part replaces 17X195. Substitute parts can look different from the original.
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Bolt 25X7
Bolt

Part #25X7

Replaced by #2828635SM

?
Manufacturer substitution
This part replaces 25X7. Substitute parts can look different from the original.
This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
