Model # VBXR2070V1WW Official Hotpoint washer
Here are the diagrams and repair parts for Official Hotpoint VBXR2070V1WW washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
VBXR2070V1WW Washer
#655

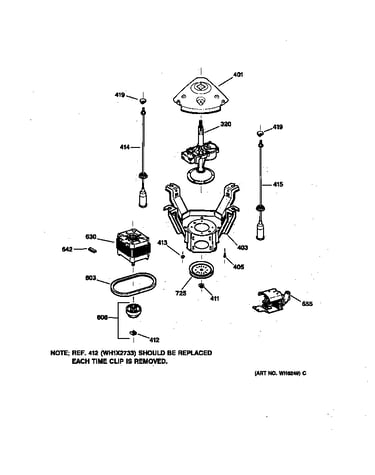

Suspension, pump & drive components diagram
Pump bracket label
Part #WH23X91
Replaced by #WH23X10030
?
Manufacturer substitution
This part replaces WH23X91. Substitute parts can look different from the original.
$58.79 |
9% OFF Phone Price : $64.79
In Stock
#370

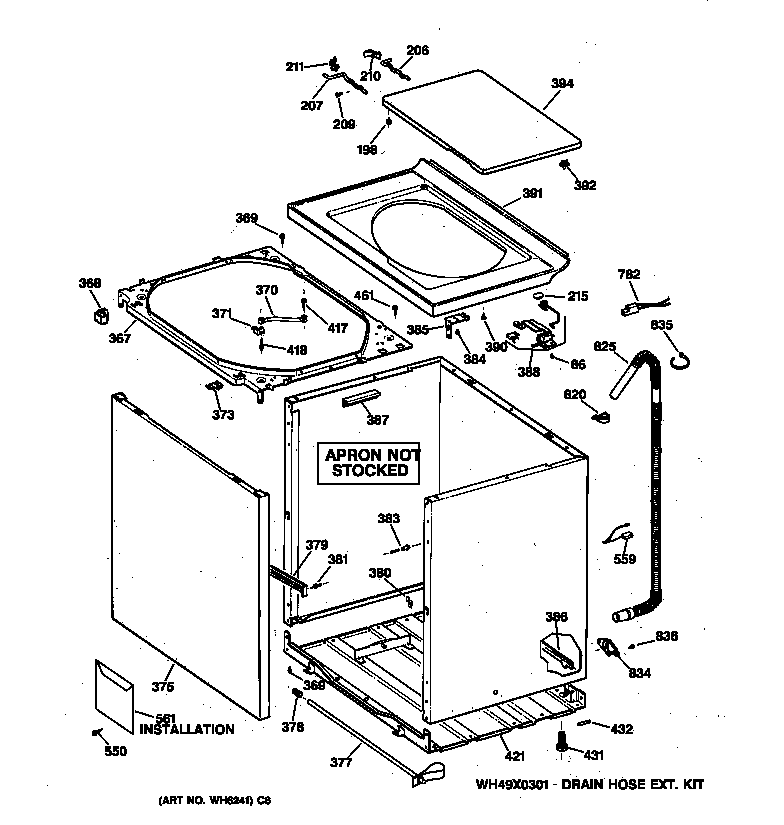

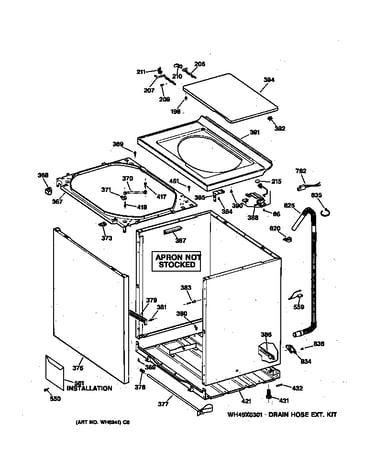

Cabinet, cover & front panel diagram
Washer dampening strap (replaces wh01x2727)
Part #WH1X2727
$30.67 |
16% OFF Phone Price : $36.67
In Stock
#415
Suspension, pump & drive components diagram
Washer suspension rod kit (replaces wh16x0543)
Part #WH16X543
$33.98 |
15% OFF Phone Price : $39.98
Back Order
#304

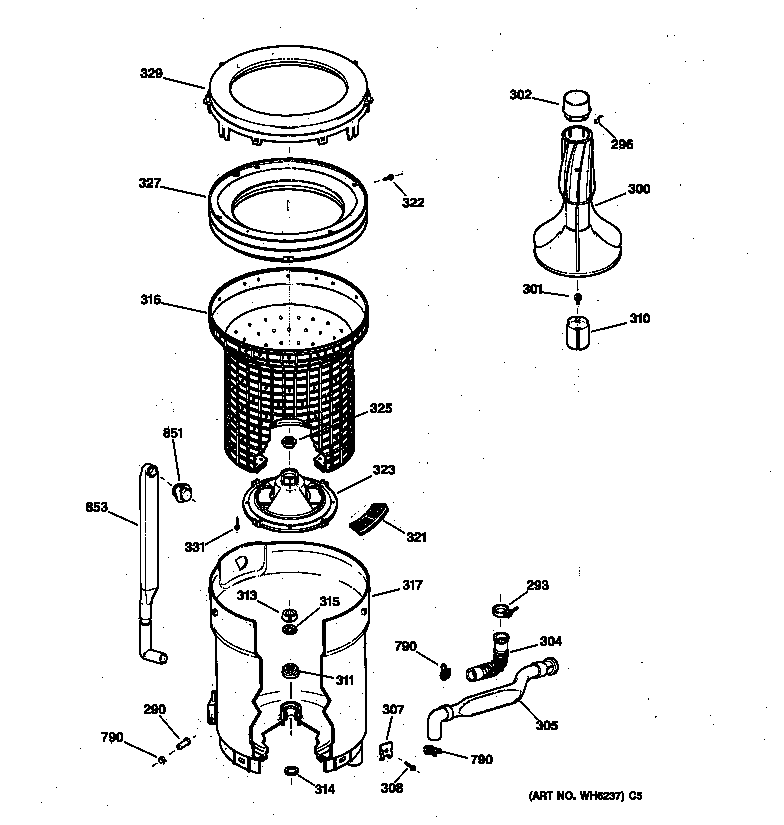

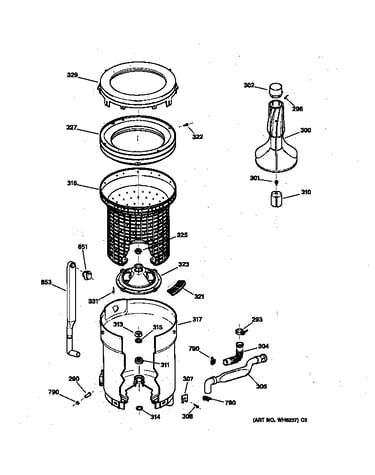

Tub, basket & agitator diagram
Washer tub-to-pump hose
Part #WH41X371
Replaced by #WH41X22935
?
Manufacturer substitution
This part replaces WH41X371. Substitute parts can look different from the original.
This item is not returnable
$15.53 |
11% OFF Phone Price : $17.53
In Stock
Washer hose clamp kit
Part #WH1X2036
$11.59 |
15% OFF Phone Price : $13.59
In Stock
#91

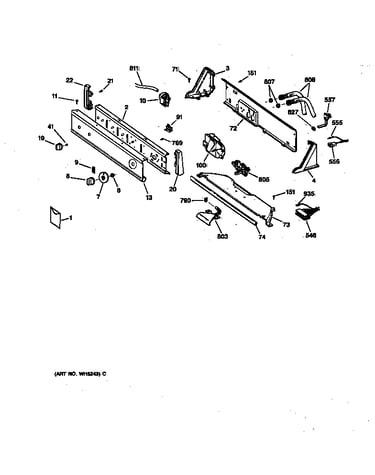

Controls & backsplash diagram
Sw rotary
Part #WH12X999
Replaced by #WH12X10498
?
Manufacturer substitution
This part replaces WH12X999. Substitute parts can look different from the original.
This item is not returnable
$20.74 |
22% OFF Phone Price : $26.74
In Stock
#302
Tub, basket & agitator diagram
Washer agitator cap
Part #WH43X10005
$31.48
In Stock
#369
Cabinet, cover & front panel diagram
Laundry center screw
Part #WH2X1217
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
#820
Cabinet, cover & front panel diagram
Washer drain hose support clip (replaces wh01x2725)
Part #WH1X2725
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
#630
Suspension, pump & drive components diagram
Motor asm 2
Part #WH20X10004
Replaced by #WH49X10035
?
Manufacturer substitution
This part replaces WH20X10004. Substitute parts can look different from the original.
$517.06
In Stock
